Stainless Fabrication Inc Tank Processors 100 GALLON

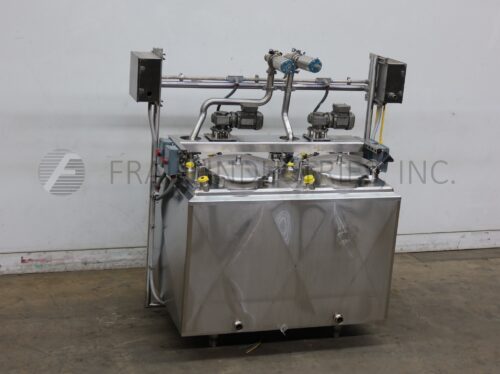

Back to All EquipmentStainless Fabrication Inc, 100 Gallon Dual Compartment, 316 stainless steel, insulated flavor tank. Each chamber is 100 gallons with inner dimension of 28" x 34" x 33" Deep. Equipped with lift up covers, 16" diameter manway, top mounted prop agitation powered by ½ Hp motor drive and CIP spray balls supplied by 2½"OD / 2"ID Tri-Clamp fittings. Slant bottom has 2½" OD / 2" ID Tri-Clamp side bottom discharge with 8" floor clearance.
Rectangle construction provides maximum capacity in small floor area.
Top Access Ports (Left Compartment)
(1) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
Top Access Ports (Right Compartment)
(2) 4½"OD / 4"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp
OAD: 81"L x 48"W x 81"H
