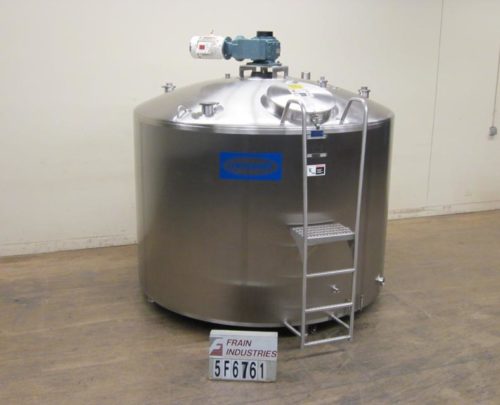

Walker Tank SS Single Wall 1600 GALLON

  Back to All Equipment

Walker, 1600 gallon, 316 stainless steel single wall, mixing tank. Vessel dimmensions: 84" ID x 68" straight wall. dome top with 22" ID man way with lift off cover, bridge mounted side and bottom sweep agitation, stationary baffle, CIP spray ball and (3) 4" (2) 2-1/2" (1) 1-1/2" top sanitary ports and (1) inhalation port with vented cover. Slant bottom has 4" OD side bottom discharge with 12" floor clearance and side mounted access ladder. Mounted on (4) stainless steel legs.

OAD: 99" L x 84" W x 104" H
