Photo of Waukesha Pump Positive 15

Waukesha Pump Positive 15

  Back to All Equipment

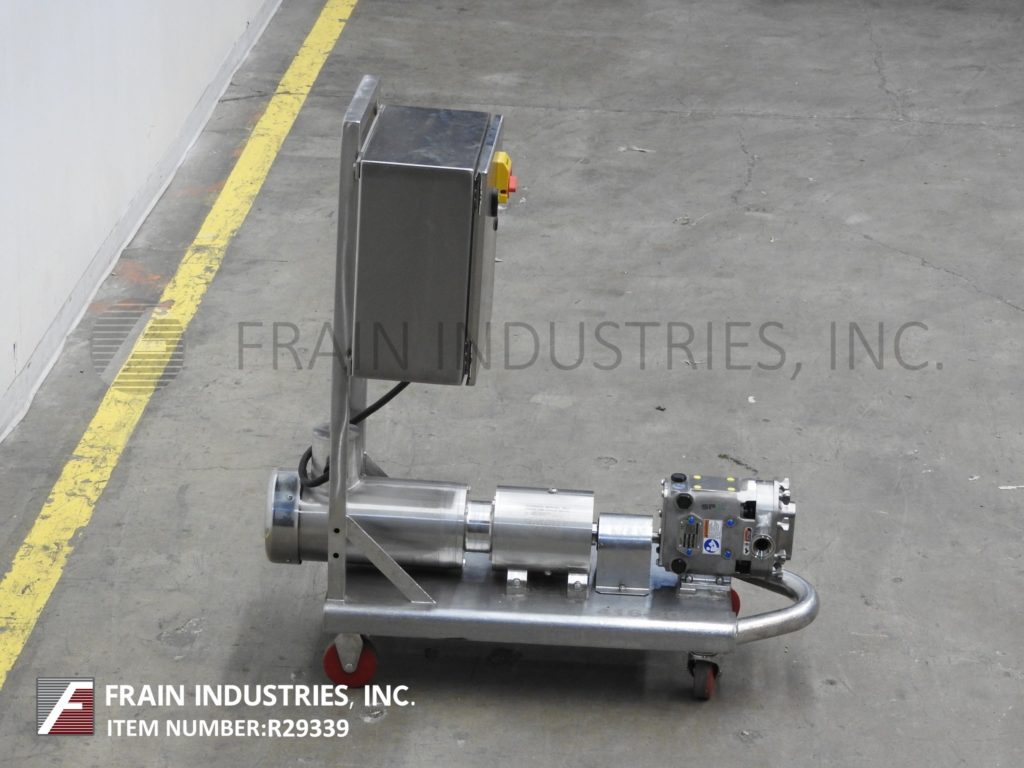

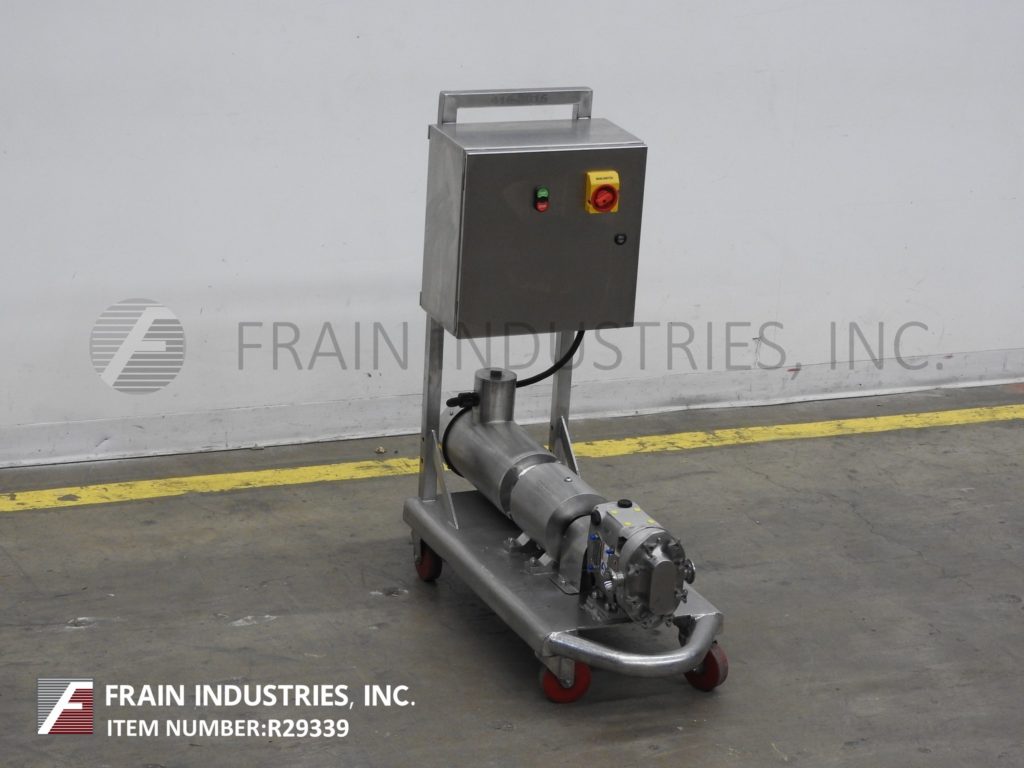

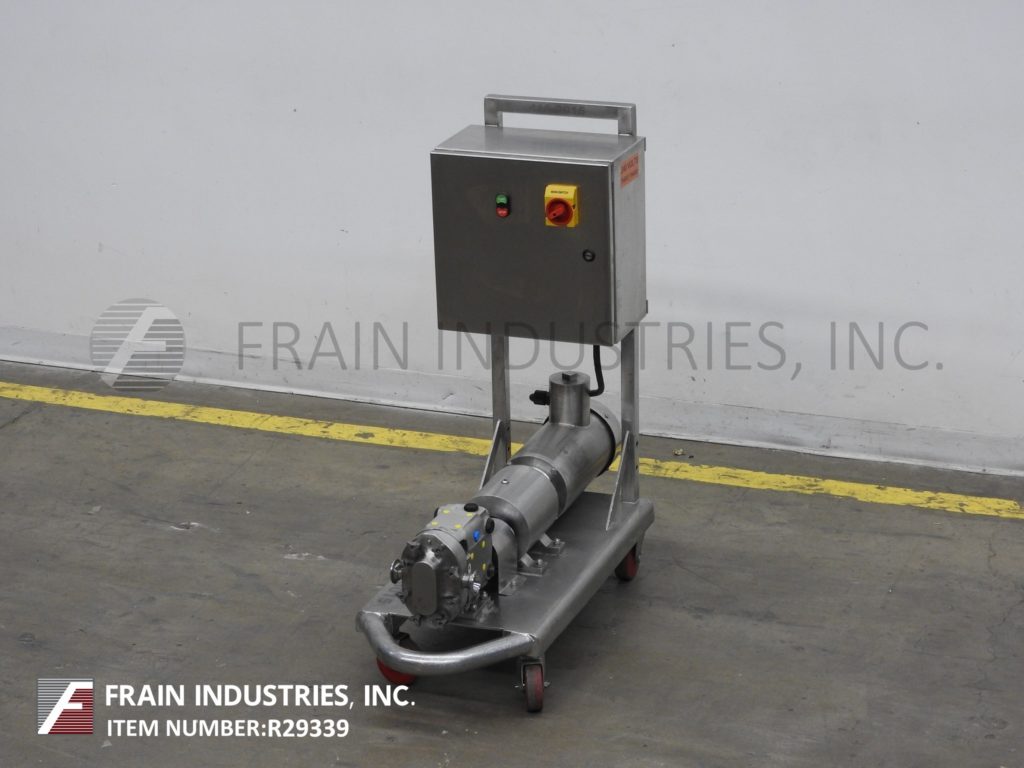

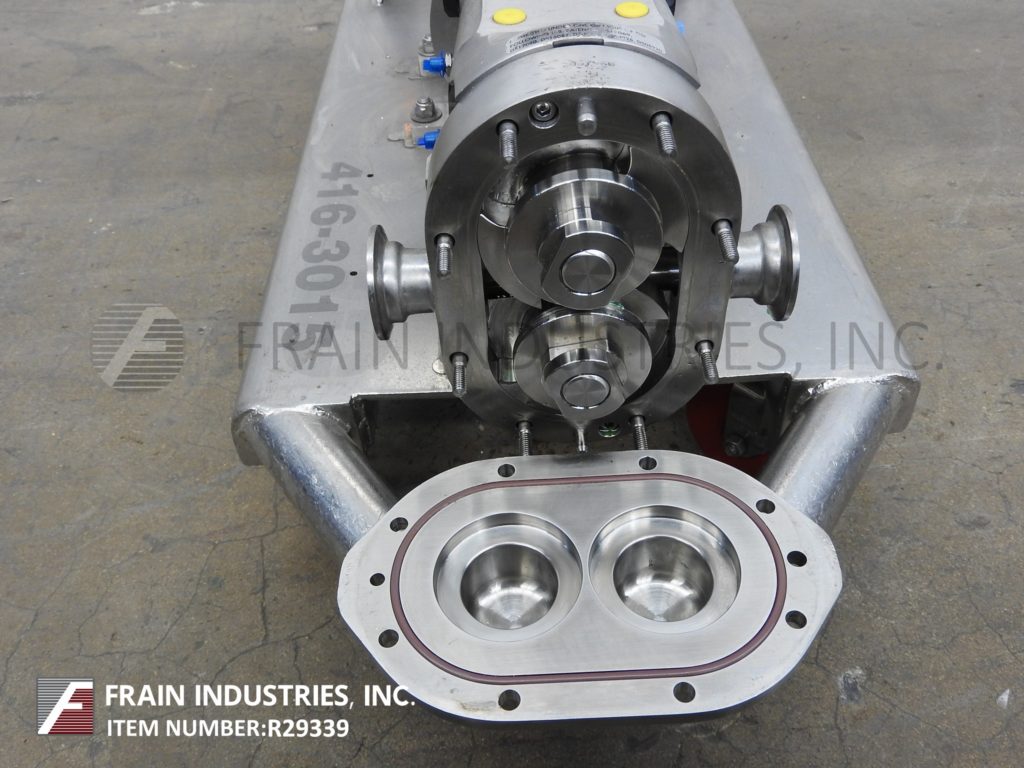

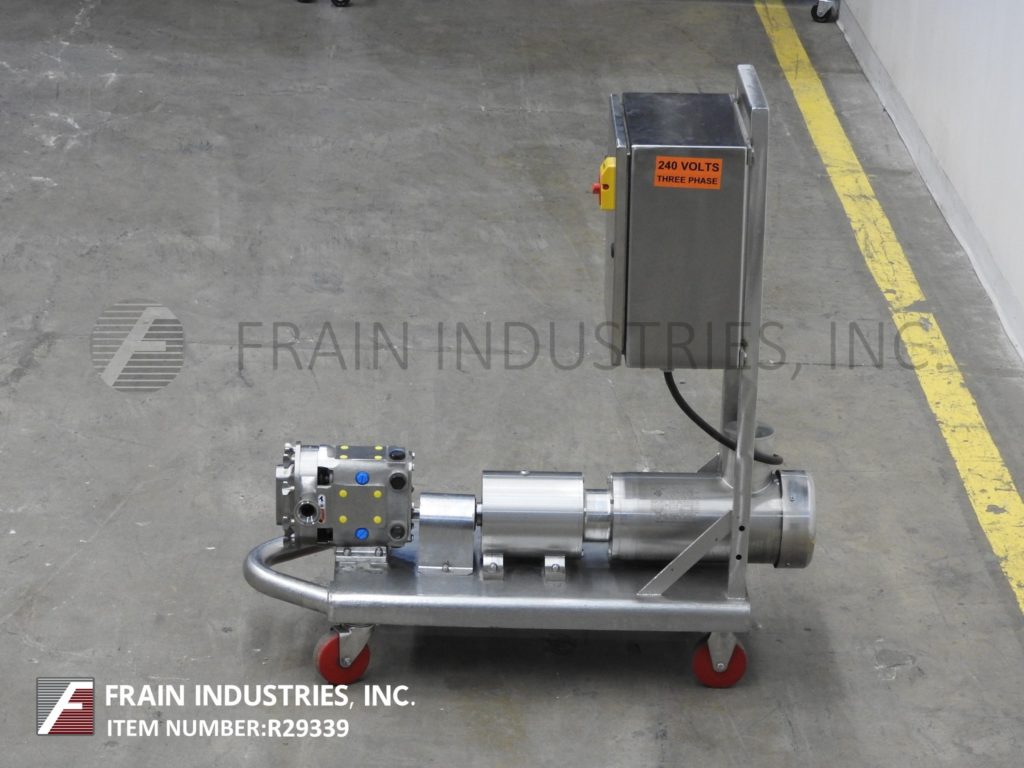

Waukesha, Model 15, positive displacement pump with 316 stainless steel contact parts. Rated from 1 to 10 gallons of product per minute – depending on materials, application and machine configuration. 200 psi maximum working pressure, temperature range of -40 Deg F to 200 deg f standard and up to 300 deg F with hot clearence rotors / stators and viton seals and capable operating both clockwise, or counter clockwise. Equipped with a 2" OD / 1½" ID Tri-clamp style product charge / discharge with 11" ground clearance. Powered by a 2 Hp drive with a variable speed controller and a 3:1 gear ratio for a maximum current rate of 7.5 gal/min. Mounted on a 45" long x 18" wide stainless steel push cart.

OAD: 45"L x 18"W x 44"H
