Retort Baskets Machines
Used Retort Baskets Equipment
Retort Basket Canning Equipment systems are designed to be able to handle filled and sealed cans or jars by placing them into a retort crate for thermo-processing to produce a sterile product. Retort basket canning equipment is either vertical or horizontal with complete controls for providing the quality and consistency required for producing high quality products. Canning retort baskets also provide a spin off system that does not use crates and loads the cans directly into the retort for thermo processing. The cans are then removed from the bottom of this type of retort and unscrambled and orientated for subsequent processing.
Related Categories
Retort Baskets Equipment In Stock
JBT Food Tech Static Retort A146
- Manufacturer: JBT FoodTech
- Model Number: Static Retort A146
- Frain Number: R41360
R41360 JBT Food Tech, model Static Retort A146, stainless steel, batch, cooking, sterilizing and cooling retort system rated up to a 10,500 Lbs. batch capacity with amount of product per hour – depending on materials and application. Chamber dimensions: 250″ long with a 56″ interior diameter. Equipped with 240″ long chain basket conveyor powered by a 3 Hp drive, manually operated 60″ diameter door, Alfa Laval M6-FG plate and frame heat exchanger with 174.4 Ft² surface transfer area, 4 Hp centrifugal blower. Control panel with touchscreen HMI. Mounted on cradle style frame.
MAWP (Retort): 72.5 PSI @ 401°F
External MAWP (Retort): 3.6 PSI @ 401°F
MDMT (Retort): 14°F @ 72.5 PSI
MAWP (Heat exchanger): 150 PSI @ 250°F
MDMT (Heat exchanger): -20°F @ 150 PSI
OAD: 275″ L x 84″ W x 84″ H
Get a Free Quote Call: 630-629-9900
Allpax Canning Retort Baskets 2402
- Manufacturer: Allpax
- Model Number: 2402
- Frain Number: 5J4540
Allpax, model 2402, R&D small batch multimode shaka retort system. Capable of saturated steam, water spray, water shower, water immersion and steam-air processing modes. Unit is capable of multiple agitation modes including multiple speeds of reciprocation, end over end rotation, axial rotation, hydrostatic simulation and rocking – with proper change parts and machine configuration. Equipped with a orbital door, Reimers electric steam boiler and control panel with computer interface and chart recorder.
Nat’l Brd: 74
MAEWP: 15 PSI @ 325°F
MAWP: 90 PSI @ 325°F
MDMT: -20°F @ 90PSI
OAD: 94"L x 49"W x 82"H – Retort
56"L x 29"W x 36"H – Steam Boiler
29"L x 20"W x 54"H – Expansion Tank

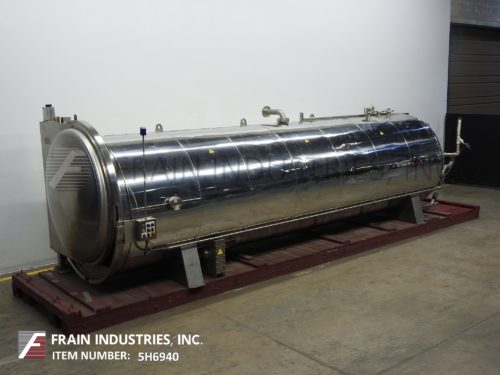

Stock America Inc Canning Retort Baskets SURDRY AR-175
- Manufacturer: Stock America Inc
- Model Number: SURDRY AR-175
- Frain Number: 5H6940
Stock America Inc, Model Surdry, SL-AR175-W2, (5) basket, horizontal, rotating batch, steam sterilization and water-cooling retort with production rates and number of product per hour – dependent on materials, application and machine configuration. Stainless steel interior and exterior. Chamber dimensions: 68" Inner Diameter; 276" in Length. MAWP: 71psi @ 302°F. Equipped with 67" diameter hydraulically operated, vertically opening access door, insulated shell, water spray nozzles and 45 Hp motor drive. Agitating speed: 2 to 8 rpm (for more thorough temperature transmission, recommend 5 rpm maximum). prevents burning and has static rotation, oscillation agitation modes and is partial emersable with steam for heating and water spray nozzles for circulation and cooling. Control panel has door open, door close, manual, auto and jog switches, with e-stop and statis light.
National Board Number # 44.
OAD: 332" L x 84" W x 80" H
Get a Free Quote Call: 630-629-9900
