Conveyor Machines
Used Conveyor Equipment
Conveyor belt machines and equipment are designed to move (convey) product and other materials from one process to another. They can also be used to support the product or container while the product and container processing occurs. Conveyors can use different methods to convey products and materials. Conveyor machines for stable solid products or packages can use belts, rollers, side belts, or interlocking plastic plates, know as tabletop (Delron), to convey products. Side belt transfer conveyors are a special classification of conveyor for stable solid products. Side belt transfer conveyors use gripper belts that grip the side of the container to convey a container, thus leaving the bottom of the container exposed. Side belt transfer conveyors are often used during the coding or labeling of the bottom of the container. Laner conveyors or laning conveyors are used to transfer containers from one lane to multiple lanes or from multiple lanes to one lane. Laner conveyors are often used in conjunction with tabletop or roller conveyors.Screw conveyors are designed to conveyor powder. A large screw rotates within the product in a screw conveyor and the product moves forward with each progressive revolution of the screw. Vibratory conveyors use the vibrating action of a vibratory pan to move product forward. A bucket elevator is designed with buckets that raise free-flowing product, either powder or small solids, to a given height above the floor. The product is held in the buckets and once at the given height, the buckets are overturned and the product is dumped out of the buckets.
Related Categories
Conveyor Equipment In Stock
WHM Equipment Company Conveyor Table Top 13¾" X 360"
- Manufacturer: WHM Equipment Company
- Model Number: 13¾" X 360"
- Frain Number: 5G7725
WHM Equipment Co., 13¾" wide x 360" long stainless steel table top conveyor. 13¾" wide and 360" long Intralox style belt has an infeed / discharge range of 24" – 28". Equipped with a 1½ Hp drive and mounted on (10) legs.
OAD: 360"L x 26"W x 28"H
Get a Free Quote Call: 630-629-9900
Conveyor Belt 30"W X 107"L
- Model Number: 30"W X 107"L
- Frain Number: 5G7643
30" wide x 107" long, stainless steel wire belt conveyor. Equipped with a variable speed 1 hp drive and start/stop controls. Mounted on a stainless steel frame and casters with a 35" – 40" infeed and discharge height.
OAD: 112" L x 37" W x 38" H
Get a Free Quote Call: 630-629-9900
Smalley Mfg Co Conveyor Bucket Elevator BUCKET ELV
- Manufacturer: Smalley Mfg Co
- Model Number: BUCKET ELV
- Frain Number: 5G6490
Smalley mfg co., Model SP-24, stainless steel Z style bucket elevator. Number of lbs of product – depending on materials and application. Equipped with white plastic product buckets with inside dimensions of 23½" long x 4¼" wide x 2½" deep and has 44" long horizontal floor run with a 34" in feed height to 90" vertical lift with a 12" wide frame, to 32" overhead horizontal top run and has an open end 112" discharge height. Powered by a ½ HP top mounted motor drive. Mounted on casters.
OAD: 96" L x 53" W x 124" H
Get a Free Quote Call: 630-629-9900
Grote Conveyor Pack Off RH CONV BOX
- Manufacturer: Grote
- Model Number: RH CONV BOX
- Frain Number: 5G6117
Grote, 15¾" wide x 391" long stainless steel belt conveyor. 15¾" wide and 391" long food grade belt has an infeed and discharge range of 32" – 36". Equipped with a ¾ Hp drive, variable speed control, moveable side mounted bin racks and E-stop. Unit mounted on leveling legs.
OAD: 396"L x 30"W x 79"H
Get a Free Quote Call: 630-629-9900
Grote Conveyor Pack Off LH CONV BOX
- Manufacturer: Grote
- Model Number: LH CONV BOX
- Frain Number: 5G6114
Grote, 15¾" wide x 391" long stainless steel belt conveyor. 15¾" wide and 391" long food grade belt has an infeed and discharge range of 32" – 36". Equipped with a ¾ Hp drive, variable speed control, moveable side mounted bin racks and E-stop. Unit mounted on leveling legs.
OAD: 396"L x 30"W x 79"H
Get a Free Quote Call: 630-629-9900
Cozzini Conveyor Screw CSC1014
- Manufacturer: Cozzini
- Model Number: CSC1014
- Frain Number: 5G6260
Cozzini, Model CSC1014, 304 stainless steel, 10" diameter x 150" long, portable incline screw conveyor. Equipped with a 10" diameter screw on a 4½" diameter shaft with 6½" centers, 11" wide hull, 70" long x 36" wide x 36" deep (28 ft³) supply hopper (56" in feed height), 78" discharge height and Bottom mounted 2 Hp drive. Control panel with push button start/stop and run/jog dial. Mounted on stainless steel base with locking casters.
OAD: 180"L x 43"W x 99"H
Get a Free Quote Call: 630-629-9900
Conveyor Table Top
- Model Number:
- Frain Number: 5G4860

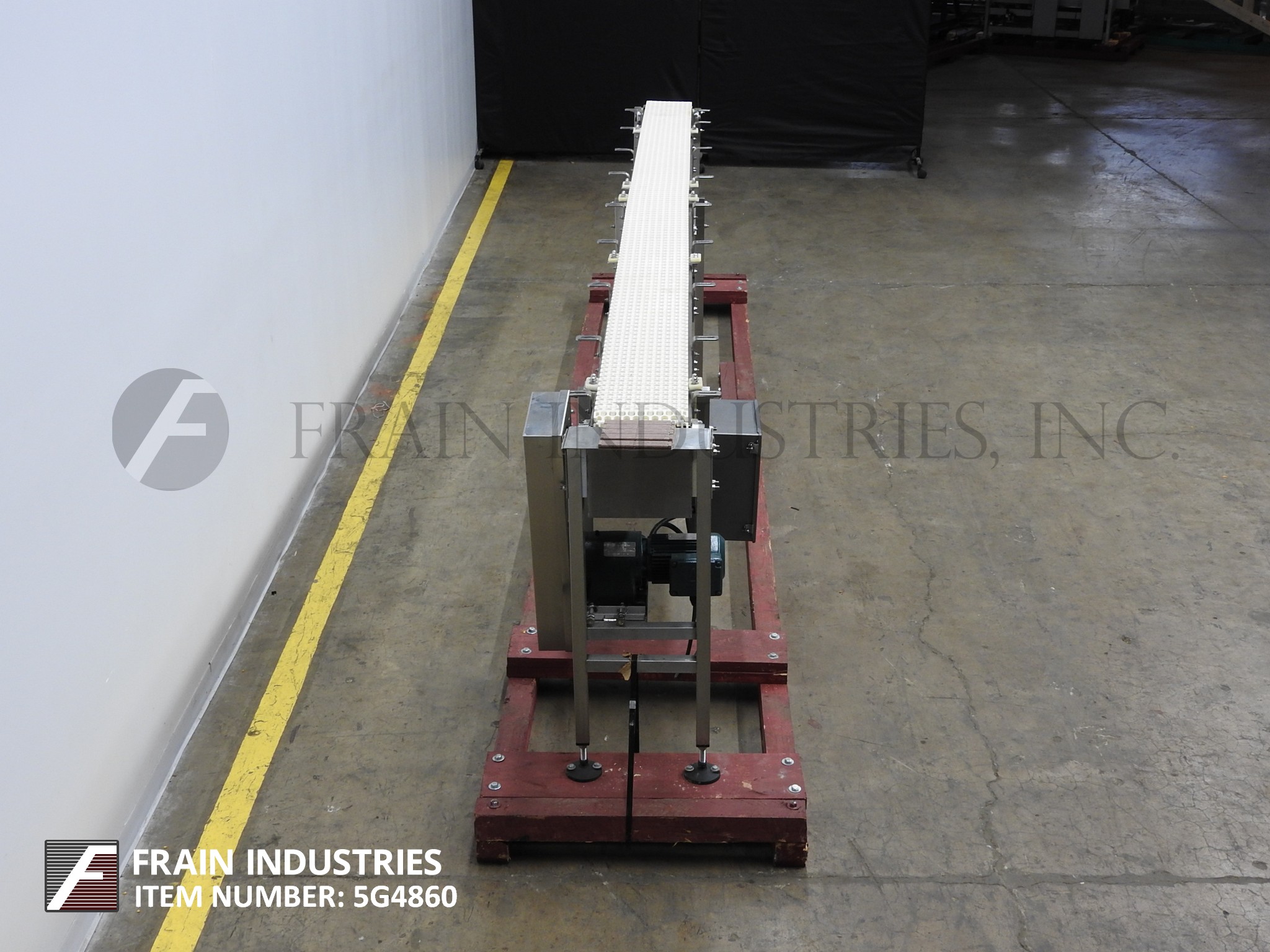

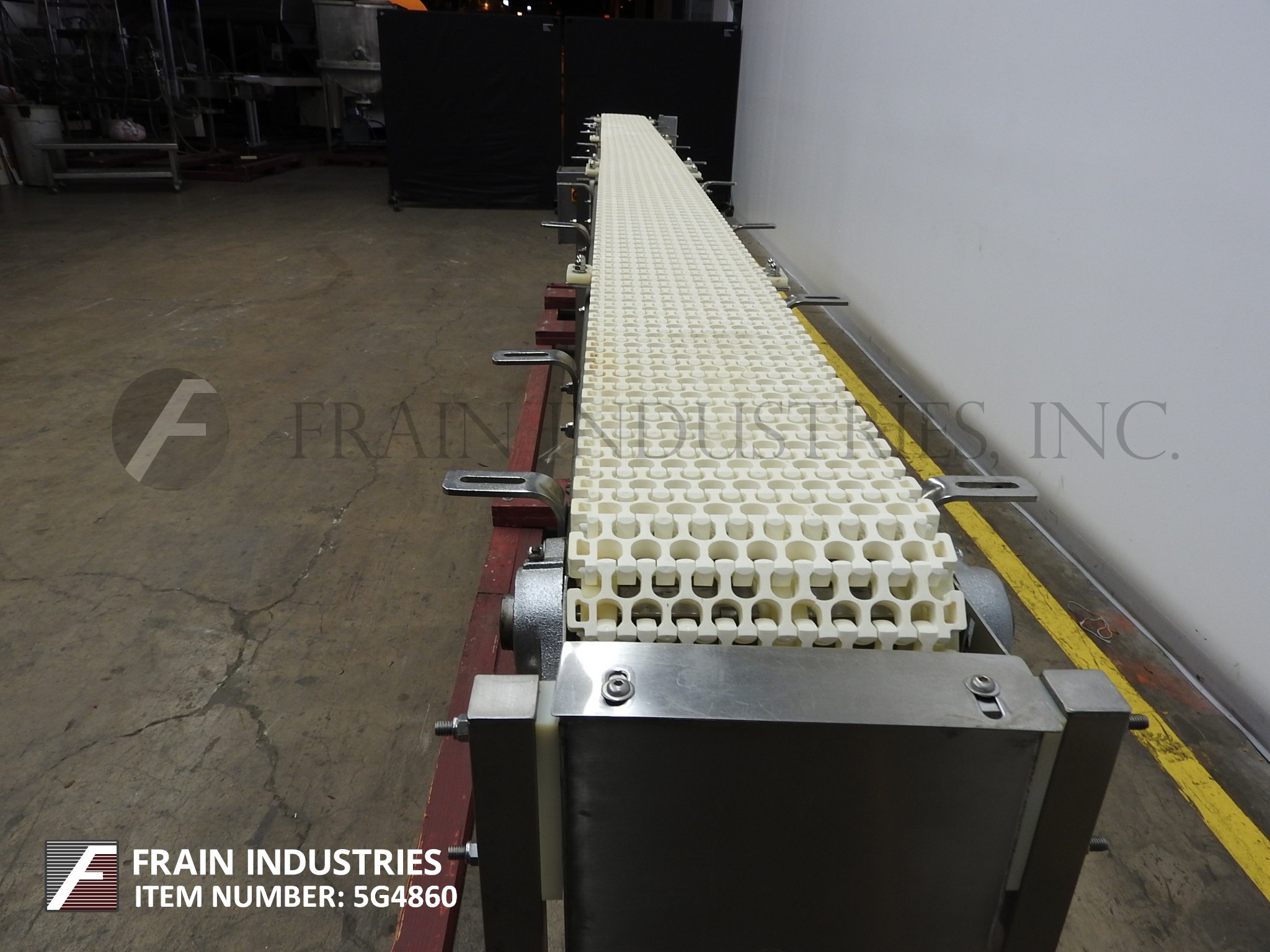

Van Pak, 10" wide x 202" long, stainless steel flexlink belt conveyor. Equipped with a 1 hp drive with variable speed control, roller transfer plate on discharge end and mounted on screw in leveling pads. Currently set at a 42" high infeed / discharge.
OAD: 216" L x 24" W x 46" H
Get a Free Quote Call: 630-629-9900
Flexicon Conveyor Screw 1312
- Manufacturer: Flexicon
- Model Number: 1312
- Frain Number: R25862
Flexicon Model 1312 is a 3-1/8" diameter x 10′ long screw conveyor capable of transferring 0 to 60 cu ft product per hour – depending materials, application, motor hp, and product density. Equipped with (36” L x 36” W x 38” D) product hopper with bolt down cover with 14-1/2" diameter top product port and 1 hp auger drive motor. 3-1/8" diameter x 10′ long stainless steel product conveying screw, with a 4" diameter x 10′ long flexable poly tube. Top 5 Hp motor drive with 5-1/2” inside diameter product discharge port. Quick disconnects designed for ease of cleaning/sanitizing and mounted on a (4) leg common stand.
OAD: __" L x __" W x ___" H
Get a Free Quote Call: 630-629-9900
Span Tech Conveyor Table Top ST
- Manufacturer: Span Tech
- Model Number: ST
- Frain Number: 5G4591
Span Tech, 18" wide x 257" long, stainless steel flexlink belt conveyor. Equipped with a .75 hp drive and mounted on legs. Currently set at a 28" high infeed / discharge.
OAD: 257" L x 36" W x 29" H
Get a Free Quote Call: 630-629-9900
Kamflex Conveyor Table Top 810
- Manufacturer: Kamflex
- Model Number: 810
- Frain Number: 5G4593
Kamflex, Model 810, stainless steel live bottom accumulation trough. Equipped with a 24"Wide x 180" long plastic belt powered by a .75hp drive and 30" high side walls.
OAD: 192"L x 47"W x 42"H
Get a Free Quote Call: 630-629-9900
Span Tech Conveyor Table Top ST
- Manufacturer: Span Tech
- Model Number: ST
- Frain Number: 5G3366
Span Tech, 18" wide x 192" long, stainless steel, flexlink belt conveyor. Equipped with a 1/2 hp drive and start/stop controls. Mounted on a stainless steel frame with height adjustable legs. Currently set at a 36" high infeed/discharge.
OAD: 192" L x 26" W x 36" H
Get a Free Quote Call: 630-629-9900
Span Tech Conveyor Table Top ST
- Manufacturer: Span Tech
- Model Number: ST
- Frain Number: 5G3363
Span Tech, 18" wide x 240" long, stainless steel, flexlink belt conveyor. Equipped with a 1/2 hp drive and start stop controls. Mounted on stainless steel frame with height adjustable legs.
OAD: 240" L x 26" W x 20" H
