A Conveyor Screw is a system that uses the rotation of a screw to move products horizontal or even up a small incline. Screw conveyors use various screw diameters and screw lengths.
Hapman, screw conveyor and product hopper. Rated from 120 to 360 ft³ / h with pounds of product per hour – depending on materials, application, environment and machine configuration. Equipped with 35” long x 35” wide x 32” deep stainless steel product hopper, 4" diameter x 144" long product auger conveying screw, 5" ID x 96" long flexable poly tube and top mounted 3 Hp motor drive has 6” OD product discharge port with 96" ground clearance. Control panel with raise / lower switch, variable speed, E-stop and start / stop and reverse push button controls. Mounted on frame with casters.
OAD: 135"L x 50"W x 117"H
Hapman, Model 300 series, screw conveyor and product hopper. Equipped with 36” long x 36” wide x 30” deep stainless steel product hopper with safety grid, tree agitation and vibratory agitation, 2¾" OD x 168" long stainless steel product auger conveying screw, 3" ID x 128" long flexible poly tube and top mounted 2 Hp motor drive has 6” OD product discharge port with 113" ground clearance. Control panel with raise / lower switch, variable speed, E-stop and start / stop and reverse push button controls. Rated dependant on materials, application and machine configuration. Mounted on stainless frame with casters.
OAD: 165"L x 55"W x 140"H

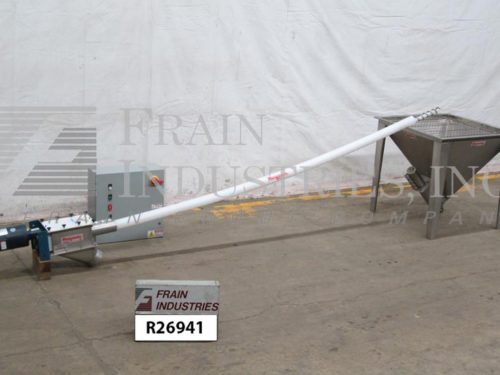

Flexicon Model 1450, 4" diameter screw conveyor rated from 10 to 60 ft³ of product per hour – depending on materials, application and machine configuration. Equipped with 36” x 36” x 28” deep product hopper, 4" diameter x 108" long stainless steel screw within 4½" diameter rigid stainless steel tube and 6” diameter product discharge port with 69"discharge height. Powered by a two speed 3 / 2 Hp top drive motor. Control box features forward / reverse, stop and reset buttons. Mounted on four leg frame with locking casters.
OAD: 125"L x 42"W x 96"H
**PART OF COMPLETE LINE R28725A**

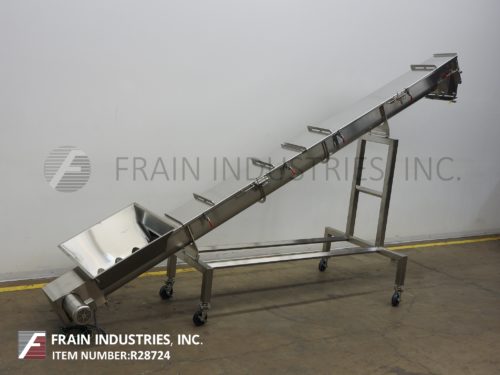

Loos, stainless steel, 10" diameter x 200" long, incline screw conveyor. Equipped with a 10" diameter screw on a 3" diameter shaft with 8" centers, 10½" wide hull with a bottom mounted 2½"OD / 2"ID Tri-clamp style drain, 36" long x 33" wide x 18" deep supply hopper, 90" discharge height and Bottom mounted 2 Hp drive. Mounted on stainless steel legs with casters.
OAD: 201"L x 40"W x 113"H
Flexicon, Model 1450, 4" diameter x 120" long screw conveyor. Capable of transferring up to 140 ft³ of product per hour – depending on materials, application, and product density. Equipped with a 36” long x 36” wide x 27” deep product hopper with grated cover, 3" diameter x 151" long stainless steel product conveying screw, 4" diameter x 120" long flexable poly tube, top 3 Hp motor drive with 6” inside diameter product discharge port with ___" ground clearance.

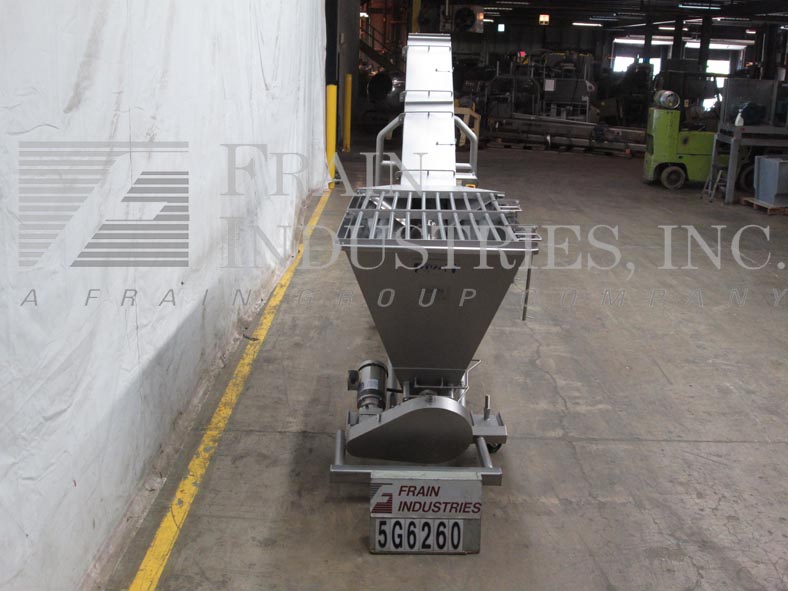

Cozzini, Model CSC1014, 304 stainless steel, 10" diameter x 150" long, portable incline screw conveyor. Equipped with a 10" diameter screw on a 4½" diameter shaft with 6½" centers, 11" wide hull, 70" long x 36" wide x 36" deep (approx 9 ft³) supply hopper (55" in feed height), 73" discharge height and Bottom mounted 2 Hp drive. Control panel with push button start/stop and run/jog dial. Mounted on stainless steel base with locking casters.
OAD: 180"L x 43"W x 99"H
Flexicon Model 1312 is a 3-1/8" diameter x 10′ long screw conveyor capable of transferring 0 to 60 cu ft product per hour – depending materials, application, motor hp, and product density. Equipped with (36” L x 36” W x 38” D) product hopper with bolt down cover with 14-1/2" diameter top product port and 1 hp auger drive motor. 3-1/8" diameter x 10′ long stainless steel product conveying screw, with a 4" diameter x 10′ long flexable poly tube. Top 5 Hp motor drive with 5-1/2” inside diameter product discharge port. Quick disconnects designed for ease of cleaning/sanitizing and mounted on a (4) leg common stand.
OAD: __" L x __" W x ___" H

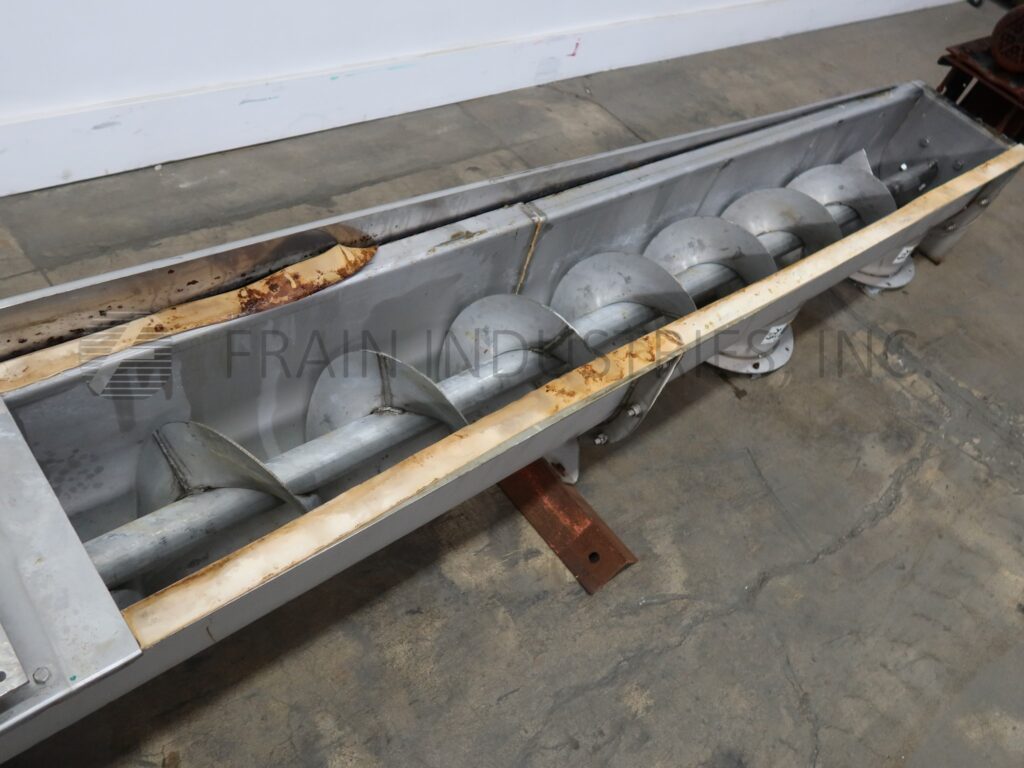

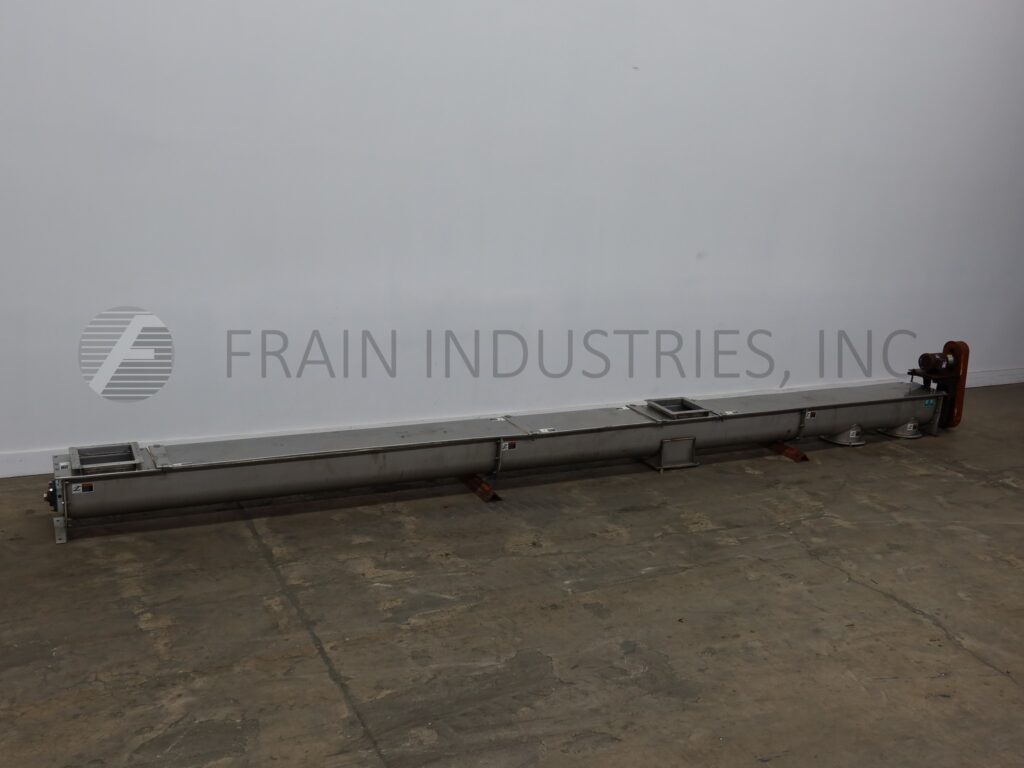

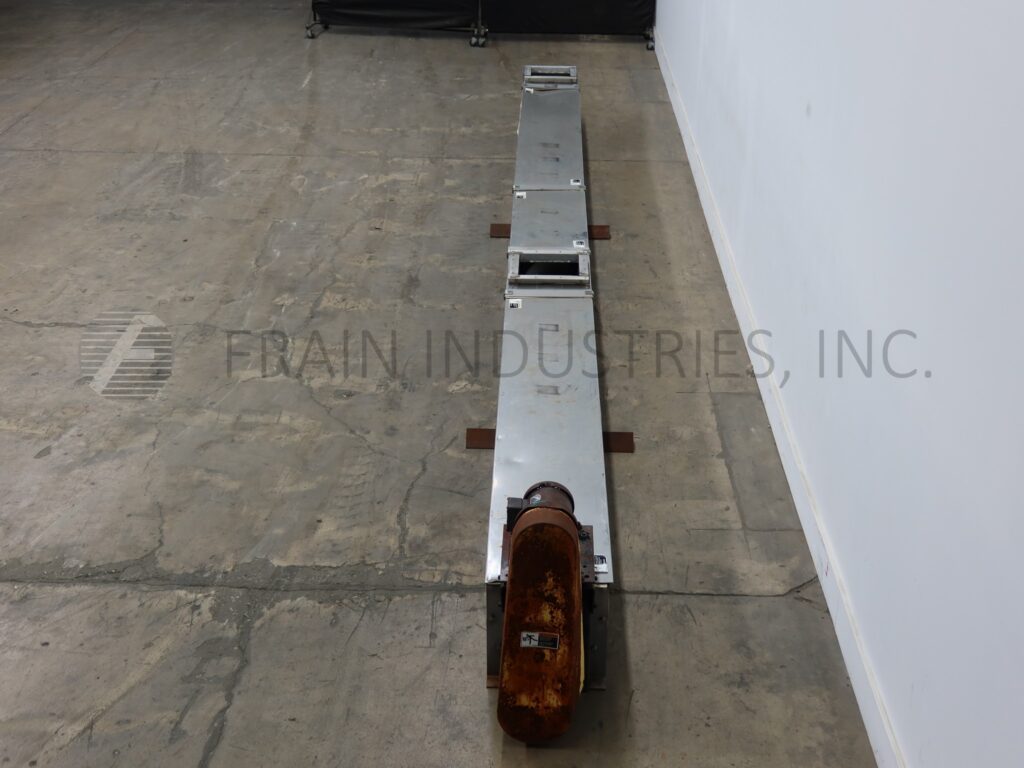

American Process Systems, 9" diameter x 65" long, stainless steel screw conveyor. Equipped with a 65" long x 15" wide narrowing to 10" wide trough, 9" diameter screw on a 3" diameter shaft with 5" centers on the infeed end and 9" centers on the discharge end. Has a 22"L x 15"W product infeed and a 10"L x 10"W discharge.
OAD: 82"L x 32"W x 26"H
12" Diameter x 9 Ft Long all stainless steel screw conveyor. Equipped with a 30” L x 40” W x 30” D product hopper with a perforated air operated flip up cover, 12" screw on 3-1/2" diameter shaft, enclosed conveying chamber with two flip open bolt down covers and 10" L x 6" W site glass ports, and a CIP. Graco Huskey 715 diaphragm pump with 2" OD sanitary in feed / discharge ports feeding wand with spray nozzels that runs the length of the screw. Hopper infeed height: 33". Adjustable pitch with maximum discharge of 66".
OAD: 132" L x 60" W x 90" H
