Delkor, stainless steel 1 to 6 laning conveyor. Equipped with (1) 4"W x 172"L and (2) 10"W x 136"L intralox belts, (2) overhead servo diverting heads and 30" to 35" infeed and discharge range.
OAD: 216"L x 64"W x 44"H
Stainless steel 1 to 3 laning conveyor. Equipped with (3) 6" wide intralox belts with lengths of 64", 70" and 76", (2) overhead pneumatic diverting heads and 46" to 52" infeed and discharge range. Powered by a ¾ hp drive.
OAD: 82"L x 30"W x 67"H
Nercon, 1 to 2 laner conveyor. Equipped with a 42" wide x 78" long Intralox active roller belt conveyor powered by a 1½ hp drive with an infeed / discharge height of 29".
OAD: 88"L x 65"W x 40"H
Intralox, Model ARB, Activated Roller Belt conveyor. Enables accurate and reliable merging and aligning of products. Equipped with (2) 16¾" wide x 60" long belts powered by a 1 hp drives. Activated rollers powered by a static plate. Parallel rollers embedded in the belt surface gently align products against 1½" high cleats set on 19½" centers. Belt cleating is offset on the two infeed conveyor sections to index boxes onto the merging conveyor. Merging conveyor equiped with (3) flat top belts. (2) 10" wide x 84" long outside belts pitched toward (1) 14" wide x 95" long center belt powered by (2) 1 hp drives. Cases are also turned 90° to align along the length of the package during the merge.
OAD: 165"L x 62"W x 56"H

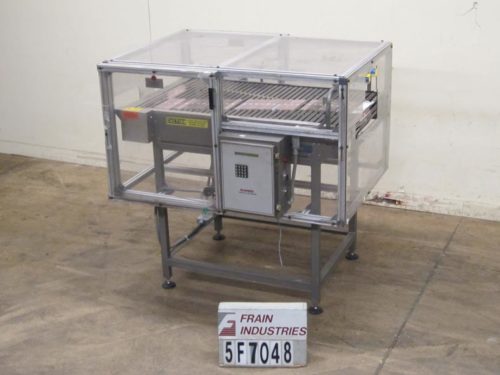

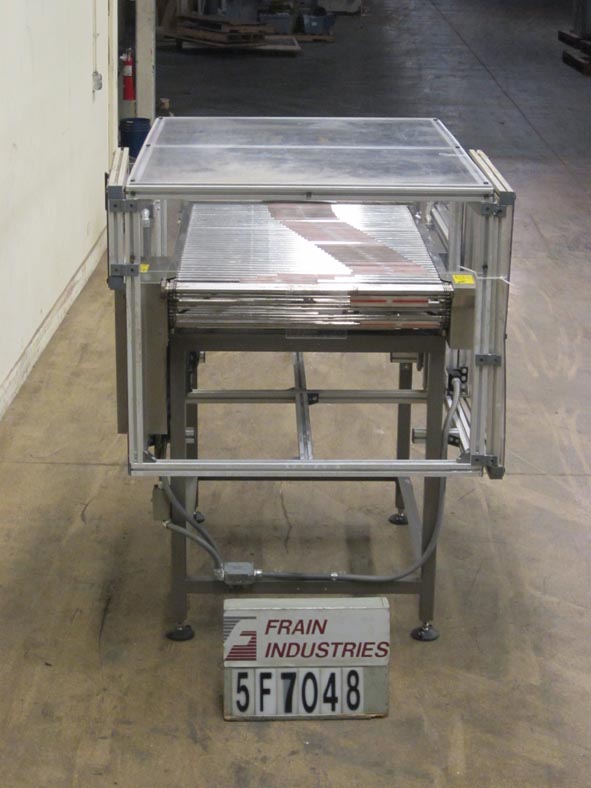

Automatic, S/S, lane divider capable of speeds from 20 to 150 feet @ min (depending on application). Unit has a 60"L x 24"W lane table, adjustable centerlines, multiple lane patterns, product sensors, variable speed controls, and Lexan guarding. Mounted on a S/S frame with (4) legs and casters.
OAD: 72"Lx 48"W x 42"H

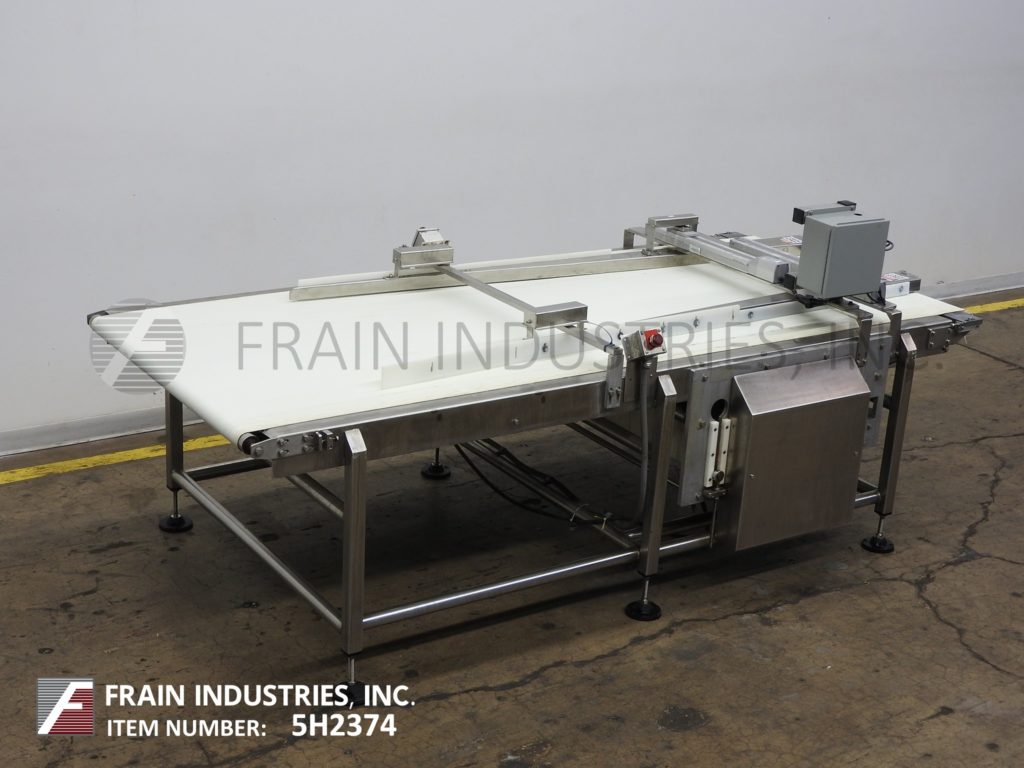

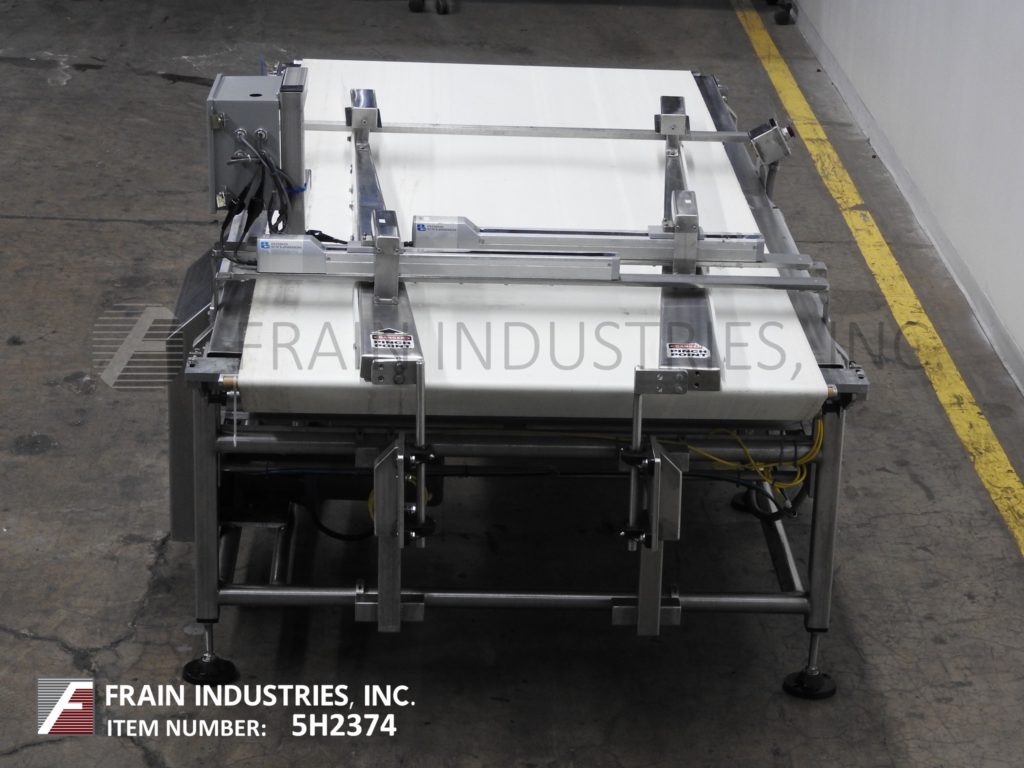

Stainless steel, 48" wide x 120" long, belt conveyor with servo controlled laner cylinders. Equipped with a 48" wide x 120" long Neoprene style belt with a 31" to 36" infeed / discharge height powered by a 3 hp center drive and (2) Intelligent Actuator, model RCP2, diverting cylinders. Mounted on a (6) leg frame with leveling legs.
OAD: 125"L x 62"W x 53"H
Stainless steel, one to four lane, accumlation table. Equipped with (1) 23¾" wide x 94" long Intralox style belt, (1) 23¾" wide x 58" long Intralox style belt, (2) overhead pneumatic diverting stations with 8" max clearance [(1) one to two lane, (1) two to four lanes]. Adjustable width lane guides, pneumatic stop gate and back stop with (4) product eyes.
OAD: 160"L x 38"W x 75"H
Hi-Speed, Model 1.4 MFDA, automatic, magnetic flow, lane divider rated from 100 to 300 feet per minute number of packages – depending on materials, application and machine configuration. Automatically routes packages / product from a single lane to a four lane. Equipped with 57" long x 34" wide divider bed, (2) sets of slider rods, electro magnetic system, powered roller rods with 1¼" long x 8" wide product carrier brackets which all help the product move side to side as they divide the product from 1 to 4 lanes with a 38½" in feed and discharge height. Control panel with variable speed and lexan safety guarding.
OAD: 65"L x 52"W x 57"H
McBrady, 4 to 1 lane conveyor, all stainless steel frame with delrin conveyor belts. Conveyor infeed height is 34" for (3) 7-1/2" wide belts; (2) 66" long and (1) 54" long. Discharge conveyor is 6" wide and 139" long with a height of 34". Powered by (2) ¾ Hp drive with variable speed AC controller on discharge.
OAD:138"L x 30"W x 41"H
Hi-Speed Model MFD2, automatic, magnetic flow, lane divider rated from 100 to 300 feet per minute number of packages – depending on materials and application. Automatically routes packages / product from a single lane to a double lane. Equipped with 60" long x 34" wide divider bed, 2 sets of slider rods electro magnetic system, powered roller rods with 10" long x 1-1/4" wide product carrier brackets which all help the product move side to side as they divide the product from 1 to 2 lanes with 54" infeed and discharge height. Control panel with touch keys, digital readout and start / reset switches safety guarding and mounted on base frame with height adjustable legs.
OAD: 67" L x 52" W x 66" H
Hi-Speed, Model MFD2, automatic magnetic flow lane divider rated from 100 to 300 feet per minute number of packages – depending on materials and application. Automatically routes packages / product from a single lane to a double lane. Equipped with 60" long x 34" wide divider bed, 2 sets of slider rods electro magnetic system, powered roller rods with 10" long x 1¼" wide product carrier brackets which all help the product move side to side as they divide the product from 1 to 2 lanes with 54" infeed and discharge height. Control panel with touch keys, digital readout and start / reset switches safety guarding and mounted on base frame with height adjustable legs.
