Fully automatic case erector / packer / glue sealer capable of 5 to 25 cases per minute The product accumulator runs parallel to the case erector with a right angle air cylinder transfer for a single layer of product and features a 148"L infeed conveyor, and a 13"L by 19"W product transfer station. The wrap around case erector 80"L magazine with hand crank adjustments,Nordson hot melt, glue controllers, amber strobe light for non-shutdown conditions, red strobe light for shutdown conditions, blue strobe light for low materials, 21" centers, hand cranks and indicator scales for carton size adjustments, Machine equipped with an Allen Bradley PLC programmable, and 5/8" thick clear lexan guarding with electrical interlocks.
OPTION: Product up ender, an APV Douglas 1:6 servo lane divider, a six lane product accumulator, and a wrap around case erector with hot melt glue seals. The product up ender features a 4 1/2"W bottom conveyor and a 7 1/2"W side conveyor, to upend product. Lane divider features servo driven side conveyor belts to divide product into up to six lanes.
OAD: 41’L x 12′ 6"W x 8’H

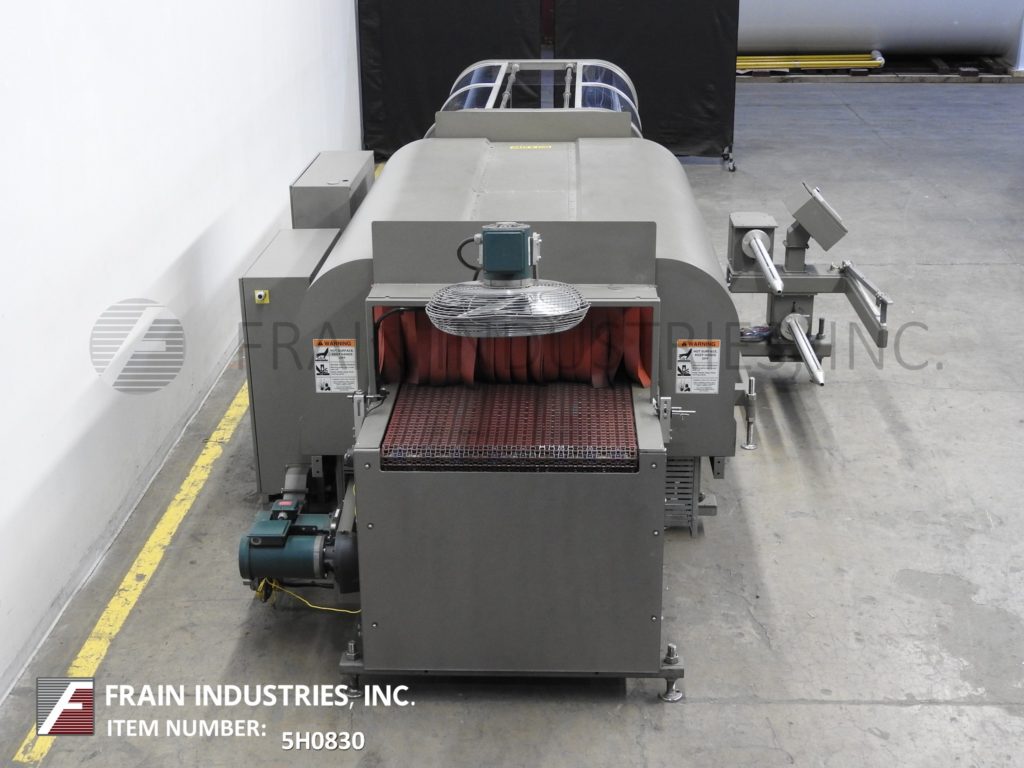

4 chamber shrink tunnel. Aperture: 19-1/2" in Height; 31" in Width. Tunnel: 192" in Length. Temperature range: up to 500° F. Equipped with a 24" wide x 271" long rubber belt conveyor, 4 temperature gauges, 48" cooling station, and conveyor speed controls. Mounted on height adjustable legs.
OAD: 271" L x 58" W x 87" H

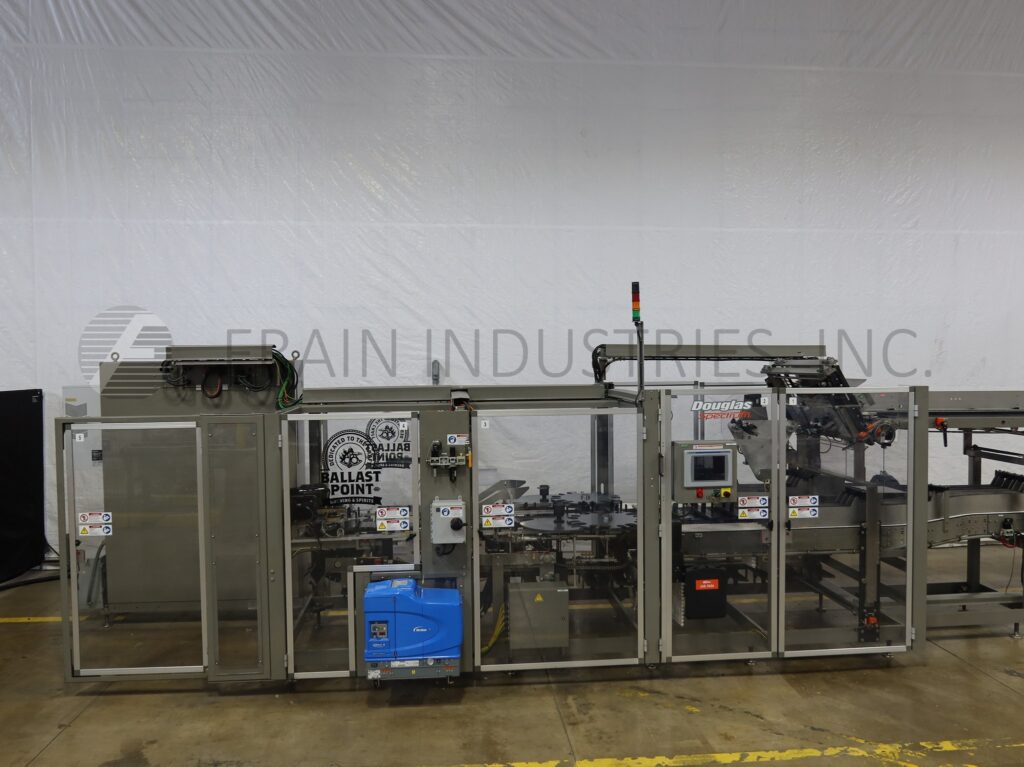

Douglas Model Invex Series IM, Knockdown, intermittent motion, side load case packer rated from 5 to 25 cases per minute – depending on materials, application and operator dexterity. Case size range: 4" to 16" in Length x 6" to 22" in Width x 4" to 12" in High (with proper change parts). Equipped with product in feed conveyor with star wheel indexing, (4) chains adjustable set on 24" centers with 3" wide x 4" high lugs, 60" long automatic, single belt blank case magazine, (4) suction cup reciprocating pick n place, in line product collation section with side load station, Nordson hot melt glue system, side flap closers and compression section with discharge conveyor. Control panel has A/B PLC and side operator panel view controller with start. stop main machine switch and e-stop, Seko gauges and vacuum pump. Mounted on heavy duty frame with interlock safety door guarding, status light bar and leveling legs. Capable of handling wrap around cases, knock-down cases (pre-glued manufacturer’s flap), and trays, RSC, HSC or economy flaps (with proper change parts).
OAD: 276" L x 72" W x 80" H Cartoner
Douglas Model AXIOM, Automatic, inline, servo driven, intermittent motion, wrap around case or tray packer rated from 5 to 45 cases or trays per minute with number of product – depending on materials, application and pack pattern. Capable of packing cartons, bottles, cans, jars, jugs and more with proper change parts. Product and case size range: per application. Equipped with (4) chains adjustable set on 24" centers with 4" wide x 4" high lugs, servo driven product in feed conveyor with laner and has automatic blank case magazine, with recipicating pick n place, Nordson hot melt glue unit with pattern controller and wrap over station, Seko adjustment gauges and side belt compression discharge. Control panel has A/B controller with touch pad controls and panel view with e-stop. Mounted on heavy duty cold rolled steel powder coated frame with interlock safety guarding.
OAD: 212" L x 84" W x 72" H
Douglas Model AXIOM, Automatic, inline, servo driven, intermittent motion, wrap around case or tray packer rated from 5 to 45 cases or trays per minute with number of product – depending on materials, application and pack pattern. Accurately packs cartons, bottles, cans, jars, jugs and more with proper change parts. Case or tray size range: per application. Equipped with (4) chains adjustable set on 15" centers with 2" high lugs. 17½" wide x 198" long servo driven product in feed conveyor with lane dividers, (4) belt adjustable product bucket conveyor set on 15" centers and product pick n place loader. 90" long automatic blank case magazine, with suction cup reciprocating pick n place and case flap traps, Nordson hot glue pot, minor flap tuckers with wrap over station, Seko gauges and is hand wheel adjustable, with side belt case or tray compression discharge. Remote control panel has A/B controller with touch screen HMI. Mounted on heavy duty stainless steel tubular frame with safety guarding.
OAD: 561"L x 95"W x 85"H
Douglas Model Invex Series IM, Knockdown, intermittent motion, side load case packer rated from 5 to 25 cases per minute – depending on materials, application and operator dexterity. Case size range: 4" to 16" in Length x 6" to 22" in Width x 4" to 12" in High (with proper change parts). Equipped with product in feed conveyor with star wheel indexing, (4) chains adjustable set on 24" centers with 3" wide x 4" high lugs, 60" long automatic, single belt blank case magazine, (4) suction cup reciprocating pick n place, in line product collation section with side load station, Nordson hot melt glue system, side flap closers and compression section with discharge conveyor. Control panel has A/B PLC and side operator panel view controller with start. stop main machine switch and e-stop, Seko gauges and vacuum pump. Mounted on heavy duty frame with interlock safety door guarding, status light bar and leveling legs.
Capable of handling wrap around cases, knock-down cases (pre-glued manufacturer’s flap), and trays, RSC, HSC or economy flaps (with proper change parts).

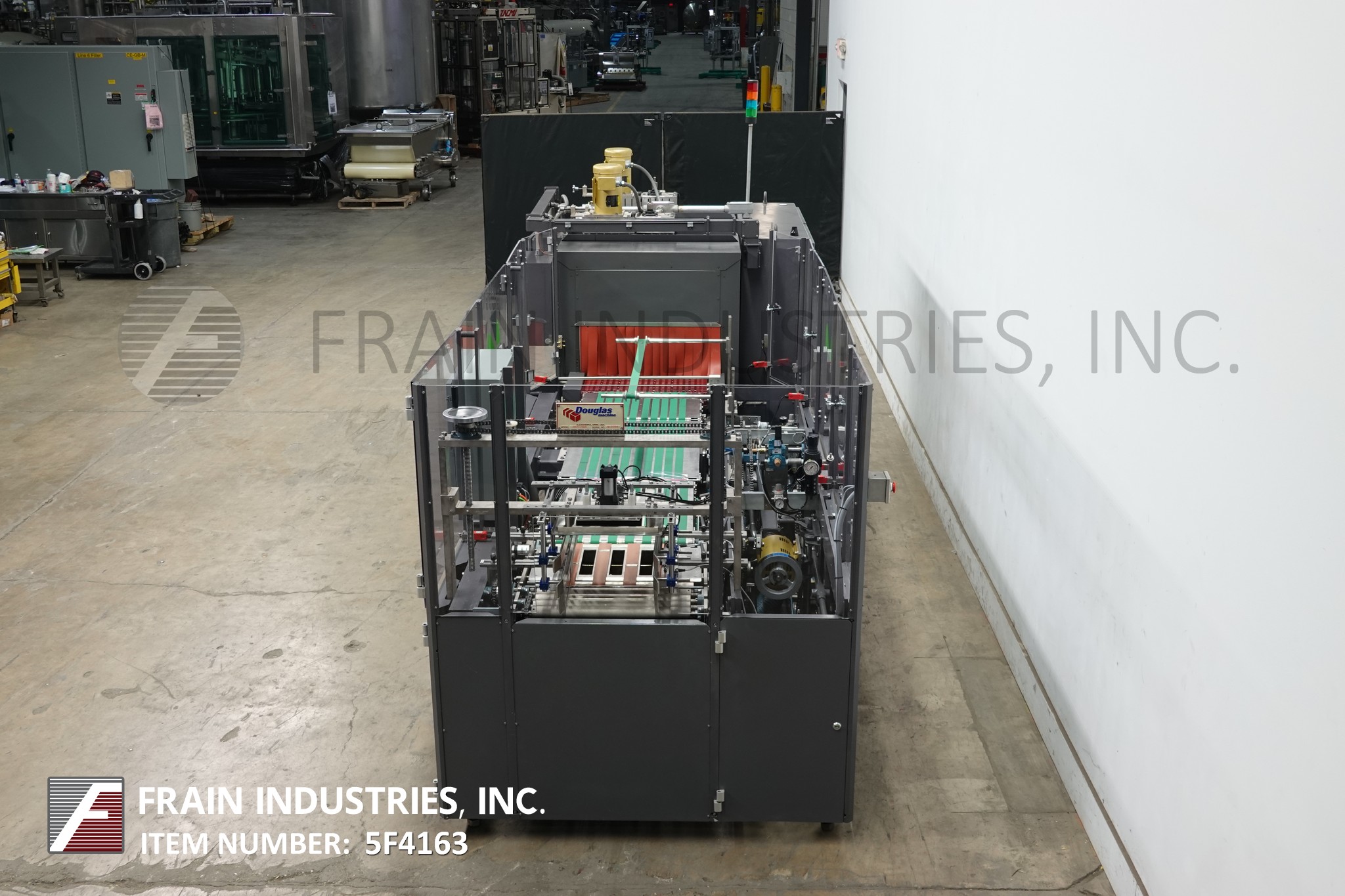

Douglas, automatic, knockdown case packer. Rated from 5 to 30 cases or trays per minute – depending on materials and application. Case size range: 8" to 27" long; 4" to 16" high; 8" to 30" deep. Equipped with (4) chains adjustable set on 30" centers with 4" high lugs. 15" wide x 120" long product in feed conveyor with upstacking and product sweep loader. 96" long automatic blank case magazine, with (3) suction cup reciprocating pick n place, case flap traps, Nordson hot melt glue unit, minor flap tuckers with wrap over station and hand wheel machine adjustment. Remote control panel has an A/B controller and A/B panel view touch screen HMI. Mounted on heavy duty stainless steel tubular frame with safety guarding.
OAD: 370"L x 123"W x 103"H
Douglas Model DLT, automatic, continous motion, horizontal, trayformer, loader and hot melt glue sealer, rated from 5 to 75 cycles per minute with the number of product and trays – depending on materials and application. Equipped with (4) chains adjustable set on 24" centers, with 4" wide x 3" high plastic lugs, 27" wide x 104" long flex link product in feed conveyor with (2) sets of 48" long dual product metering worm screws and (4) product lane dividers. (2) chain blank tray vacuum suction cup recipicating pic-n-place, (blank tray magazine per application). Bottom lugged chain blank tray conveyor set on 24" centers, with product collation and tray lift wrapround load section with Nordson hot melt glue unit and side tray closers. Control panel, has A/B PLC controller with A/B swing arm controls and panel view, main drive run / jog, vacuum and metering on / off switches, with start, stop, reset, e-stop push buttons and statis light bar. Mounted on heavy duty frame with leveling screws and interlock safety guarding.
OAD: 280" L x 144" W x 108" H
Automatic, inline, registered shrink bundler. Equipped with indexing system, bottom film carriage, film registration, 36" long x 24" wide rotary arm wrap station, interlocking Lexan safety guarding and Allen Bradley Controllogix, with 10 inch HMI touch screen. Film width up to 24". Tunnel: Equipped with a 30" wide x 12" high aperture, 72" long dual zone heating chamber and 100" long x 28" wide conveyor.Speed dependant on materials, application and machine configuration.
OAD Wrapper : 124" L x 66" W x 70" HTunnel: 102" L x 72" W x 80" H

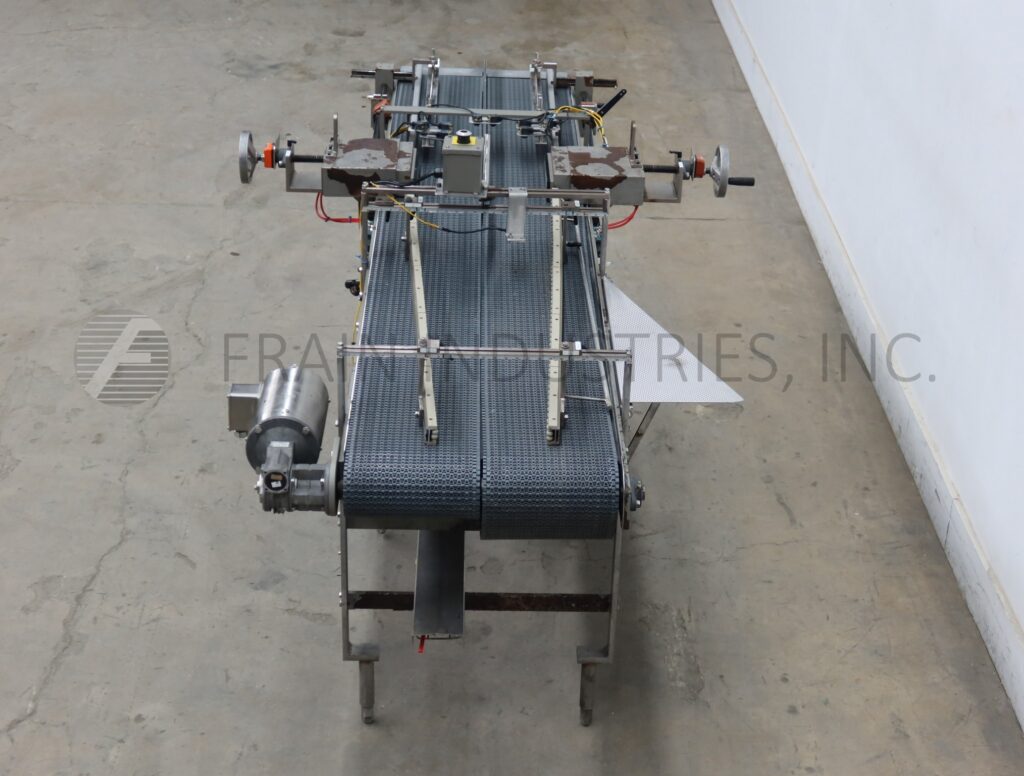

Dual lane, servo driven feeder, speeds – depending on materials and application. Equipped with dual 32" long x 1-1/4" wide top and bottom eagle belt product in feed conveyors to 72" long x 32" wide canvas belt product conveyor with 48" long x 1-/4"wide sliding smartrak steady stream product feed system to dual lane product laner. Control panel with servo controller, with start / stop, lane, pack pattern controls counter and safety guarding.
OAD: 112" L x 62" W x 76" H
Douglas Machine, Model Contour S30, Inline, intermittent motion, shrink bundler and tunnel. Bundle size range: Length: 5" to 15¾"; Width: 8½" to 22"; Height: 3½" to 12". Equipped with 25" wide x 30" long in feed conveyor, 29" wide x 30" long wrap station conveyor, servo driven wrapping wands, film registration and 25" wide x 30" long Intralox transfer conveyor to shrink tunnel. Single zone shrink tunnel has 40” wide x 12" high total aperture x 105" long chamber with 145" long x 36" wide Intralox product conveyor and cooling fan. AB PanelView Plus 700 touch screen. Speed dependent on materials, application and machine configuration.
OAD: 245"L x 138"W x 71"H

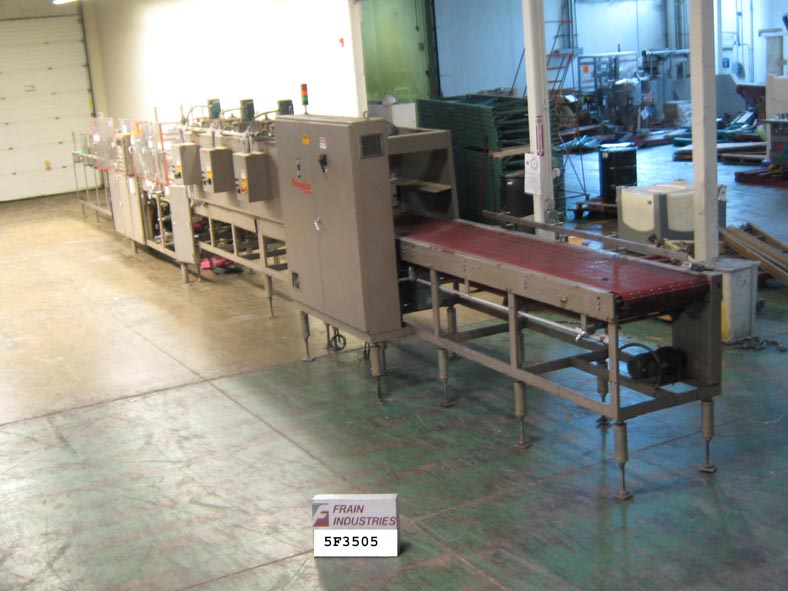

Douglas, Model Flighted Case Former, automatic, intermittent motion, case former and hot melt glue sealer. Rated from 5 to 30 cases per minute – depending on materials, application and machine configuration. Case size range: 5" to 13" in Length; 12" to 18" in Width; 4" to 8" in Height. Equipped with (4) chain lugged system set on 18" centers with 3" wide x 4" high lugs, 45" long powered blank case magazine, reciprocating (4) suction cup pick and place, flap plows and closers, Nordson hot melt glue system, side compression discharge. Control panel has A/B PLC with A/B PanelView touch screen controller and interlocking safety guarding. Mounted on heavy duty base frame.
OAD: 196" L x 80" W x 81" H
