A Conveyor Vibratory system uses a pan and a vibratory motor to move product forward due to the vibration of the pan. Â Vibratory conveyors are ideal for food-grade applications that require a sanitary and minimal maintenance solution. Â Ideal applications include:
276"L x 24"W x 5"H S/S trough style vibratory conveyor discharging at 44"H which travels 262" before making a 45 deg turn then traveling 12" before discharging. Equipped with a 21"W x 4"H in feed lip that can discharge onto a 72"L x 10"W x 6"H vibratory conveyor which is equipped with a 22"L x 10"W grating area with 1/4" diameter holes
OAD: 286" L x 36" W x 27" H
Key Technology, Model ISO-FLO stainless steel vibratory trough style conveyor with product volumes per minute or hour – depending on materials and application. Equipped with 84" in Length; 10" in Width; 7" in Height vibratory product conveyor with 6" diameter discharge.
OAD: 101"L x 35"W x 36"H
Key Technology, Model ISO-FLO, stainless steel vibratory trough style conveyor. Equipped with 88" in Length; 12" in Width; 5½" in Height vibratory product conveyor with (2) lane diverting drop chutes.
OAD: 90"L x 38"W x 48"H
Key Technology, Model ISO-FLO, stainless steel vibratory trough style screening / de-watering conveyor. Equipped with 120" in Length; 14" in Width; 5½" in Height vibratory product conveyor with 18" long screen section and (2) lane diverting drop chutes.
OAD: 120"L x 40"W x 51"H

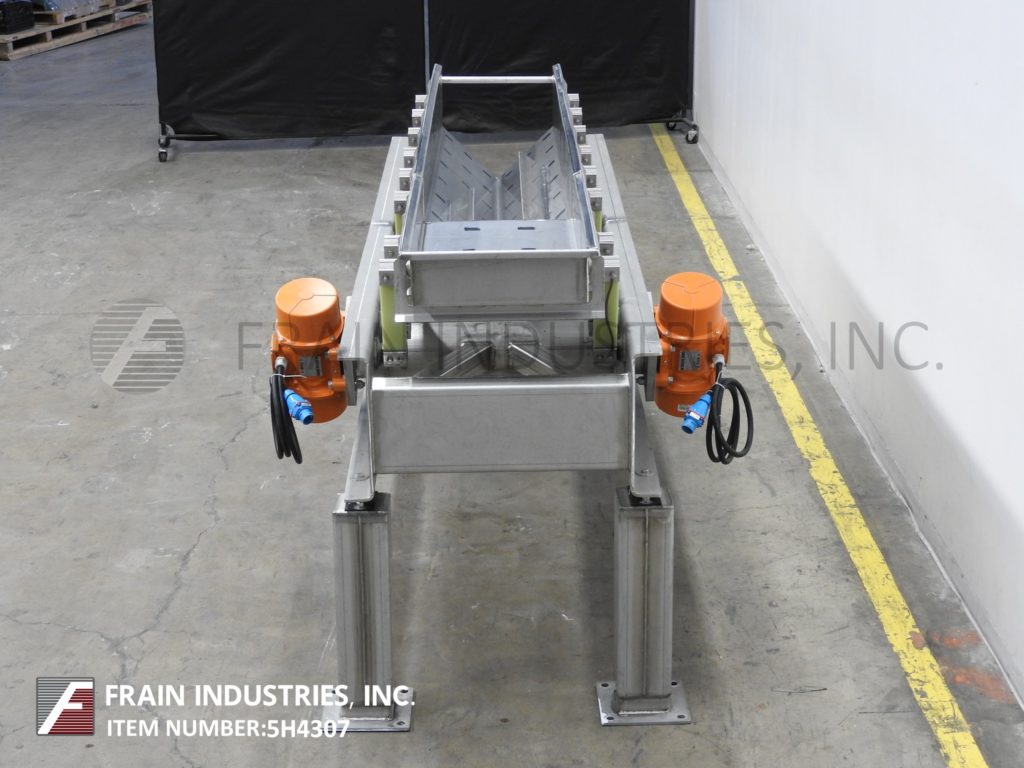

Commercial, Model Vibra Glide, stainless steel vibratory trough style feed conveyor with product volumes per minute or hour – depending on materials and application. Equipped with an 18" wide x 120" long trough with (2) 4" high internal baffles to help even distribution. Charge end of trough has 5½" deep side walls with a charge height of 55" and discharges with 36" ground clearance. Mounted on heavy duty stainless steel frame with (2) 0.36 HP vibratory motors.
OAD: 125"L x 55"W x 55"H
Key Technology Iso-Flo 208" long x 24" wide x 8" deep, dimpled stainless steel, vibratory conveyor. Equipped with 8" high guide rails, four 7-1/2" long x 6" high side clean out chutes, and a 32" high discharge, manual variable height diverter. Mounted on a stainless steel frame.
OAD: 208" L x 28" W x 38" H

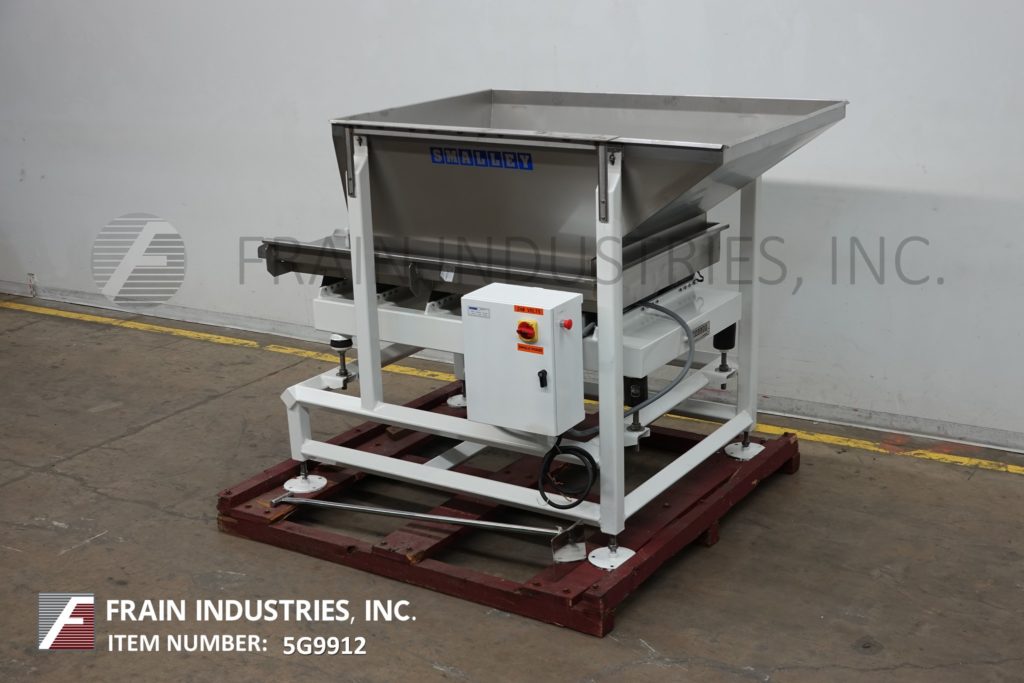

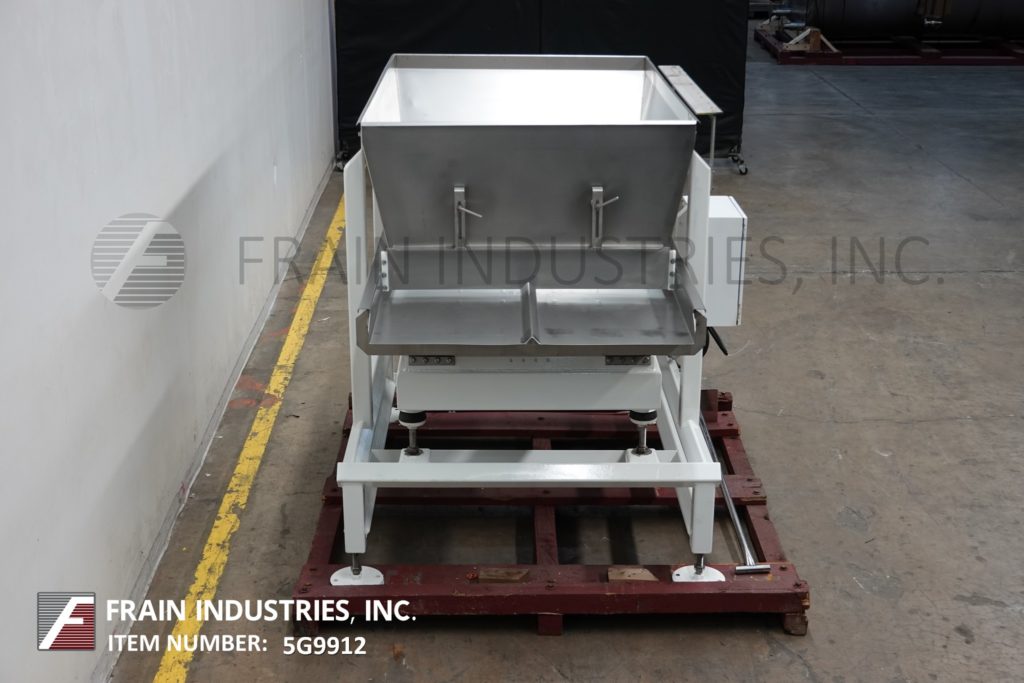

Smalley, Model EMC2+, stainless steel vibratory feeder. Equipped with a 72"long x 48" wide x 25" deep stainless steel product hopper, 44" wide x 72" long stainless steel bed with 4" high side walls, 68" charge height, product flow control gate, 42" discharge height and a variable frequency MA520 vibratory shaker drive. Mounted on a painted base frame.
OAD: 96"L x 70"W x 85"H

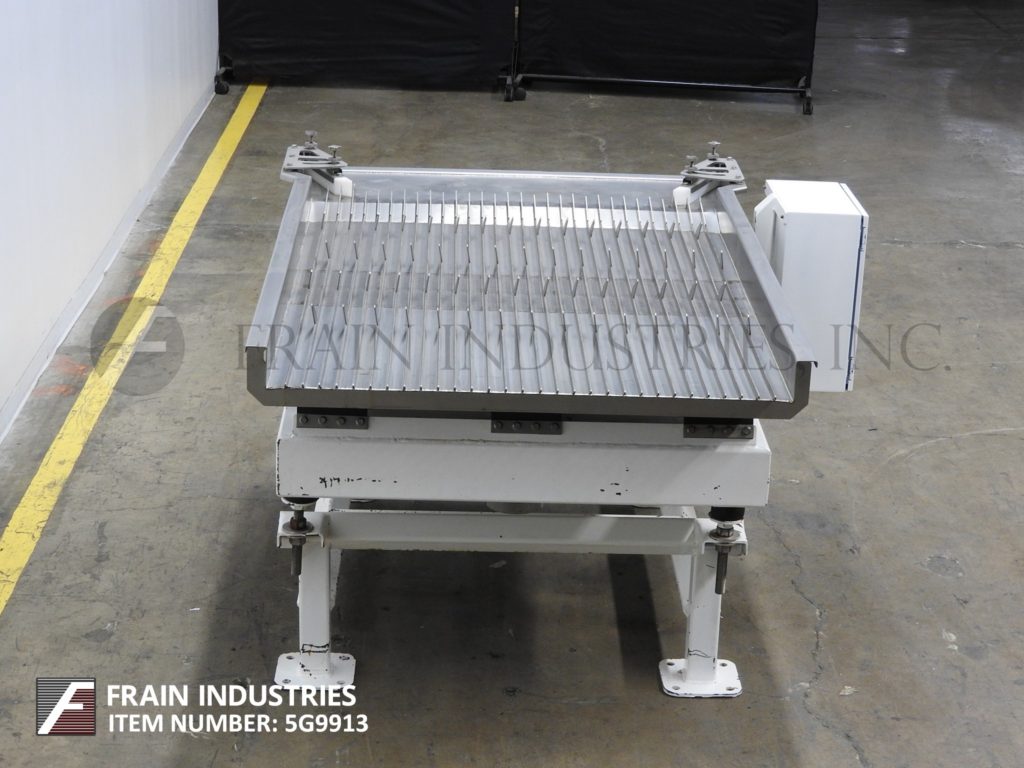

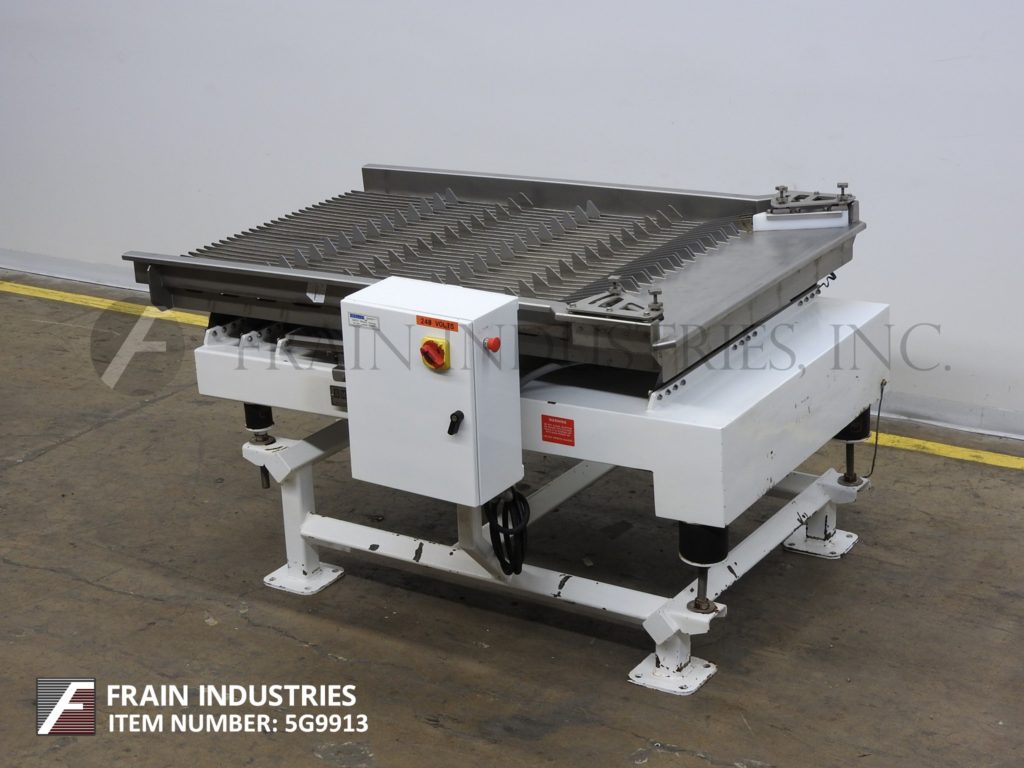

Smalley, Model EMC2+, multi-lane stainless steel vibratory feed system with pounds of product per hour – depending on materials, application and machine configuration. Equipped with a 46¼" wide x 74" long bed with 4" high side walls, 50" wide feed throat with a 42" infeed height, (31) 1¼" wide product feed tracks, 12" long screening section with ¼" diameter holes, 6" diameter bottom discharge for seperated product with 12" ground clearance and a 32" vibratory bed discharge height. Control panel has touch pad and e-stop controls. Mounted on (4) leg base frame.
OAD: 75"L x 65"W x 44"H
Triple/S, 24" wide x 264" long, Stainless steel vibratory conveyor. Equipped with 22’L x 34"W stainless steel cover with (2) 4"dia inlet ports, and (2) discharges (1) 10"L x 24"W and (1) 10"dia.
OAD: 23’L x 34"W x 26"H

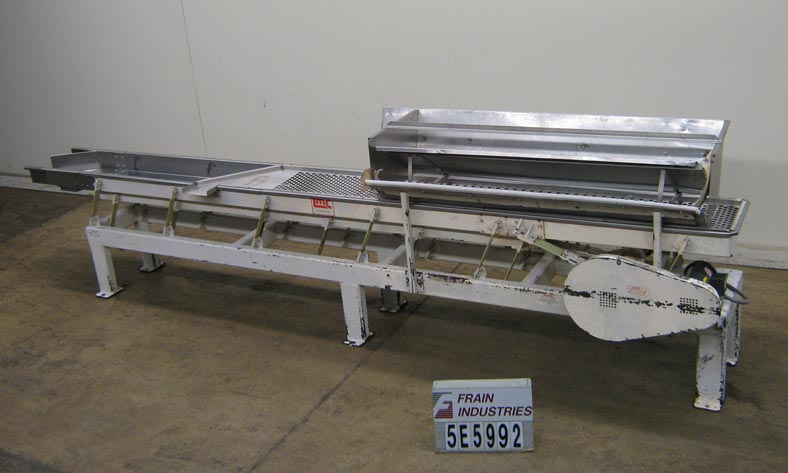

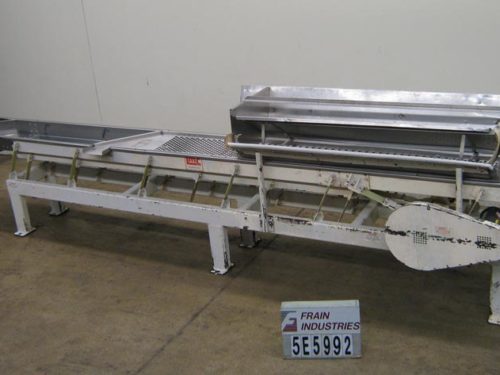

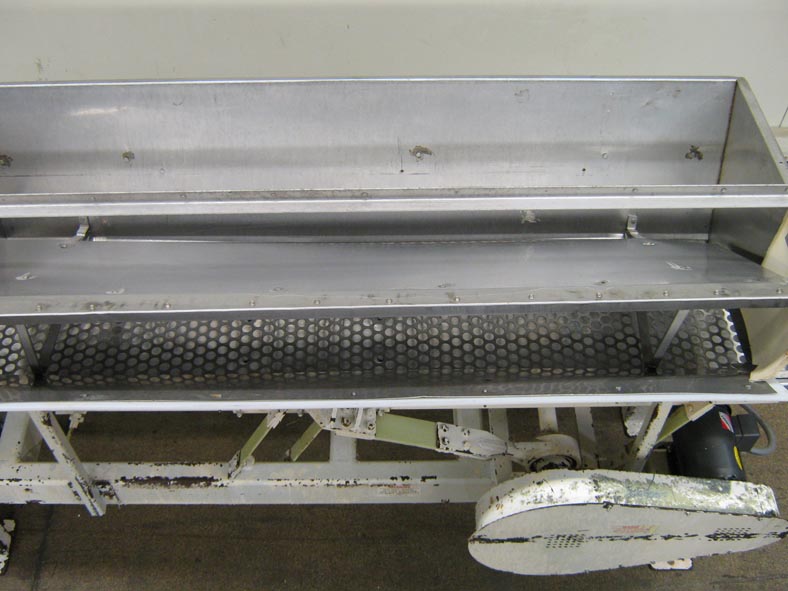

Vibratory, sizing, separation and feed conveyor system. 228" L x 18" W x 6" D, single deck vibratory conveyor has a 79" L x 36" W x 24" H, S/S, split product feed hopper, and top 144" L x 17 1/2" W x 1 1/2" D, S/S, screw on, removable separation screen with 1" dia product sizing holes and left angled oversize product discharge chute. Remaining product drops down to main conveyor section that has a 8" L x 17" W separation section with 1/4" dia sizing holes and right angled undersize product discharge chute, final good product is discharged on left angled product chute at end of conveyor all with 41" floor clearence, 2 hp motor drive with saftey guarding and is mounted on a heavy duty painted base frame, can be used for uniform large / small / right on product separtation without scalping.
OAD: 228" L x 40" W x 60" H
OAD: 192" L x 60" W x 130" H
