Filler Powder Volumetric is a volumetric powder filler that uses a given size cup to measure out the proper volume of product. The product is metered from a hopper into the cup (the cup is filled to the top). Once the cup is filled, it indexes until it is discharged into the container. Different size cups can be outfitted to the machine to change the volume of product that is measured. As an example of what volumetric powder fillers are capable of, picture running a knife over the top of a measuring cup to ensure the proper volume is measured. The flexibility of volumetric filling systems allows them to be adapted to fill a wide variety of products ranging from thin alcohol to thick caulking compounds. Volumetric powder fillers can be used to fill rigid containers or light weight ones that may be distorted by the forces of vacuum or pressure used in some techniques.

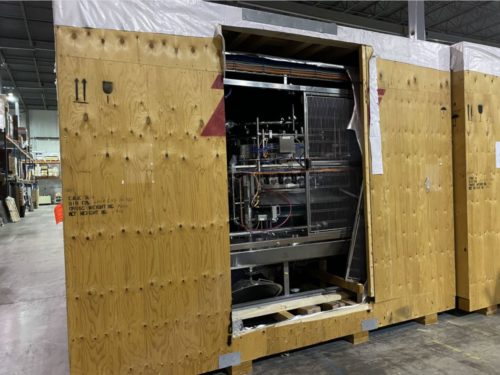

Zacmi / Great Lakes Foods, Model 023-B-40, Automatic, stainless steel, 40 head rotary volumetric telescopic pocket filler with number of containers per minute – depending on materials, application and machine configuration. All stainless steel construction designed for filling solid particles such as various vegetables, peas, beans etc with particle size up to 15mm x 15mm x 15mm. Temperature range from 44 Degrees F (7 Degrees C) to 203 Degess F (95 Degrees C) for any thawed or I.Q.F. products and filling variations depending on product (such as particle size, density, temperature and moisture content) as well as product quality and ability to feed product to constant level in product tank. Container size per application. Equipped with 64" OD table and has (40) 3" x 1-1/2" telescopic filling heads set on 6" centers, overhead feed system and no container / no fill. Control panel has A/B swing arm controller with panelview and has start, stop, reset and e-stop push button controls, Mounted on heavy duty stainless steel frame with cage style interlock safety guarding.
Designed to dose granular or powder products into rigid containers. Working principle product to be dosed is transferred onto a filling plate and directed over the telescope filling section. Filling occurs by gravity and the container is vibrated for product settlement inside.
OAD: 153" L x 112" W x 101" H

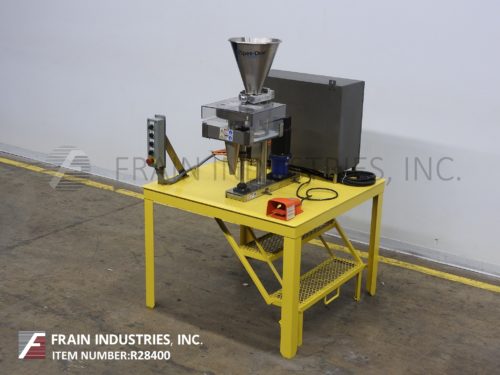

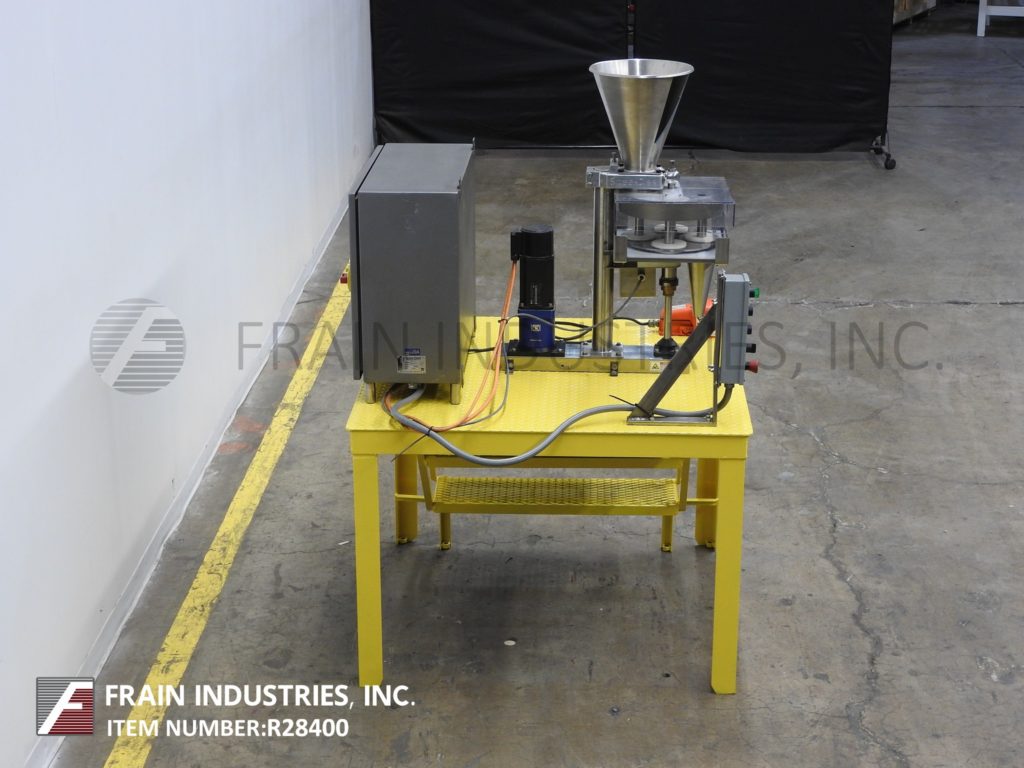

Spee Dee Model CBS Series lll, (4) pocket, stainless steel, servo driven, volumetric filler with number of containers per minute – depending on materials, application and machine configuration. Cup size range: 1.0" to 4.0" OD; 0.62" to 12" in Depth. Fill range: 0.5 to 170 cubic inches. Change parts required to accommodate different size ranges. Equipped with 12" OD x 16" Deep, 1.5 cu ft stainless steel, conical product hopper, 12" OD plate has (4) 4" OD fill pockets with product leveling brush and dual clear plastic bolt down cover. 11" long product discharge chute with 1/2" OD product opening with 9" discharge height. Control panel has a PLC controller with touch pad controls and digital readout with hand held controller, on / off power and volume less and more switches, single index with e-stop push buttons and foot pedal jog. Mounted on base frame.
OAD: 27" L x 8" W x 39" H Cup Filler 24" L x 13" W x 30" H Control Panel

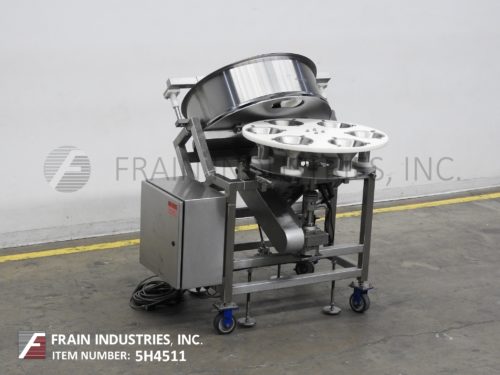

FEMC, Model 3800-000-003, (6) pocket angular dial servo volumetric filler. Rated from 10 to 160 indexes per minute with number of containers – depending on materials, application and machine configuration. Fill range: 5 in³ to 50 in³ (with proper change parts). Equipped with 32" diameter stainless steel angled product hopper with (12) telescoping fill pockets and 32" OD transfer plate with (6) pockets. Mounted on a stainless steel base with push button E-Stop.
OAD: 60"L x 55"W x 62"H

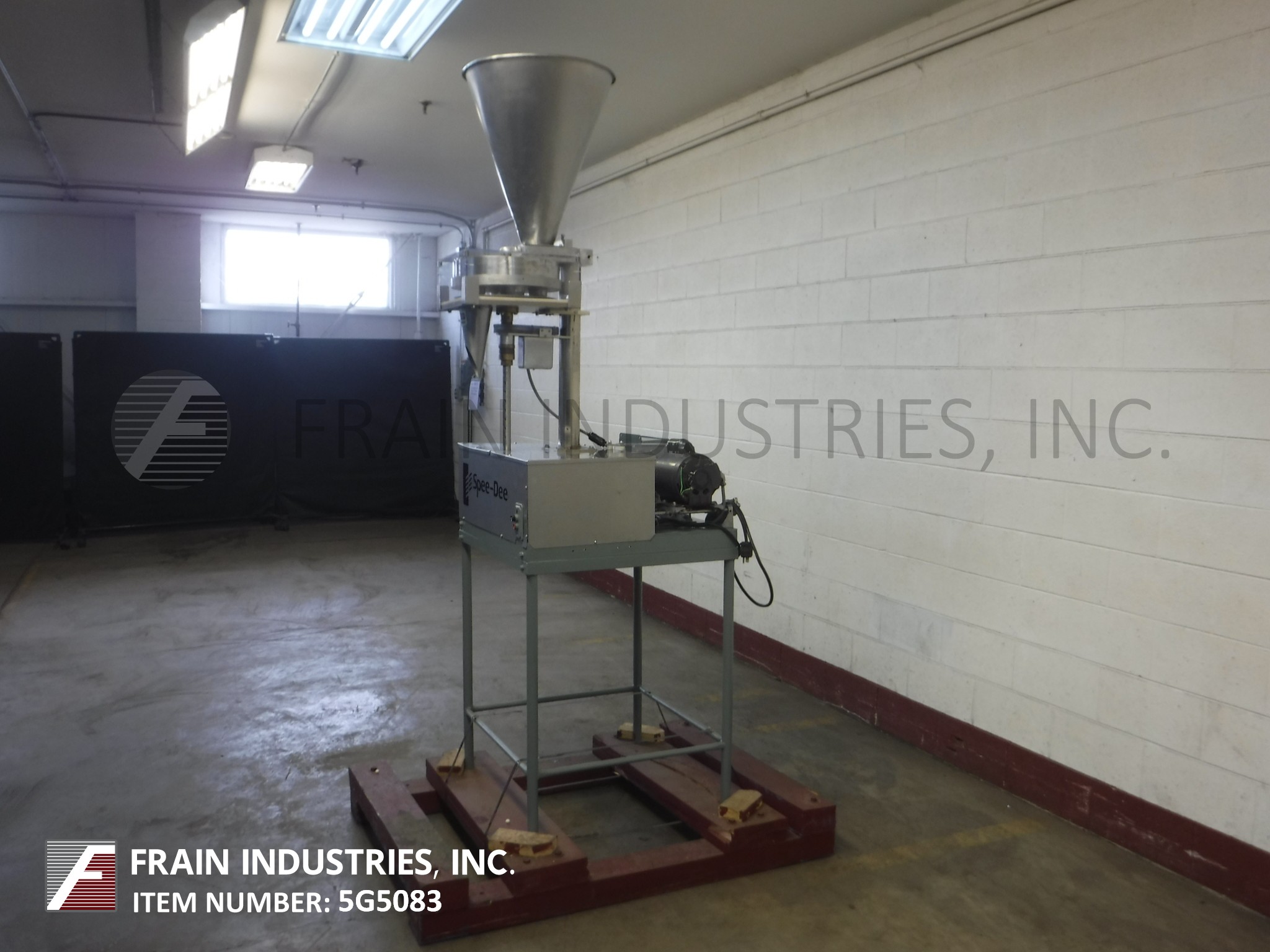

Spee Dee, Model CHS, (4) pocket stainless steel, servo driven, volumetric filler with number of containers – depending on materials, application and machine configuration. Cup size range: 1.0" to 6.0" in Diameter; 0.62 to 25" in Depth. Fill range: 0.5 to 700 cubic inches. Equipped with 20" OD x 26" Deep stainless steel product hopper, 16" OD plate has (4) fill pockets with product leveling brush, 16" long product discharge chute with 4½" OD product opening currently with 55" discharge height. Control panel has on / off power and volume less / more switches, single index and e-stop push buttons.
OAD: 43"L x 38"W x 85"H

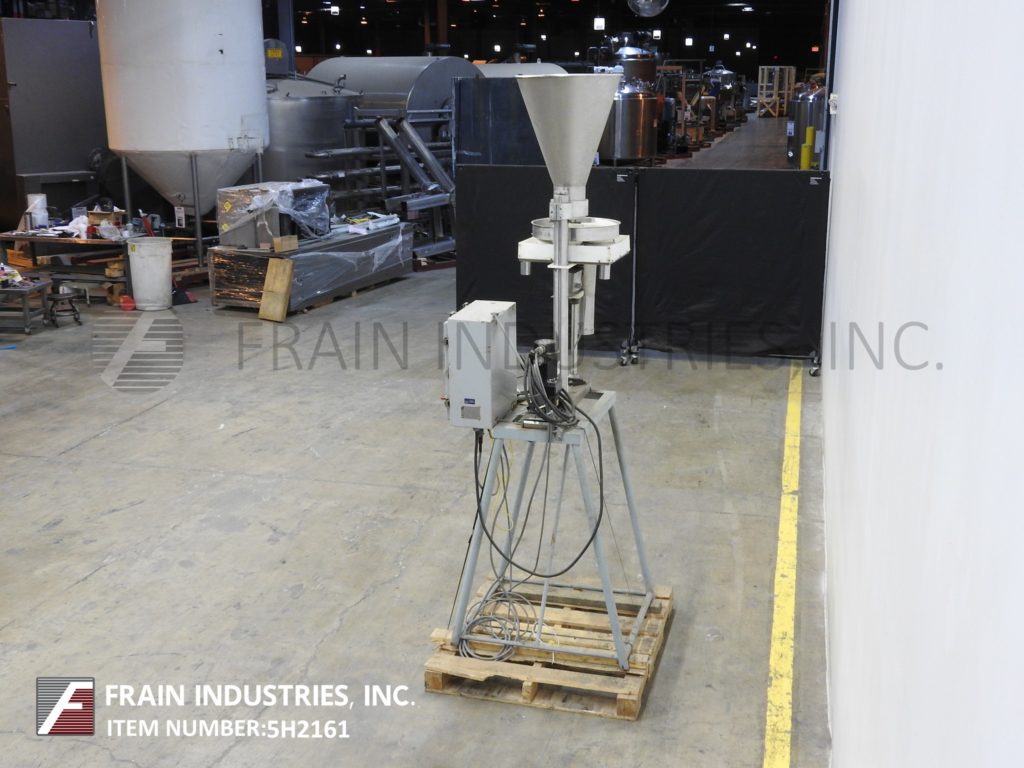

Spee Dee Model CBE-4, four pocket volumetric filler rated from 6 to 48 indexes per minute with number of containers – depending on materials, application and machine configuration. Cup size range: 1" to 4" in Diameter; 0.62 to 12" in Depth. Fill range: 0.5 to 185 cubic inches. Equipped with 18" ID x 22" deep, stainless steel conical product hopper, 13" diameter plate, and 14" discharge chute with 63" ground clearance. Mounted on mild steal frame. Change parts required to accommodate size range.
OAD: __" L x __" W x __" H

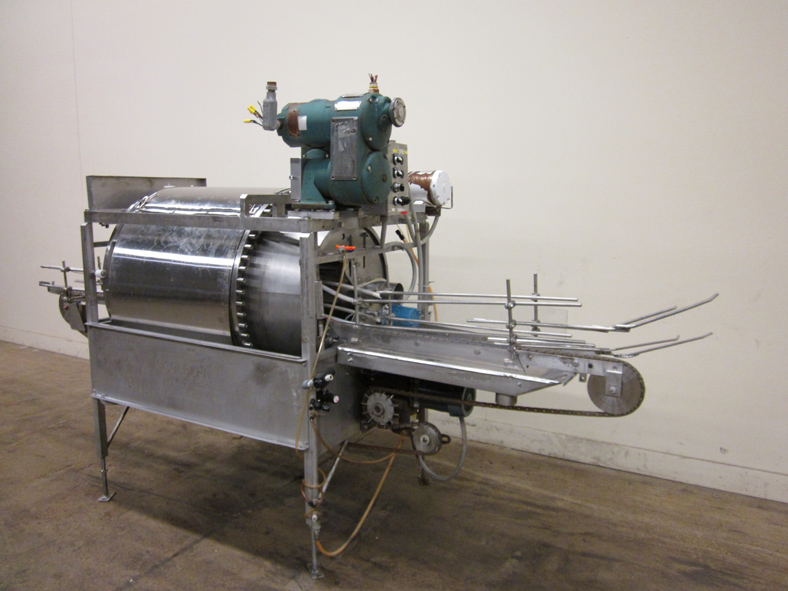

Solbern Model PTFGP, continuous motion, straight line, tumble filler with number of containers per minute – depending on materials and application. Container size range: 1-1/2" to 6-1/2" in Diameter; 1-1/2" to 7" in Height. Equipped with 132" long container conveyor with adjustable height guide rails, 36" diameter by 48" long filling chamber, with vibration system, 36" long by 24" wide drip pan and stainless steel guarding. Mounted on a stainless steel frame with height adjustable legs. Filler uses container as measuring device for precise filling. "Shake-While-Fill" orients product in container while fill angle determines volume.
OAD: 132" L x 42" W x 75" H
Spee Dee, Model CJ6S416, (6) pocket servo driven volumetric filler. Rated from 10 to 140 indexes per minute with number of containers – depending on materials, application and machine configuration. Cup size range: 1" to 5½" in Diameter; 0.62" to 14" in Depth. Fill range: 0.5 in³ to 300 in³ (with proper change parts). Equipped with 6" diameter charge and 22" OD plate with (6) telescoping fill pockets. Mounted on a stainless steel base with push button single index. start / stop and volume more / less switch.
OAD: 68"L x 40"W x 55"H
Spee Dee, Model CJ6S416, (6) pocket servo driven volumetric filler, rated from 10 to 140 indexes per minute with number of containers – depending on materials, application and machine configuration. Cup size range: 1" to 5½" OD; 0.62" to 14" in Depth. Fill range: 0.5 in³ to 300 in³ (with proper change parts). Equipped with 6" OD charge and 22" OD plate with (6) telescoping fill pockets, with push button single index. start / stop and volume more / less switch. Mounted on a stainless steel base.
Spee Dee, Model CBE264, (4) pocket volumetric filler rated from 6 to 48 indexes per minute with number of containers – depending on materials, application and machine configuration. Cup size range: 1" to 4½" in Diameter; 0.62" to 20" in Depth. Fill range: 2 to 1250 cubic inches. Equipped with 12" ID x 16" Deep stainless steel conical product hopper and 13" OD plate with (4) fill pockets. Mounted on a stainless steel base with foot pedal controls. Change parts required to accommodate size range.
OAD: 33"L x 28"W x 70"H
Spee-Dee, Model CB6S-233, 6 pocket volumetric Servo driven cup filler. Equipped with 6-cups plate and standard 1.5 cu.ft stainless steel hopper. Digitronic digital servo gearmotor drive system. PLC Direct micro controller with DV 1000 Operator Interface and control pendant. Manual height adjustment
Fill Volume Range: 0.5-55 cu.in.Cup Size Range: 1"- 3"Dia., 0.62"-7"lenghtCurrent Set Up: 2-3/4"Dia.
OAD: 48"L x 40"W x 48"H
Spee Dee Model CBE-4, four pocket volumetric filler rated from 4 to 60 indexes per minute with number of containers – depending on materials and application. Cup size range: 1" to 4" in Diameter; 0.62 to 12" in Depth. Fill range: 0.5 to 185 cubic inches. Equipped with 20" ID x 29" Deep, stainless steel, conical product hopper, 12" OD filling plate with (4) 3" ID x 2" Deep product pockets, product discharge funnel with 38" discharge height, foot pedal and mounted on 48" x 36" frame with casters. Applications include popcorn, bird seed, macaroni, rice, dried beans, and many other granulated free flowing products.
OAD: 48" L x 36" W x 90" H
