Filler Powder Bulk is a type of filler used in large portion packaging operation for filling bags of product ranging from 2 to 100 pounds and includes the bulk sack operation for the 1000-kilo filling of dry materials. Filling rates are a function of the package size with the large containers being able to be filled at 1 to 3 per minute to up to 40 to 60 bags per minute for smaller sizes. Bulk powder fillers can be a single fill station of a multiple filling station either line or rotary in operation.

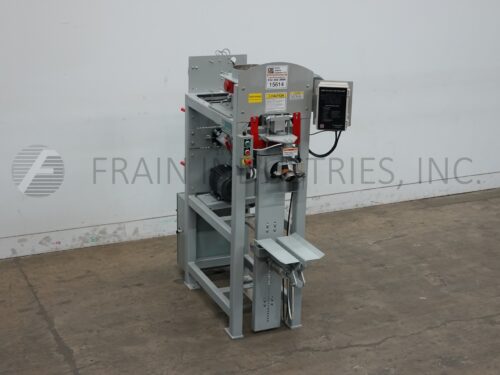

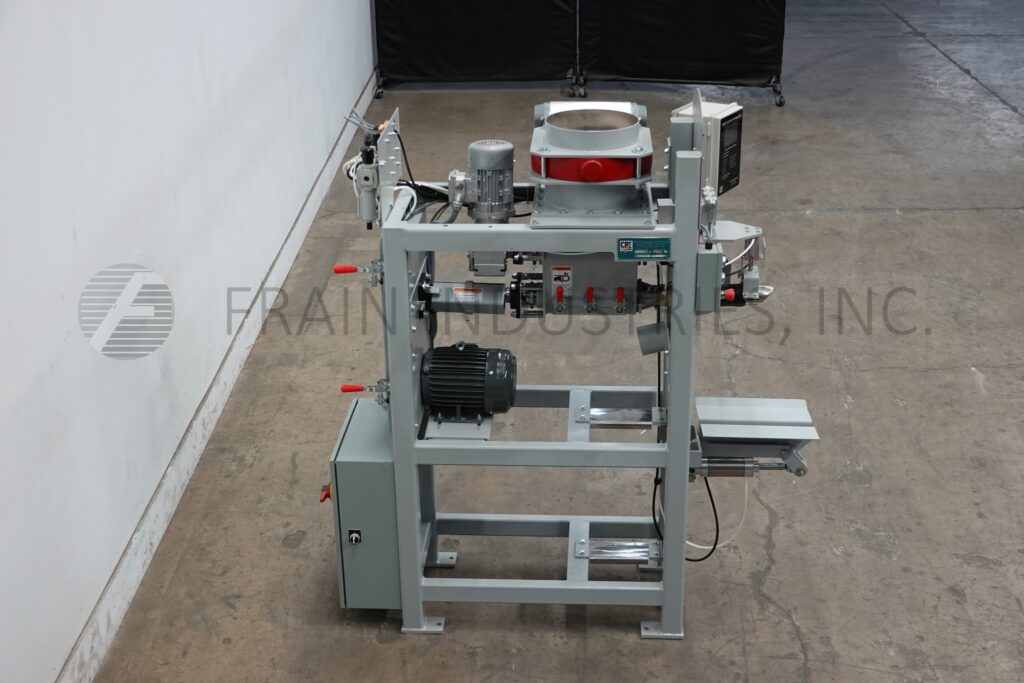

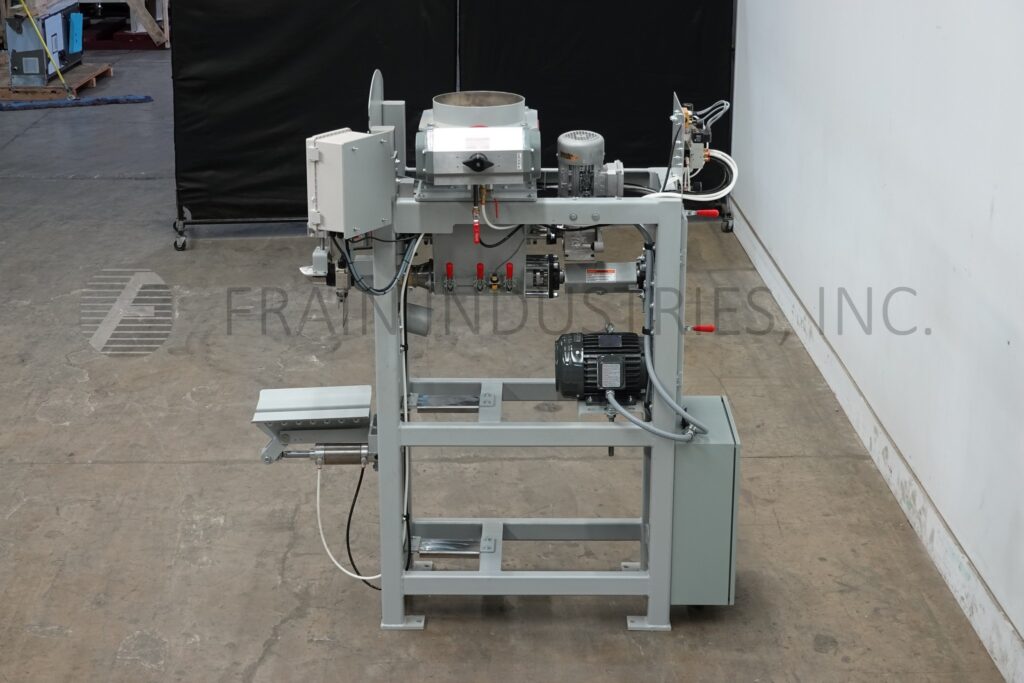

CBE, Model 205, Auger fed, valve bag filler capable of handling a varity of powders, flakes and granular products rated from 1 to 6 bags per minute – depending on materials, application and operator dexterity. All 304 stainless steel contact parts. Fill range: 20 to 110 lbs (9-50KG) with typical scale weight accuraies + / – .5% of target weight. Equipped with 16" long x 13" wide x 32" deep product hopper with 12" OD top port and auger feeder with 5 Hp belt motor drive, to stainless steel 2-1/2" OD filling tube with adjustable bag rest, with working temperatures 40 to 90 Deg F. Control panel has DBE filler controller with touch pad controls and start, stop, e-stop push buttons. Mounted on heavy duty steel frame.
OAD: 80" L x 24" W x 67" H

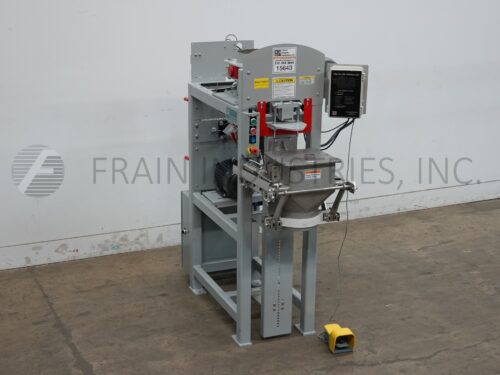

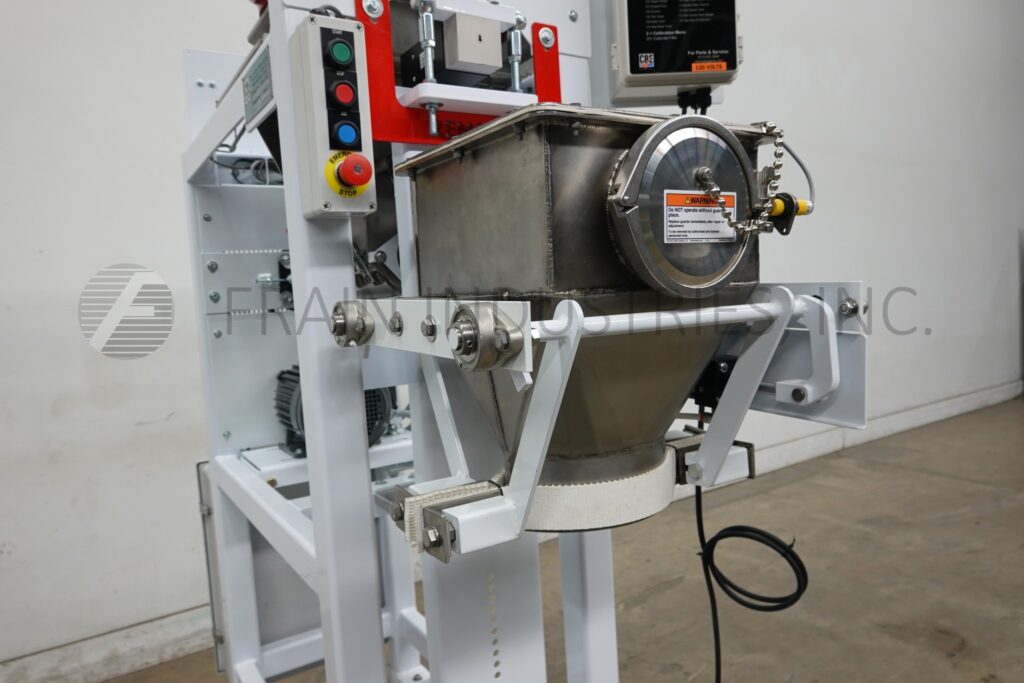

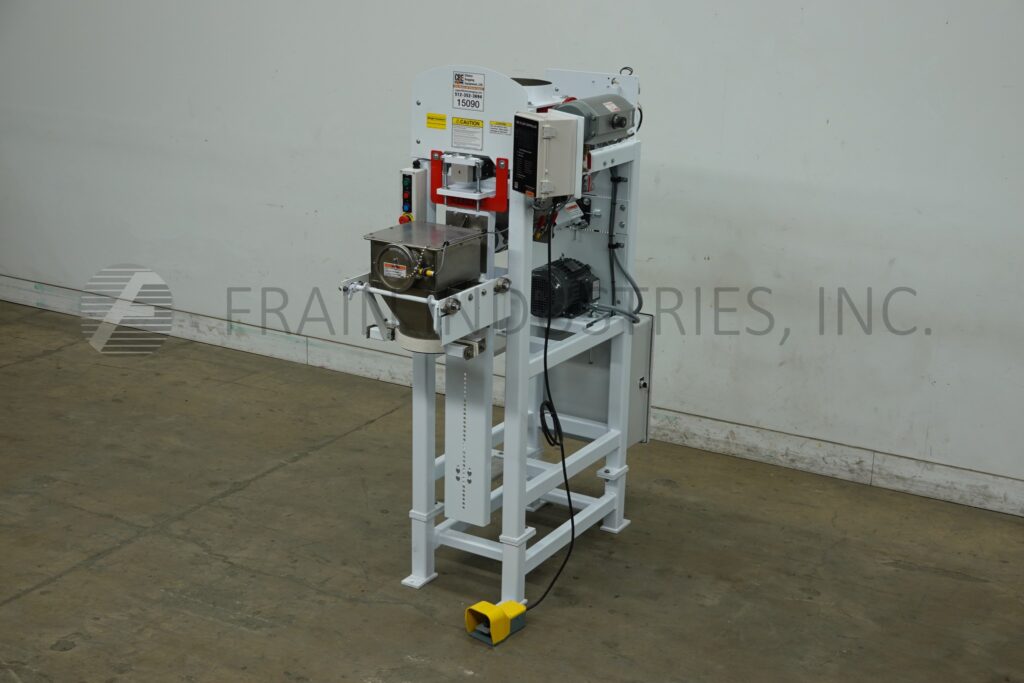

CBE, Model 245, Auger fed, gross weight, open mouth bag filler capable of handling a varity of dry, free flowing, minimally dusty and granular products rated from 1 to 5 bags per minute – depending on materials, application and operator dexterity. All 304 stainless steel contact parts. Fill range: 20 to 110 lbs (9-50KG) with typical scale weight accuraies + / – .5% of target weight. Bag types: plastic, paper and poly woven open mouth bags. Equipped with top 12" OD product port to auger feeder to12" long x 16" wide x 16" deep product hopper with cover and 2" OD top port. Stainless steel 6-1/2" OD dust tight open mouth filling spout with 47" ground clearence and 5 Hp motor drive. Control panel DBE filler controller with touch pad controls and start, stop, jog, e-stop push buttons with operator foot pedal. Mounted on heavy duty steel frame.
OAD: 92" L x 24" W x 88" H

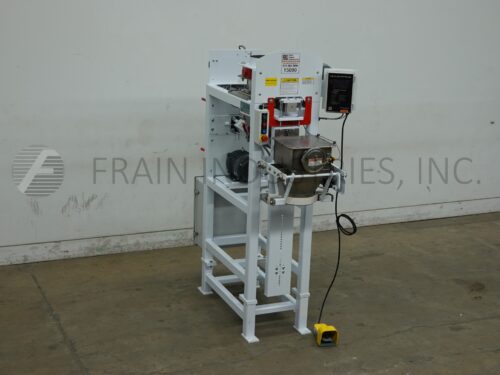

CBE, Model 245, Auger fed, gross weight, open mouth bag filler capable of handling a varity of dry, free flowing, minimally dusty and granular products rated from 1 to 5 bags per minute – depending on materials, application and operator dexterity. All 304 stainless steel contact parts. Fill range: 20 to 110 lbs (9-50KG) with typical scale weight accuraies + / – .5% of target weight. Bag types: plastic, paper and poly woven open mouth bags. Equipped with top 12" OD product port to auger feeder to12" long x 16" wide x 16" deep product hopper with cover and 2" OD top port. Stainless steel 6-1/2" OD dust tight open mouth filling spout with 36" ground clearence and 5 Hp motor drive. Control panel DBE filler controller with touch pad controls and start, stop, jog, e-stop push buttons with operator foot pedal. Mounted on heavy duty steel frame.
OAD: 92" L x 24" W x 72" H

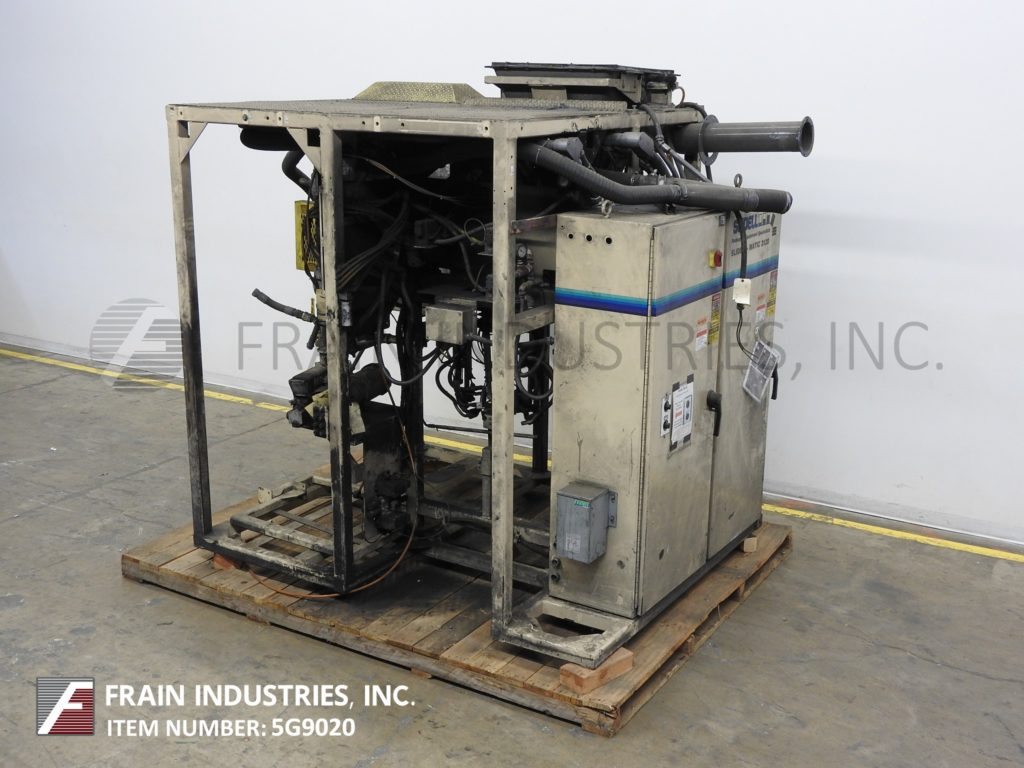

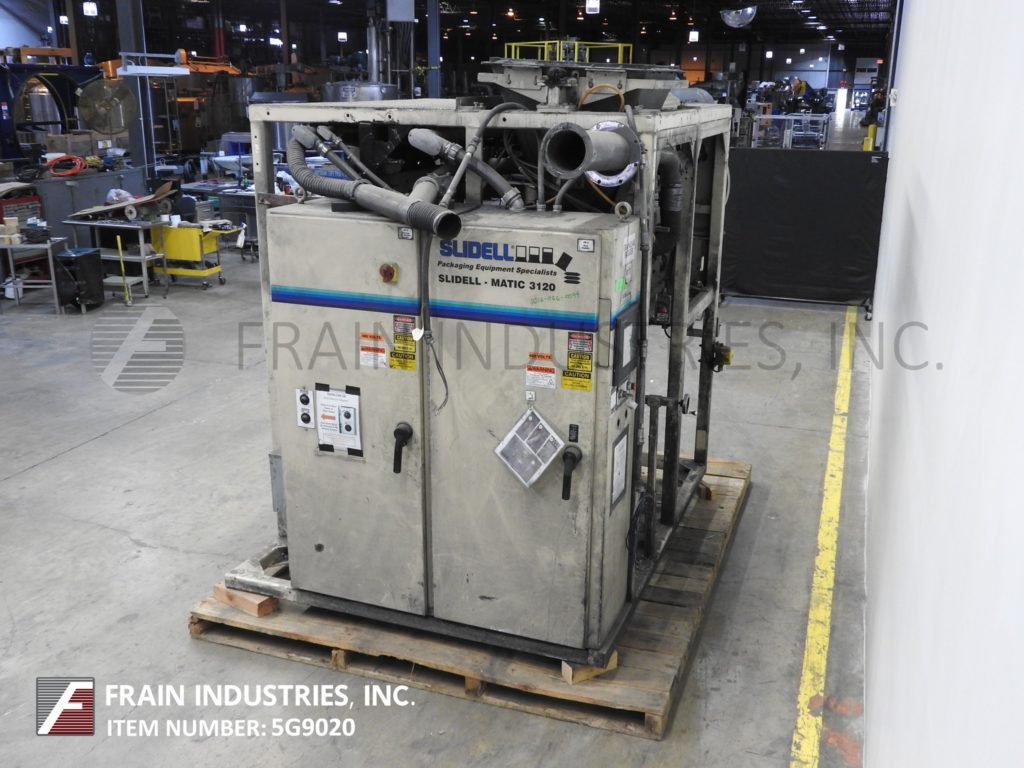

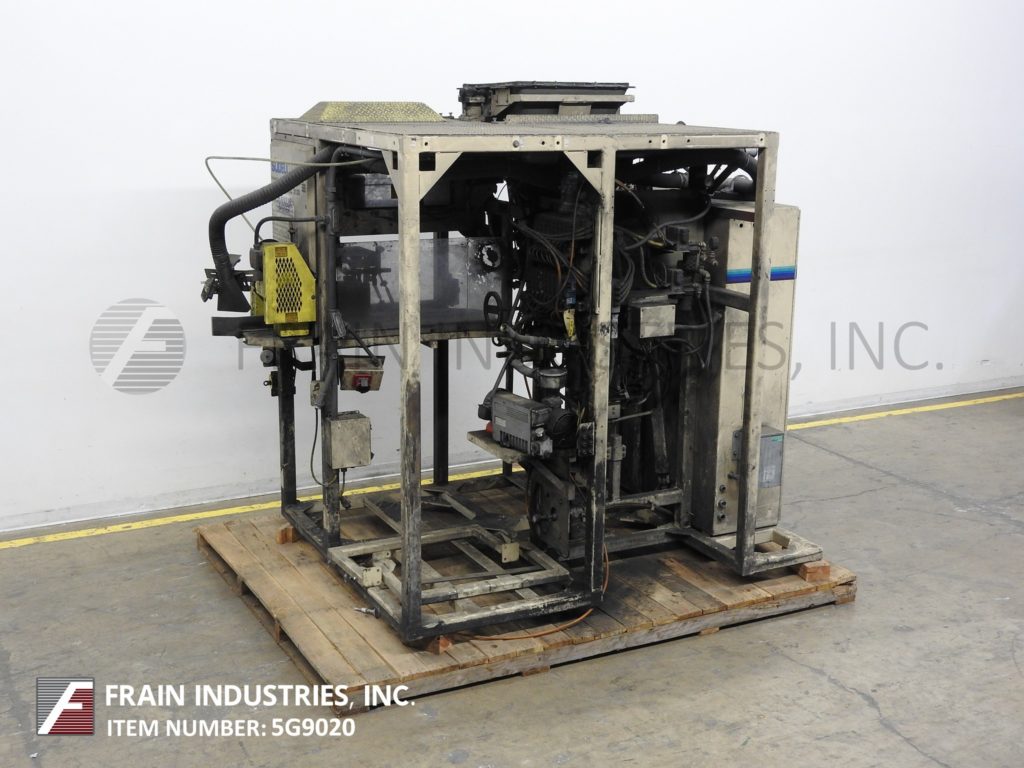

Thiele / Slidell Model 3120, Automatic, single spout net weigh, bag filling and sealing system rated from 4 to 20 bags per minute – depending on materials and application. Bag size range: 11" to 19" in Width 15" to 41.6" PBOM and 14" to 40.6" for SOM, Poly and Woven Poly bags in Length and capable of handling a variety of free-flowing products such as pet food, animal feed, molasses feeds, poly pellets and others. Equipped with empty bag magazine, (6) vacuum suction cup pic n place, bag opener, top feeder / weighing system (type filler per application) and in line poly bag sealer. Control panel has (2) A/B PLC controllers one for filler one for bagger with A/B panelview touchscreen controls and trim and dribble control dials. Mounted on heavy duty frame.
OAD: ___" L x ___" W x ___" H
Thiele complete, automatic bag filling line rated from 2 to 6 bags per minute – depending on materials, application and machine configuration. Stainless steel contact parts. Line consists of Thiele bag hanger, Hapman screw feeder, Merrick weigh feeder, stainless steel hopper and St. Regis V-Trough discharge conveyor. Capable of handling bags: gusseted sewn open mouth or pinch bottom (Heat Seal) bags multi wall bags with (face width of 11" to 18"; Length of 25" to 37"; Gusset of 1.5" to 4.5"). 144" long empty bag magazine, vacuum pick and place, screw feeder, 48" long loss in weight feeder, bag filling spout, and 264" long V-Trough discharge conveyor. Mounted on heavy duty frames.
Bag Sealer available at additional cost.
Chantland complete, gross weight, auger filling, bag sealing system with number of bags or containers minute – depending on materials and application. System consists of Chantland Model 4198 weigh master auger filler capable of filling open mouth bags, boxes and drums, with dry, flaked, granular and powdered products. Fill range: 20 lb to 110 lb bags, 50 lb to 220 lb boxes and drums and has accuracies of +/- 4oz to 6oz from target weight. with product hopper and (4) corner bag clamps with 11" long x 7" wide oval shaped product filling spout. Control panel has touch pad controller with digital readout and fast / slow fill speed control dials, start, stop, e-stop push buttons and load cell with digital controller. 180" long x 12" wide rubber belt conveyor with side bag support rail that runs the bags through the Fischbein Model 300 hot air bag sealer to 120" long x 24" wide rubber belt inclined discharge conveyor. All mounted on heavy duty frames.
OAD: ___" L x __" W x ___" H
Stone Packaging Model 987, gross weight, auger valve bag packer rated from 1 to 6 bags per minute – depending on materials and application. Fill range: up to 110 pounds. Bag size range: up to 35" in Length with proper change parts. Accuracies: up to +/- 4oz. Equipped with all 304 stainless steel contact parts with 17" long x 15" wide x 18" deep product hopper with cover and 8-1/2" diameter product port. Stainless steel 3" OD filling tube with 2-3/4" OD auger, bag clamp that closes on bag and opens cylinder to filling spout, weigh beam scale system with bag craddle and 5 Hp motor to belt drive with safety guarding, control panel with start / e-stop push button controls and mounted on four leg base frame.
OAD: 60" L x 28" W x 74" H
