Filler Powder Capsules are machines designed to fill powders, pellets, or liquids into a capsule. Semi-automatic capsule powder filler machines will only fill the capsule and require an operation to cap the capsule, while an automatic capsule powder fillers will fill and cap the capsule automatically.

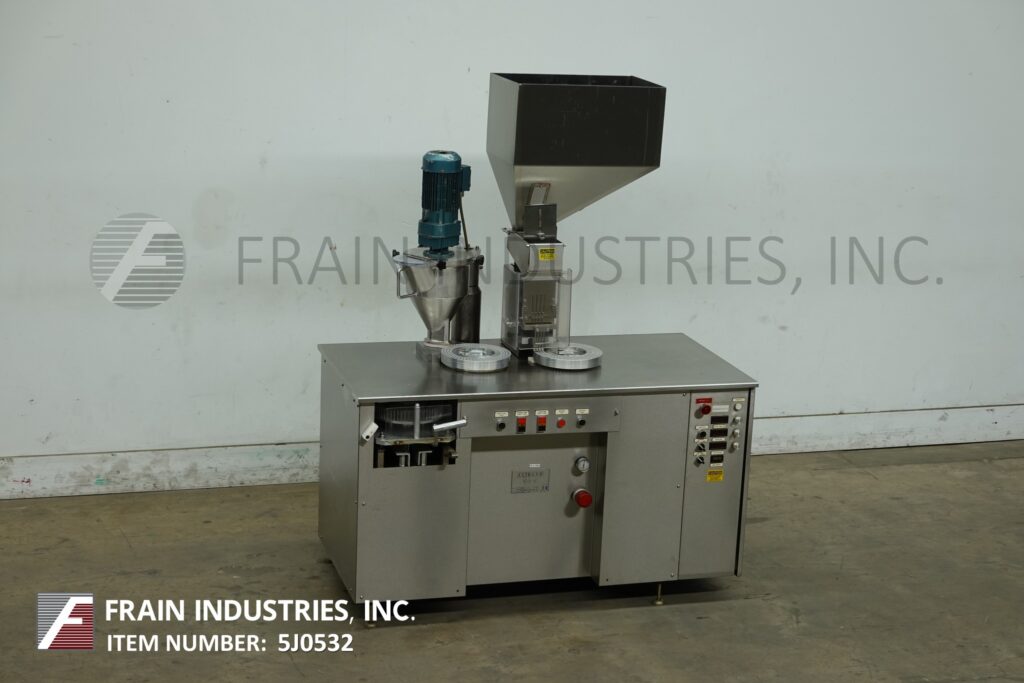

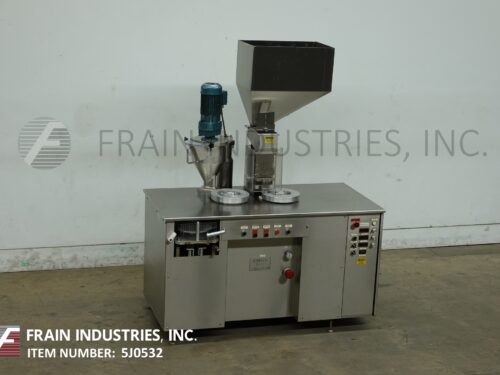

Capsugel Model Ultra 8 ll, Semi automatic, stainless steel powder or pellet capsule filler rated up to 33,000 capsules per hour – depending on materials, application, size capsule being run and operator dexterity. Capable of handling capsule sizes: 000, 00, 0 and 1 thru 5 with proper change parts. Equipped with fill ring holder, empty capsule hopper, slide gate magazine, vacuum rectifier head, with clockwise rotation indexing ring, index brake, product hopper with top mounted agitation, self-contained horizontal hydraulic closing system, oil-less vacuum pump, excess product receptacle and has push button controls. Mounted on stainless steel frame. Currently set with (00) tooling.
OAD: 62" L x 35" W x 63" H

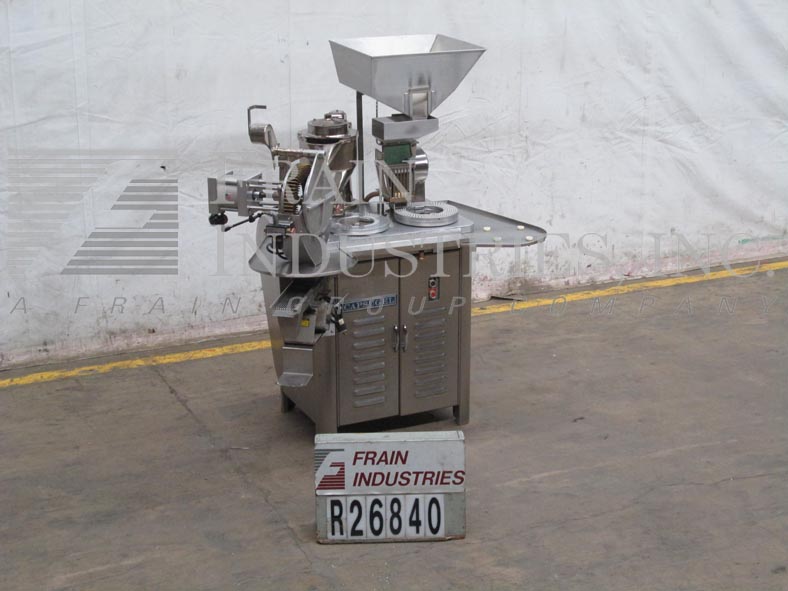

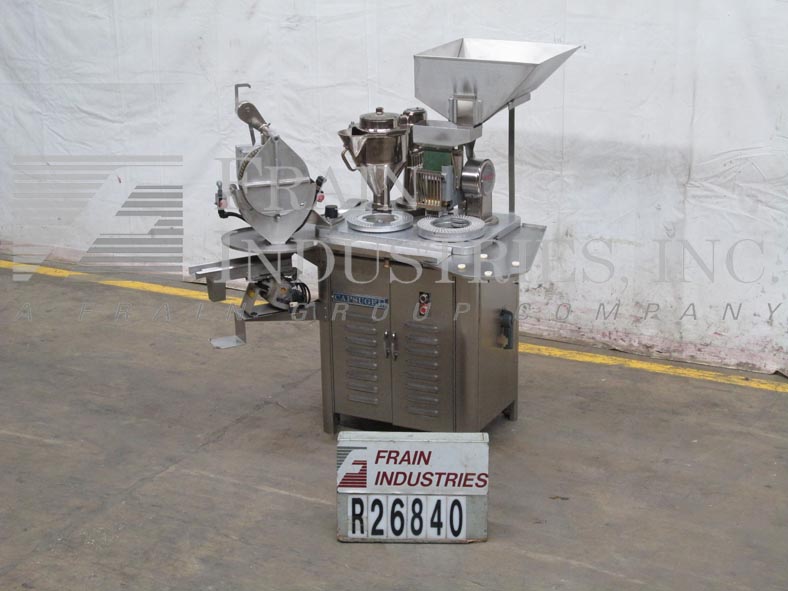

Capsugel, Model 8, semi-automatic, stainless steel capsule filler, rated from 4,500 to 33,000 capsules per hour – depending on materials, application, capsule size and operator dexterity. Capsule size range: 000 to 5 with proper change parts. Equipped with 18" wide x 20" long x 10" deep capsule hopper, empty capsule magazine, capsule slide and vacuum rectifier raceway, with 1-3/4" vacuum connection hose. Product ring with clockwise rotation indexing. 7"diameter x 10" deep product hopper with agitation and pneumatic capsule closing assembly with push button control, Eriez Hi-Vi, 3¼" wide x 16" long vibratory discharge conveyor and start / stop push button controls. Mounted on stainless steel base frame.
OAD: 53"L x 36"W x 62"H
