Kettle Machines

Lee Kettle Double Motion 300D9MT

• Manufacturer: Lee
• Model Number: 300D9MT
• Frain Number: R28090

Lee, Model 300D9MT, 316 stainless steel jacketed kettle. Vessel Dimensions: 54" diameter x 42" deep with an 18" straight wall. Equipped with a flush mount sensor, tilt out bridge mounted scrape agitator powered by a 3 Hp drive with VFD and 2½" OD / 2"ID tri-clamp style discharge with ball valve at 15" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings: (2) 1½" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
National Board: 13872

OAD: 78"L x 58"W x 80"H

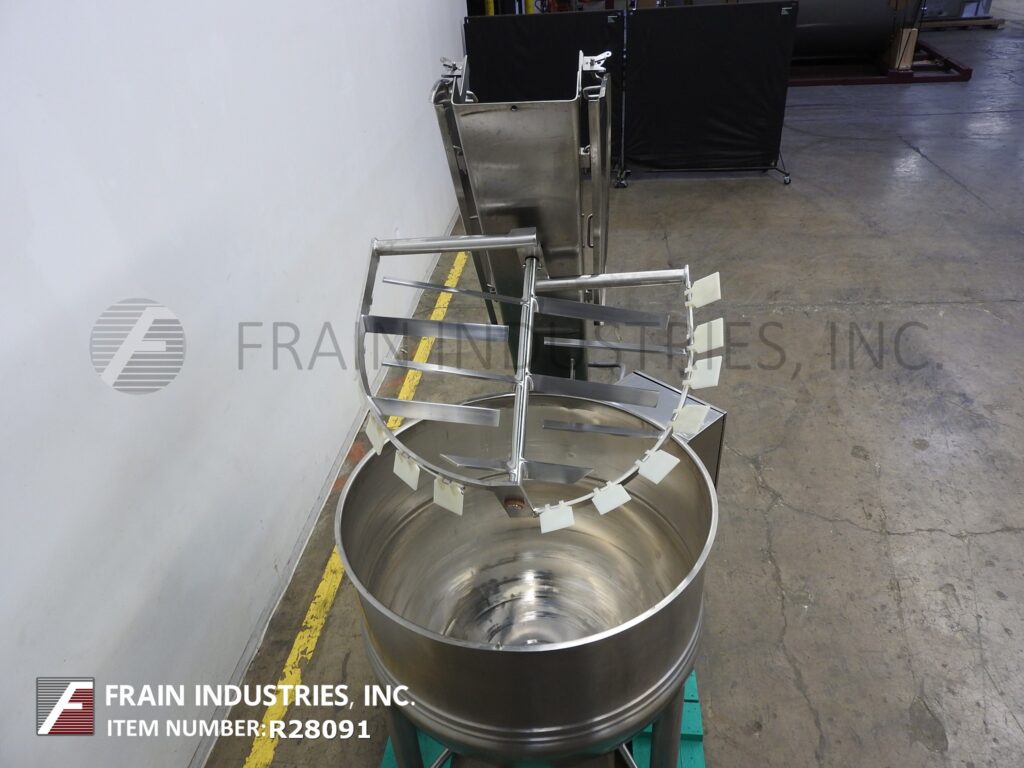

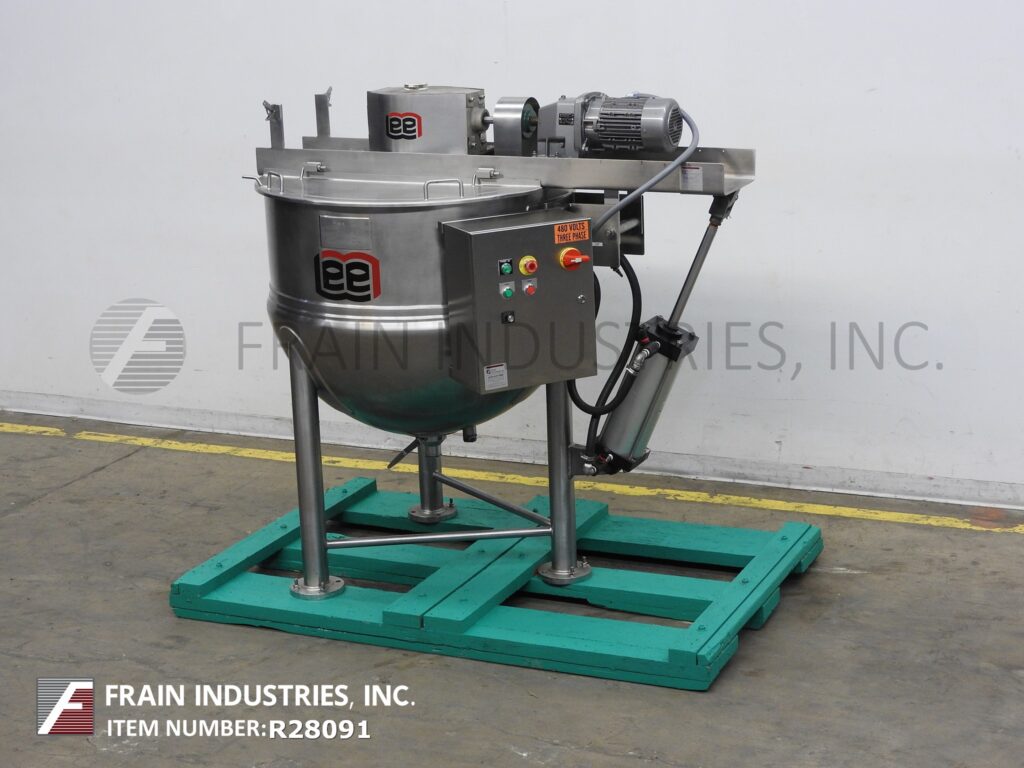

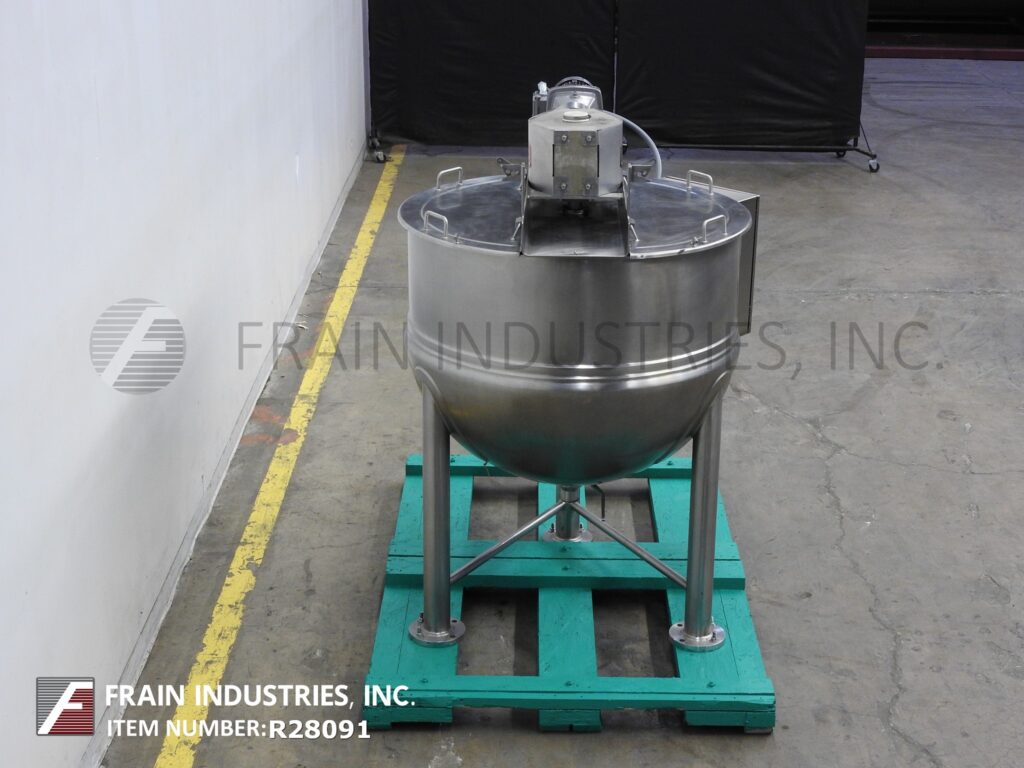

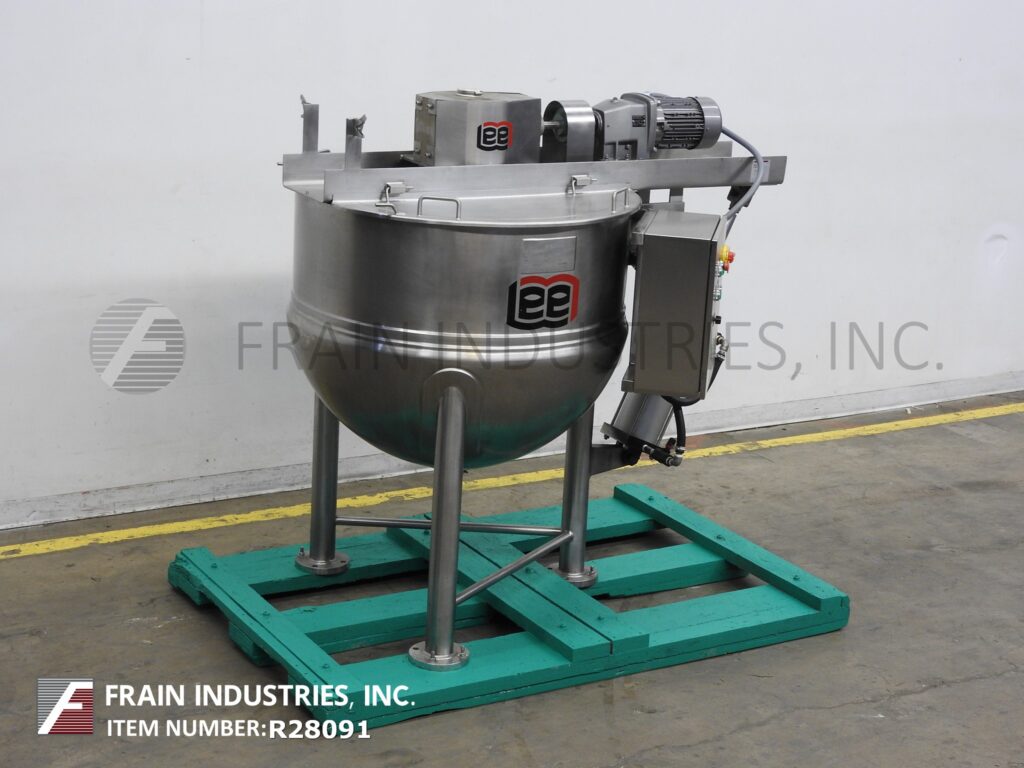

Lee Kettle Double Motion 150D9MT

• Manufacturer: Lee
• Model Number: 150D9MT
• Frain Number: R28091

Lee, Model 150D9MT, 316 stainless steel jacketed kettle. Vessel Dimensions: 42" diameter x 34" deep with a 15" straight wall. Equipped with a flush mount sensor, tilt out bridge mounted scrape agitator powered by a single 2 Hp drive with variable speed control and 2½" OD / 2"ID tri-clamp style discharge with ball valve and 15" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings: (2) 1½" NPT

MAWP: 90 PSI @ 332° F
MDMT: -20°F @ 90 PSI
Nat’l Brd: 13878

OAD: 68"L x 48"W x 68"H

Lee Kettle Double Motion 100 NEM

• Manufacturer: Lee
• Model Number: 100 NEM
• Frain Number: R29290

Lee, Model 100 NEM, 100 gallon capacity, 316 stainless steel, double motion (scrape & prop) kettle. Vessel dimensions: 36" diameter x 30" deep with a 14" straight wall. Equipped with lift off covers with safety shut-off, bridge mounted 3 HP scrape and 1 HP prop agitator, flush mounted sensor and 2½" OD / 2" ID Tri-Clamp style bottom discharge with ball valve and 15" ground clearance.

Jacket Ports:
(4) 1" NPT

Nat’l Brd: 11162
MAWP: 90 PSI @ 332°F
MDMT: -20°F @ 90 PSI

OAD: 48"L x 50"W x 91"H (Kettle)

Lee Kettle Double Motion 500D9MT

• Manufacturer: Lee
• Model Number: 500D9MT
• Frain Number: R28840

Lee Model 500D9MT, 500 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, jacketed kettle. Vessel dimensions: 62" ID x 51" in Depth. Equipped with variable speed bridge mounted scrape surface and counter rotation tilt out agitation, dual flip top covers, 1/2 Jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 1-3/4" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. Dish bottom with 3-1/2" OD / 3" ID sanitary center bottom discharge has flush-bottom ball valve with 19" floor clearance. Mounted on (3) stainless steel legs. Pounds / gallons of product per hour dependant on materials and application.

OAD: 108" L x 75" W x 90" H

Lee Kettle Triple Motion 75DT12T

• Manufacturer: Lee
• Model Number: 75DT12T
• Frain Number: R26112

Lee Model 75DT12T, 75 Gallon, 316 stainless steel, full jacket,Tri-mixer with volumes of product per hour – depending on materials and application. Bowl dimensions: 32" ID; 38" in Depth. Equipped with flat top, bridge mounted hydraulic tilt out, counter rotating agitation with side / bottom scrape has center mounted high shear mixer and dual flip up covers with safety grids and micro safety switches. Full jacket rated at MAWP of 90 psi @ 332 Deg F and MDMT of -20 Deg F @ 90 psi threaded side and bottom jacket in / outlets and flush mount pressure gage. Dish bottom has 2" OD center bottom sanitary discharge with 4" floor clearance, Control panel has double motion, high shear, tank light, power on / off and e-stop controls with speed dials and chart recorder. National Board # 5395

OAD: 64" L x 48" W x 97" H Mixer
36" L x 16" W x 60" H Control Panel

Lee Kettle Single Motion 60D5S

• Manufacturer: Lee
• Model Number: 60D5S
• Frain Number: 5H3480

Lee, Model 60-D5S, 316 stainless steel jacketed kettle. Vessel Dimensions: 32" diameter x 24" deep with a 8" straight wall. Equipped with a bridge mounted anchor style scrape agitator with 7½" OD / 2½"ID flanged bottom discharge with 43" ground clearance. Mounted on (3) tubular leg frame on stainless steel base with casters.

Jacket Fittings:
(2) 1" NPT

MAWP: 45 PSI @ 300° F
Nat’l Brd: 8525

OAD: 52"L x 48"W x 105"H

Lee Kettle Double Motion 300LD9MT

• Manufacturer: Lee
• Model Number: 300LD9MT
• Frain Number: 5H3385

Lee, Model 300LD9MT, 300 Liter, 75 gallon, stainless steel, dual motion, scrape surface tilt agitation, internal vacuum rated and 1/2 steam jacketed kettle. Vessel dimensions of: 32" in Diameter; 34" in Depth. Equipped with heavy duty, bolt down cover, top mounted, tilt scrape surface agitation with 5 Hp motor drive and A/C inverter has touchpad controls with readout and main on / off switch. Dish bottom with 2"OD / 1½"ID Tri-Clamp center bottom discharge has 14" floor clearence and bottom flush mount RTD temperature sensor. Mounted on stainless steel base frame with casters.
UL Rated

Jacket Access:
(2) 1" NPT

Top Access:
(7) 2"OD / 1½"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(1) 7" OD Sight Port

Nat’l Brd: 5605
MAWP: 100 PSI @ 338° F (jacket)
MDMT: -20°F @ 100 PSI (jacket)

MAWP: 60/FV PSI @ 308° F (vessel)
MDMT: -20°F @ 60/FV PSI (vessel)

OAD: 69" L x 48" W x 72" H

Groen Kettle Single Motion RA200SP

• Manufacturer: Groen
• Model Number: RA200SP
• Frain Number: 5H3062

Groen, Model RA200SP, 316 stainless steel jacketed kettle. Vessel Dimensions: 48" diameter x 35" deep with a 12" straight wall. Equipped with a bridge mounted scrape agitator and dual stationary baffles. Spherical bottom with 2½" OD / 2"ID tri-clamp style center bottom discharge. Mounted on (3) tubular leg frame.

Top Access:
(1) 3"OD / 2½"ID Tri-Clamp
(1) 2½" Dia Open Vent
(2) 2"OD / 1½"ID Seated Bevel

Jacket Fittings:
(4) 1¼" NPT

MAWP: 60 PSI @ 325° F
Nat’l Brd: 65168

OAD: 52"L x 50"W x 94"H

Groen Kettle Single Motion RA60

• Manufacturer: Groen
• Model Number: RA60
• Frain Number: R29181

Groen, 60 gallon, 304 stainless steel jacketed kettle. Vessel Dimensions: 30" diameter x 27" deep with a 14" straight wall. Equipped with a bridge mounted scrape agitator powered by a single 3 Hp drive, (2) fixed baffles and 3½" OD / 3"ID tri-clamp style discharge with ball valve and 13" ground clearance. Mounted on (3) tubular leg frame.

Jacket Fittings:
(2) 1" NPT
(1) ¾" NPT

MAWP: 100 PSI @ 338° F
MDMT: -20°F @ 100 PSI
NB: 139475

OAD: 33"L x 32"W x 76"H

Lee Kettle Triple Motion 60D12T

• Manufacturer: Lee
• Model Number: 60D12T
• Frain Number: R28360

Lee Model 60D12T, 316 S/S, jacketed 60 gallon, triple motion kettle. Equipped with bolt down dome top, tilt out agitation, thermo well and dish bottom with 2-1/2" OD sanitary center bottom discharge at 14" floor clearance. Control panel with digital display and start, stop and e-stop. Mounted on (4) leg stainless steel base. Variable speed.

Agitation: scrape surface, counter rotating & high shear / homogenizing.

Vessel Dimensions: 36" OD; 32" Deep.

Jacket rated: MAWP 90psi @ 332°F; MDMT of -20°F @ 90psi.

Internal Pressure Rated: MAWP 15psi @ 250°F; MDMT of -20°F @ 15psi.

Vessel Designed for Vacuum Service Internal

National Board: 5301

OAD: 74" L x 48" W x 105" H

Lee Kettle Double Motion 500D9MT

• Manufacturer: Lee
• Model Number: 500D9MT
• Frain Number: R28290

Lee Model 500D9MT, 500 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, jacketed kettle with pounds of product per hour – depending on materials and application. Vessel dimensions: 62" ID x 51" in Depth. Equipped with bridge mounted scrape surface & conter rotation tilt out agitation, dual flip top covers, 2" OD sanitary center bottom discharge with flush-bottom ball valve. Jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. Mounted on (3) stainless steel legs

OAD: 96" L x 68" W x 93" H

Lee Kettle Double Motion 350GAL

• Manufacturer: Lee
• Model Number: 350GAL
• Frain Number: 5H2440

Lee, 350 gallon capacity, stainless steel, jacketed double motion kettle. Vessel dimensions: 54" diameter x 48" deep with a 20" straight wall. Equipped with lift up covers , 2 Hp bridge mounted scrape agitator with variable speed gearbox and 2½" OD / 2" ID seated bevel style bottom discharge valve with 90° elbow and 13½" ground clearance.

Jacket Ports:
(1) 2" NPT
(1) 1½" NPT
(2) 1" NPT

MAWP: 40 PSI @ 288°F

OAD: 84"L x 57"W x 96"H
