Frain Industries can help you with your triple motion kettle project no matter how big or small your kettle needs. Kettles with triple motion agitation have three different kinds of agitation. (Usually agitators moving in two different directions and a homogenizer). Triple motion kettles provide greater mixing action than double motion kettles.

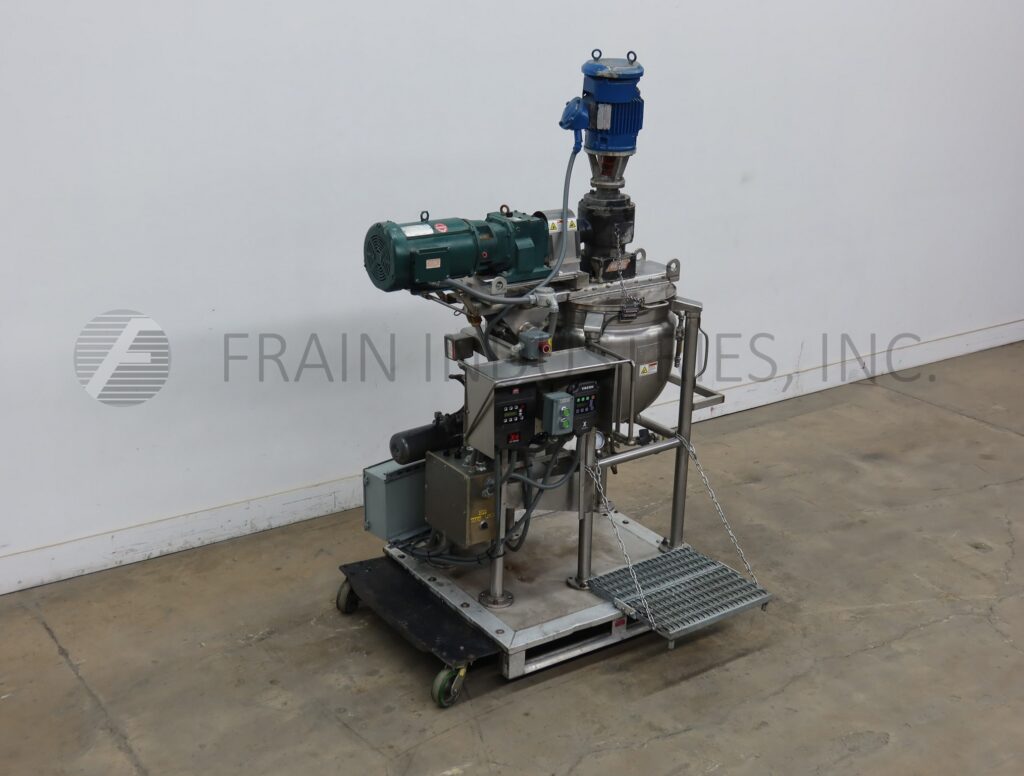

Lee, Model 15-20LD12T, 20 liter (5.28 gallon) 316 stainless steel jacketed kettle. Vessel Dimensions: 16¾" ID x 15" deep. Equipped with a tilt out bridge mounted triple motion agitator. Scrape and crossbar powered by a 3 Hp drive, high shear agitator powered by a 5 hp drive, flush mounted sensor and 2" OD / 1½"ID tri-clamp style discharge with penumatic ball valve. Kettle discharges into cart mounted Waukesha model 15 positive displacement pump powered by a 2 hp drive with a 5.79:1 gear ratio for a maximum pumping capacity of 4.32 GPM. Cart mounted system also includes a 1 HP vacuum pump.
Top Fittings:(1) 3" Sight Glass(4) 1½" Tri-Clamp
Jacket Fittings: ¾" NPT
MAWP: 90 PSI @ 332° F (jacket)MDMT: -20°F @ 90 PSI (jacket)
MAWP: 15/FV PSI @ 250° F (vessel)MDMT: -20°F @ 15/FV PSI (vessel)
OAD: 90"L x 55"W x 105"H
Lee, Model 125LD12T, 125 liter (33 gallon) 316 stainless steel jacketed kettle. Vessel Dimensions: 25½" ID x 30" deep. Equipped with a tilt out bridge mounted triple motion agitator. Scrape and crossbar powered by a 5 Hp drive, high shear agitator powered by a 7½ hp drive, flush mounted sensor and 2" OD / 1½"ID tri-clamp style discharge with 15" ground clearance.
Top Fittings:(1) 6" Tri-Clamp(2) 3" Tri-Clamp(3) 2" Tri-Clamp(3) 1½" Tri-Clamp
Nat’l Brd: 12861
MAWP: 150 PSI @ 366° F (jacket)MDMT: -20°F @ 150 PSI (jacket)
MAWP: 50/FV PSI @ 300° F (vessel)MDMT: -20°F @ 50/FV PSI (vessel)
OAD: 84"L x 50"W x 109"H
Lee, Model 20LD12T, 20 liter (5.28 gallon) 316 stainless steel jacketed kettle. Vessel Dimensions: 16¾" ID x 15" deep. Equipped with a tilt out bridge mounted triple motion agitator. Scrape powered by a 5 Hp drive, cross bar powered by a 2 Hp drive, high shear agitator powered by a 3 hp drive, flush mounted sensor and 2" OD / 1½"ID tri-clamp style discharge with ball valve and 36" ground clearance.
OAD: 93"L x 43"W x 120"H
Lee, Model 50U75, 50 gallon capacity, 316 stainless steel jacketed and vacuum process tank. Vessel dimensions: 30" diameter x 28" deep with a 16" straight wall and cone bottom. Equipped with a 2 Hp top mounted sweep agitator, 1 HP Prop agitator, 1½ hp high shear agitator and 2½" OD / 2" ID Tri-clamp style bottom discharge with pneumatic plug valve and 55" ground clearance. Mounted on (3) tube legs.
Top Ports:(1) 8½" OD / 7¾"ID Tri-Clamp(2) 4" OD / 3½" ID Tri-Clamp(6) 2" OD / 1½: ID Tri-Clamp
MAWP: 100 PSI @ 338°F (Jacket)MDMT: -20°F @ 150 PSI (Jacket)Nat’l Brd: 11178
Internal full vacuum rated
OAD: 48"L x 45"W x 90"H
Lee Model 50U7S, 316 stainless steel, 50 gallon, full jacketed, Internal vacuum rated, triple motion kettle with gallons of product per hour – depending on materials and application. Equipped with bolt down top cover with (1) center top mounted anchor style agitator and (1) off center top mounted turbine agitator and (1) off center top mounted prop agitator with full side and bottom jacket. Dish bottom has 6" OD sanitary center bottom discharge with 60" floor clearance. Mounted on (3) stainless steel legs.
Vessel Dimensions: 38" OD; 28" Deep
Jacket rated: MAWP 100psi @ 338°F; MDMT of -20°F @ 100psi.
Top Ports:(5) 2" OD Sanitary Ports(2) 3" OD Sanitary Ports(1) 8" OD Sanitary Manway
Bottom Port:(1) 6" OD Sanitary Discharge Port
Jacket Ports: (2) 1-1/2" OD Threaded Side Ports(2) 1-1/2" OD Threaded Bottom Ports
National Board: # 9798
OAD: 38" L x 38" W x 120" H
National Board: # 11177
Lee, Model 1000GALD12, 1000 gallon 316 stainless steel jacketed kettle. Vessel Dimensions: 72" ID x 72" deep. Equipped with stainless steel mezzanine, tilt out bridge mounted double motion scrape agitator powered by 30 Hp drive, high shear agitator powered by 60 Hp direct drive, 18" manway, flush mounted sensor and 3½" OD / 3"ID tri-clamp style discharge with ball valve and 36" ground clearance.
Jacket Fittings: 2" NPT
Nat’l Brd: 7577MAWP: 90 PSI @ 332° F (jacket)MDMT: -20°F @ 90 PSI (jacket)
OAD: 118"L x 76"W x 202"H
Lee, Model 1000GALD12, 1000 gallon 316 stainless steel jacketed kettle. Vessel Dimensions: 72" ID x 72" deep. Equipped with a tilt out bridge mounted double motion scrape agitator powered by a 30 Hp drive, high shear agitator powered by a 60 hp direct drive, 18" manway, flush mounted sensor and 3½" OD / 3"ID tri-clamp style discharge with ball valve and 36" ground clearance.
Lee, Model 300D12T, 300 gallon 316 stainless steel triple motion, jacketed kettle. Vessel Dimensions: 54" inside Diameter; 47" in Depth. Equipped with tilt out, bridge mounted variable speed agitation. (Double motion scrape / counter rotation agitator powered by a 20 Hp drive, high shear agitator powered by a 75 hp direct drive.), CIP spray ball supplied by a 2"OD / 1"ID tri-clamp fitting, (1) 2½" OD / 2"ID tri-clamp style discharge with ball valve and 15" ground clearance and (1) 2" OD / 1½"ID tri-clamp style discharge with ball valve and 18" ground clearance.
Top Access:(2) 3¾"OD / 3"ID Tri-Clamp(5) 2½"OD / 2"ID Tri-Clamp
Side Access:(1) 2½"OD / 2"ID Tri-Clamp
Jacket Fittings:(4) 1" NPT
National Board number: 8830MAWP: 90 PSI @ 332° F (jacket)MDMT: -20°F @ 90 PSI (jacket)MAWP: 15 PSI @ 250°F (vessel)MDMT: -20°F @ 15 PSI (vessel)
*vessel rated for internal vacuum service*
OAD: 110"L x 64"W x 157"H
Lee Model 75DT12T, 75 Gallon, 316 stainless steel, full jacket,Tri-mixer with volumes of product per hour – depending on materials and application. Bowl dimensions: 32" ID; 38" in Depth. Equipped with flat top, bridge mounted hydraulic tilt out, counter rotating agitation with side / bottom scrape has center mounted high shear mixer and dual flip up covers with safety grids and micro safety switches. Full jacket rated at MAWP of 90 psi @ 332 Deg F and MDMT of -20 Deg F @ 90 psi threaded side and bottom jacket in / outlets and flush mount pressure gage. Dish bottom has 2" OD center bottom sanitary discharge with 4" floor clearance, Control panel has double motion, high shear, tank light, power on / off and e-stop controls with speed dials and chart recorder. National Board # 5395
OAD: 64" L x 48" W x 97" H Mixer 36" L x 16" W x 60" H Control Panel
Lee Model 60D12T, 316 S/S, jacketed 60 gallon, triple motion kettle. Equipped with bolt down dome top, tilt out agitation, thermo well and dish bottom with 2-1/2" OD sanitary center bottom discharge at 14" floor clearance. Control panel with digital display and start, stop and e-stop. Mounted on (4) leg stainless steel base. Variable speed.

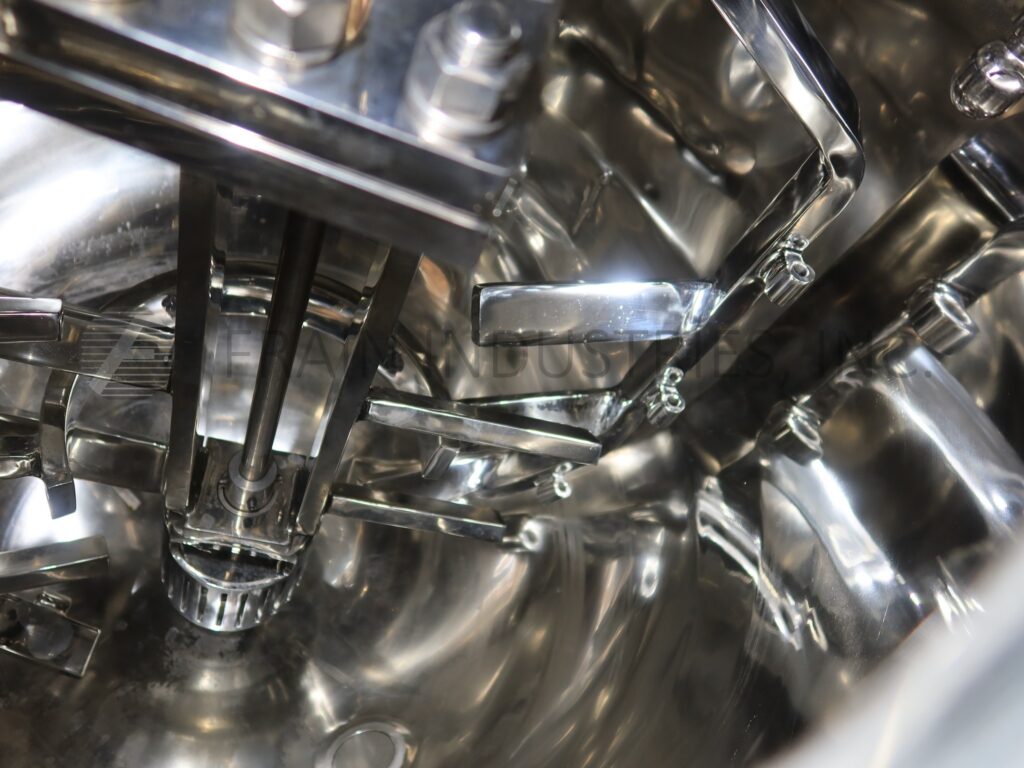

Agitation: scrape surface, counter rotating & high shear / homogenizing.
Vessel Dimensions: 36" OD; 32" Deep.
Jacket rated: MAWP 90psi @ 332°F; MDMT of -20°F @ 90psi.
Internal Pressure Rated: MAWP 15psi @ 250°F; MDMT of -20°F @ 15psi.
Vessel Designed for Vacuum Service Internal
National Board: 5301
OAD: 74" L x 48" W x 105" H
Lee, Model 60D12T, 316 stainless steel jacketed kettle. Vessel Dimensions: 32" ID x 30" deep with a 15" straight wall. Equipped with a tilt out bridge mounted double motion scrape agitator powered by a 2 Hp drive with a variable speed gear box, high shear agitator powered by a 3 hp direct drive, 2½" OD / 2"ID tri-clamp style discharge with ball valve and 11½" ground clearance. Mounted on base frame with casters.
Jacket Fittings:(2) ¾" NPT
MAWP: 90 PSI @ 332° FNat’l Brd: 4229
OAD: 64"L x 36"W x 85"H
