Lee Kettle Triple Motion 50U7S

• Manufacturer: Lee
• Model: 50U7S
• Category: Kettle
• Subcategory: Triple Motion

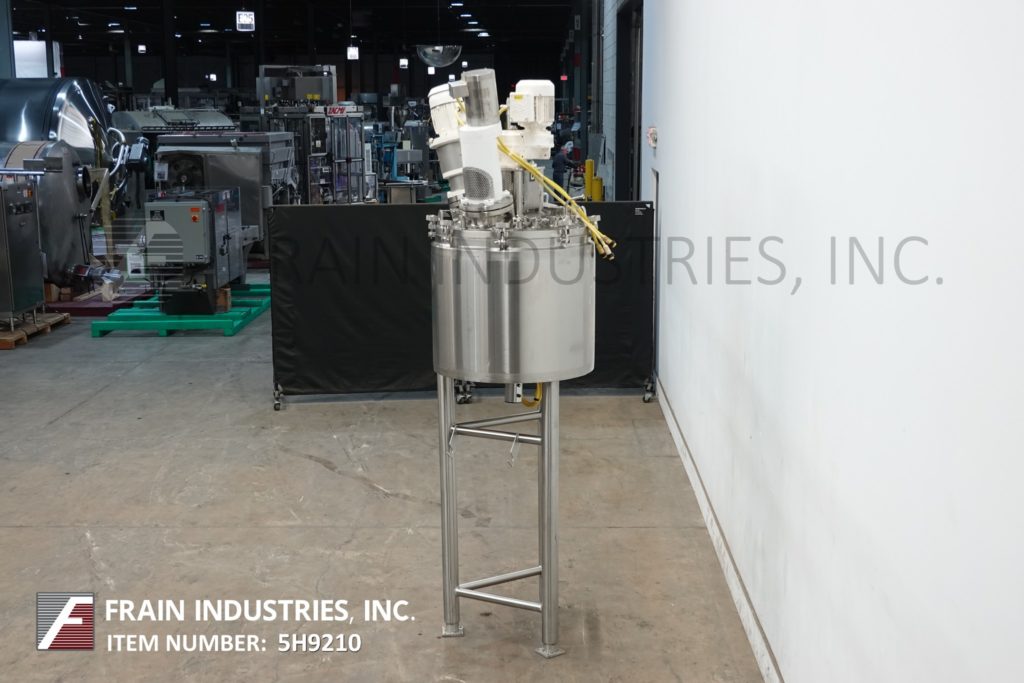

Lee, Model 50U75, 50 gallon capacity, 316 stainless steel jacketed and vacuum process tank. Vessel dimensions: 30" diameter x 28" deep with a 16" straight wall and cone bottom. Equipped with a 2 Hp top mounted sweep agitator, 1 HP Prop agitator, 1½ hp high shear agitator and 2½" OD / 2" ID Tri-clamp style bottom discharge with pneumatic plug valve and 55" ground clearance. Mounted on (3) tube legs.

Top Ports:
(1) 8½" OD / 7¾"ID Tri-Clamp
(2) 4" OD / 3½" ID Tri-Clamp
(6) 2" OD / 1½: ID Tri-Clamp

MAWP: 100 PSI @ 338°F (Jacket)
MDMT: -20°F @ 150 PSI (Jacket)
Nat’l Brd: 11178

Internal full vacuum rated

OAD: 48"L x 45"W x 90"H
