Walker Kettle Double Motion 500 PZCR

  Back to All Equipment
  • Manufacturer: Walker
  • Model: 500 PZCR
  • Frain Number: 5H4695
  • Category: Kettle
  • Subcategory: Double Motion
  • Condition: Used, in excellent condition
  • Availability: In Stock

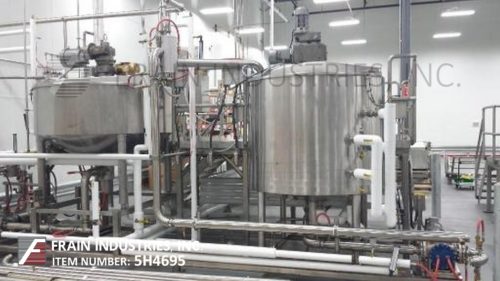

Complete stainless steel, melting and mixing system with amount of product per hour – depending on materials and application. Includes (1) Chester Jensen, 367 gallon, stainless steel cone bottom jacketed cooker / cooler with 74" ID x 21-1/2" straight wall x 19-1/2" cone bottom. Bridge mounted dual motion scrape surface agitation, counter rotating high speed tri-blade agitator and curved stationary baffle. (1) 2 Hp and (1) 3 Hp, motor drives with gear reducer and (2) 2" inlet ports with 2-piece flip-up covers and proximity sensors. Bottom dimpled jacket rated at MAWP 100psi @ 340°F and MDMT -20°F @ 100psi. with (2) bottom 2" npt jacket in / outlet ports. (1) Walker 500 gallon 304 stainless steel full jacketed cone bottom tank. 57"I.D. x 49-1/2" high staight wall, Bridge mounted dual motion scrape surface agitation (1) 2 Hp and (1) 3 Hp motor drives with gear reducer, (4) 3" tri-clamp inlet ports and 2-piece flip-up cover with proximity sensors. Full multi zone jacket rated at MAWP 100psi @ 350°F and MDMT -20°F @ 100psi, with 4-side and 2-bottom 1-1/2" jacket inlet / outlet ports and bottom mounted temperature probe (1) Fristam 10 Hp centrifugal pump with 2-1/2" x 2" in/outlet tri-clamp ports, (1) Rotan 5 Hp and (1) Rotan 1.5 Hp 3" flanged port pumps. (1) Bunting 3" stainless steel in line magnetic trap (1) Sani-Matic stainless steel streamline filter. 316L stainless steel hygienic jacketed piping as well as all associated valves and fittings. Mounted on 246" long x 62-1/2" wide x 7" high stainless steel base frame and 207" long x 132" wide x 42" high side railing, inspection platform with control panel.
