Revolving Pan Machines

Used Revolving Pan Equipment

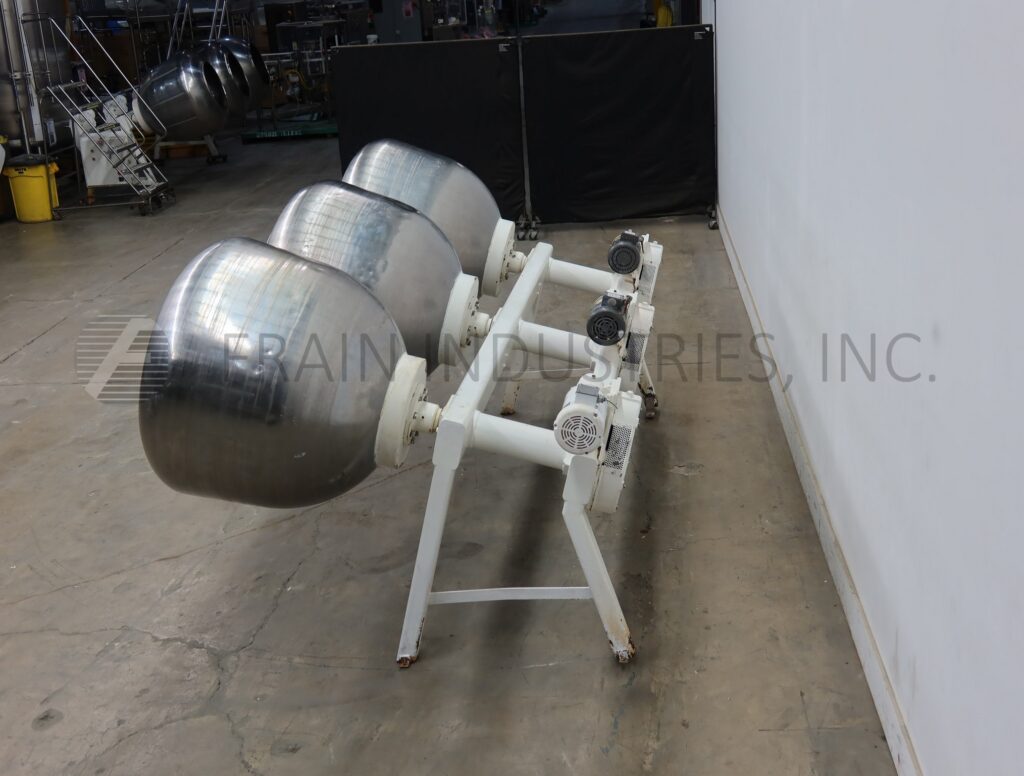

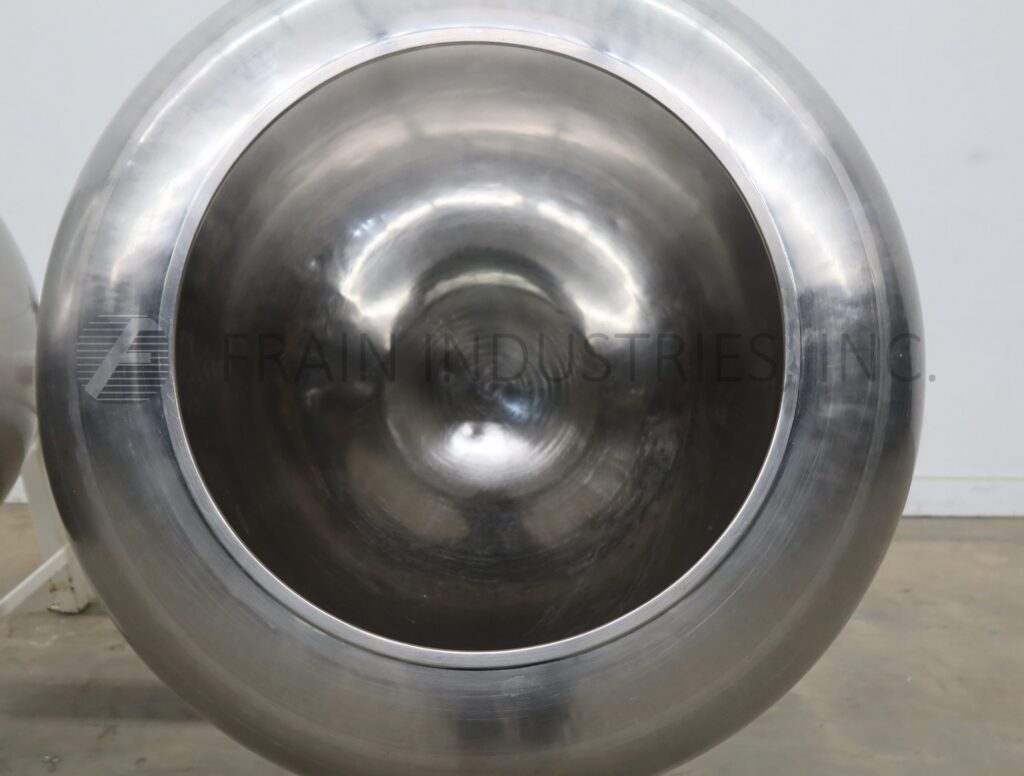

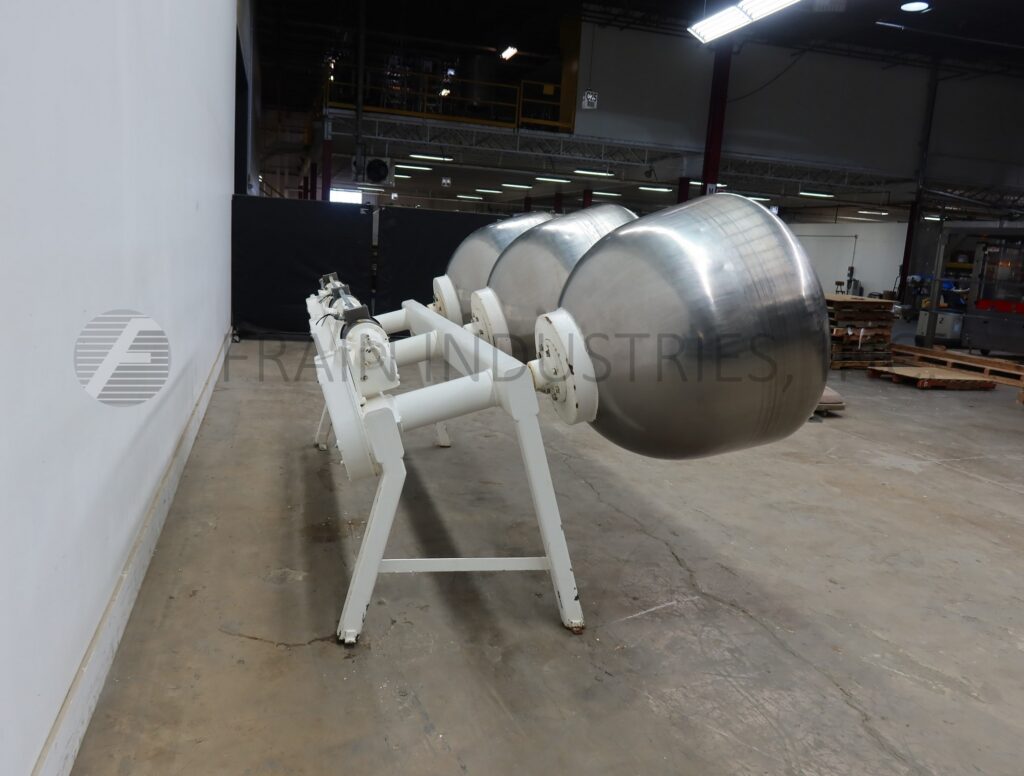

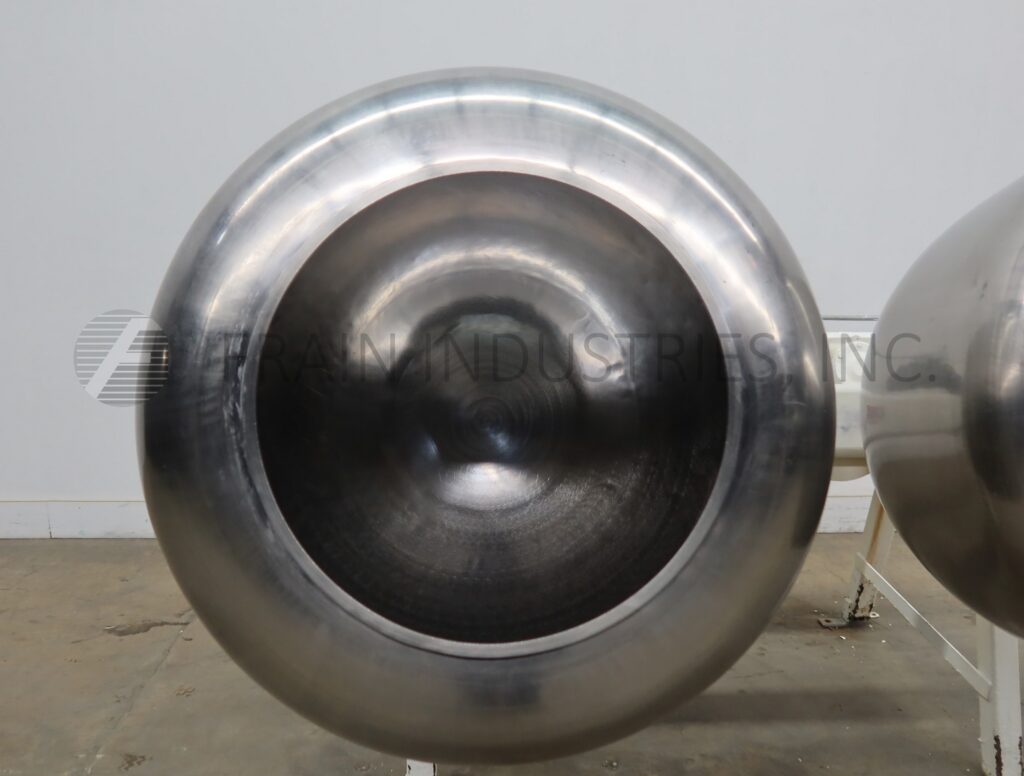

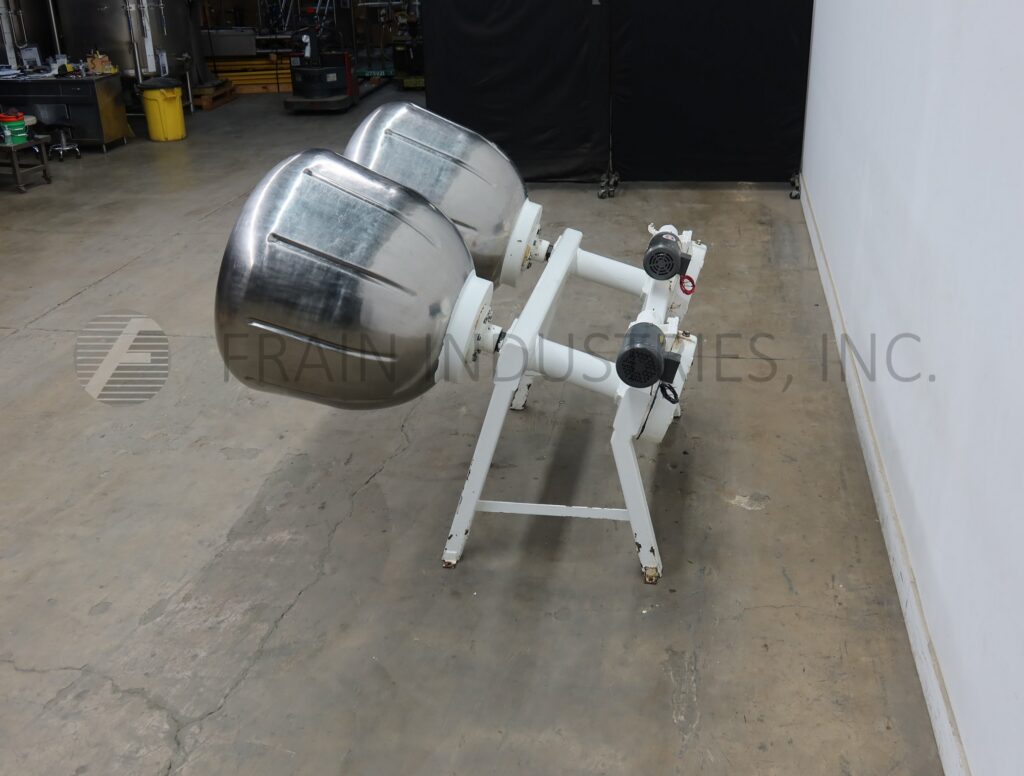

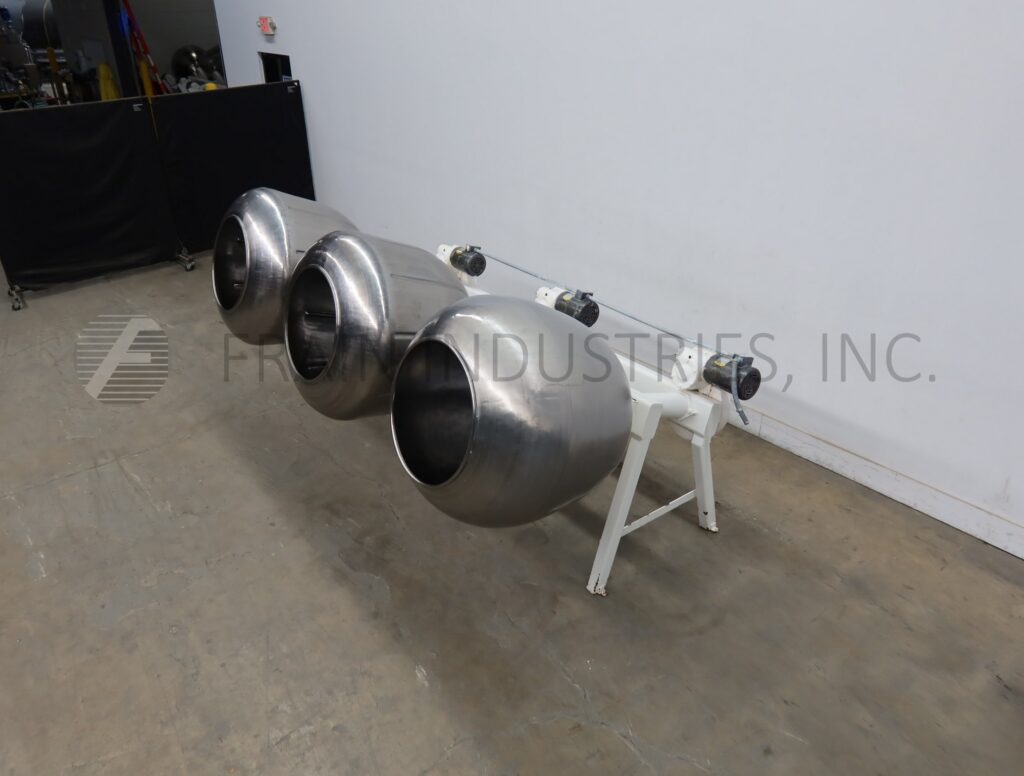

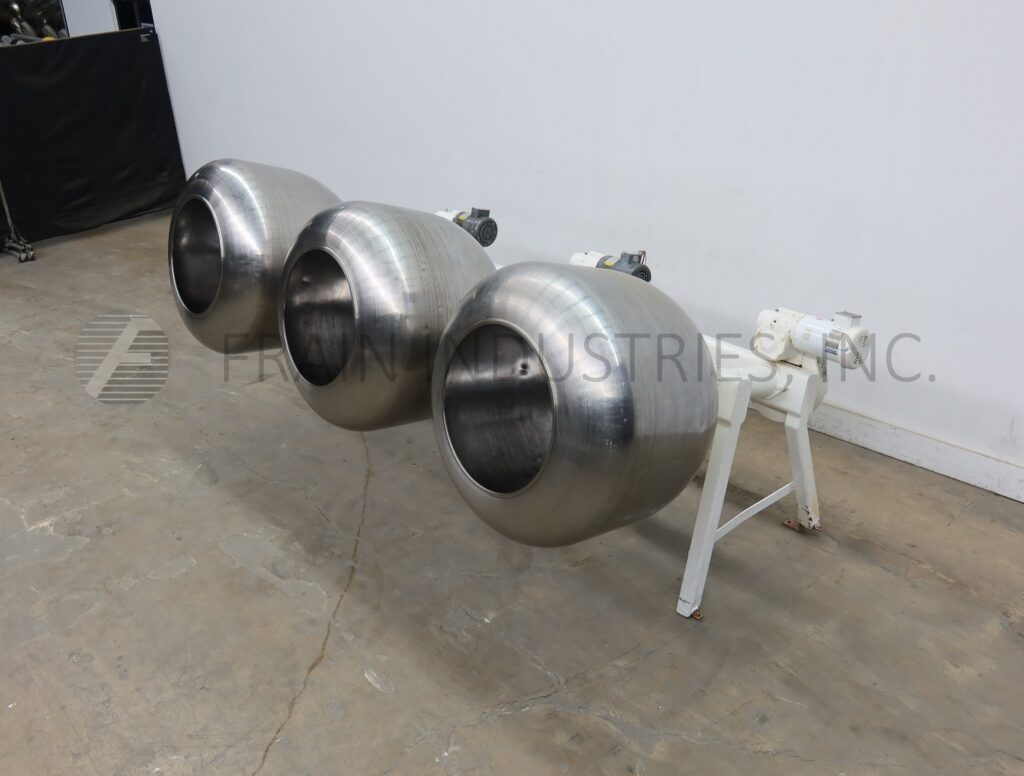

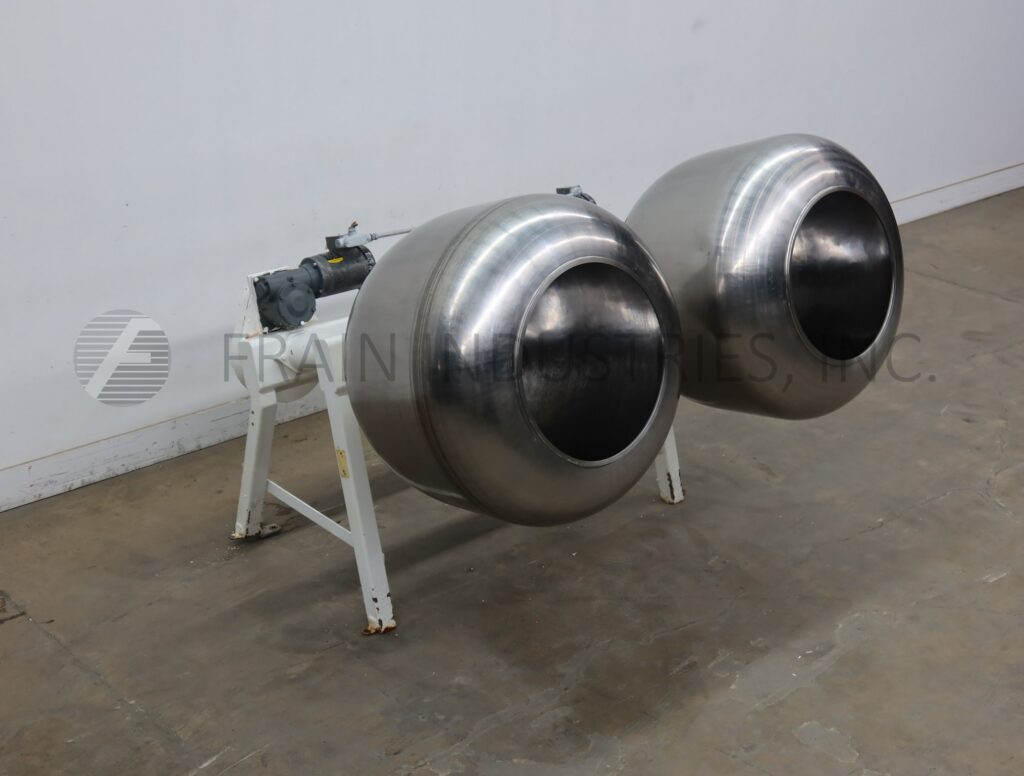

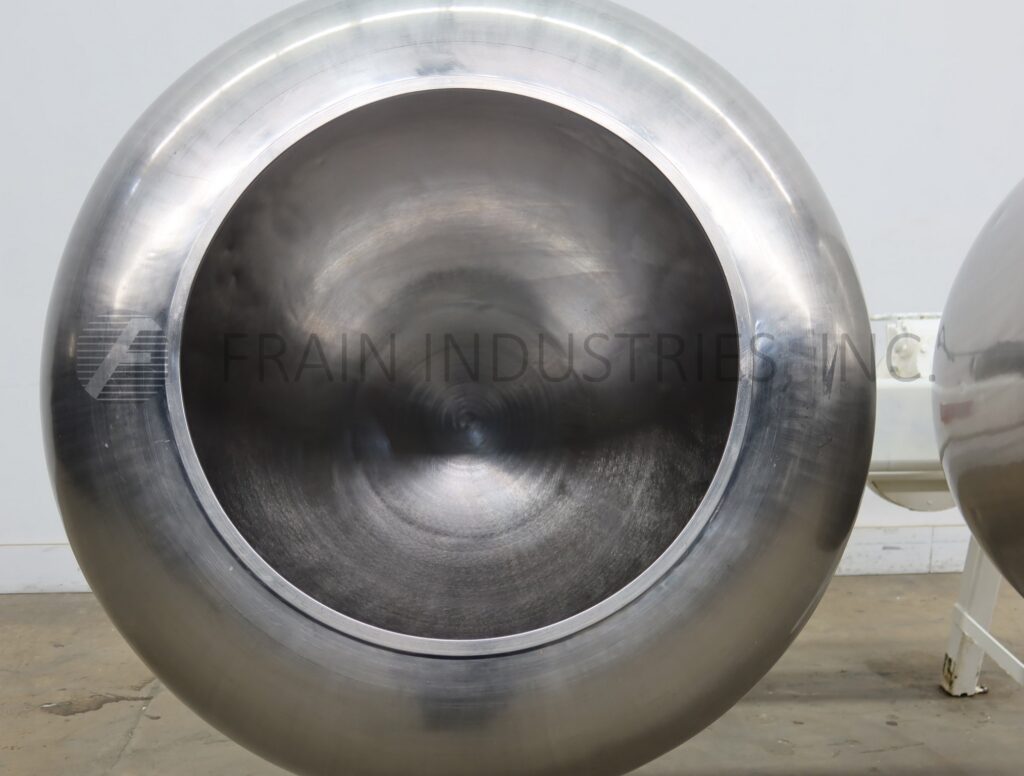

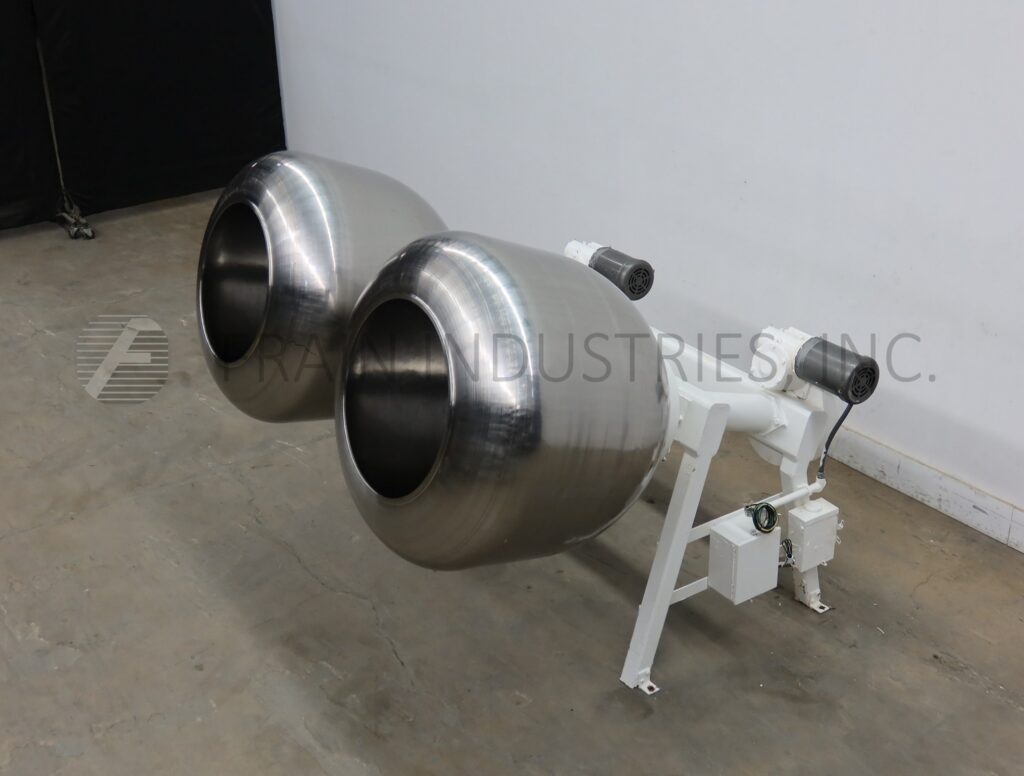

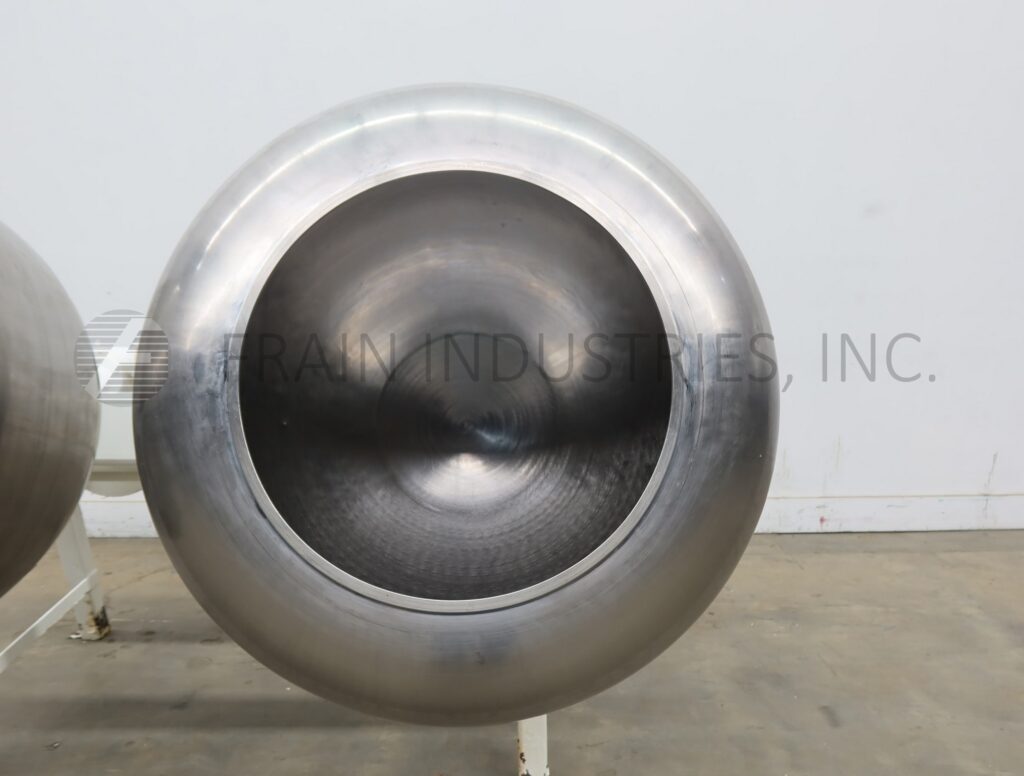

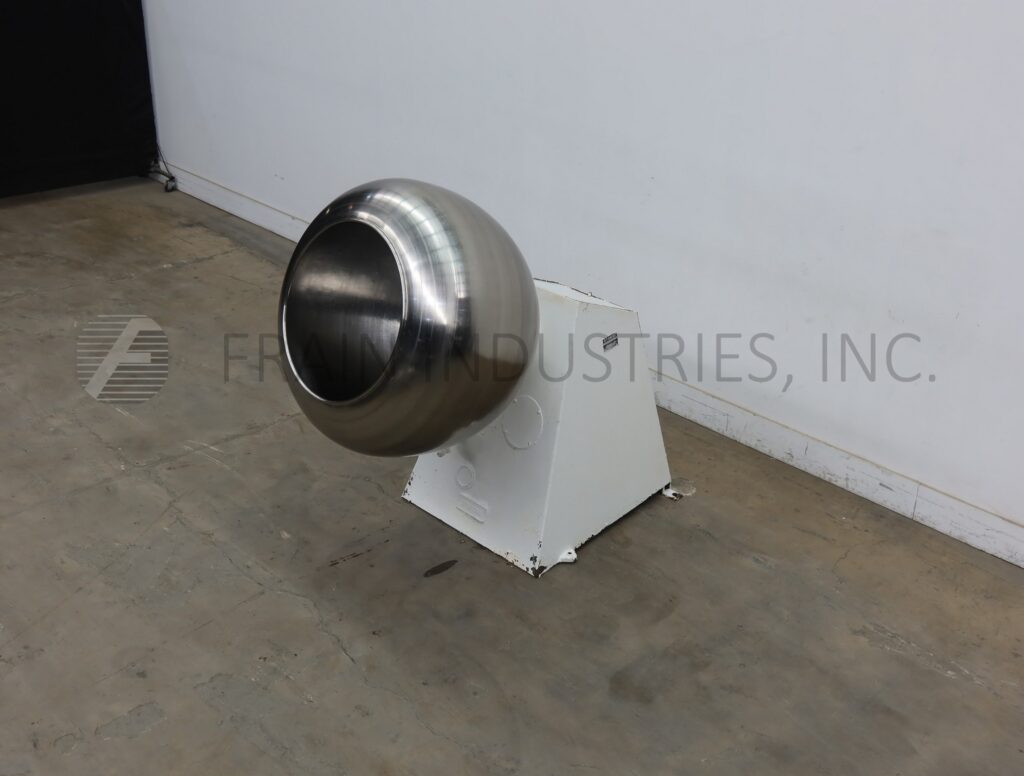

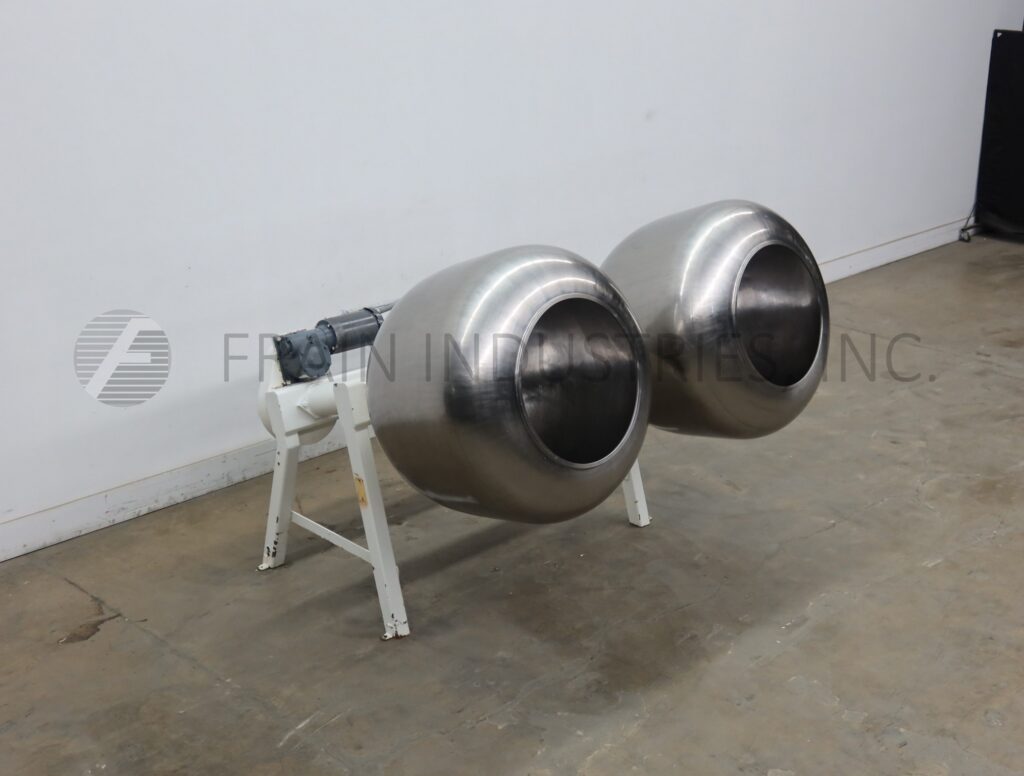

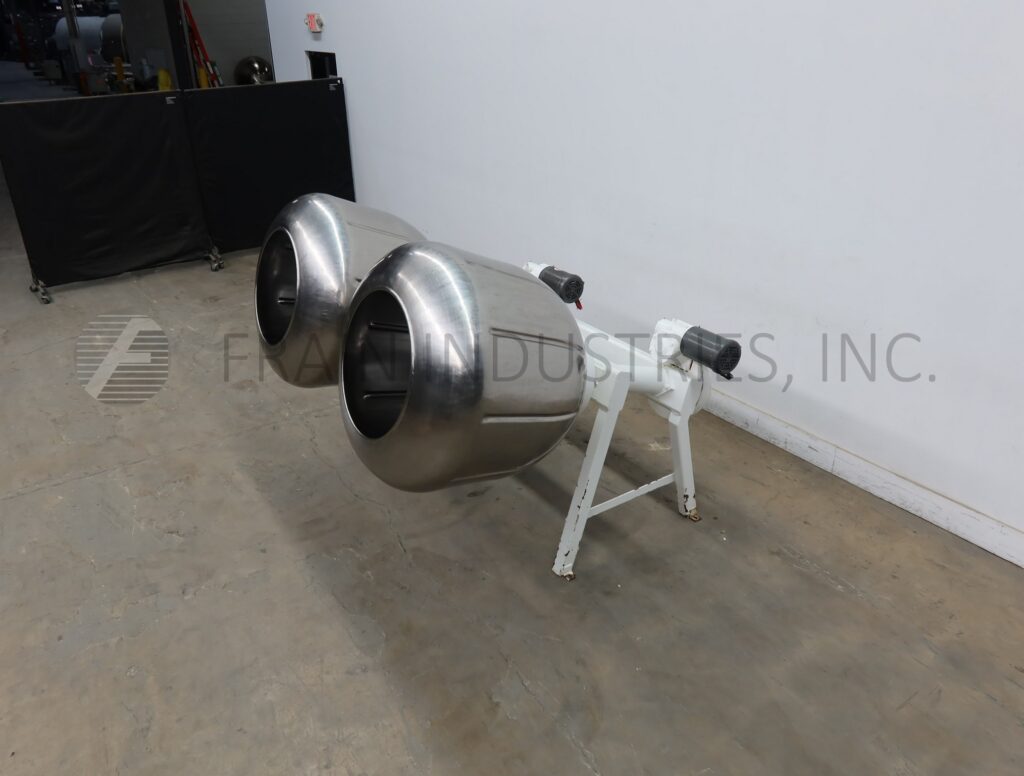

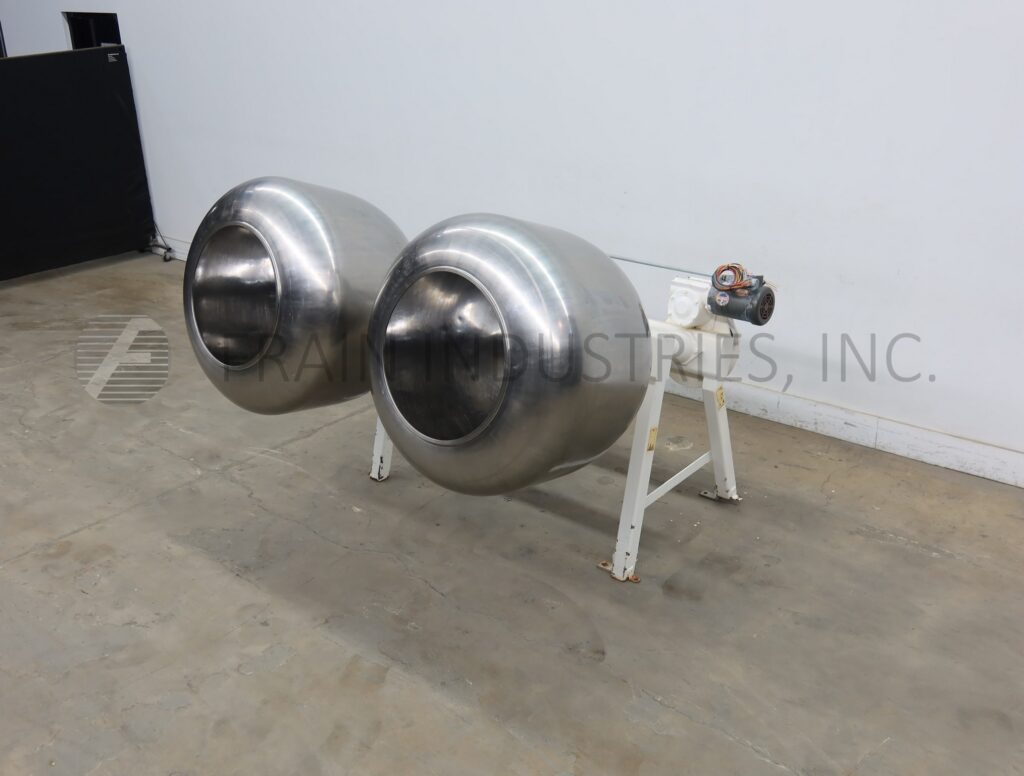

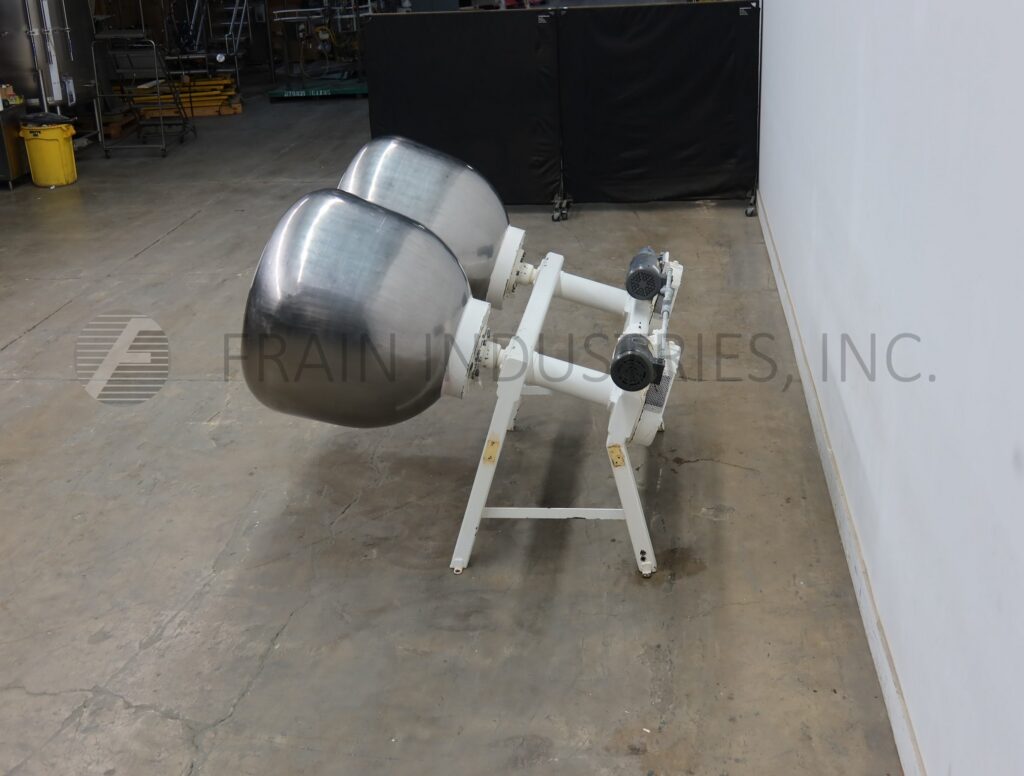

Revolving pans (coatings pans, coating drums) are used to coat product with different substances. The product is loaded into the revolving pan and the coating is either placed in the pan with the product or sprayed on using a spray bar which is positioned inside the revolving pan. (Picture your sugar coating on your morning cereal.) As the revolving pan rotates (revolves), it agitates the product and the coating substance in the revolving pan. The gentle agitation of the revolving pan equipment and its contents results in more coating being applied to the product. Some systems allow the coating substance to fall through perforations in the coating pan if the coating does not immediately adhere to the product. This method is one way to control the amount of coating that is applied to the product.

Contact Us

Related Categories

Revolving Pan Equipment In Stock

Pans, Revolving 28"DIA

  • Model Number: 28"DIA
  • Frain Number: R31371

28" Diameter, stainless steel, continuous motion, rotary ribbed coating drum with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 28" ID x 95" long rotating coating drum with (8) 1½" high fixed interior ribs, 26" OD x 60" high in feed and 24" OD x 43" high discharge. Mounted on stainless steel (4) leg frame.

OAD: 105" L x 48" W x 83" H

Get a Free Quote Call: 630-629-9900

Pans, Revolving 48" DIA

  • Model Number: 48" DIA
  • Frain Number: 5H5308

C. La Mastra, 48" diameter, stainless steel, doughnut shaped, coating pan. Pan dimensions: 48" inner diameter; 32" in depth. Equipped with a 31" diameter access opening with a 27" charge height and powered by a ¼ Hp motor drive. Control box with push button start / stop.

OAD: 70"L x 50"W x 62"H

Get a Free Quote Call: 630-629-9900

Pans, Revolving 48" DIA

  • Model Number: 48" DIA
  • Frain Number: 5H5309

C. La Mastra, 48" diameter, stainless steel, doughnut shaped, coating pan. Pan dimensions: 48" inner diameter; 32" in depth. Equipped with a 31" diameter access opening with a 27" charge height and powered by a ¼ Hp motor drive. Control box with push button start / stop and variable speed dial.

OAD: 70"L x 50"W x 62"H

Get a Free Quote Call: 630-629-9900

Pans, Revolving 30" OD DRUM

  • Model Number: 30" OD DRUM
  • Frain Number: 5H4447

30" Diameter, stainless steel, continuous motion, rotary ribbed coating drum with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 30" ID by 120" long rotating coating drum and has (6) 94" long x 2" high fixed interior ribs, with 25" OD x 56-1/2" high in feed and 29" OD x 43" high discharge ports with chain to sprocket motor drive. Mounted on stainless steel (4) leg frame.

OAD: 127" L x 48" W x 80" H

Get a Free Quote Call: 630-629-9900

DT & G Pans, Revolving System 45"W

  • Manufacturer: DT & G
  • Model Number: 45"W
  • Frain Number: 5H3721

DTG, horizontal coating and polishing belt system. Equipped with a 45" wide intralox style belt, (28) slot jacketed spray bar with a 4½"OD / 1"ID flanged product supply port, rear mounted blower fan and top 6"OD exhaust connection. Control panel with push button start / stop controls, temperature displays and variable belt speed control.

OAD: 75"L x 65"W x 91"H

Get a Free Quote Call: 630-629-9900

Pans, Revolving 36" DIA

  • Model Number: 36" DIA
  • Frain Number: 5H4380

Vimar, 36" diameter, doughnut shaped, coating pan. Pounds of product per hour – depending on materials, application and operator dexterity. Stainless steel contact parts. Equipped with 36" diameter x 18" deep coating bowl, 24" diameter product access port with 36" ground clearance and powered by 1½ Hp motor drive. Mounted on painted base frame with blower and on / off switches.

OAD: 48"L x 45"W x 74"H

Get a Free Quote Call: 630-629-9900

Spray Dynamic Pans, Revolving 30" DIA

  • Manufacturer: Spray Dynamic
  • Model Number: 30" DIA
  • Frain Number: 5G9683

Spray Dynamic, Soft Flight, 30" Diameter, 304 stainless steel, continuous motion coating drum. Rates of product – depending on materials, application and machine configuration. Equipped with 30" diameter by 70" long coating drum with (8) 2" wide fixed interior soft flight baffles, 24" diameter charge and 24¾" diameter discharge. Control panel with on / off switch and drum speed dial. Mounted on stainless steel base frame with casters.

OAD: 96"L x 46"W x 75"H

Get a Free Quote Call: 630-629-9900

Vector Pans, Revolving System HCT60

  • Manufacturer: Vector
  • Model Number: HCT60
  • Frain Number: 5C3637

FILM/AQUEOUS tablet coating system with 12-28kg batch , 30 liter brim capacity coating pan and transportable liquid delivery system. Coating type is "negative pressure air penetrating dry method" utilizing a 7.2kw S/S heat exchanger – rated from ambient to 80 C, in conjunction with adjustable air flow supply & exhaust fans – each rated at 8 m3/minute. Complete with movable liquid delivery system consisting of a 316 S/S constant flow pump – rated from 40-400 ml/minute and a 15 liter – self contained heated & agitated 304 s/s hopper. Front mounted controls for product discharge and air pressure regulation. PLC variable speed drive.Spray guns are type AT with 1.2mm nozzle diameter. Pan measures 24" dia x 18" deep. Additional pan features include perforated panels and product discharge gate. All contact parts are S/S.
OAD (Main Unit) = 70" L x 55" W x 76" H
(Pump/Hopper) = 54" L x 28" W x 66" H

Get a Free Quote Call: 630-629-9900

Vector Pans, Revolving 778

  • Manufacturer: Vector
  • Model Number: 778
  • Frain Number: 5C3347

Vector Type "FLOW-CONTROL" self contained recirculation type multiple gear pump unit with a constant pulse free flow rate with accuracies of (+/-) 1% at viscosities up to 1000CPS. The (4) pump unit has (4) spray gun control capabilities with cycle timer, spray timer, dry timer, and flow rate controls. Unit also has valves and indicators for purge air, cylinder air, and nozzle air. Has Red Line Control Model digital readout for ml’s/mins. 316 stainless steel gear pumps can be easily remove for cleaning, and can be run independent of Vector coating machine. Mounted on casters for mobility. Last running in a pharmaceutical operation. (OAD:26"L x 30"W x 52"H).

Get a Free Quote Call: 630-629-9900

Vector Pans, Revolving Pumps P2117VC

  • Manufacturer: Vector
  • Model Number: P2117VC
  • Frain Number: 5C1108

Vector Type "FLOW-CONTROL" self contained recirculation type multiple gear pump unit with flow rate accuracies of (+/-) 1%. The (4) pump unit has (4) spray gun control capabilities with mist spray/ spray, nozzle/auxiliary air and motor/power on/off controls with a Red Line Control Model "DITAK IID" digital readout for ml’s/mins. Gear pumps can be easily remove for cleaning, and can be run independent of Vector coating machine. Mounted on "T-BASE" type stand with casters for mobility. Last running in a pharmaceutical operation. (OAD:14"L x 34"W x 47"H).

Get a Free Quote Call: 630-629-9900

Vector Pans, Revolving Pumps PUSL1740LC

  • Manufacturer: Vector
  • Model Number: PUSL1740LC
  • Frain Number: 5C1100

Vector Flow-Control self contained multiple gear pump spray system. Flow rate accuracies of (+/-) 1%. Equipped with four spray nozzles capabilities with mist or spray, digital readout for ml’s/mins. Gear pump can be easily remove for cleaning.

OAD:14"L x 34"W x 47"H

Get a Free Quote Call: 630-629-9900

Extrutech Pans, Revolving DRUM APP 42X12

  • Manufacturer: Extrutech
  • Model Number: DRUM APP 42X12
  • Frain Number: 5F3453

Stainless steel, continuous motion, cylindrical coating drum. Internal drum dimensions: 42" in Diameter; 120" in Length. Equipped with an 18" Diameter infeed with a 68" floor clearance, six 5-1/2" high baffles, 37" Diameter chamber, and a discharge with a 54" floor clearance. Additionally features steam coils under drum to heat the product. Mounted on stainless steel frame and legs, front legs are height adjustable for drum slant adjustment.

OAD: 134"L x 63"W x 109"H

Get a Free Quote Call: 630-629-9900
