A revolving pan system is a system of revolving pans involving multiple revolving pans mounted on a common frame. Revolving pans (coatings pans, coating drums) are used to coat product with different substances. The product is loaded into the revolving pan and the coating is either placed in the pan with the product or sprayed on using a spray bar which is positioned inside the revolving pan. As an example of what Revolving pans are capable of, picture your sugar coating on your morning cereal.

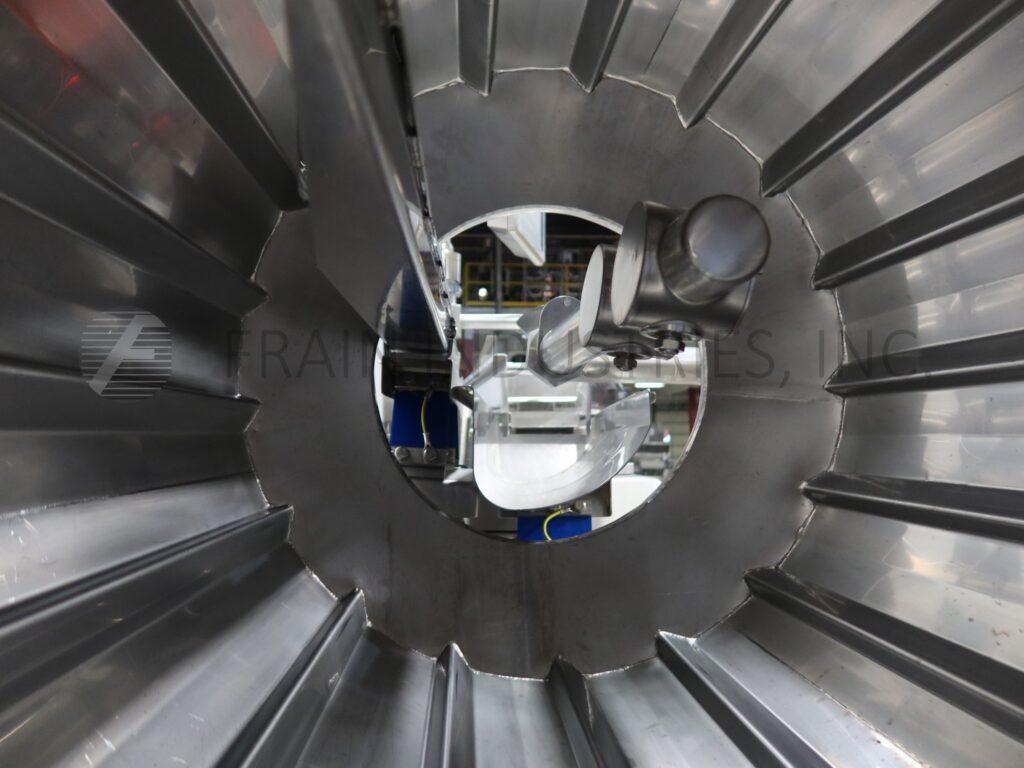

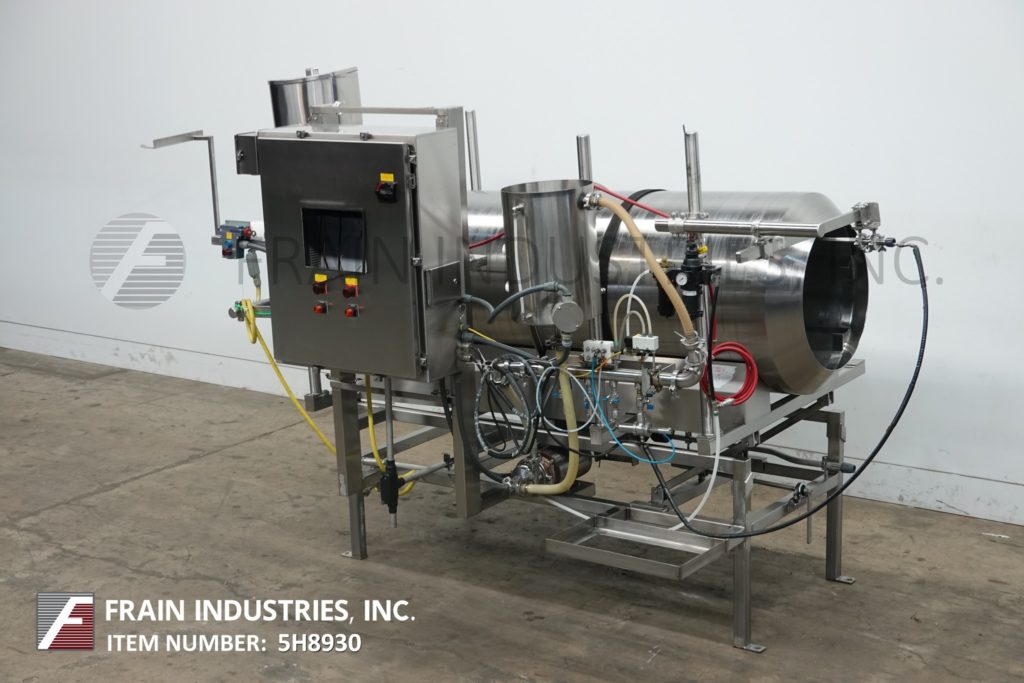

Foodesign / Spray Dynamic, Model QSD – 3072 – SD / 201, is a 29" OD, stainless steel, continuous motion coating drum with production rates per hour – depending on materials, application and machine configuration. Equipped with 29" OD x 78" long coating drum with (12) 2" wide fixed interior soft flight baffles 22" diameter charge, 24" diameter discharge at 35" high, Unispense dry ingrediants feeder and liquid spray system. Control panel has Unispence start, stop, enable buttons with speed controller and digital readout.
OAD: 108"L x 62"W x 64"H
Spray Dynamic, Soft Flight, 38" OD, stainless steel, continuous motion coating drum with rates of product per hour – depending on materials, application and machine configuration. Equipped with 38" ID x 99" long coating drum with (8) 3" wide fixed interior soft flight baffles 26" diameter charge, 28" diameter discharge. Moutned on a stainless steel frame with ¾ hp blower and ¾ hp pump.
OAD: 104"L x 84"W x 66"H
PPM Inc, soft flight, 36" OD, stainless steel, continuous motion coating drum with production rates of product per hour – depending on materials, application and machine configuration. Equipped with 36" OD by 96" long adjustable angle coating drum with (8) 2½" wide fixed interior soft flight baffles and 30" OD discharge. Automatic dry ingredients feed system, with 12" x 10" x 16" agitated supply hopper. Control panel with AB controller and touch screen HMI. Mounted on stainless steel base frame.
OAD: 128"L x 60"W x 100"H – Coating Drum 46"L x 30"W x 70"H – Control Cabinet
Spray Dynamic, Soft Flight, 30" OD, stainless steel, continuous motion coating drum with rates of product per hour – depending on materials, application and machine configuration. Equipped with 30" OD x 98" long coating drum with (8) 3" wide fixed interior soft flight baffles 22" diameter charge, 24" diameter discharge, Unispense dry ingrediants feeder and liquid spray system.
OAD: 130"L x 68"W x 80"H
DTG, horizontal coating and polishing belt system. Equipped with a 45" wide intralox style belt, (28) slot jacketed spray bar with a 4½"OD / 1"ID flanged product supply port, rear mounted blower fan and top 6"OD exhaust connection. Control panel with push button start / stop controls, temperature displays and variable belt speed control.
OAD: 75"L x 65"W x 91"H
FILM/AQUEOUS tablet coating system with 12-28kg batch , 30 liter brim capacity coating pan and transportable liquid delivery system. Coating type is "negative pressure air penetrating dry method" utilizing a 7.2kw S/S heat exchanger – rated from ambient to 80 C, in conjunction with adjustable air flow supply & exhaust fans – each rated at 8 m3/minute. Complete with movable liquid delivery system consisting of a 316 S/S constant flow pump – rated from 40-400 ml/minute and a 15 liter – self contained heated & agitated 304 s/s hopper. Front mounted controls for product discharge and air pressure regulation. PLC variable speed drive.Spray guns are type AT with 1.2mm nozzle diameter. Pan measures 24" dia x 18" deep. Additional pan features include perforated panels and product discharge gate. All contact parts are S/S. OAD (Main Unit) = 70" L x 55" W x 76" H (Pump/Hopper) = 54" L x 28" W x 66" H

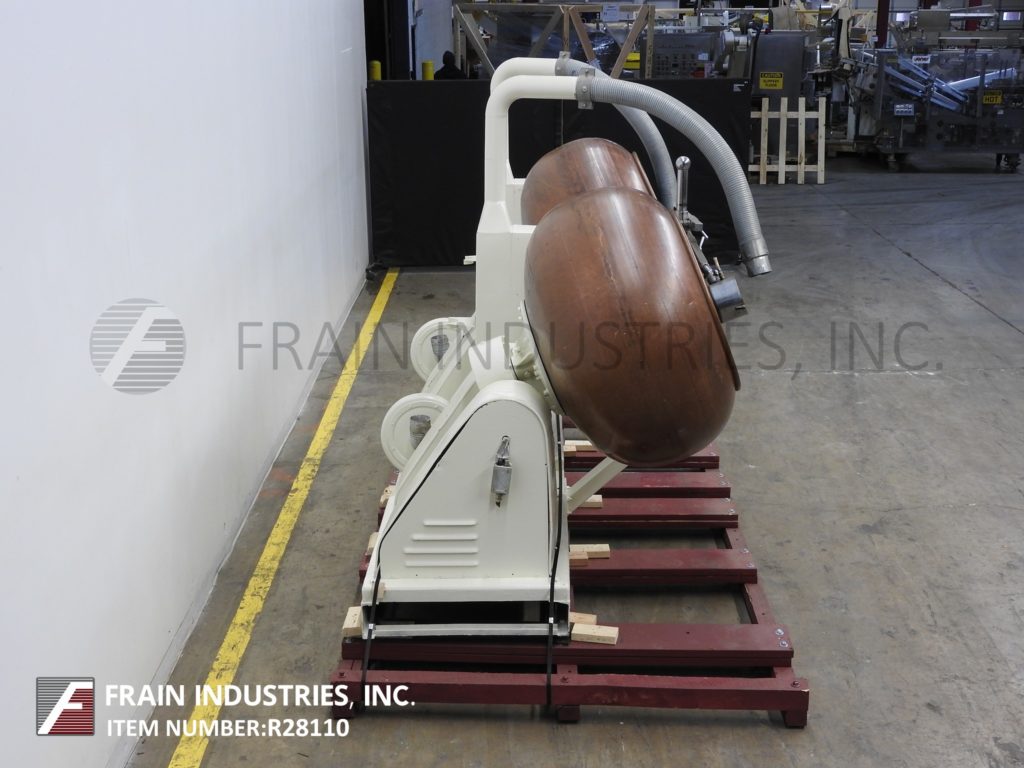

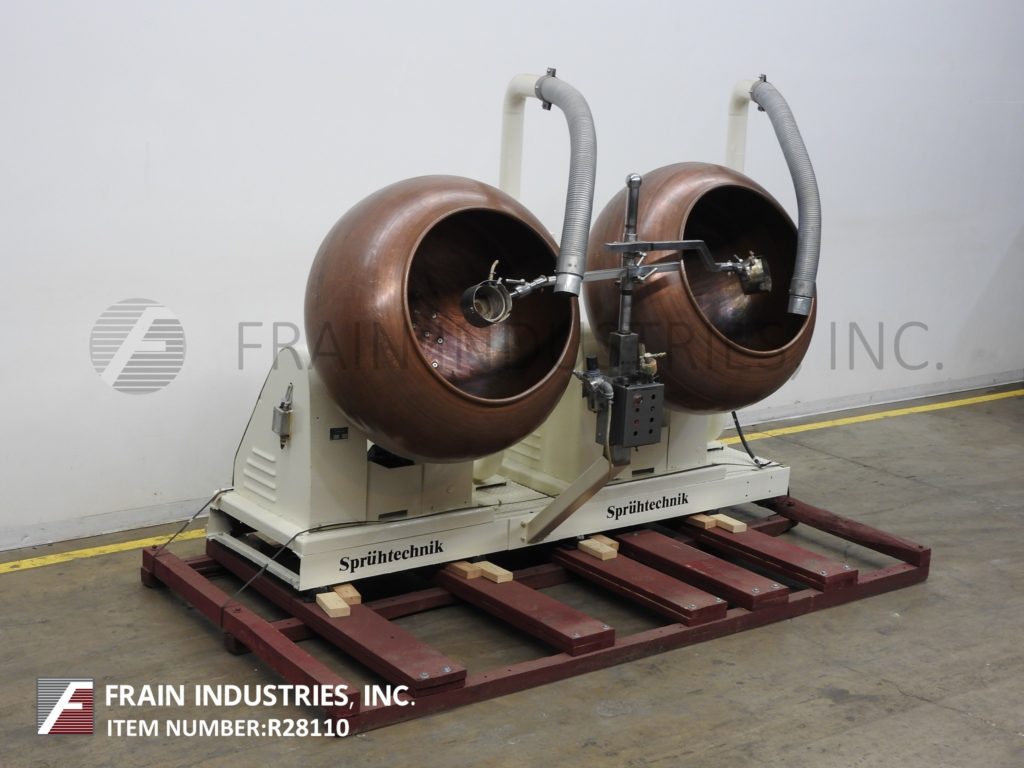

Gerhard Steinberg, Model DK120, dual 48" diameter, copper, doughnut shaped, coating pan system. Equipped with (2) 48" diameter x 30" deep coating bowls with 30" diameter product access ports and 32" ground clearance, (2) model WL-6 0.34 hp blowers and liquid spray nozzles. Control panel with coating output on / off switch, rotation direction switch, manual / auto switch and tilt up / down switch. Mounted on a heavy duty base.
OAD: 125"L x 65"W x 92"H

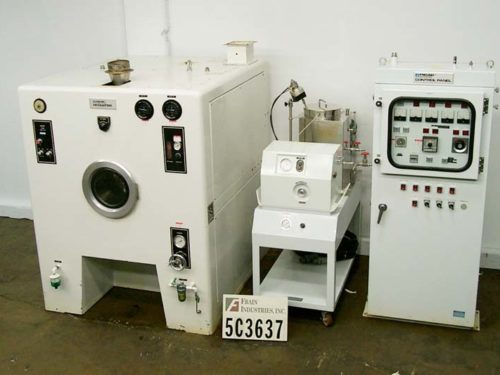

48" Diameter Accellacota, stainless steel, single wall cabinet style, tablet coater rated up to 400 lb per batch – depending on materials and application. Equipped with 48" perforated coating and drying pan with 19" ID access port, mixing baffles, spraying and CIP system with pump, large front and both side swing open access doors for ease of both loading, unloading and cleaning. Atomizing air light and pressure gauge, temperature controller, cylinder and supply air ports, exhaust plenum clamp, with cabinet skylight light and spray on/off buttons, start, stop and e-stop controls
OAD: 60" L x 52" W x 78" H

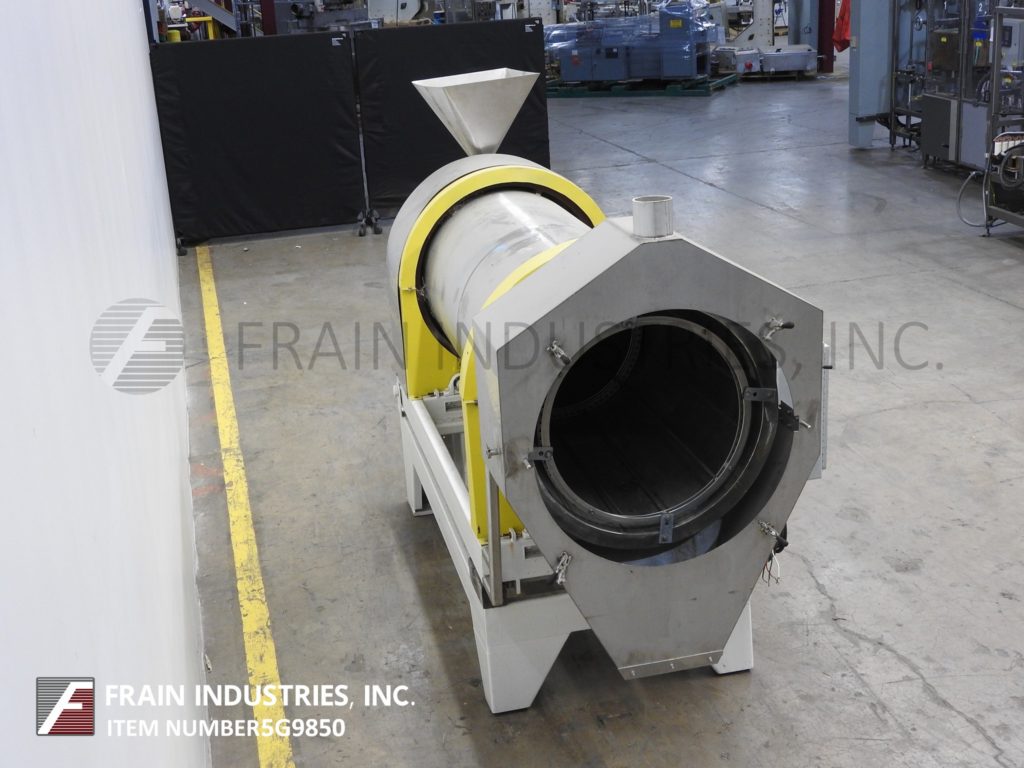

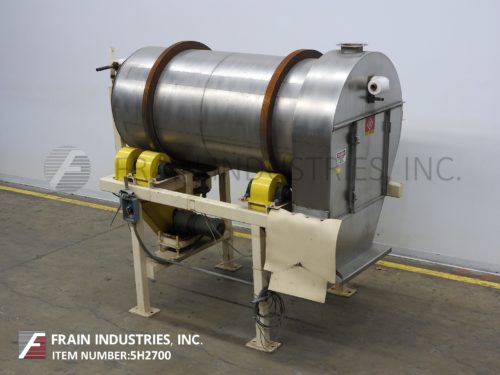

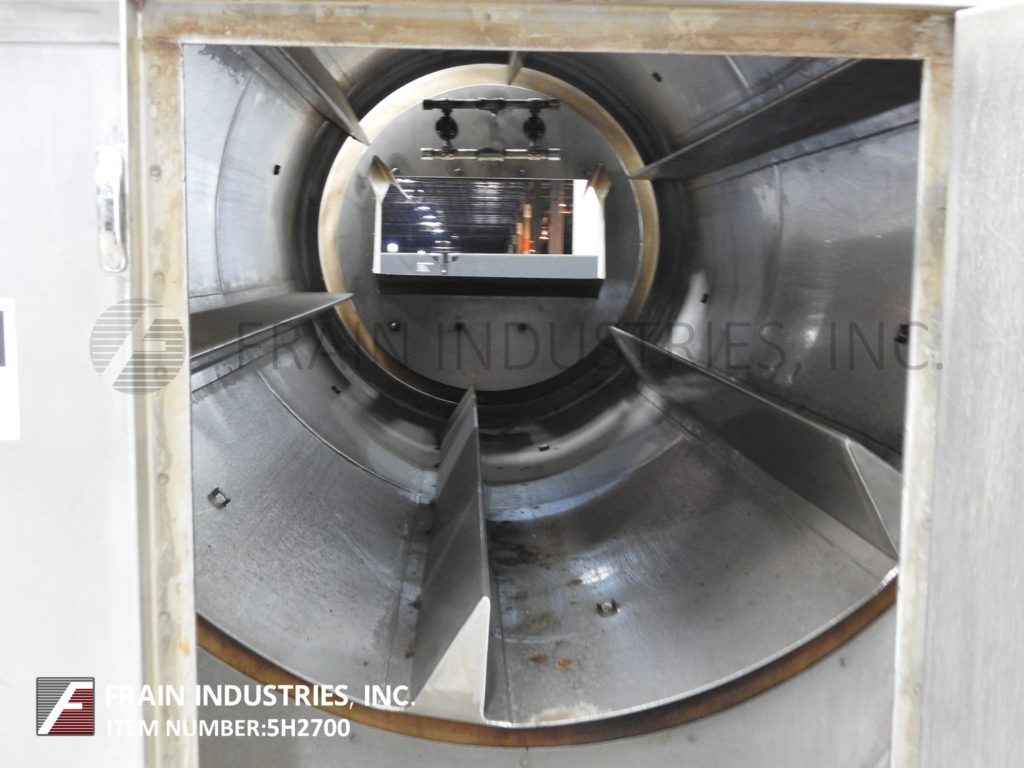

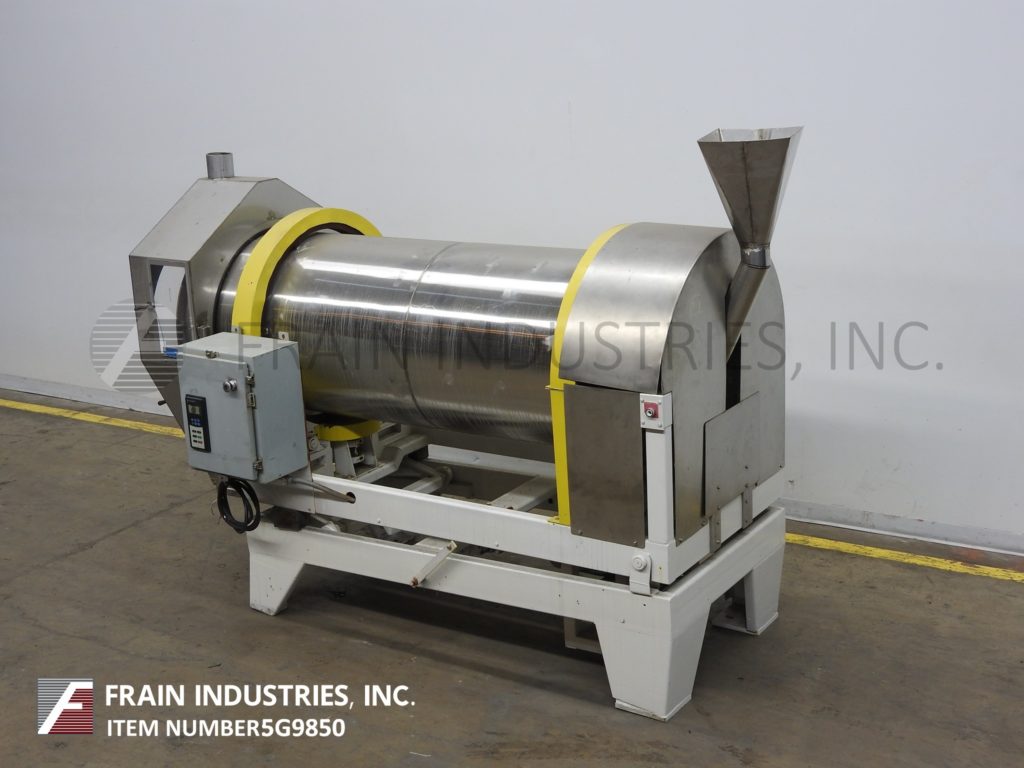

30" Diameter, stainless steel, continuous motion coating drum with pounds of product per hour – depending on materials, application and machine configuration. Equipped with a 30" diameter by 88" long coating drum with (12) fixed bar baffles, (4) nozzle spray bar, 12" x 20½" feed throat at a height of 80", 12" x 6" discharge with 15" ground clearance. Control panel has AB touch pad controls. Mounted (4) leg heavy duty painted base frame.
OAD: 110"L x 51"W x 80"H
**PART OF COMPLETE LINE 5H1360A**
Moline Model DSM2000, continous, stainless steel, powdered, granulated or cinnamon sugar rumbler for donut coating system rated from 500 to 2000 dozen donuts per hour – depending on materials and application. Drum specifications: 24" ID; 88" in Length with 1" long x 1/2" wide inside drum perfs and flip open bolt down cover. Equipped with 36" long in feed chute and 24" ID discharge both have 36" floor clearence, and 10" OD discharge end sugar recycle chute with 63" long x 16" wide x 22" deep stainless steel reclaim suger bin with flip up cover, and inner / outer paddles as well as 4" OD stainless steel bottom feed screw to 80" long incline cleated feeder with 6" wide belt and 1-1/2" hjigh cleats on 6" centers with cover. Mounted on stainless steel base frame.
OAD: 120" L x 56" W x 85" H
Cardwell, Model C17624, Soft Flight, 36" Diameter, stainless steel, continuous motion coating drum. Rates of product – depending on materials, application and machine configuration. Equipped with 36" diameter by 72" long coating drum with (6) 4½" wide fixed interior soft flight baffles, 10" high x 21" wide charge port, (4) spray nozzles and hooded discharge with a 6"ID / 9"OD flanged vent connection and 25" wide x 12" deep discharge port with 24" ground clearance. Mounted on a heavy duty frame.
OAD: 90"L x 50"W x 87"H
