Moline Pans, Revolving System DSM2000

  Back to All Equipment
  • Manufacturer: Moline
  • Model: DSM2000
  • Frain Number: 5H1276
  • Category: Revolving Pan
  • Subcategory: System
  • Condition: Used, in excellent condition
  • Availability: In Stock

**PART OF COMPLETE LINE 5H1360A**

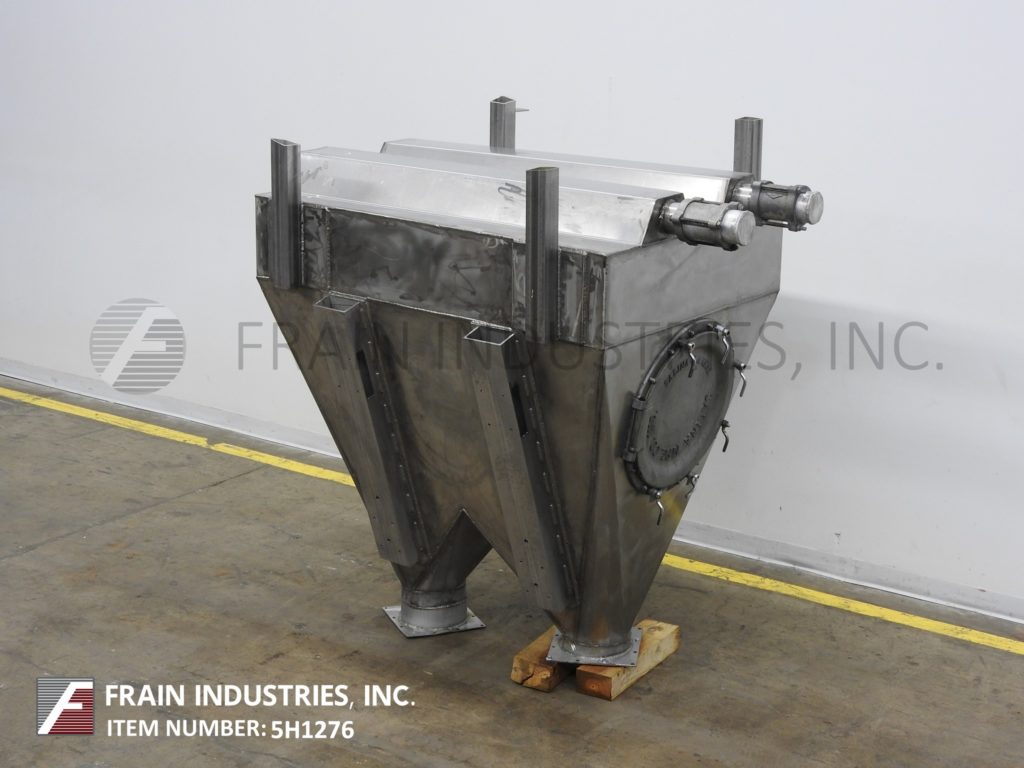

Moline Model DSM2000, continous, stainless steel, powdered, granulated or cinnamon sugar rumbler for donut coating system rated from 500 to 2000 dozen donuts per hour – depending on materials and application. Drum specifications: 24" ID; 88" in Length with 1" long x 1/2" wide inside drum perfs and flip open bolt down cover. Equipped with 36" long in feed chute and 24" ID discharge both have 36" floor clearence, and 10" OD discharge end sugar recycle chute with 63" long x 16" wide x 22" deep stainless steel reclaim suger bin with flip up cover, and inner / outer paddles as well as 4" OD stainless steel bottom feed screw to 80" long incline cleated feeder with 6" wide belt and 1-1/2" hjigh cleats on 6" centers with cover. Mounted on stainless steel base frame.

OAD: 120" L x 56" W x 85" H
