Revolving pans (coatings pans, coating drums) are used to coat product with different substances. The product is loaded into the revolving pan and the coating is either placed in the pan with the product or sprayed on using a spray bar which is positioned inside the revolving pan. (Picture your sugar coating on your morning cereal.) As the revolving pan rotates (revolves), it agitates the product and the coating substance in the revolving pan. The gentle agitation of the revolving pan equipment and its contents results in more coating being applied to the product. Some systems allow the coating substance to fall through perforations in the coating pan if the coating does not immediately adhere to the product. This method is one way to control the amount of coating that is applied to the product.

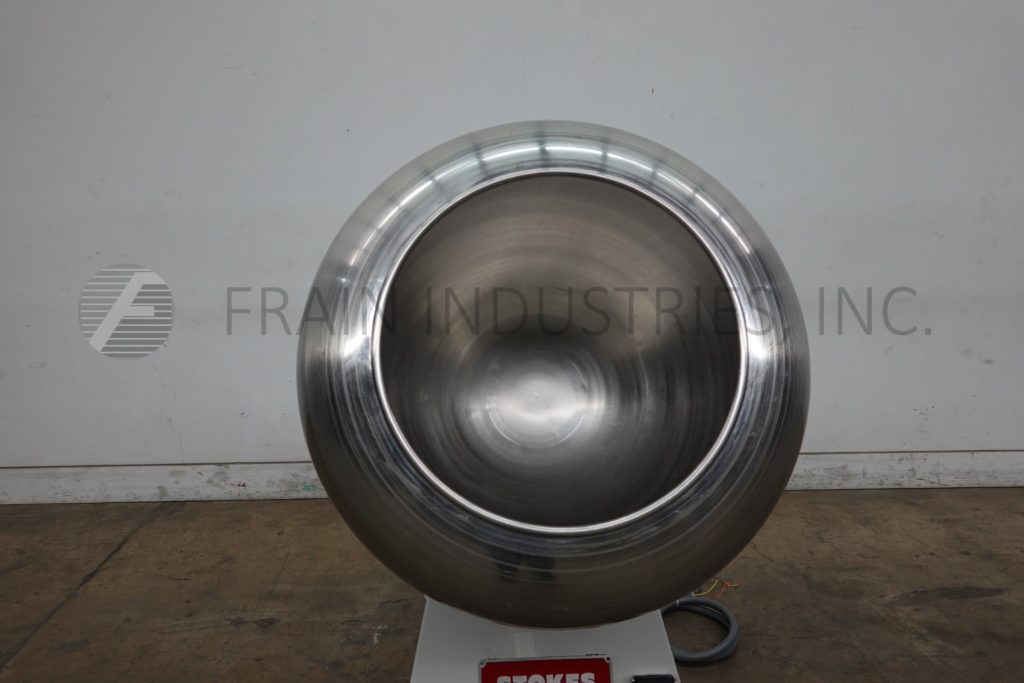

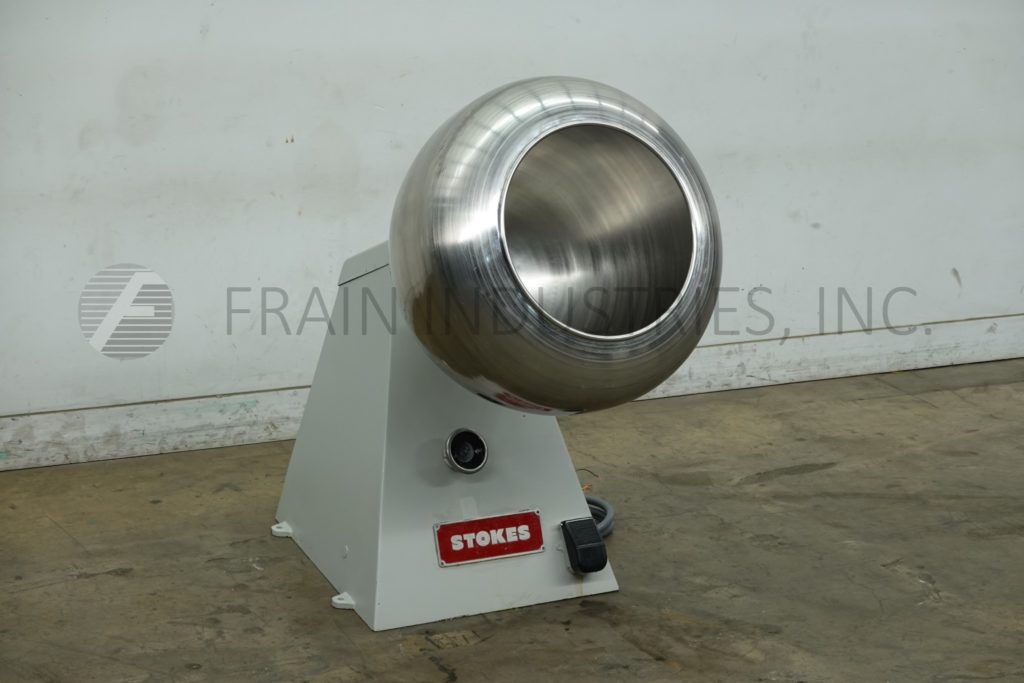

Stokes, Model 100VS stainless steel, cylinder shaped, coating pan with pounds of product per hour – depending on materials, application and operator dexterity. Equipped with 42" diameter x 14" deep coating bowl, 14" diameter product access port with 38" ground clearance. Mounted on painted base frame.
OAD: 50"L x 47"W x 64" H
RollerMac, 44" stainless steel, angular shaped, coating pan. Pounds of product per hour – depending on materials, application and operator dexterity. Equipped with 44" diameter x 32" deep coating bowl, 25" diameter product access port with 44" ground clearance and powered by a 1½ Hp drive. Mounted on painted base frame.
OAD: 66"L x 34"W x 70"H
PPM Inc, soft flight, 36" OD, stainless steel, continuous motion coating drum with production rates of product per hour – depending on materials, application and machine configuration. Equipped with 36" OD by 96" long adjustable angle coating drum with (8) 2½" wide fixed interior soft flight baffles and 30" OD discharge. Automatic dry ingredients feed system, with 12" x 10" x 16" agitated supply hopper. Control panel with AB controller and touch screen HMI. Mounted on stainless steel base frame.
OAD: 128"L x 60"W x 100"H – Coating Drum 46"L x 30"W x 70"H – Control Cabinet
46" diameter, stainless steel, sphere shaped, coating pan. Pan dimensions: 46" inner diameter; 32" in depth. Equipped with a 32" diameter access opening with bolt down cover, (3) interior baffles and 43" charge height.
OAD: 60"L x 48"W x 72"H
Spray Dynamic, Soft Flight, 30" OD, stainless steel, continuous motion coating drum with rates of product per hour – depending on materials, application and machine configuration. Equipped with 30" OD x 98" long coating drum with (8) 3" wide fixed interior soft flight baffles 22" diameter charge, 24" diameter discharge, Unispense dry ingrediants feeder and liquid spray system.
OAD: 130"L x 68"W x 80"H
Shouldice, 42" ID, 304 stainless steel, drum shaped coating pan with pounds of product per hour – depending on materials application and operator dexterity. Pan dimensions: 42" ID; 50" in depth. Equipped with 16" OD product port with 64" charge height, (6) stationary baffles, 2hp drum motor drive and tilting discharge powered by 1½ hp drive. Mounted on stainless steel base frame with casters
OAD: 90"L x 48"W x 90"H
28" Diameter, stainless steel, continuous motion, rotary ribbed coating drum with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 28" ID x 95" long rotating coating drum with (8) 1½" high fixed interior ribs, 26" OD x 60" high in feed and 24" OD x 43" high discharge. Mounted on stainless steel (4) leg frame.
OAD: 105" L x 48" W x 83" H
C. La Mastra, 48" diameter, stainless steel, doughnut shaped, coating pan. Pan dimensions: 48" inner diameter; 32" in depth. Equipped with a 31" diameter access opening with a 27" charge height and powered by a ¼ Hp motor drive. Control box with push button start / stop.
OAD: 70"L x 50"W x 62"H
C. La Mastra, 48" diameter, stainless steel, doughnut shaped, coating pan. Pan dimensions: 48" inner diameter; 32" in depth. Equipped with a 31" diameter access opening with a 27" charge height and powered by a ¼ Hp motor drive. Control box with push button start / stop and variable speed dial.
30" Diameter, stainless steel, continuous motion, rotary ribbed coating drum with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 30" ID by 120" long rotating coating drum and has (6) 94" long x 2" high fixed interior ribs, with 25" OD x 56-1/2" high in feed and 29" OD x 43" high discharge ports with chain to sprocket motor drive. Mounted on stainless steel (4) leg frame.
OAD: 127" L x 48" W x 80" H
DTG, horizontal coating and polishing belt system. Equipped with a 45" wide intralox style belt, (28) slot jacketed spray bar with a 4½"OD / 1"ID flanged product supply port, rear mounted blower fan and top 6"OD exhaust connection. Control panel with push button start / stop controls, temperature displays and variable belt speed control.
OAD: 75"L x 65"W x 91"H
Vimar, 36" diameter, doughnut shaped, coating pan. Pounds of product per hour – depending on materials, application and operator dexterity. Stainless steel contact parts. Equipped with 36" diameter x 18" deep coating bowl, 24" diameter product access port with 36" ground clearance and powered by 1½ Hp motor drive. Mounted on painted base frame with blower and on / off switches.
OAD: 48"L x 45"W x 74"H
