Revolving Pan Machines
Used Revolving Pan Equipment

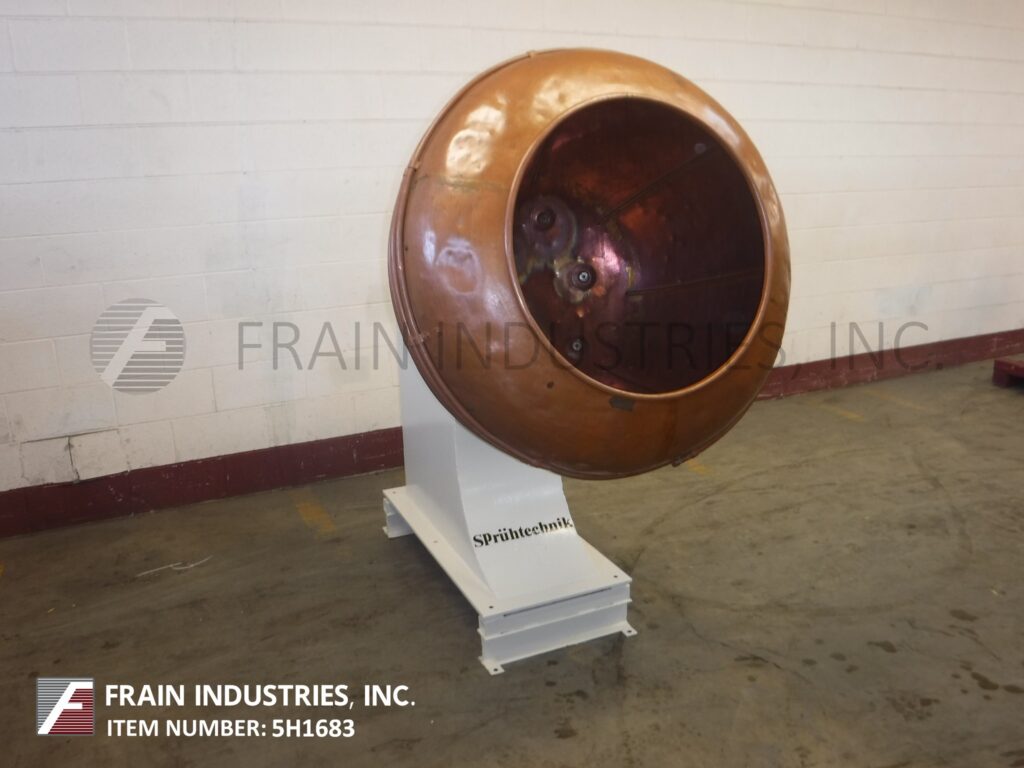

Revolving pans (coatings pans, coating drums) are used to coat product with different substances. The product is loaded into the revolving pan and the coating is either placed in the pan with the product or sprayed on using a spray bar which is positioned inside the revolving pan. (Picture your sugar coating on your morning cereal.) As the revolving pan rotates (revolves), it agitates the product and the coating substance in the revolving pan. The gentle agitation of the revolving pan equipment and its contents results in more coating being applied to the product. Some systems allow the coating substance to fall through perforations in the coating pan if the coating does not immediately adhere to the product. This method is one way to control the amount of coating that is applied to the product.
Revolving Pan Equipment In Stock
- Manufacturer: DT & G
- Model Number: JUNIOR
- Frain Number: 5F3351
DT & G Belt Coater, stainless steel, plastic belt, multi-directional coating drum. Capacity: 2.75 ft³. Batch size: up to 120 lbs. Pan dimensions: 15" in diameter; 24" in Width; 24" in Height. Equipped with variable speed controls, stainless steel guide rails, and a removable drip pan. Mounted on a stainless steel frame.
OAD: 48" L x 36" H x 58" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Spray Dynamic
- Model Number: MICRO METER
- Frain Number: 5F4737
304 Stainless steel, Micro-meter, airless liquid application system rated up to 250 sprays per minute – depending on materials and application. Equipped with a 12" diameter x 18" deep stainless steel product hopper, prop style agitator, spray arm, positive shut off nozzles, and variable speed controls. Mounted on a stainless steel frame with casters. Designed for coating drum, blender, belt and auger systems.
OAD: 48" L x 30" W x 70" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Modern Flow Inc
- Model Number:
- Frain Number: 5E3320
Stainless steel, continuous coating drum. Chamber dimensions: 48" diameter x 17′ long; 36" inside diameter; 16" x 14" product in-feed. Fixed ribbed interior baffles.
OAD: 17′ L x 6′ W 5′ 6" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Pellegrini
- Model Number: T300
- Frain Number: 5B4543
300 Liter Capacity Coating Pan Has A Revolution Speed Of 3 To 13 Rpm. Unit Is Suitable For Tablet Sugar Coating. All Stainless Steel Bowl With 6 Interior Welded Baffles, Insures Thorough Coating Distribution And End Of Process Distribution & Sanitation. Heated Drying Air Is Introduced Into Pan By Inclined S/S 6" Dia Slotted Air Tube. Requires Air Handling System For 700 Cfm Supply.Get a Free Quote Call: 630-629-9900
- Manufacturer: Gerhard Steinberg KG
- Model Number: DK120
- Frain Number: R28110

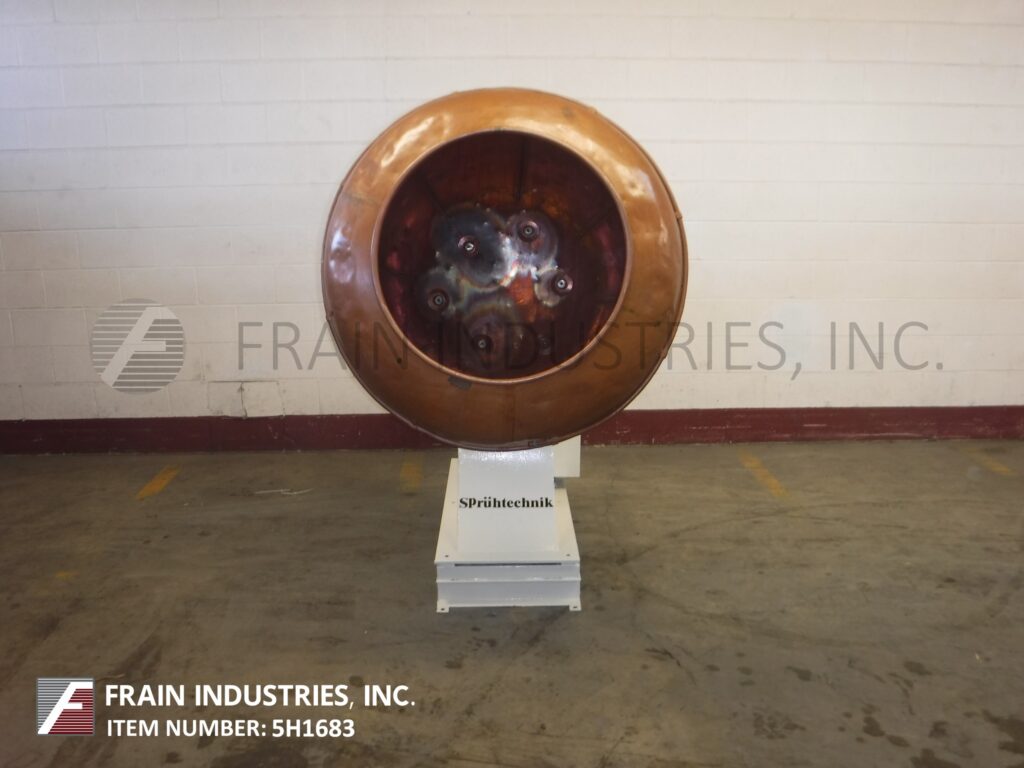

Gerhard Steinberg, Model DK120, dual 48" diameter, copper, doughnut shaped, coating pan system. Equipped with (2) 48" diameter x 30" deep coating bowls with 30" diameter product access ports and 32" ground clearance, (2) model WL-6 0.34 hp blowers and liquid spray nozzles. Control panel with coating output on / off switch, rotation direction switch, manual / auto switch and tilt up / down switch. Mounted on a heavy duty base.
OAD: 125"L x 65"W x 92"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Thomas Engineering
- Model Number: 48-M11
- Frain Number: 5F1495
48" Diameter Accellacota, stainless steel, single wall cabinet style, tablet coater rated up to 400 lb per batch – depending on materials and application. Equipped with 48" perforated coating and drying pan with 19" ID access port, mixing baffles, spraying and CIP system with pump, large front and both side swing open access doors for ease of both loading, unloading and cleaning. Atomizing air light and pressure gauge, temperature controller, cylinder and supply air ports, exhaust plenum clamp, with cabinet skylight light and spray on/off buttons, start, stop and e-stop controls
OAD: 60" L x 52" W x 78" HGet a Free Quote Call: 630-629-9900
- Model Number: 30" DIA
- Frain Number: R30164
30" Diameter, stainless steel, continuous motion, rotary ribbed coating drum with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 30" ID by 80" long rotating coating drum and has (4) 3¼" fixed interior ribs, with 26" OD x 44" high in feed and 26" OD x 40" high discharge ports with chain to sprocket motor drive. Mounted on stainless steel (4) leg frame.
OAD: 92"L x 43"W x 78"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Vector
- Model Number: PUSL1720LC
- Frain Number: 5C1109
Vector Type "FLOW-CONTROL" self contained recirculation type multiple gear pump unit with flow rate accuracies of (+/-) 1%. The (4) pump unit has (4) spray gun control capabilities with mist spray/ spray, nozzle/auxiliary air and motor/power on/off controls with a Red Line Control Model "DITAK IID" digital readout for ml’s/mins. Gear pumps can be easily remove for cleaning, and can be run independent of Vector coating machine. Mounted on "T-BASE" type stand with casters for mobility. Last running in a pharmaceutical operation. (OAD:14"L x 34"W x 47"H).Get a Free Quote Call: 630-629-9900
- Manufacturer: Colton
- Model Number: 15" DIA
- Frain Number: R30130
Colton 15" diameter, sphere shaped, stainless steel contact parts, table top coating pan with pounds of product per our hour – depending on materials, application and operator dexterity. Coating pan dimensions: 15" inner diameter; 16" in depth, 10" inner diameter product access port with (4) 3/4" wide x 1/2" high inner baffles and has 1/2 Hp motor drive with on / off switch.
OAD: 28" L x 17" W x 18" HGet a Free Quote Call: 630-629-9900
- Model Number: 30" DIA
- Frain Number: 5G9850
30" Diameter, stainless steel, continuous motion coating drum with pounds of product per hour – depending on materials, application and machine configuration. Equipped with a 30" diameter by 88" long coating drum with (12) fixed bar baffles, (4) nozzle spray bar, 12" x 20½" feed throat at a height of 80", 12" x 6" discharge with 15" ground clearance. Control panel has AB touch pad controls. Mounted (4) leg heavy duty painted base frame.
OAD: 110"L x 51"W x 80"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Pellegrini
- Model Number: T300
- Frain Number: 5D8250
60" Diameter, S/S coating pan capable of 2 – 13 revolutions per minute. Has a 300 L (80 gallon) capacity, 8 welded inside baffles, (2) 20 1/2" Diameter product ports. Powered by chain drive 2hp motor, and mounted on painted steel frame.
OAD: 59"L x 71"W x 88"HGet a Free Quote Call: 630-629-9900
- Manufacturer: CMS
- Model Number: WH48
- Frain Number: 5D8075
Continuous, stainless steel, coating drum, has production rates up to 6750 lbs/hr. Equipped with 134"L x 48" ID coating cylinder, two 5′ x 5′ external access doors on each side, 10" x 10" product inlet, 9" x 6" end bottom discharge, spray inlets for up to 3 ingredients, (12) coating nozzles, 2 1/2" side bottom drain, and a 1 1/2 HP Baldor drive. Unit features a mechanical tilting mechanism allowing for up to 12" of downward tilt to facilitate product discharge. Mounted on S/S frame.
OAD: 180"(L) x 70"(W) x 75"(H)Get a Free Quote Call: 630-629-9900
