Accumulating unscramblers, or accumulators, are designed to accumulate products or containers being processed on a conveyor-based production line. Accumulators can be located at the end of a conveyor-based production line to accumulate containers before packing or accumulators can be located a constraint, or bottleneck, or machine that requires periodic operator interaction during the production process (such as a labeler) to provide an accumulation area or buffer prior to the machine.
Accumulators can be of several different designs. The simplest design for an accumulator is a simple rotary disc. (See Unscrambler / Disc for more information.) Rotary disc unscramblers take in containers on a rotating disc and have plows to guide the product to the center of the disc. Bi-directional accumulators are located parallel to the line and move containers into the accumulator in one direction and discharge the accumulator by move the containers in the other direction. Inline accumulators are designed to keep the containers moving as the accumulator accumulates the containers. Inline accumulators will keep containers moving in a circular motion through a series of conveyor belts. Vertical accumulators are designed to accumulate containers in a vertical stack above the conveyor. As more containers can be processed, a vertical accumulator will lower the container onto the conveyor for further processing.
Accumulators at the end of the line are used to accumulate containers until it becomes feasible to package them. Some accumulators are used to accumulate a certain amount of product prior to loading all containers into a carton or case (i.e.: a six count of bottles into a case). Other accumulators are used to accumulate or batch containers so that a single operator can pack containers from multiple lines. Because of how lines are designed, a single operator packing multiple lines will require time to move from line to line, and will often batch the packing operation to limit the time traveling from line to line. The accumulator at the end of the line provides the operator with the time necessary to accomplish this.
Accumulators prior to constraint, or bottleneck, machines are used to help assure the continued production of the bottleneck machine. By definition, bottleneck machines are the slowest machine or the constraint machine with regards to production speed in a production line. By always having product available for processing by the bottleneck, the bottleneck machine is never and the maximum amount of throughput through the bottleneck machine is achieved.
Accumulators prior to machines such as labelers are used to buffer the production line against periodic interruption of the production line due to the machine requiring operator attention. In the case of pressure sensitive labelers, the roll of pressure sensitive labels needs to be replaced resulting in machine downtime (unless the labeler is designed with dual roll unwind and an automatic label web splicing station). The accumulation area accumulates containers while the operator changes the label roll so that the upstream machines do not have to stop production while the label roll is being changed. (This type of buffer is only effective if the labeler can out-pace or run faster than the remainder of the line so the labeler is able to by processing the containers in the accumulation area prior to more downtime. If the labeler can not process the containers in the accumulation area, eventually up-stream machinery will need to be shut down.)
Ohlson, Model CT-47-SS, stainless steel construction, 47" diameter disc accumulation table with number of product per hour – depending on materials and application. Equipped with 47" diameter stainless steel concave disc that allows the bags to slide to center allowing for more accumulation. Control panel has variable speed contoller with e-stop. Mounted on stainless steel frame with adjustable legs and a table height of 32".
OAD: 48"L x 48"W x 32"H

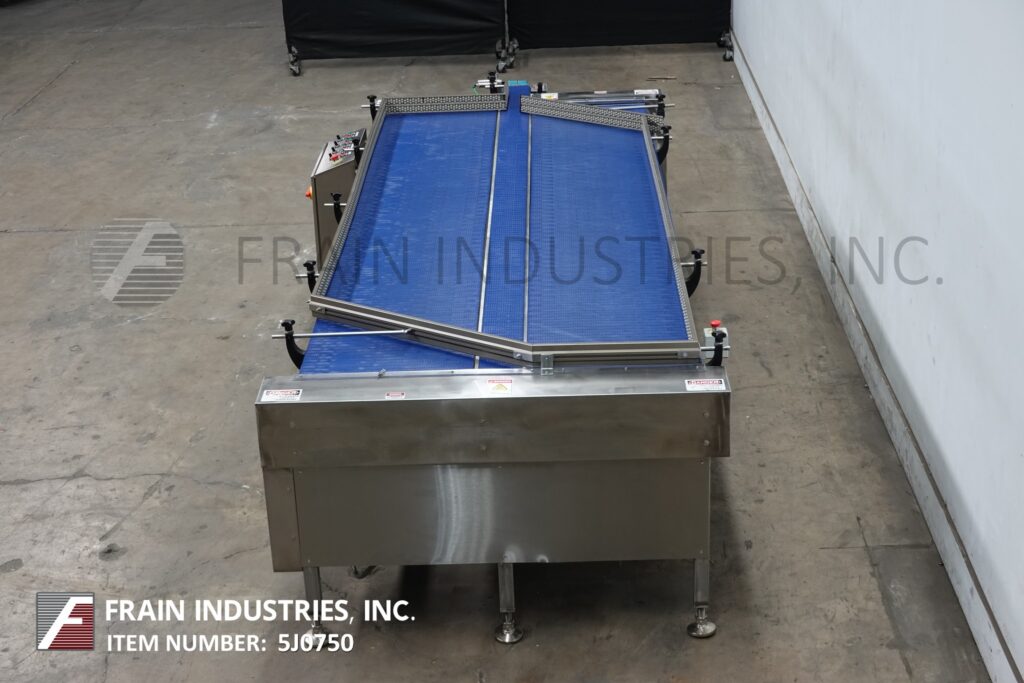

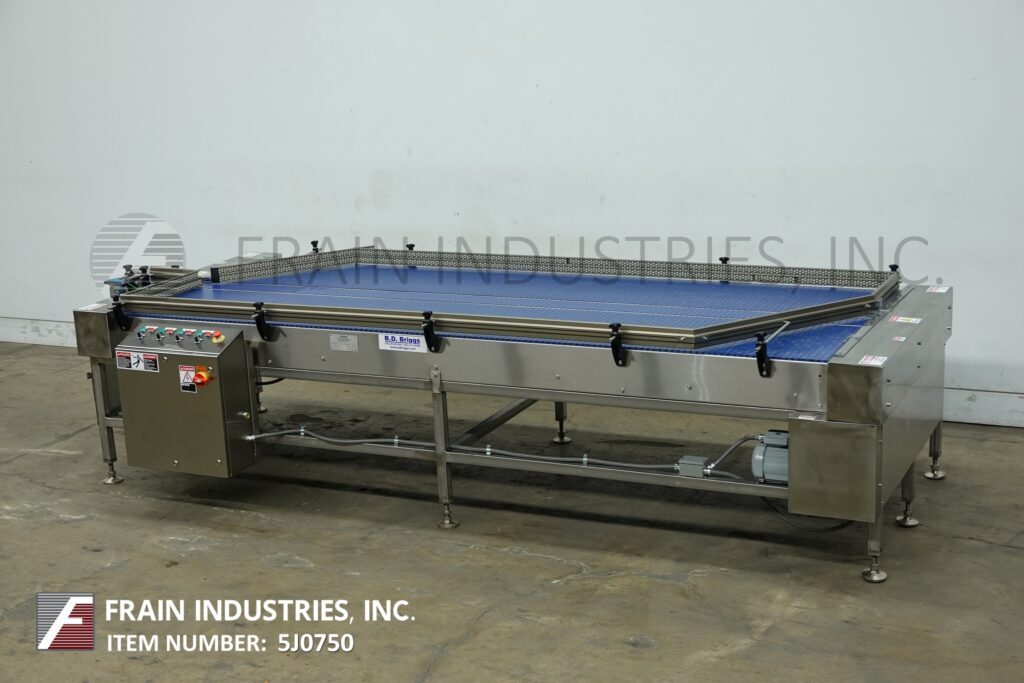

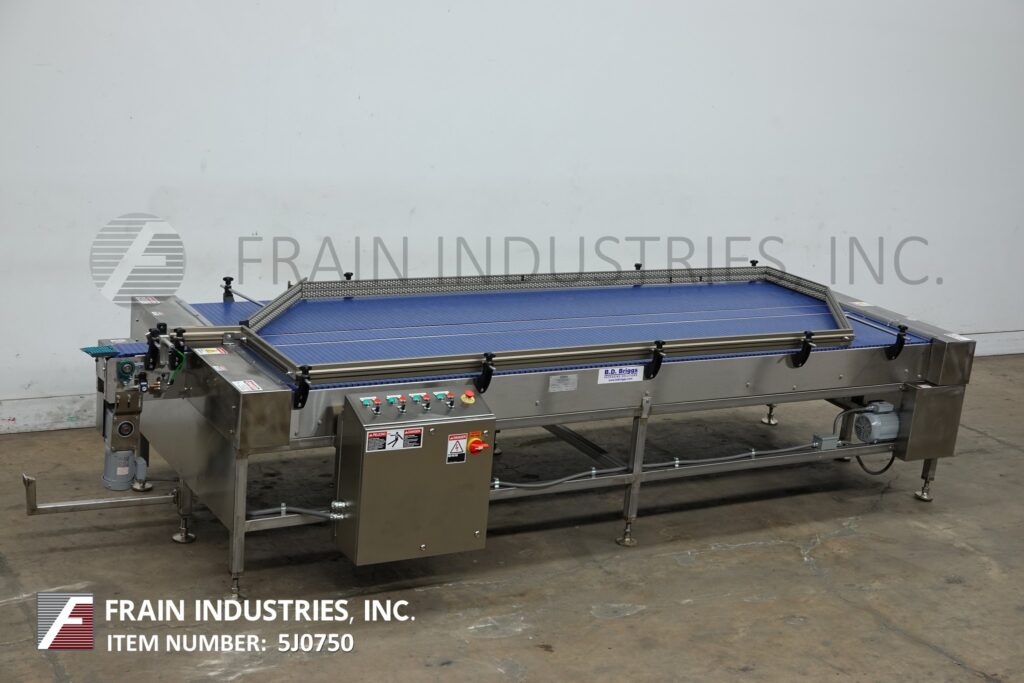

72" wide x 127" long, stainless steel accumulation table with number of containers per minute / hour – depending on materials and application. Equipped with 15" wide infeed conveyor, 7½" wide x 132" long transfer conveyor and 72" wide x 127" long accumulation section with adjustable guide rails and 47" to 53" in feed and discharge height.
OAD: 276"L x 183"W x 62"H
72" wide x 134" long, stainless steel accumulation table with number of containers per minute / hour – depending on materials and application. Equipped with 7-1/2" wide infeed conveyor, 15" wide x 144" long transfer conveyor and 72" wide x 134" long accumulation section with adjustable guide rails and 50" to 54" in feed and discharge height.
OAD: 181"L x 150"W x 62"H
Hartness, Model 6400, DYNAC pressureless accumulation conveyor. Equipped with 4" wide table top conveyors with a 42" infeed and discharge height, 4 tier spiral and AB controller with touch screen HMI.
OAD: 187"L x 90"W x 108"H
Arpac Model TS37 / XT18, Horizontal, continuous motion, side seal shrink wrapper and tunnel rated from 0 to 90 linear feet or 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3-1/2" to 60" in Length; 2" to 16" in Width; 1/4" to 7-1/2" in Height. Equipped with 120" long lugged product in feed conveyor, LDPE seal jaws has next generation side seal with film registration and product discharge conveyor. Film specs: up to 39" wide single winde film on 3" OD core; to 14" OD with pull out film carriage. Control panel has A/B controller, with no product detection, perf and scrap removal wheels, seal bar trim, tempature controllers, drive speed dial with start, stop, jog and e-stop. Mounted on (4) leg frame with interlock safety guarding.
Shrink tunnel: Has an aperture of 24" in Width; 14" in Height and tunnel 72" in Length. Equipped with 120" long x 22" wide conveyor, with illuminated shrink chamber with viewing window. top mounted blower with variable speed and temperature controls Mounted on height adjustable (4) leg frame.
OAD: 251" L x 63" W x 61" H
Axon, Model EZ-200 automatic, tamper evident shrink neck bander or sleeve label applicator with Model EZ-48 shrink tunnel rated from 30 to 120 containers per minute – depending on materials, application and machine configuration. Neck bander equipped with photo eyes for machine activation, film registration, stepper drive film feed system, tamp band pusher, guillotine style cutter with durable and dependable (2) blade cutting system. Layflat: 55mm to 205mm. Container diameter: 35mm to 124mm. Film thickness 40 to 70 microns. Film specs: up to 15" OD roll on 4-7/8" OD core Control panel with touch screen HMI controller with safety door gaurding and e-stop. Mounted on heavy duty frame.
Shrink tunnel has 12" high x 7½" wide aperature x 48" long chamber, digital heat controls and pneumatic tunnel lift. System mounted above 6" wide x 176" long stainless steel tabel top belt conveyor with spacing wheel and variable speed control. Mounted on (4) leg frame.
OAD: 178"L x 55"W x 83"H
Loma, Model IQ4, automatic, in line, stainless steel, metal detector with number of product per minute – depending on materials and application. Working Aperture: 12-½" in Height; 21-½" in Width. Equipped with 19-¾" wide x 70" long white flex link product conveyor with 32" infeed and discharge height and push arm ram reject. Sensitivities: depending on product, container and enviorment being run in. Environment to be dry and is wipe down applicalble. Temperature range -10 to +40 Deg C, 14 to 104 Deg F. Control panel has touch screen HMI, with start, stop, e-stop push button controls and signal tower and is Ethernet and USB capable. Mounted on (4) leg base frame.
OAD: 72"L x 64"W x 56"H
Garvey, Model BF36, stainless steel, table top belt accumulation conveyor. Equipped with 6" wide x 170" long product feed conveyor (1) 18" wide x 100" long and (1) 12" wide x 100" long bi-directional accumulating belts which feed into the product conveyor. Mounted on a stainless steel base frame with height adjustable legs and casters with an infeed / discharge range of 34" to 38". Control panel with variable speed.
Kickback wheel available for additional cost.
OAD: 180"L x 50"W x 44"H
