Horizontal Machines

Pfm Wrapper Horiz. Wrapper PEARL

• Manufacturer: Pfm
• Model Number: PEARL
• Frain Number: R33220

Pfm Model Pearl, 2-up, automatic, 3 axis, servo driven, horizontal wrapper. Product size range: 1.6" to 18" in Length; 3/8" to 8.5" in Width; up to 3.9" in Height. Equipped with 60" long operator load area, with 1-1/2" high lugs, adjustable former, 2-up, 8.6" wide cross seal jaws and Interlock safety guarding. Film up to 24" in width; 14" diameter; on 3" OD core. PLC with touch pad and e-stop. Speed dependent on materials, application and machine configuration.

Pfm Wrapper Horiz. Wrapper PEARL

• Manufacturer: Pfm
• Model Number: PEARL
• Frain Number: R33221

Pfm Model Pearl, 2-up, automatic, 3 axis, servo driven, horizontal wrapper rated from 30 to 150 products per minute – depending on materials, application and machine configuration. Product size range: 1.6" to 18" in Length; 3/8" to 8.5" in Width; up to 3.9" in Height. Equipped with 80" long operator load area, lugged chain infeed, adjustable former, 2-up, 8.6" wide x 1" thick serrated seal jaws and fin seal assembly wheels with Interlock safety guarding and 42" long x 8" wide neophreme product discharge conveyor. Film spec’s up to 24" reel width; 14" OD reel, on 3" OD core. Control panel has PLC controls and touch pad controller with start, stop and e-stop push buttons. Mounted on base frame with (6) leveling legs.

OAD: 198"L x 42" W x 70" H

Bosch Wrapper Horiz. Wrapper 102

• Manufacturer: Bosch
• Model Number: 102
• Frain Number: R32691

Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper with number of packages per minute – depending on materials and application. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 72" long lugged product load area, with pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" OD; on 3" OD core. Control panel has touch pad controller with upper and lower jaw temperature controllers with start, stop and e-stop push buttons. Mounted on stainless steel frame with casters and height adjustable leveling legs.

OAD: 183" L x 52" W x 76" H

Pfm Wrapper Horiz. Wrapper PEARL

• Manufacturer: Pfm
• Model Number: PEARL

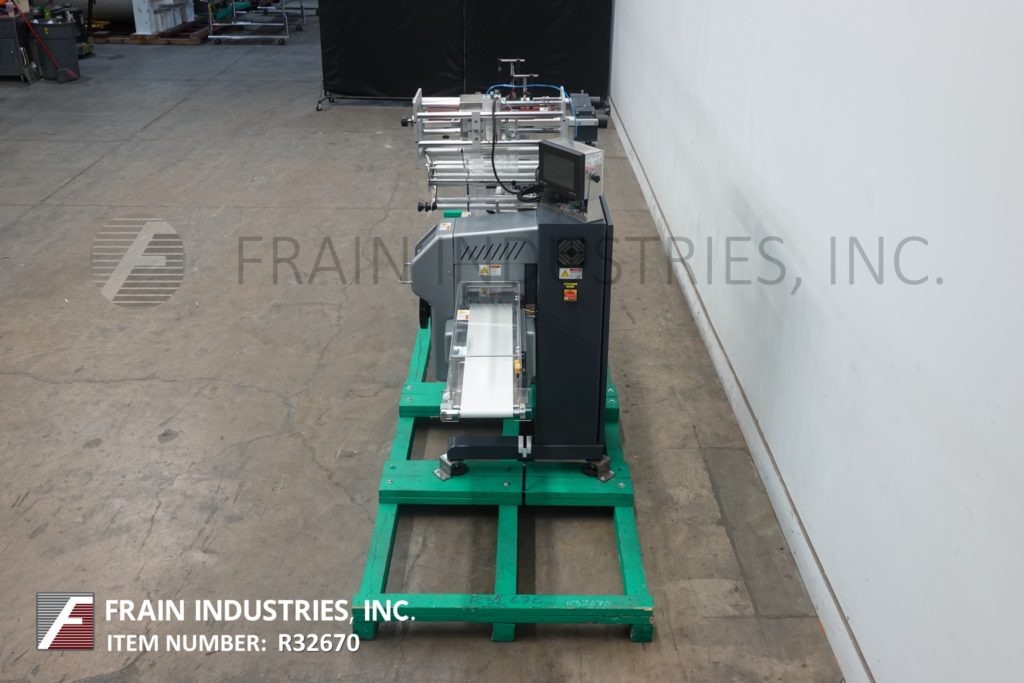

• Frain Number: R32670

Pfm Model Pearl, 2-up, automatic, 3 axis, servo driven, horizontal wrapper rated from 30 to 150 products per minute – depending on materials, application and machine configuration. Product size range: 1.6" to 18" in Length; 3/8" to 8.5" in Width; up to 3.9" in Height. Equipped with 90" long operator load area, with 1½" high quick change plastic lugs currently set on 6" centers, adjustable former, 2-up, 8.6" wide x 1" thick serrated seal jaws and fin seal assembly wheels with Interlock safety guarding and 42" long x 8" wide neophreme product discharge conveyor. Film spec’s up to 24" reel width; 14" OD reel, on 3" OD core. Control panel has PLC controls and touch pad controller with start, stop and e-stop push buttons. Mounted on base frame with (6) leveling legs.

OAD: 196"L x 42"W x 70"H

Bosch (Syntegon) Wrapper Horiz. Wrapper 102

• Manufacturer: Bosch
• Model Number: 102
• Frain Number: R33211

Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper rated from 50 to 150 packages per minute – depending on materials, application and machine configuration. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 72" long lugged product loading area, pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" in diameter; 3" core. Mounted on stainless steel frame with casters and height adjustable leveling legs

OAD: 185" L x 52" W x 70" H

Bosch Wrapper Horiz. Wrapper 102

• Manufacturer: Bosch
• Model Number: 102
• Frain Number: R33212

Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper rated from 50 to 150 packages per minute – depending on materials, application and machine configuration. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 72" long lugged product loading area, pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" in diameter; 3" core. Mounted on stainless steel frame with casters and height adjustable leveling legs

OAD: 185" L x 52" W x 70" H

Bosch Wrapper Horiz. Wrapper 102

• Manufacturer: Bosch
• Model Number: 102
• Frain Number: R33210

Bosch, Model PACK 102, 2-up, stainless steel, horizontal wrapper. Product size range: 3" to 9" in Length; 1/2" to 9-3/4" in Width; up to 3-3/4" in Height. Equipped with 76" long lugged product loading area, pop out lugs, adjustable former, 2-up 10-1/2" wide by 3/4" thick serrated knife seal jaws, (2) sets of fin seal wheels (1- heated / 1- cold), film registration and safety guarding. Web specifications up to 26" in width; up to 15.7" in diameter; 3" core. Mounted on stainless steel frame with casters and height adjustable leveling legs. Speed dependent on materials, application, machine configuration and operator dexterity.

OAD: 185" L x 52" W x 70" H

Pfm Wrapper Horiz. Wrapper PEARL

• Manufacturer: Pfm
• Model Number: PEARL
• Frain Number: R32711

Pfm, Model Pearl, 2-up, automatic, 3 axis, servo driven, horizontal wrapper rated from 30 to 150 products per minute – depending on materials, application and machine configuration. Product size range: 1.6" to 18" in Length; 3/8" to 8.5" in Width; up to 3.9" in Height. Equipped with 60" long operator load area, lugged chain infeed, adjustable former, 2-up, 8.6" wide x 1" thick serrated seal jaws and fin seal assembly wheels with Interlock safety guarding and 42" long x 8" wide neophreme product discharge conveyor. Film spec’s up to 24" reel width; 14" OD reel, on 3" OD core. Control panel has PLC controls and touch pad controller with start, stop and e-stop push buttons. Mounted on base frame with (6) leveling legs.

OAD: 165"L x 42" W x 70" H

Bosch (Syntegon) Wrapper Horiz. Wrapper 101

• Manufacturer: Bosch
• Model Number: 101
• Frain Number: R32720

Bosch Model PACK 101, 2-up, horizontal, flow wrapper rated from 50 to 150 packages per minute – depending on materials, application, machine configuration and operator dexterity. Currently set for product size range: 3" to 18" in Length; 1/2" to 9" in Width; 1/16" to 4.3" in Height. Equipped with 96" long lugged product in feed and operator hand load conveyor with 2" high pop out lugs set on 7" centers with no product eye, adjustable forming head, 7-1/2" wide x 1" thick serrated hot knife seal jaws, fin seal wheels, 32" long x 10" wide discharge conveyor with safety guarding and 32" discharge height. Film reel specs: 25.6" in width; to 15.7" OD; on 3" OD core. Control panel has touchscreen controller with (2) temperature controllers, start, stop and e-stop push buttons. Mounted on base frame with casters and height adjustable leveling legs.

OAD: 204" L x 48" W x 70" H

Pfm Wrapper Horiz. Wrapper PEARL

• Manufacturer: Pfm
• Model Number: PEARL

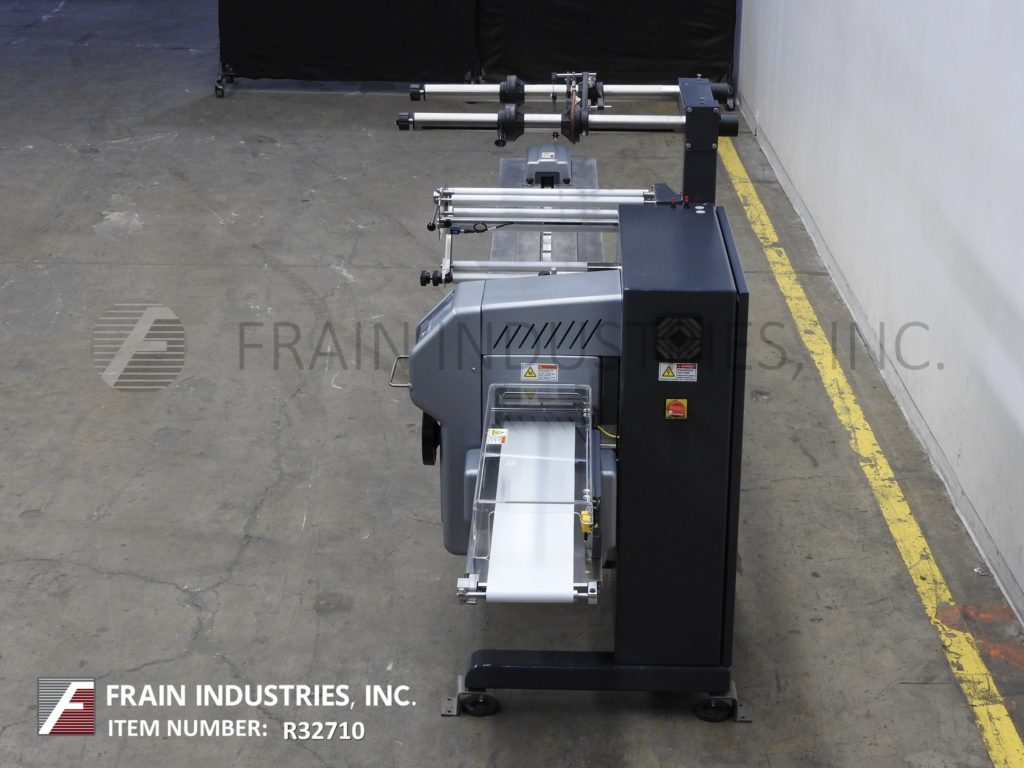

• Frain Number: R32710

Pfm, Model Pearl, 2-up, automatic, 3 axis, servo driven, horizontal wrapper rated from 30 to 150 products per minute – depending on materials, application and machine configuration. Product size range: 1.6" to 18" in Length; 3/8" to 8.5" in Width; up to 3.9" in Height. Equipped with 60" long operator load area, lugged chain infeed, adjustable former, 2-up, 8.6" wide x 1" thick serrated seal jaws and fin seal assembly wheels with Interlock safety guarding and 42" long x 8" wide neophreme product discharge conveyor. Film spec’s up to 24" reel width; 14" OD reel, on 3" OD core. Control panel has PLC controls and touch pad controller with start, stop and e-stop push buttons. Mounted on base frame with (6) leveling legs.

OAD: 165"L x 42" W x 70" H

Pfm Wrapper Horiz. Wrapper PEARL

• Manufacturer: Pfm
• Model Number: PEARL
• Frain Number: R32390

Pfm Model Pearl, 2-up, automatic, 3 axis, servo driven, horizontal wrapper rated from 30 to 150 products per minute – depending on materials, application and machine configuration. Product size range: 1.6" to 18" in Length; 3/8" to 8.8" in Width; up to 4" in Height with proper change parts. Equipped with 60" long operator load area, with 1-1/2" high quick change plastic lugs currently set on 6" centers, adjustable former, 2-up, 9" wide x 1" thick serrated seal jaws and fin seal assembly wheels with Interlock safety guarding and 42" long x 8" wide neophreme product discharge conveyor. Film spec’s up to 24" reel width; 14" OD reel, on 3" OD core. Control panel has PLC controls and touch pad controller with start, stop and e-stop push buttons. Mounted on base frame with (6) leveling legs.

Hot Stamp Coder Available At Additional Cost

OAD: ___" L x __" W x __" H

Pfm Wrapper Horiz. Wrapper PEARL

• Manufacturer: Pfm
• Model Number: PEARL

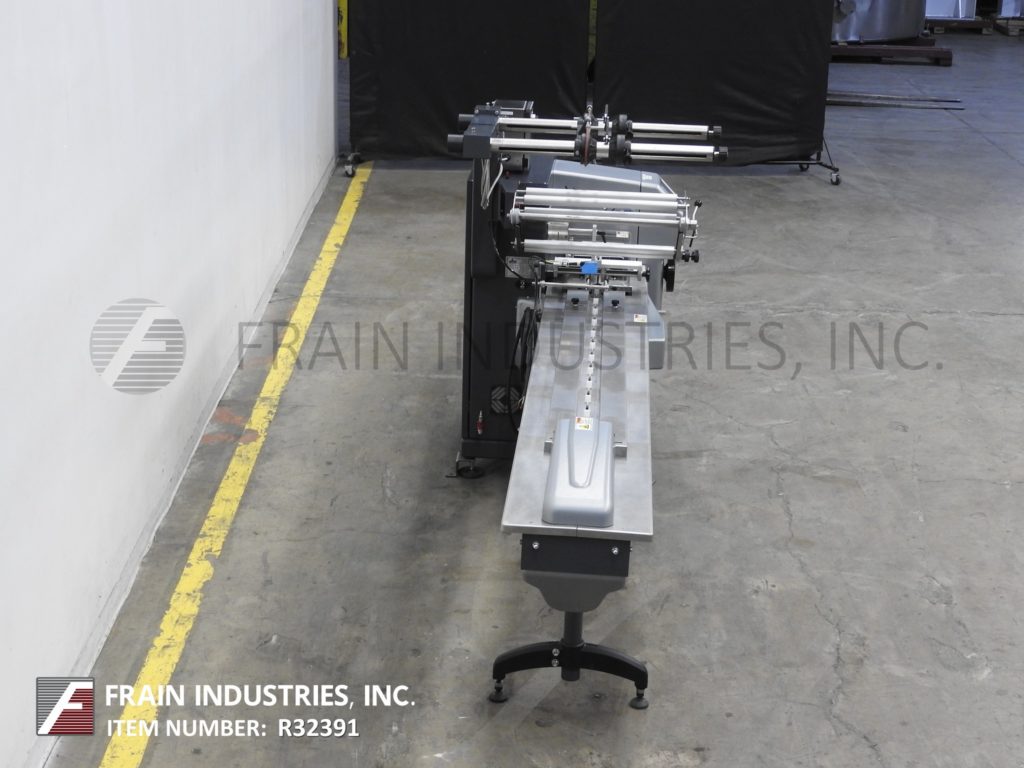

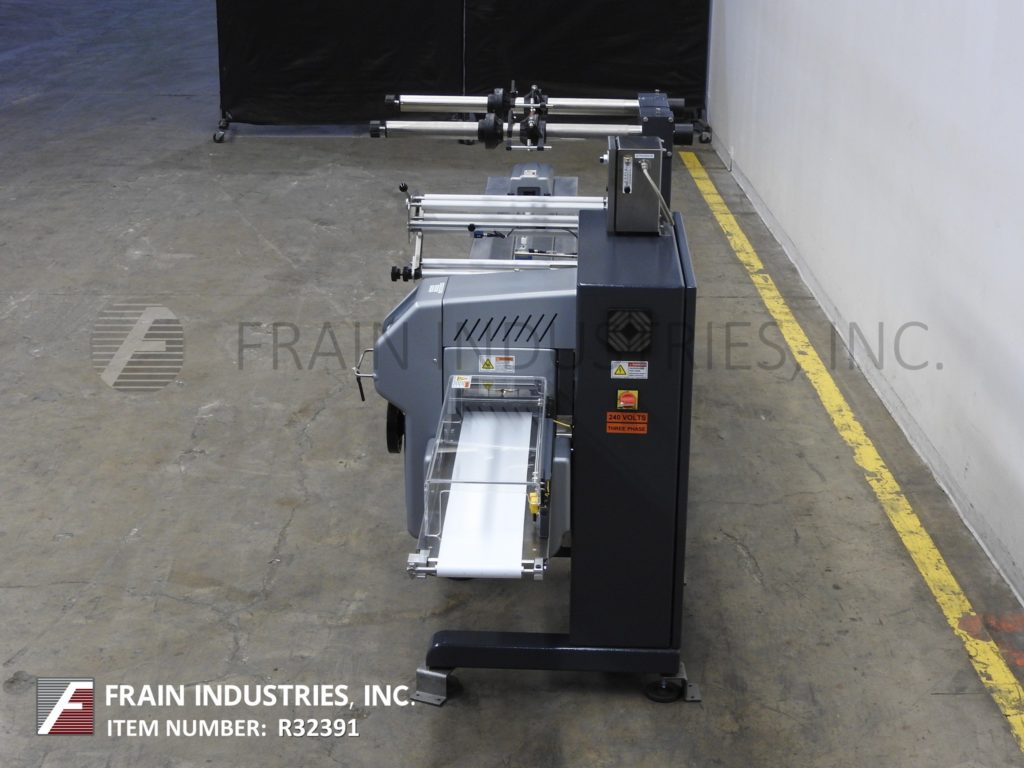

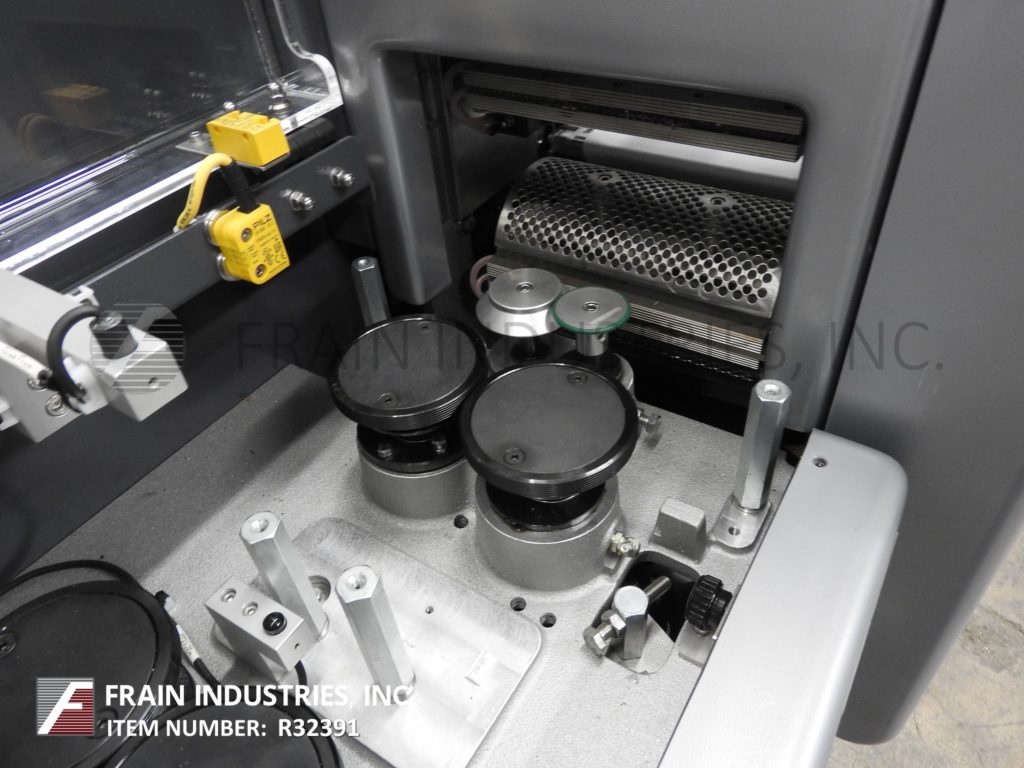

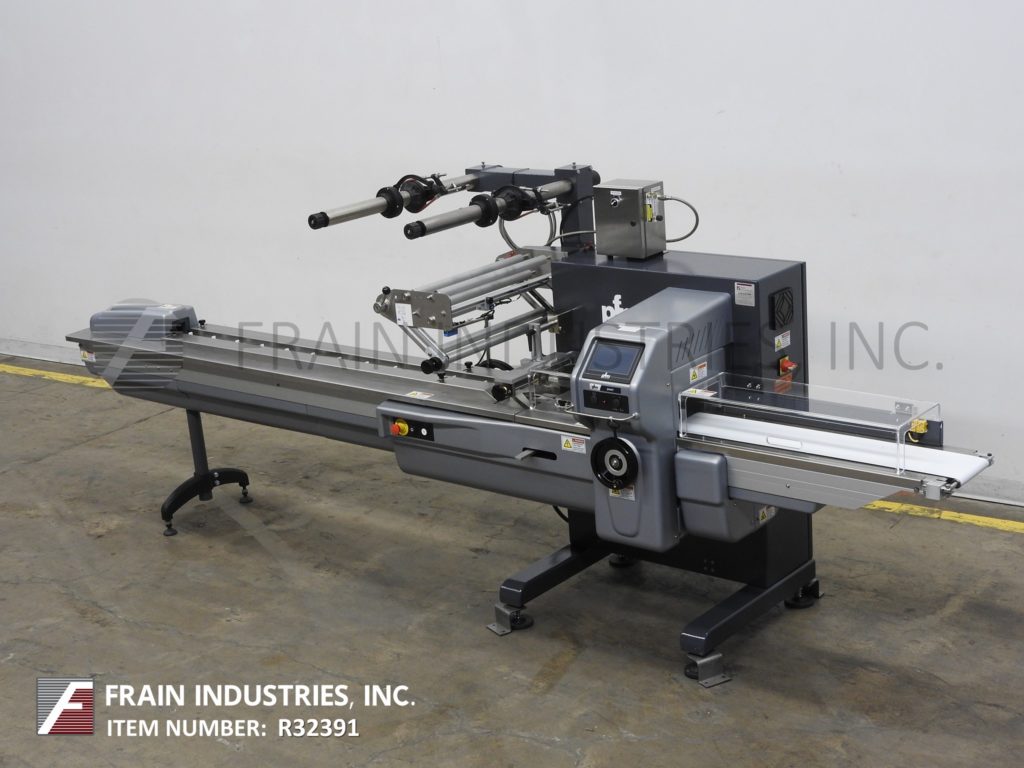

• Frain Number: R32391

Pfm Model Pearl, 2-up, automatic, 3 axis, servo driven, horizontal wrapper rated from 30 to 150 products per minute – depending on materials, application and machine configuration. Product size range: 1.6" to 18" in Length; 3/8" to 8.8" in Width; up to 4" in Height with proper change parts. Equipped with 60" long operator load area, with 1-1/2" high quick change plastic lugs currently set on 6" centers, adjustable former, 2-up, 9" wide x 1" thick serrated seal jaws and fin seal assembly wheels with Interlock safety guarding and 42" long x 8" wide neophreme product discharge conveyor. Film spec’s up to 24" reel width; 14" OD reel, on 3" OD core. Control panel has PLC controls and touch pad controller with start, stop and e-stop push buttons. Mounted on base frame with (6) leveling legs.

Hot Stamp Coder Available At Additional Cost

OAD: ___" L x __" W x __" H
