Overwrap bar wrappers are designed to place a wrap over a product that has already been enclosed within packaging. Similar to putting a film wrap around a soap bar already in a carton. This may be a paper or film wrapper over a carton, box or an additional wrap, to provide extra protection, decoration, or transparent design overlay.

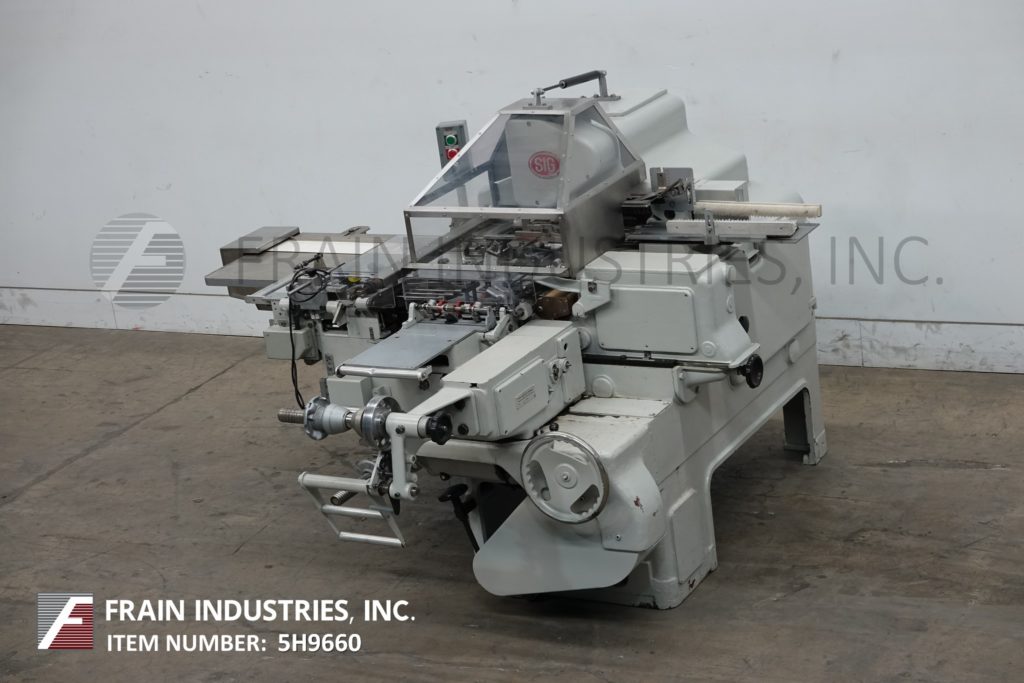

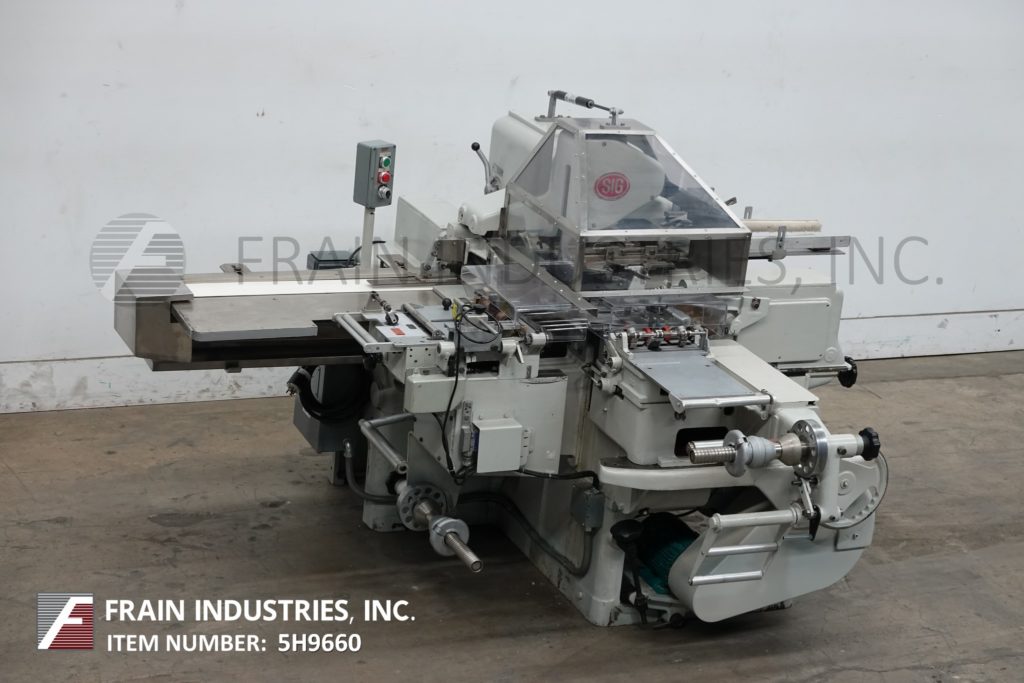

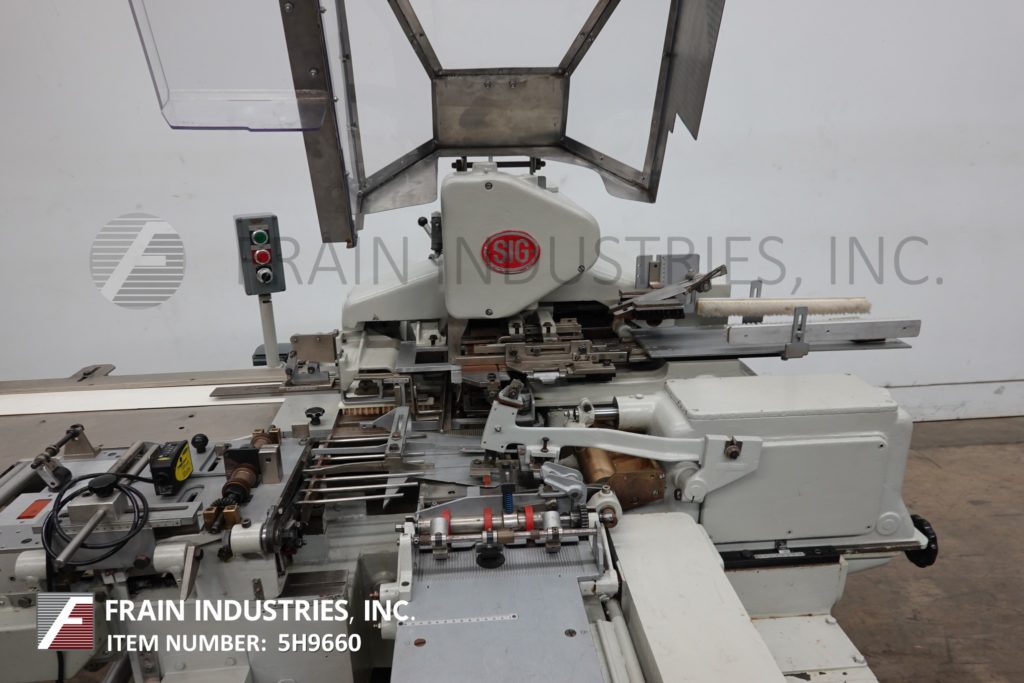

SIG Model C-Bar, Chocolate bar foil and paper wrapping machine rated from 25 to 100 bars per minute – depending on materials and application Package size range: 79mm to 165 mm in Length; 31mm to 79" in Width; 6mm to 19mm Thick. Equipped with 42" long x 6" wide in feed conveyor 9" film roll, with film cutoff, seal bars and 16" brush box discharge conveyor and pack off table. Control panel has jog, reverse switch and start / stop push buttons controls, interlock safety guarding. Mounted on (4) leg base frame with locking casters.
OAD: 90" L x 80" W x 60" H

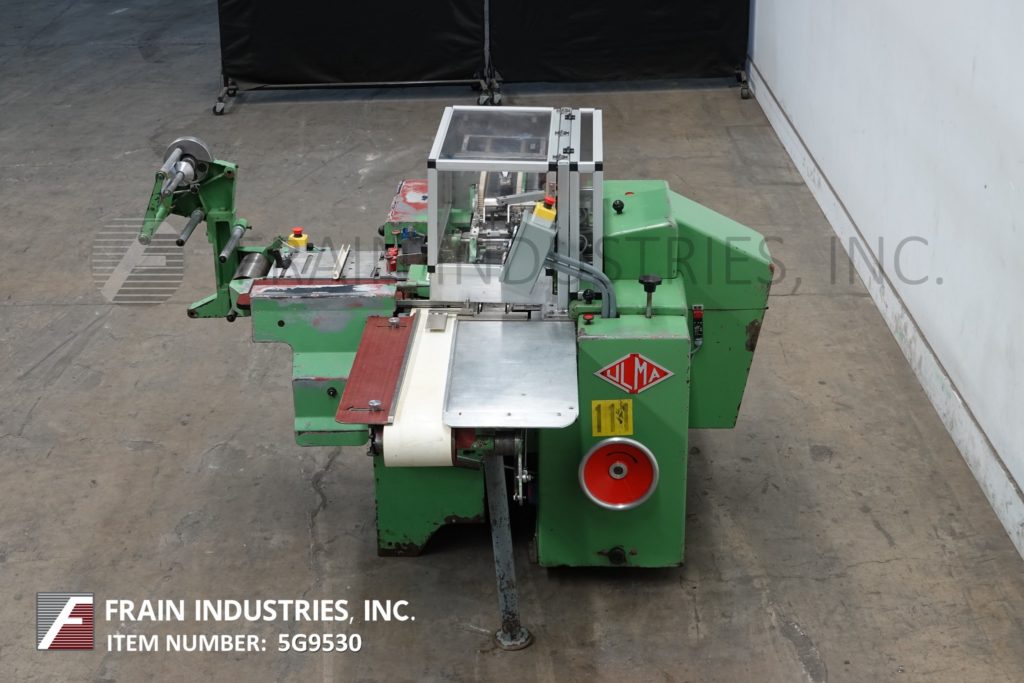

Ulma Model Chocolate foil and paper bar wrapping machine with number of product per minute – depending on materials and application Package Size Range: per application. Equipped with 36" long x 8" wide in feed conveyor 12" film roll, with film cutoff seal bars and 32" brush box discharge conveyor and pack off table. Control panel has run, jog, vacuum and speed control dials and start, stop, reset and e-stop push buttons controls, interlock safety guarding. Mounted on heavy duty frame.
OAD: 92" L x 91" W x 58" H
Pester Model Pewo Fold, automatic, cut and fold, horizontal overwrapper and can also be operated as a band sealer rated up to 50 cycles per minute with number of packages – depending on materials and application. Package size range: Length to 250mm (9.85"); Width to 400mm (15.75"), Height to 140 mm (5.5") and is capable of running polyethylene, polypropylene and PVC films, with minimum / maximum film widths of: 90mm (3.6"); 400mm (15.75") and minimum / maximum film thickness of: 0.02mm to 0.05mm. Equipped with waterfall up ender, up-stacker, multiple row collation, film registration, metric scales for adjustments, dual film arbors, empty roll sensor, static eliminator, hand crank adjustable with in feed / discharge belt conveyors and statis light. Control panel has PLC. controller with push button controls and e-stop with sealing jaws, back-up time and machine function statis gauges. Mounted on base frame with interlock safety guarding, casters and leveling legs.
OAD: 235" L x 66" W x 63" H

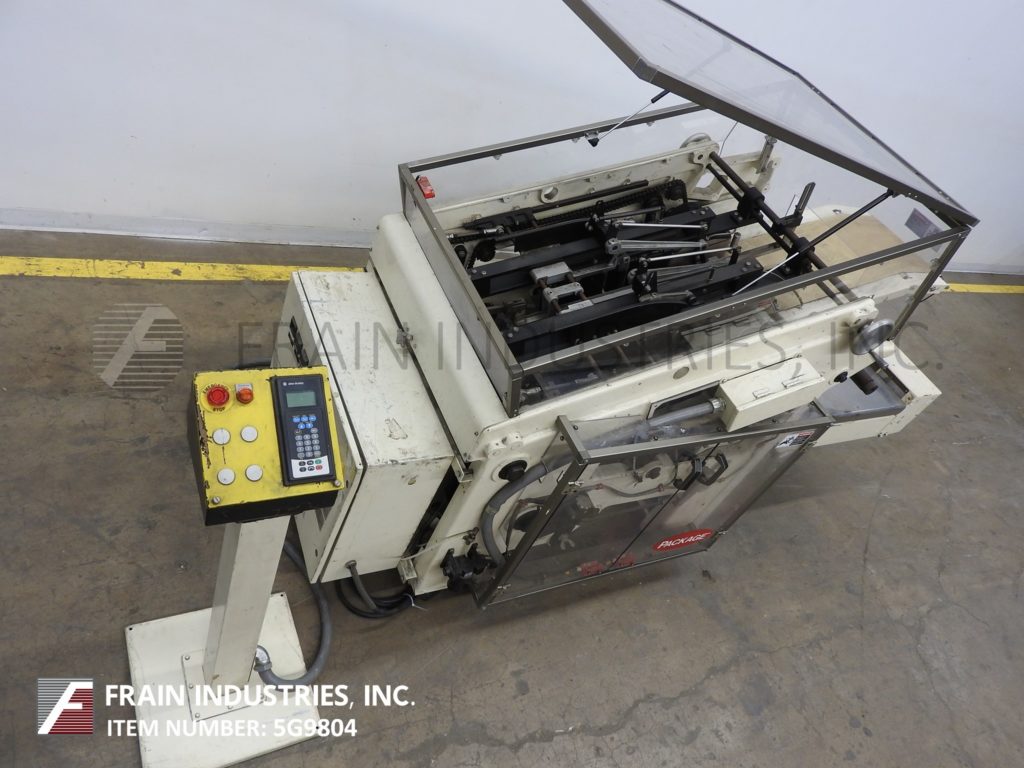

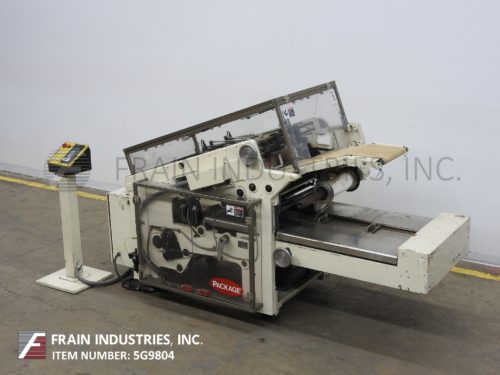

Package Machinery, Model UE-6, horizontal overwrapper capable of wrapping trays, boxes, and bundles from 10 to 40 packages per minute – depending on materials, application and machine configuration. Package size range: 5 to 14" in Length; 3 to 9" in Width; 1" to 5" in Height, with maximum roll Width of 24". Equipped with 60" long x 9" wide product conveyor set on 15" centers and 28" long hot knife cut-off. Control panel with touch pad conttroller with read out and digital temperature controls for knife heat, bottom heat, right side heat and left side heat. Mounted on heavy duty base frame with casters.
OAD: 110"L x 50"W x 66"H
Scandia, Model 725, automatic, expanded turret type over wrapping machine. Rated from 50 to 200 CPM – depending on materials, application and machine configuration. Package size range: 1½" " to 3¾" in Length; 3" to 7½" in Width; 1" to 2¼" in Height. Equipped with 6" wide x 45" long infeed belt, 24" long top chain transfer section set on 12" centers, film feed head, knife film cutting section, (8) station expanded rotary turret, film tuckers, lugged delivery chain, tear tape applicator, side tuckers and folders and 18" long dual heating section. Control panel with an AB PLC and AB PanelView 550 touch screen HMI.
OAD: 210"L x 40"W x 68"H
Scandia, Model 720, automatic, turret type over wrapping machine. Rated from 50 to 350 CPM – depending on materials, application and machine configuration. Package size range: 1(5/8)" to 3¼" in Length; 3½" to 7½" in Width; (7/16)" to 1½" in Height. Equipped with 6" wide x 70" long infeed belt, 24" long top chain transfer section set on 12" centers, film feed head, knife film cutting section, (6) station rotary turret, film tuckers, lugged delivery chain, tear tape applicator, side tuckers and folders and 18" long dual heating section. Control panel with an AB PLC and touch screen HMI.
OAD: 190"L x 40"W x72"H
Scandia 622, Automatic cut & fold over wrapper rated from 120 to 300 cpm – depending on materials and application. Package size range: 2-1/2" to 6" in length; 2-1/4" to 8" in width; 1/2" to 2" in height. Equipped with dual web arbors.
Sollas, Model MINI, Cut & Fold style wrapper rated 10 to 60 cycles per minute depending on materials, application, environment and machine configuration. Product size range: (Length)- 40mm to 200mm x (Width) 20mm to 165mm (Height) 12mm to 80mm. Film width 50mm to 280mm. Equipped with a 7" wide x 60" long variable speed infeed conveyor and interlocking guards. (3) digital temperature controllers and push button controlls.
OAD = 128"L x 38"W x 63"H
Sollas Model S20 over wrapper rated from 10 to 50 cycles per minute – depending on materials, application and machine configuration. Product size range: 45mm to 300mm in Length; 40mm to 200mm in Width; 16mm to 95mm in Height. Film: PP – PVC cellophane, 20 micron and up with film widths from 50mm to 420mm and maximum film diameter of 330mm. Equipped with 60" long x 15" wide right angle product in feed conveyor, product pusher bar, hot cut-off knives and side seal plates, static eliminator, and 60" long x 15" wide product discharge conveyor. Control panel with run, jog, film feed, side pusher bar on / off control switches with seal bar and seal plate temperature controllers and safety guarding. Mounted on casters.
OAD: 140" L x 132" W x 76" H
Package Machinery Model CA2, automatic carton over wrapper and end fold heat sealing machine rated from 20 to 80 cartons per minute – depending on materials and application. Package Size Range: 1" to 4-1/4" in Length; 5/8" to 3-1/2" in Width; 3/8" to 1-1/4" in Height. Equipped with 44" long lugged in feed conveyor set on 3" centers, 10" film roll, with film cutoff, seal bars and brush box with 24" long lugged discharge conveyor set on 3" centers and pack off table. Push button start / stop controls, interlock safety guarding. Mounted on (4) leg base frame with locking casters. Will accept most cellophane film and does a side seam seal similar to cigarette package wrap.
OAD: 152" L x 48" W x 62" H
Scandia Model 626, automatic, overwrapper, for single or multi-packs rated from 40 to 120 packages per minute – depending on materials and application Package size range: 2" to 6-7/8" in Length; 3-1/4" to 8" in Width; 5/16" to 2" in Height and capable of running heat sealable, cellophane, or polyproplene films. Equipped with 7-3/4′ long x 5-1/4" wide product feed chute, 80" long in feed and 42" long right angle discharge conveyors, no package / no film, film is cut from the film roll, by a rotary knife cutting against a stationary knife, immediately after the carton goes thru film and both are trapped between bottom and top plates for positive film positioning, tear strip apllicator, top / bottom folders and tuckers, lugged top chain assist conveyor, top plate and side heat sealers. Control panel with heat seal, static eliminator, web speed, start, stop, e-stop controls and interlock safety guarding.
OAD: 140" L x 58" W x 74" H
Scandia Model 626, automatic, overwrapper, for single or multi-packs rated from 40 to 120 packages per minute – depending on materials and application Package size range: 2" to 6-7/8" in Length; 3-1/4" to 8" in Width; 5/16" to 2" in Height and capable of running heat sealable, cellophane, or polyproplene films. Equipped with 5-3/4′ long x 5-1/4" wide product feed chute, 45" long in feed and 36" long right angle discharge conveyors, no package / no film, film is cut from the film roll, by a rotary knife cutting against a stationary knife, immediately after the carton goes thru film and both are trapped between bottom and top plates for positive film positioning with top / bottom folders and tuckers, lugged top chain assist conveyor, top plate and side heat sealers. Control panel with heat seal, static eliminator, web speed, start, stop, e-stop controls and interlock safety guarding.
OAD: 108" L x 58" W x 65" H
