Cut,Wrap,Twist Machines

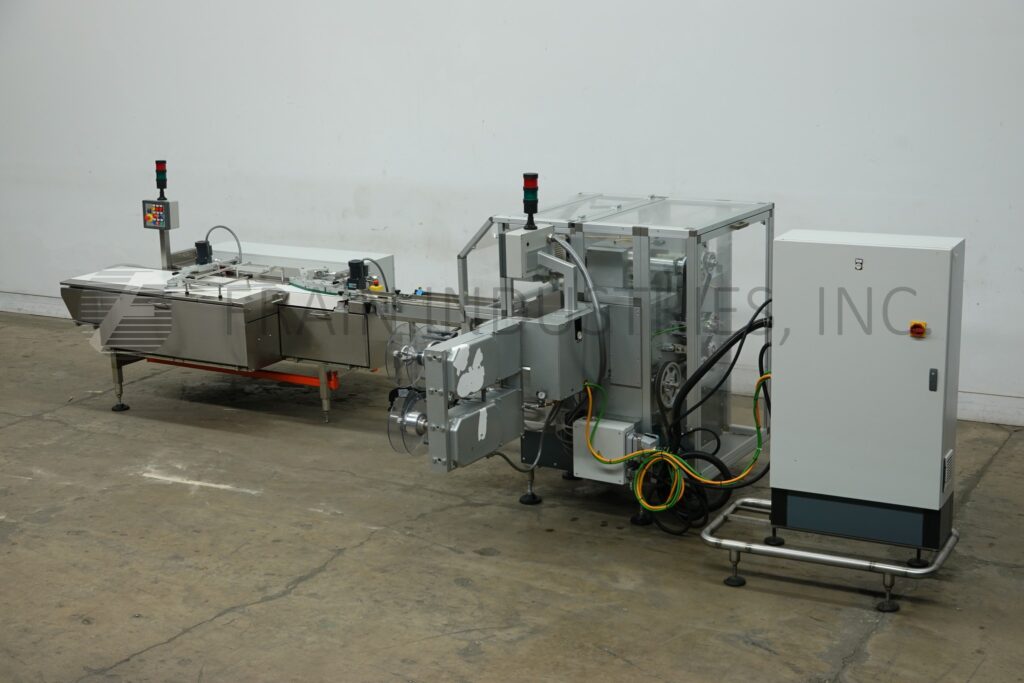

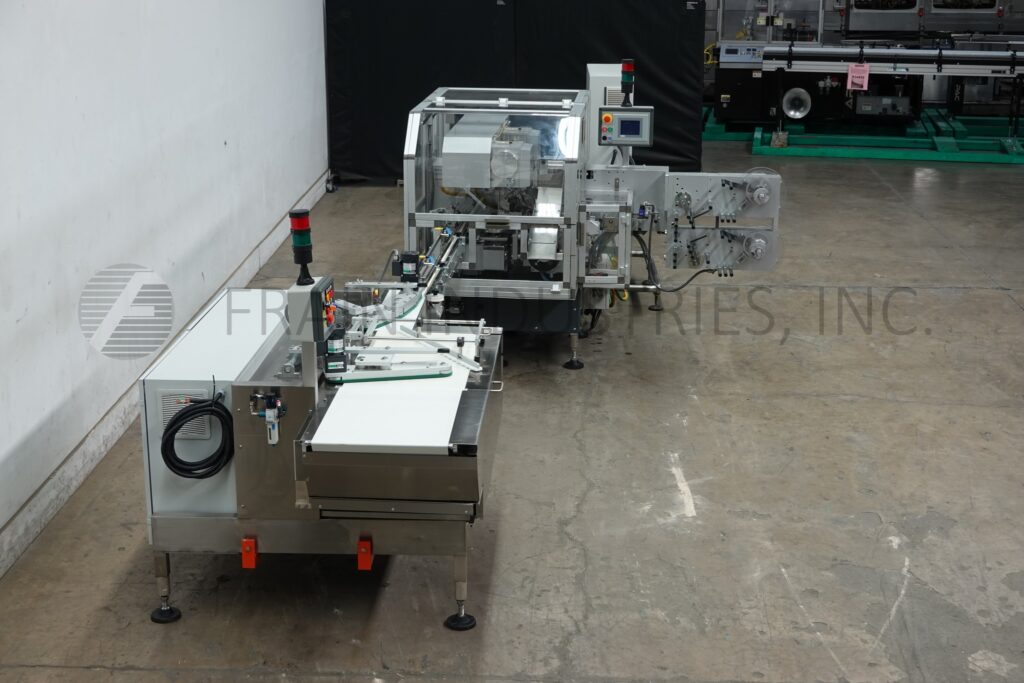

Carle Montanari Wrapper Cut,Wrap,Twist V-PACK1 / BS-EC

• Manufacturer: Carle Montanari
• Model Number: V-PACK1 / BS-EC
• Frain Number: 5J1400

Carle Montanari, Model V-Pack1 CD/CB4/B and Model CM-BS/EC in feed, Automatic, continous motion, high speed, single top twist wrapper rated from 200 to 350 pieces per minute – depending on materials, application and machines configuration. Product size range top twist format: 22mm to 32mm base diameter and 15mm to 26mm in height, double paper (inner and outer) with maximum diameter of 300mm. Maximum web width of 140mm. Equipped with 19½" wide powered chicaning product in feed conveyor to product single file into 7½" wide infeed conveyor with product sensor for no product / no paper and electric eye for registered print centering and has stop wrapper device if no wrapping material (for breakage or end of reel). Control panel has PLC controller with touch pad controls and panel view for in feed conveyor and wrapper, with start / e-stop push buttons, statis light bar, servo motor drives and discharge chute. Mounted on heavy duty frame. Designed to wrap molded or enrobed flat base chocolates in single twist style.

OAD: 241" L x 116" W x 74" H

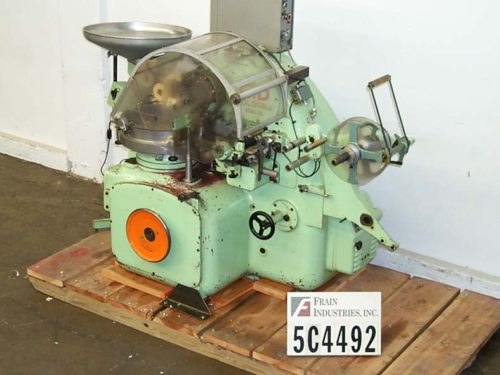

G D Wrapper Cut,Wrap,Twist 2500

• Manufacturer: G D
• Model Number: 2500
• Frain Number: 5C4492

G D 2500, Automatic bunch wrapper capable of speeds from 200 to 500 product per minute – depending on materials and application. Will handle a large variety of products: Hard candies, tablets, chocolates, gels and more. Product size range and acceptable tollerances: 15mm to 41mm in length 10mm to 30mm in width, 5mm to 19mm in thickness and sphere OD from 13mm to19mm. Outer wrap reel width: 56mm to 105mm and inner wrap reel width 22mm to 60mm. Handles a wide aray of wrapping materials including PVC, cellophane, waxed paper and backed aluminum. Stop and start push button controls. Mounted on heavy duty base frame.

OAD: 8′ L x 4′ W x 5′ 6" H

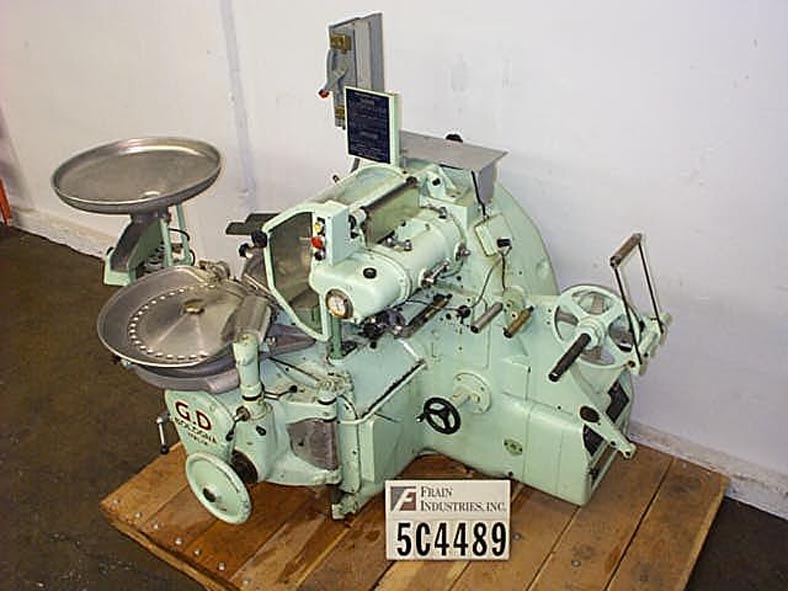

G D Wrapper Cut,Wrap,Twist 2500

• Manufacturer: G D
• Model Number: 2500
• Frain Number: 5C4489

G D 2500, Automatic bunch wrapper capable of speeds from 200 to 500 product per minute – depending on materials and application. Will handle a large variety of products: Hard candies, tablets, chocolates, gels and more. Product size range and acceptable tollerances: 15mm to 41mm in length 10mm to 30mm in width, 5mm to 19mm in thickness and sphere OD from 13mm to19mm. Outer wrap reel width: 56mm to 105mm and inner wrap reel width 22mm to 60mm. Handles a wide aray of wrapping materials including PVC, cellophane, waxed paper and backed aluminum. Stop and start push button controls. Mounted on heavy duty base frame.

OAD: 8′ L x 4′ W x 5′ 6" H

G D Wrapper Cut,Wrap,Twist 2500

• Manufacturer: G D
• Model Number: 2500
• Frain Number: 5C4486

G D 2500, Automatic bunch wrapper capable of speeds from 200 to 500 product per minute – depending on materials and application. Will handle a large variety of products: Hard candies, tablets, chocolates, gels and more. Product size range and acceptable tollerances: 15mm to 41mm in length 10mm to 30mm in width, 5mm to 19mm in thickness and sphere OD from 13mm to19mm. Outer wrap reel width: 56mm to 105mm and inner wrap reel width 22mm to 60mm. Handles a wide aray of wrapping materials including PVC, cellophane, waxed paper and backed aluminum. Stop and start push button controls. Mounted on heavy duty base frame.

OAD: 8′ L x 4′ W x 5′ 6" H

G D Wrapper Cut,Wrap,Twist 2500

• Manufacturer: G D
• Model Number: 2500
• Frain Number: 5C4487

G D 2500, Automatic bunch wrapper capable of speeds from 200 to 500 product per minute – depending on materials and application. Will handle a large variety of products: Hard candies, tablets, chocolates, gels and more. Product size range and acceptable tollerances: 15mm to 41mm in length 10mm to 30mm in width, 5mm to 19mm in thickness and sphere OD from 13mm to19mm. Outer wrap reel width: 56mm to 105mm and inner wrap reel width 22mm to 60mm. Handles a wide aray of wrapping materials including PVC, cellophane, waxed paper and backed aluminum. Stop and start push button controls. Mounted on heavy duty base frame.

OAD: 8′ L x 4′ W x 5′ 6" H

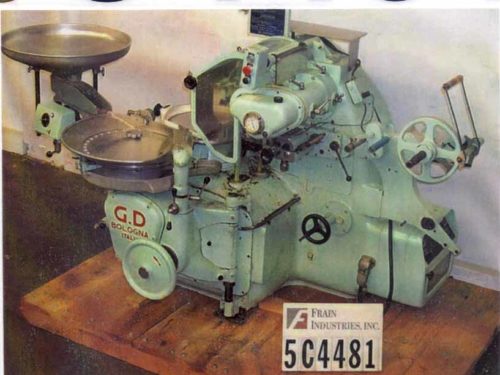

G D Wrapper Cut,Wrap,Twist 2500

• Manufacturer: G D
• Model Number: 2500
• Frain Number: 5C4481

G D 2500, Automatic bunch wrapper capable of speeds from 200 to 500 product per minute – depending on materials and application. Will handle a large variety of products: Hard candies, tablets, chocolates, gels and more. Product size range and acceptable tollerances: 15mm to 41mm in length 10mm to 30mm in width, 5mm to 19mm in thickness and sphere OD from 13mm to19mm. Outer wrap reel width: 56mm to 105mm and inner wrap reel width 22mm to 60mm. Handles a wide aray of wrapping materials including PVC, cellophane, waxed paper and backed aluminum. Stop and start push button controls. Mounted on heavy duty base frame.

OAD: 8′ L x 4′ W x 5′ 6" H

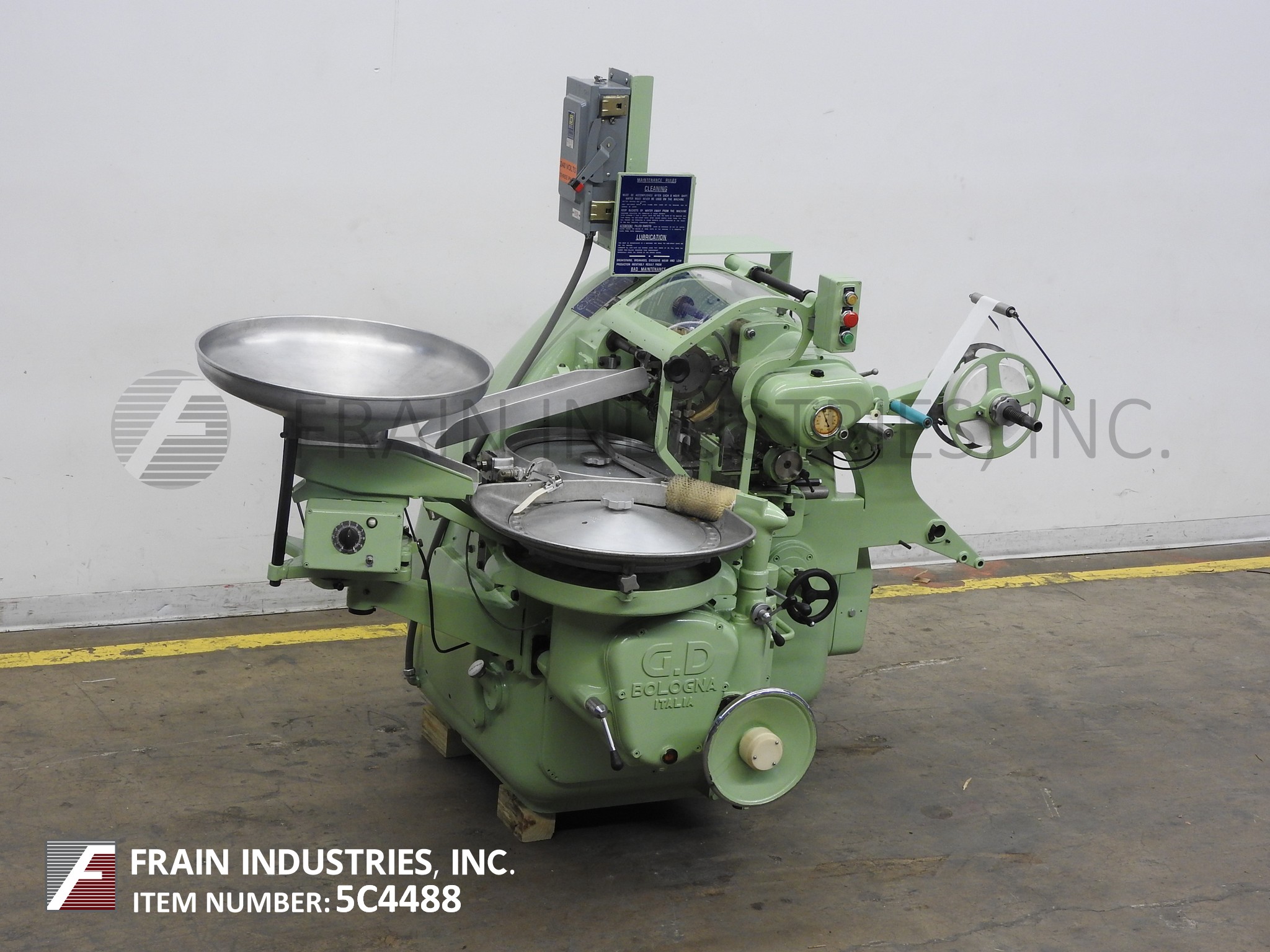

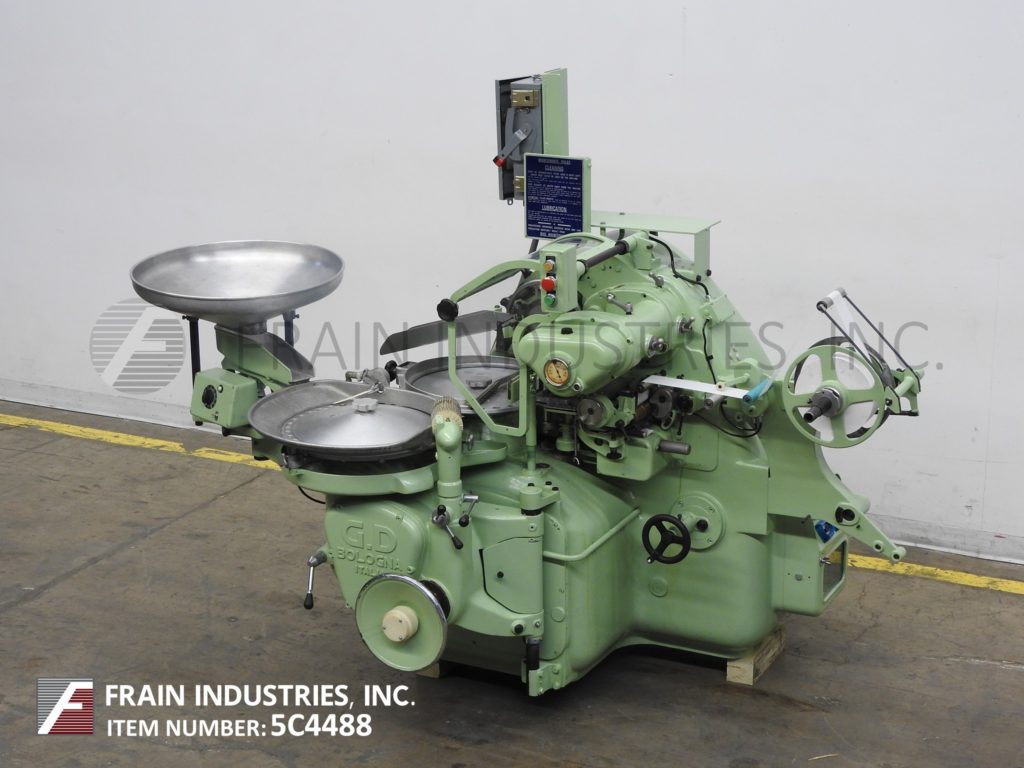

G D Wrapper Cut,Wrap,Twist 2500

• Manufacturer: G D
• Model Number: 2500
• Frain Number: 5C4488

G D 2500, Automatic bunch wrapper capable of speeds from 200 to 500 product per minute – depending on materials and application. Will handle a large variety of products: Hard candies, tablets, chocolates, gels and more. Product size range and acceptable tollerances: 15mm to 41mm in length 10mm to 30mm in width, 5mm to 19mm in thickness and sphere OD from 13mm to19mm. Outer wrap reel width: 56mm to 105mm and inner wrap reel width 22mm to 60mm. Handles a wide aray of wrapping materials including PVC, cellophane, waxed paper and backed aluminum. Stop and start push button controls. Mounted on heavy duty base frame.

OAD: 8′ L x 4′ W x 5′ 6" H

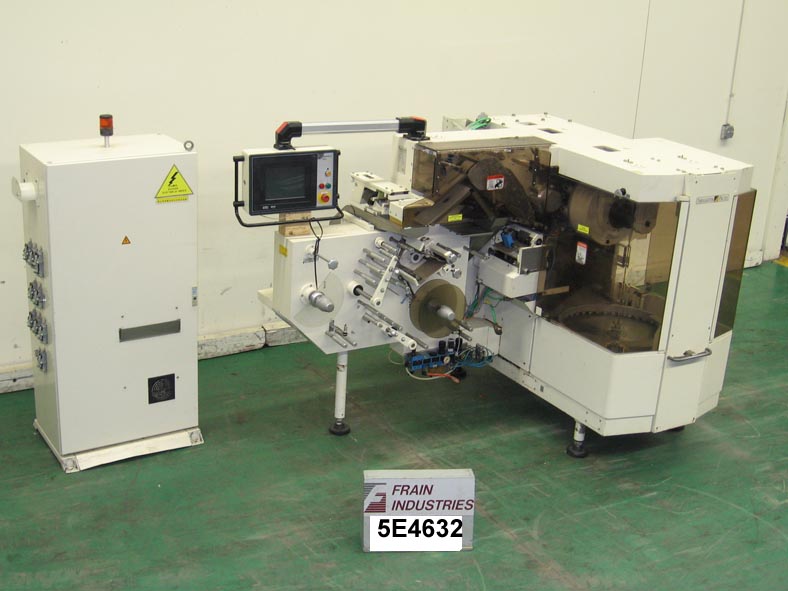

Theegarten / Miltenberg Samton Wrapper Cut,Wrap,Twist EK2/L

• Manufacturer: Theegarten / Miltenberg Samton
• Model Number: EK2/L
• Frain Number: 5E4632

Theegarten Model EK2/L, automatic, continous motion, high speed double twist wrapper rated from 600 to 1800 pieces per minute – depending on materials and application. Product size range: 16mm to 40mm in Length x 12mm to 25mm in Width x 6mm to 20mm in Height, Disc shaped diameter of 13mm to 28mm and Ball shaped diameter of 17mm to 23mm. Double twist style wrapper is capable of handling poylethylene, polypropylene, cellophane, and wax paper (with proper change parts). Comes equipped with electroniclly controlled rotary feed system, with integrated sorting station, and automatic splicer, remote control panel. Mounted on height adjustable base frame.
