Arpac Machines

Arpac Shrink Tunnels XT18

• Manufacturer: Arpac
• Model Number: XT18
• Frain Number: R34931

Arpac, Model XT18, Convection shrink tunnel with number of product per minute and hour – depending on materials and application. Equipped with 12" in Height; 21" in Width total aperture with 73" Long shrink heat chamber, 86" long x 17¼" wide product conveyor. Has illuminated shrink chamber with viewing window and top mounted blowers. Swivel head control panel with variable speed temperature and air velocity controls. Mounted on frame with casters and leveling legs.

OAD: 88" L x 45" W x 65" H

Arpac Shrink Flow Thru TS37

• Manufacturer: Arpac
• Model Number: TS37
• Frain Number: R34670

Arpac Model TS37 / XT18, continuous motion, side seal shrink wrapper and tunnel. Product size range: 3-1/2" to 60" in Length; 2" to 16" in Width; 1/4" to 7-1/2" in Height. Equipped with lugged product in feed conveyor, next generation side seal and film registration. Additionally features A/B controller, no product detection, perf and scrap removal wheels, temperature controllers, E-stop and interlock safety guarding. Film specs: up to 39" wide Single Wound film; 3" core; to 14" OD. Speeds dependent on materials, application and machine configuration.

Shrink tunnel: Aperture: 24" in Width; 14" in Height; tunnel 72" in Length. Equipped with 120" long x 22" wide conveyor, with illuminated shrink chamber and chamber viewing window. top mounted blower with variable speed and temperature controls. Mounted on height adjustable legs.

OAD: 251" L x 63" W x 61" H

Arpac Shrink Tunnels XT18

• Manufacturer: Arpac
• Model Number: XT18
• Frain Number: R34930

Arpac, Model XT18, Convection shrink tunnel with number of product per minute and hour – depending on materials and application. Equipped with 12" in Height; 21" in Width total aperture with 73" Long shrink heat chamber, 86" long x 17¼" wide product conveyor. Has illuminated shrink chamber with viewing window and top mounted blowers. Swivel head control panel with variable speed temperature and air velocity controls. Mounted on frame with casters and leveling legs.

OAD: 88" L x 45" W x 65" H

Arpac Shrink Bundler 45TW28

• Manufacturer: Arpac
• Model Number: 45TW28
• Frain Number: R39730

Arpac, Model 45TW-28, inline, intermittent motion, bundler and integrated shrink tunnel – speed dependent on materials, application and machie configuration. Equipped with 70" long x 24" wide in feed conveyor, 29" wide seal jaw with 12" vertical travel, side mounted film racks and splice station, 66" long x 17" wide transfer conveyor through seal and into single zone shrink tunnel with 29" wide flex link conveyor and 28” in width x 16" in height aperture and 70" long chamber, top mounted blower motor and cooling blower at discharge. Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Film rolls up to 28" in width; and 14" OD on 6" core. Mounted on heavy duty frame with status light bar and interlocked safety guarding.

OAD: 262"L x 80"W x 88"H

Arpac Shrink Flow Thru TS37

• Manufacturer: Arpac
• Model Number: TS37
• Frain Number: R33280

Arpac, Model TS37 and XT18, horizontal continuous motion, side seal shrink wrapper and tunnel. Rated from 0 to 90 linear feet or 0 to 80 packages per minute – depending on materials, application and product stability. Product size range: 3½" to 60" in Length; 2" to 16" in Width; ¼" to 7½" in Height. Equipped with 112" long lugged product in feed conveyor with lugs set on 15" centers, LDPE seal jaws with next generation side seal with film registration and product discharge conveyor. Film specs: up to 39" wide single wound film on 3" OD core; to 14" OD with pull out film carriage. Control panel has A/B controller, with no product detection, perf and scrap removal wheels, seal bar trim, tempature controllers, drive speed dial with start, stop, jog and e-stop. Mounted on (4) leg base frame with interlock safety guarding.

Shrink tunnel: Aperture: 21" in Width; 12" in Height; tunnel 72" in Length. Equipped with 87" long x 18" wide conveyor, top mounted blower with variable speed and temperature controls. Mounted on height adjustable (4) leg base frame.

OAD: 301"L x 65"W x 68"H

Arpac Shrink Tunnels XT18

• Manufacturer: Arpac
• Model Number: XT18
• Frain Number: R33912

Arpac, Model XT18, Convection shrink tunnel with number of product per minute / hour – depending on material and application. Equipped with 12" in Height; 21" in Width total aperture with 73" Long shrink heat chamber, 86" long x 17¼" wide composit conveyor, illuminated shrink chamber and viewing window and blowers. Swivel control panel with variable speed temperature and air velocity controls. Mounted on base frame with casters and leveling legs.

OAD: 88"L x 45"W x 65"H

Arpac Case Packer Tray Form/Pack TS2212/45TW28

• Manufacturer: Arpac
• Model Number: TS2212/45TW28
• Frain Number: 5J3520

Arpac Models TS2212 / TS60 / 45TW-28, Complete, automatic, continous motion, servo driven, tray forming, packing, upstacking and shrink bundling line rated from 5 to 45 trays per minute with number of product per tray – depending on materials and application. Tray Size per application. System consists of Arpac Model 2212 tray former, packer and hot melt glue sealer with 120" long x 18" wide product in feed conveyor with (4) lane dividers to (4) 48" long x 2-1/2" wide product grouping conveyors side mounted 68" wide x 32" high blank tray magazine with (2) suction cup pic n place to tray forming, packing and sealing section with (4)106" long x 1/2" wide lugged compression and discharge conveyor belt section set on 12" centers with Nordson hot melt glue unit with major and minor flap closers.
Arpac Model 45TW-28 shrink bundler and tunnel with (1) 36" x 19" wide and (1) 36" wide x 72" long in feed conveyors thru bundler, top and bottom film rolls with maximum film roll width of 27" and 14" OD has 29" wide seal jaws x 13" high total clearence, to single zone shrink tunnel with 36" wide x 19-1/2" high total aperture x 72" long shrink chamber with 29" wide x 108" long product conveyor thru shrink tunnel with top discharge cooling fan. Control panels have A/B controllers with touch pad controls. and readout. All mounted on heavy duty frames with safety guarding and statis light bars.

OAD: 280" L x 72" W x 70" H Tray Erector/Packer
189" L x 60" W x 120" H Bundler/Tunnel
72" L x 25" W x 41" H Transfer Conveyor
100"L x 24" W x 46" H Slip Torque Conveyor

Arpac Shrink Bundler 45TW28

• Manufacturer: Arpac
• Model Number: 45TW28
• Frain Number: 5J3363

Arpac, Model 45TW-28, inline, intermittent motion, bundler and integrated shrink tunnel with number of product and bundles per minute – depending on materials and application. Equipped with 27" long x 17" wide in feed conveyor, 29" wide seal jaw with 13" vertical travel, side mounted film racks and splice station, 37" long x 17" wide transfer conveyor and into single zone shrink tunnel with 29" wide flex link conveyor and has 28” in width x 16" in height aperture and 70" long chamber, top mounted blower motor and cooling fan at discharge and film rolls up to 28" in width; and 14" OD on 6" core. Control panel has Allen-Bradley controller with touch screen HMI. Mounted on heavy duty frame with status light bar and interlocked safety guarding.

OAD: 192"L x 80"W x 90"H

Arpac Case Packer Tray Form/Pack TS2200

• Manufacturer: Arpac
• Model Number: TS2200
• Frain Number: 5J3362

Arpac Model TS-2200, Automatic continous motion, servo driven, tray former, loader and hot melt glue sealer rated from 20 to 50 trays per minute – depending on materials and application. Trayer: Size range: 9" to 30" in Length; 7" to 18" in Width; 1½" to 4" in Height with proper change parts. Equipped with 27" wide x 154" long flexlink product in feed conveyor with lane dividers, rotary flight bar indexing feed system with 26" wide flight bar set on 36" centers. 120" long x 16½" wide extended powered blank tray feed conveyor has end lift section to side mounted blank tray magazine with vacuum suction cup pick n place, 96" long lugged tray forming, sealing, discharge conveyor, Nordson hot melt glue system, major / minor flap closers and side rail compression section. Control panel with AB controller and touch screen HMI. Mounted on heavy duty frame with safety door guarding and statis light.

OAD: 432"L x 151"W x 113"H

Arpac Shrink Bundler 25TW28

• Manufacturer: Arpac
• Model Number: 25TW28
• Frain Number: R34810

Arpac, Model 25TW-28, inline, intermittent motion, bundler and integrated shrink tunnel rated up to 25 bundles per minute – depending on materials and application. Equipped with 20" long x 24" wide in feed conveyor, 28" wide hot impulse seal jaw with 13" vertical travel, side mounted film racks and splice station, with film rolls up to 27" in width; and 14" OD on 3" core. 18" long x 24" wide transfer conveyor into single zone shrink tunnel with 29" wide flex link conveyor and 32” in width x 16" in height aperture and 67" long chamber, top mounted blower motor and cooling blower at discharge. Control panel has Allen-Bradley controller with PanelView operator interface and color touch screen, message display and self-diagnostics, low film alert, bypass mode – allows product to pass through the machine without being wrapped and without heating the tunnel. Mounted on heavy duty frame with status light bar and interlocked safety guarding.

OAD: 180"L x 78"W x 80"H

Arpac Shrink Bundler 708HBD32

• Manufacturer: Arpac
• Model Number: 708HBD32
• Frain Number: 5J2972

Arpac, Model 708HBD32, Automatic, stainless steel, intermittent motion, shrink bundler and tunnel. Package size range: 1" to 10" in Length; 3.5" to 10.5" in Width; up to 8" in Height. (Specifications and product size capabilities will vary depending on application.) Equipped with 7½" wide x 57" long right angle in feed conveyor with dual pneumatic loading arms, top and bottom film rolls for an up to 32" wide web and 33" wide top and bottom heat seal jaws with product hold down. Integrated shrink tunnel with 12" high x 36" wide x 60" long heat chamber, 96" long x 34" wide Intralox conveyor and end mounted cooling fan. Control panel has an AB PLC with touch screen HMI. Mounted on leveling legs. Rates / speed dependent on materials, application, pack pattern and machine configuration.

OAD: 160"L x 70"W x 95"

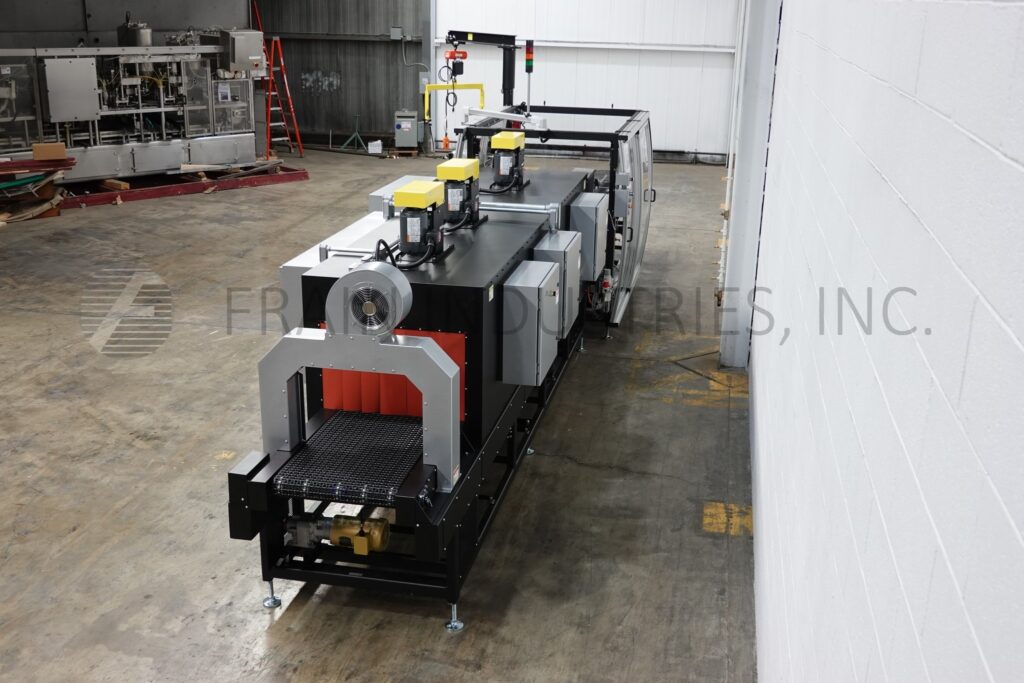

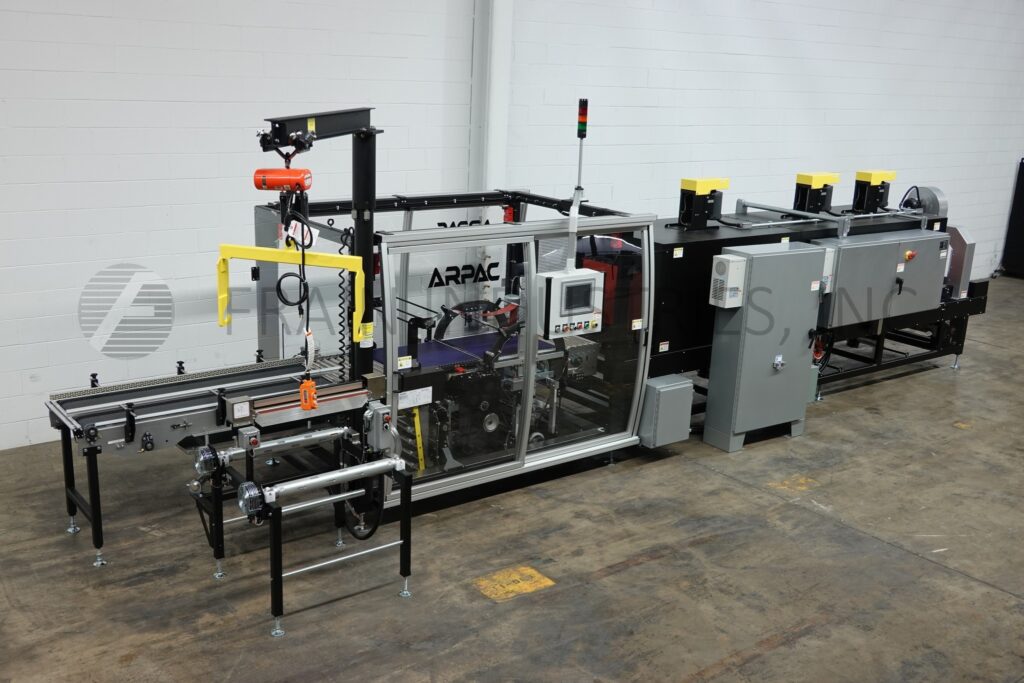

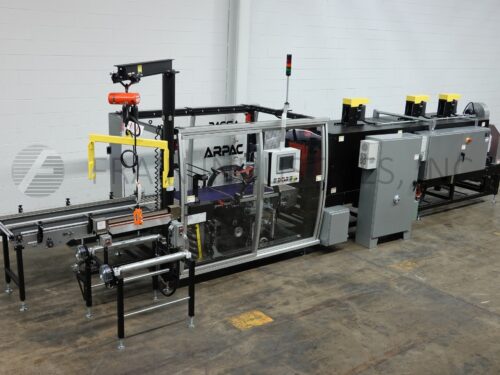

Arpac Shrink Bundler BPTW6000

• Manufacturer: Arpac
• Model Number: BPTW6000
• Frain Number: R36821

Arpac, Model BPTW-6000, Automatic, inline, continuous motion, registered film, shrink bundler and tunnel. Rated up to 60 bundles per minute – depending on materials and application. Product size range: 5" to 12" in Length; 5" to 20" in Width; 3" to 12 in Height. Film specs: to 26" in Width; to 20" in Diameter; on 3" core; can handle clear or printed film of 1.75 to 2.5 mil low density polyethylene and has maximum film cut-off length of 42". Equipped with dual side mounted film racks, splicing bar, infeed spacing conveyor, film registration, 28" seal bar and bottom overlap seal, (3) zone shrink tunnel with adjustable flow vents, variable speed blowers and cooling fans on discharge. Control panel has A/B controller with touch screen HMI and statis light bar. Mounted on heavy duty formed and structural steel frame with safety guarding.

OAD: 394"L x 104"W x 115"H
