A & B Process Systems Tank SS Single Wall 400 GAL

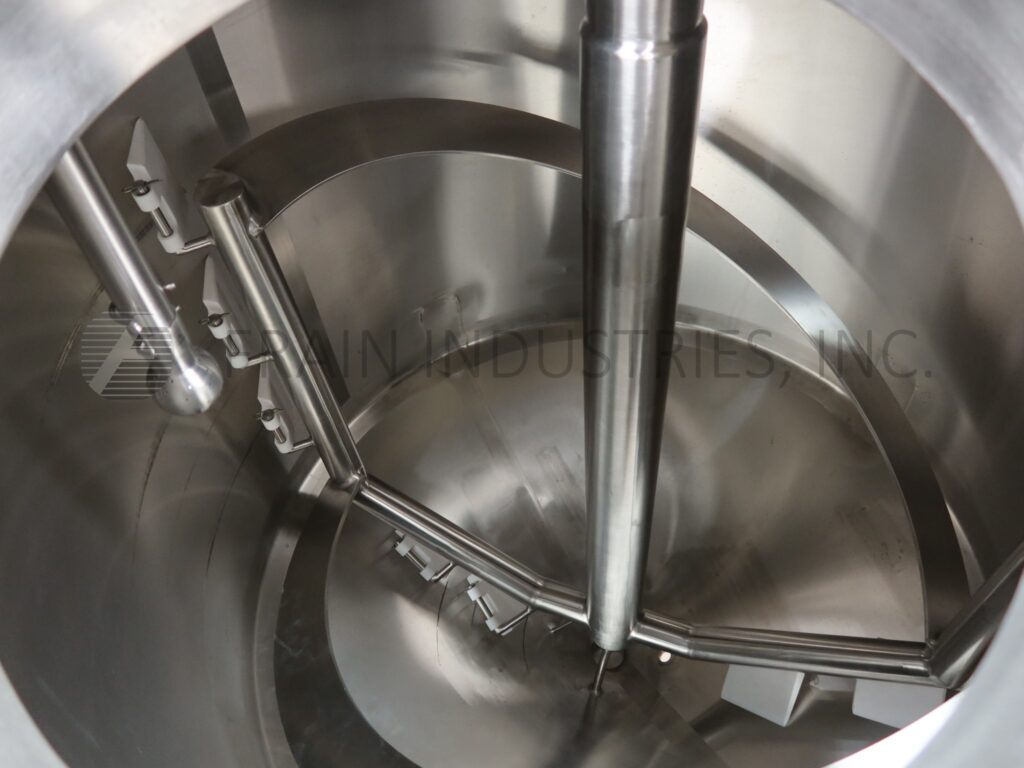

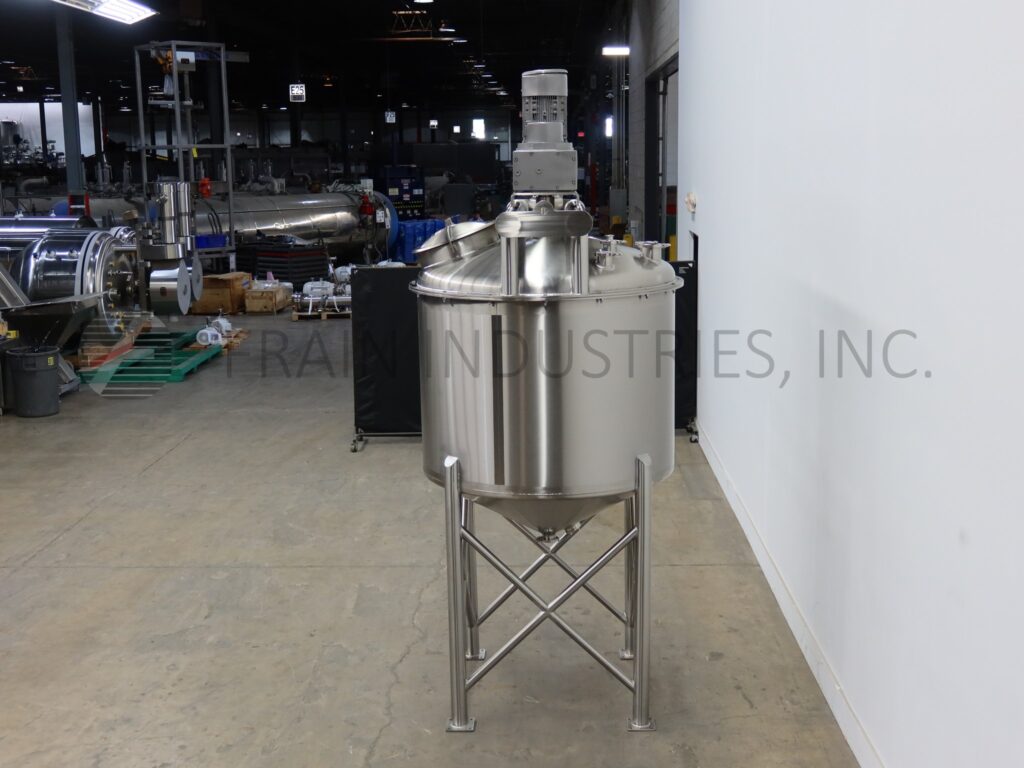

Back to All EquipmentA & B Process Systems, 400 gallon capacity, 304 stainless steel single wall tank. Vessel dimensions: 56" diameter x 57" deep with a 40" straight wall. Equipped with scrape agitation powered by a 7½ hp drive, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri Clamp fitting and thermowell. Cone bottom has 3½" OD / 3" ID tri-clamp center bottom discharge with 36" ground clearance.
Top Access Ports:
(1) 18" diameter manway
(1) 6" diameter open vent
(1) 4½"OD / 4"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp
(1) 2½"OD / 2"ID Tri-Clamp
Bottom Access Ports:
(1) 3"OD / 2½"ID Tri-Clamp
OAD: 60"L x 60"W x 140"H
