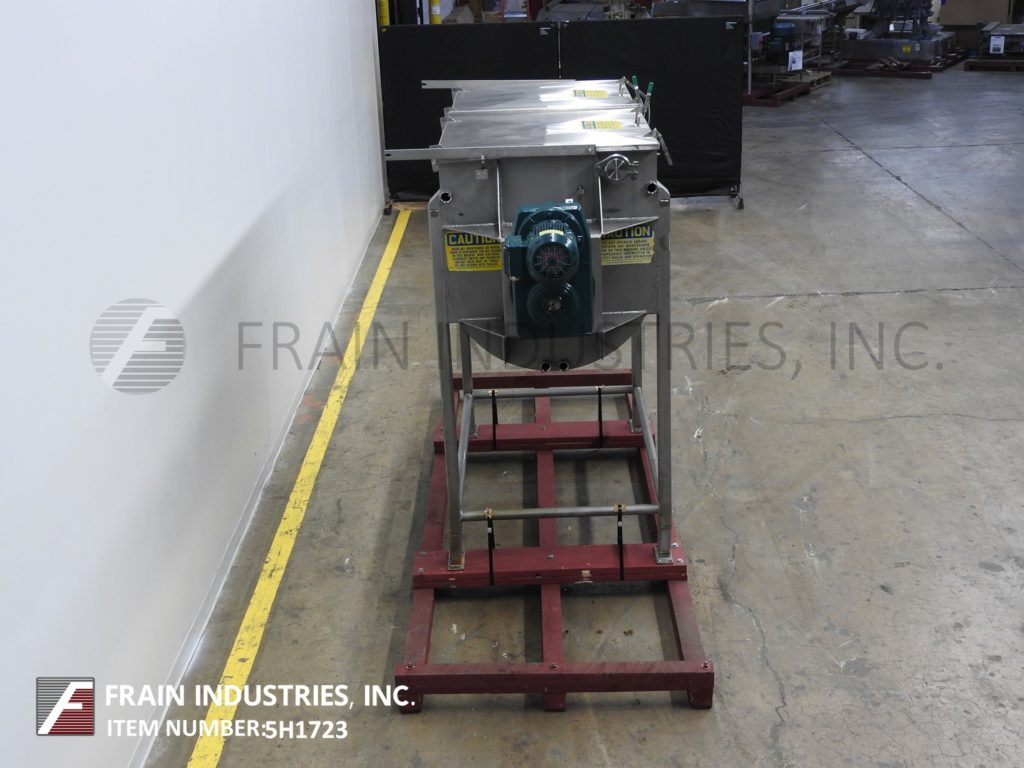

Photo of American Process Systems Mixer Paste Horizontal DRB40

American Process Systems Mixer Paste Horizontal DRB40

  Back to All Equipment

American Process Systems, 40 ft³, 316 stainless steel low pressure jacketed ribbon and paddle mixer. Inner mixing chamber dimensions of: 78" in Length; 32" in Width; 35" in Depth. Equipped with flip up bolt down covers, lift out safety grate, thermowell, 3" diameter mixing shaft with (2) 2" wide x (3/8)" thick outer stainless steel ribbons, scrapper blades and inner paddles powered by a 5 hp drive. Bottom end discharge with 3½"OD / 3"ID Tri-clamp connection, pneumatic flow valve and 10" ground clearance.

Vessel Access:
(1) 3¾"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(1) 1" NPT

Jacket Access:
(4) 1¼" NPT

OAD: 128"L x 42"W x 78"H
