Berlie Falco Tank Processors CRN K5196-5

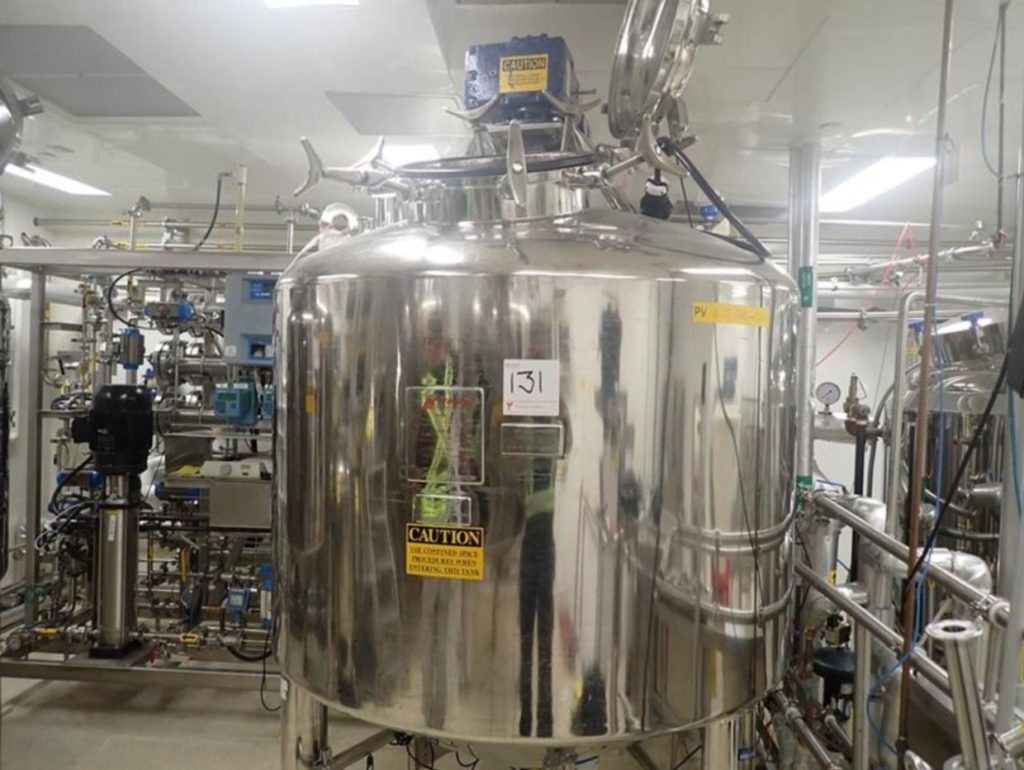

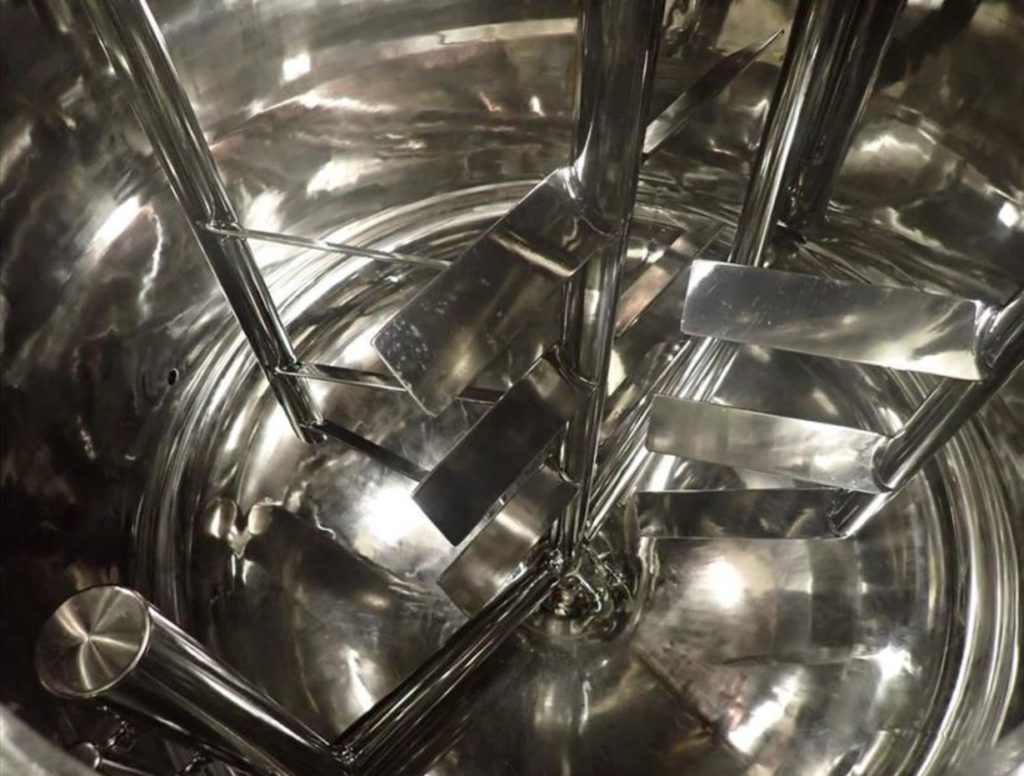

Back to All EquipmentFalco Stainless Steel Equipment Co, 800 litres, 200 gallon, stainless steel jacketed process reactor tank. 316L exterior with # 7 finish and 316L electro polished finish. Vessel dimensions: 55" OD x 66" deep with 36" straight wall and 26" cone bottom. Equipped with dome top and has 16" OD manway with flip up, bolt down cover, top mounted 5 Hp motor drive for scrape surface agitator, (2) Thermowells and 2" OD / 1" ID flush bottom center bottom discharge valve with 16" ground clearance. Mounted on stainless steel (3) leg frame.
Top Ports:
(1) 2½"OD / 2"ID Tri-Clamp
(3) 2"OD / 1½" ID Tri-Clamp
Side Port:
(1) 2"OD / ¾"ID Tri-Clamp
Jacket Ports:
(6) 1-1/2" NPT
Vessel:

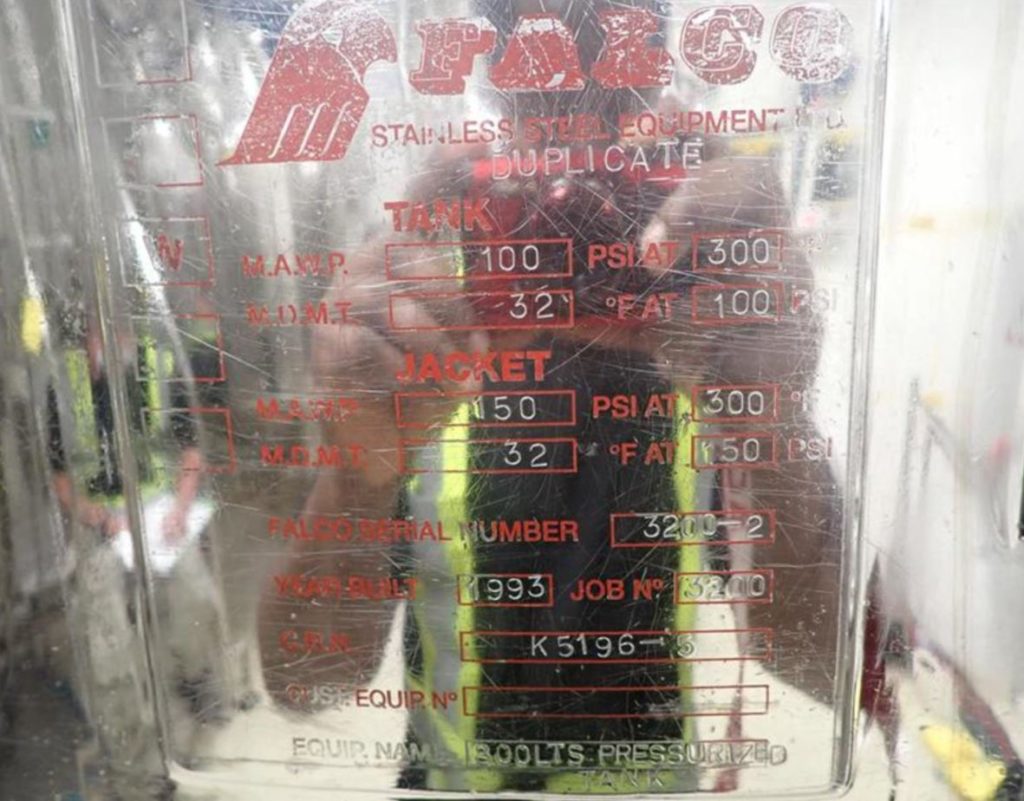

MAWP: 100 psi @ 300°F
MDMT: 32 °F @ 100 psi
Jacket:
MAWP: 150 psi @ 300°F
MDMT: 32°F @ 150 psi
OAD: 55" L x 53" W x 87" H
