DCI Tank Processors DCI 1800

  Back to All Equipment

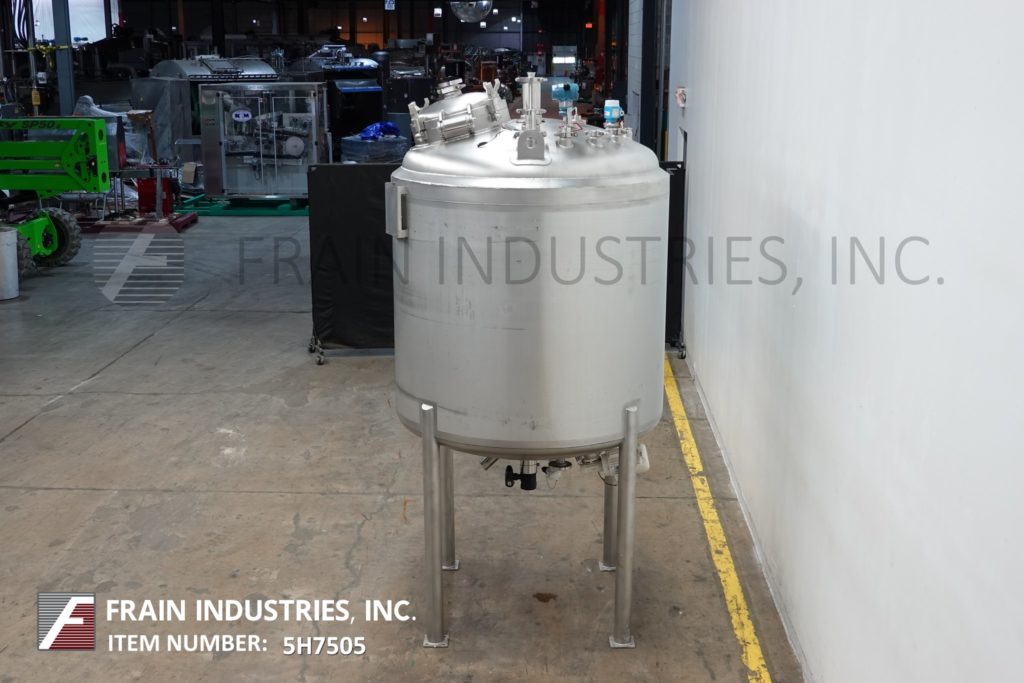

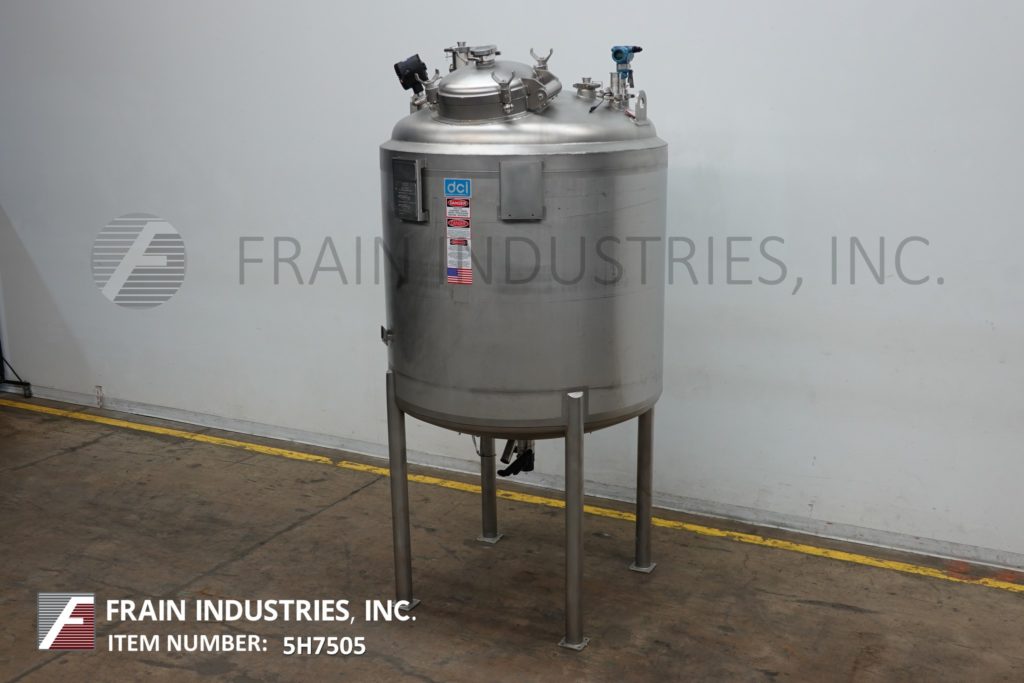

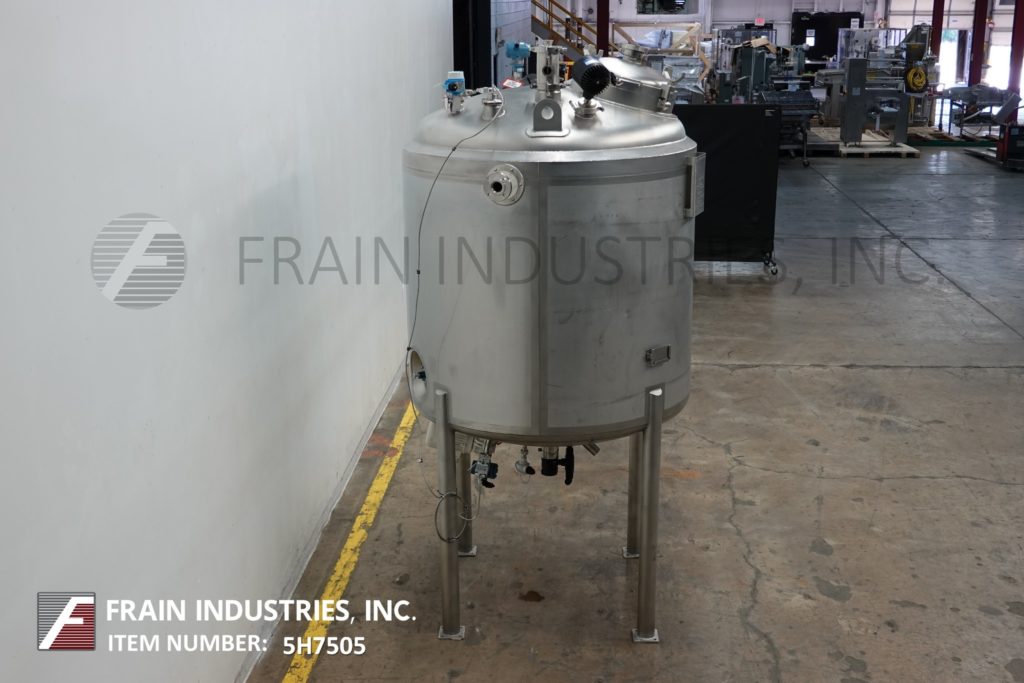

DCI, 1800 Liter, 316 stainless steel jacketed process / reactor tank. Vessel dimensions: 52" ID x 52" straight wall. Equipped with 18" diameter bolt down manway, (2) CIP spray balls supplied by 2½" OD / 2" ID Tri-Clamp fitting, (1) thermowell, (1) folush mounted sensor, (1) level sensor, 1½ Hp bottom mounted prop agitator and 1¾" ID bottom center discharge with 32" ground clearance.

Top Ports:
(2) 3½"OD / 3"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp

Jacket Ports:
(2) 5"OD / 2" ID Flange

Vessel:
MAWP: 50 / -15 PSI @ 350°F
MDMT: -20°F @ 50 PSI

Jacket:
MAWP: 135 / -15 PSI @ 358°F
MDMT: – 20°F @ 140 PSI

Nat’l Brd: 4793

OAD: 60"L x 58"W x 108"H
