Photo of De Laval Canada Tank Processors 200 GAL

De Laval Canada Tank Processors 200 GAL

  Back to All Equipment

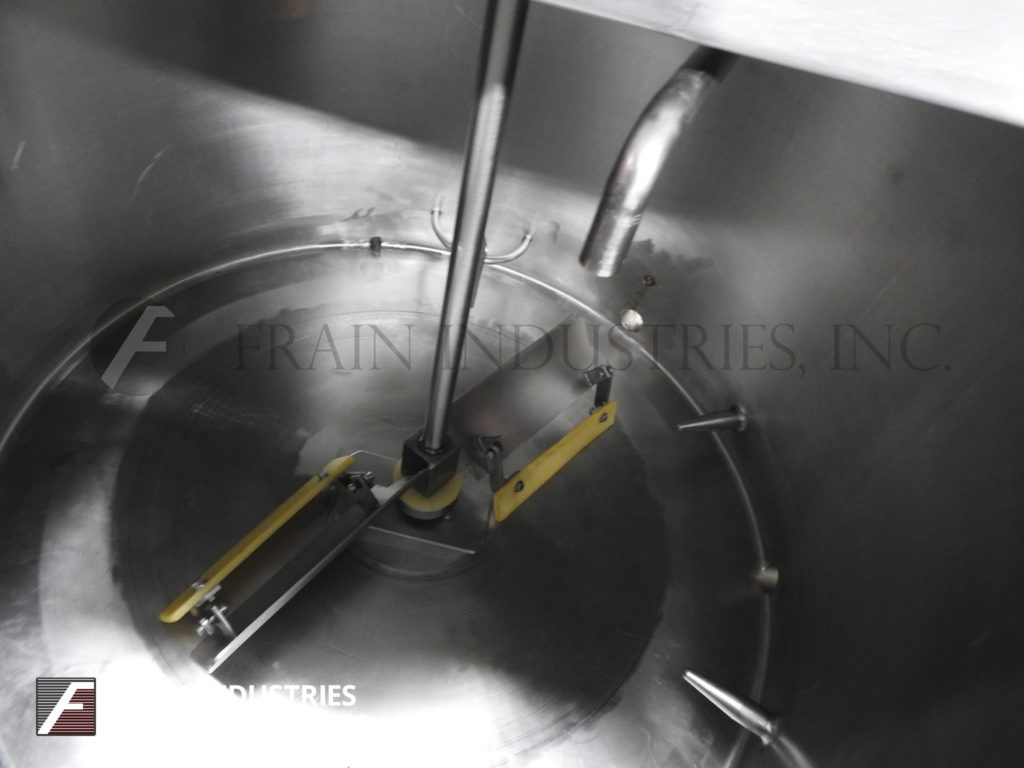

DeLaval, 200 gallon, 316 stainless steel insulated mixing tank with 50 PSI bottom jacket. Vessel Dimensions: 45" diameter with a 32" straight wall. Equipped with top mounted bottom scrape agitation powered by a 1 hp drive, lift up covers, slant bottom and a 2½" OD / 2" ID tri-clamp bottom side discharge with 20" ground clearance. Mounted on (4) tubular legs.

Top Ports:
(1) 3"OD / 2½"ID Seated Beval
(1) 2"OD / ¾"ID Tri-Clamp

Side Ports:
(1) 2½"OD / 2"ID Tri-Clamp
(2) 2"OD / ¾"ID Tri-Clamp

Jacket Ports:
(1) 1½" NPT
(2) 1" NPT

MAWP: 50 PSI

OAD: 50" L x 48" W x 74" H
