Dontech Industries Inc Filter Rotary IS34

  Back to All Equipment

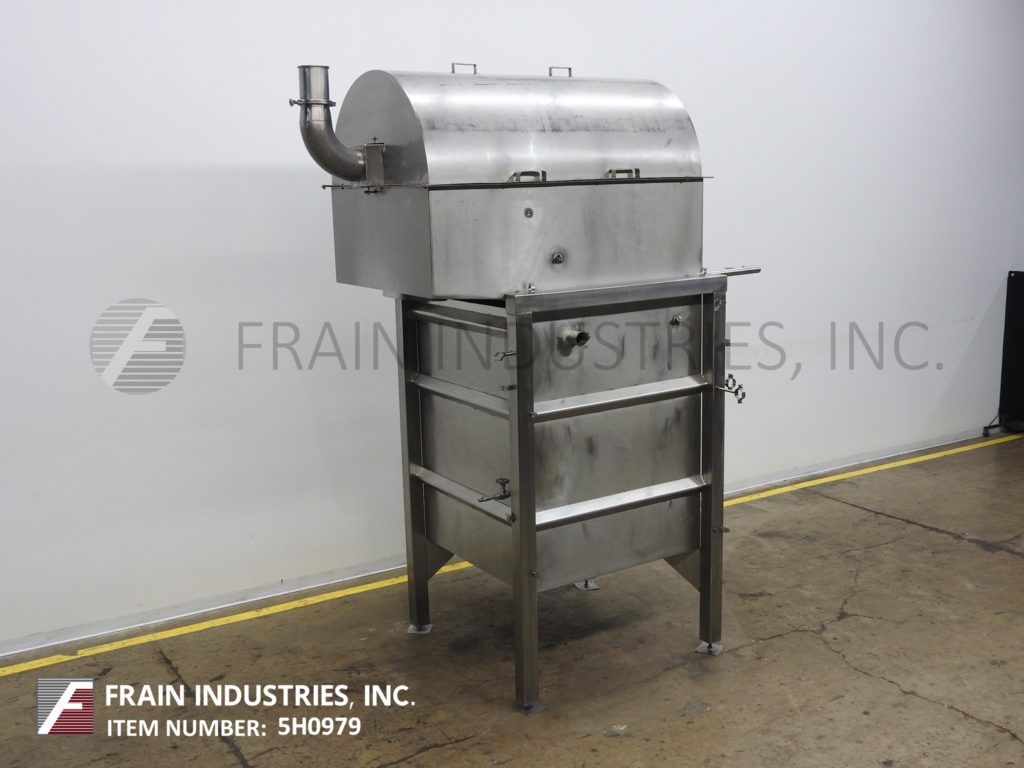

Dontech Industries, Model IS-34, stainless steel internally fed rotary drum screen. Rated from 500 to 3,500 gallons per minute – depending on materials, application and machine configuration. Equipped with a 6½"OD / 5¾"ID Tri-clamp style charge port, 36" diameter x 64" long rotarty drum screen powered by a ¾ hp drive, 18" x 13" solids discharge with 94" ground clearance, 51" long x 48" wide x 64" deep liquid collection bin with (1) 3½"OD / 3"ID Tri-clamp bottom drain with 22" ground clearance and (1) 4¾"OD / 4"ID bottom side discharge with 30" ground clearance.

OAD: 110"L x 65"W x 142"H
