Arai Machine Company Model MM2, 316 stainless steel, continuous, rotary screen, solid-liquid screw press filtration system with through-put – depending on materials, application and machine configuration. Filtration area: 12" in OD; 24" in Length. Equipped with 2.5" OD sanitary product inlet, 2" OD sanitary bottom filtered liquid discharge port and 2" OD sanitary front filtered solid discharge port. M-CELL filter with triangle wire wound inside core has slit gaps, equipped with 100 micron screen with nylon auger and scrapers. Mounted on base frame with locking casters.Operation: Filtering material is fed in to press and solids are filtered to inside and liquid to the outside solids are increasingly compressed and conveyed by the auger towards the discharge end with variable discharge valve.
OAD: 60" L x 20" W x 40" H
Parkson, Model RDT-100, stainless steel rotary drum thickener. Rated from 25 to 100 gallons per minute – depending on materials, application and machine configuration. Equipped with a 4" NPT charge, 25" diameter x 40" deep (75 gallon) "flocculation" tank with ½ hp paddle agitation for mixture detention time, 30" diameter x 96" long baffeled rotarty drum screen powered by a 1 hp drive, screen spray nozzles supplied by a 1" NPT fitting, open-end solids discharge with 30" ground clearance and 105" long x 40" wide x 10" deep liquid collection bin with 4" NPT bottom drain with 11" ground clearance. System mounted on heavy duty stainless steel frame.
OAD: 138"L x 50"W x 70"H

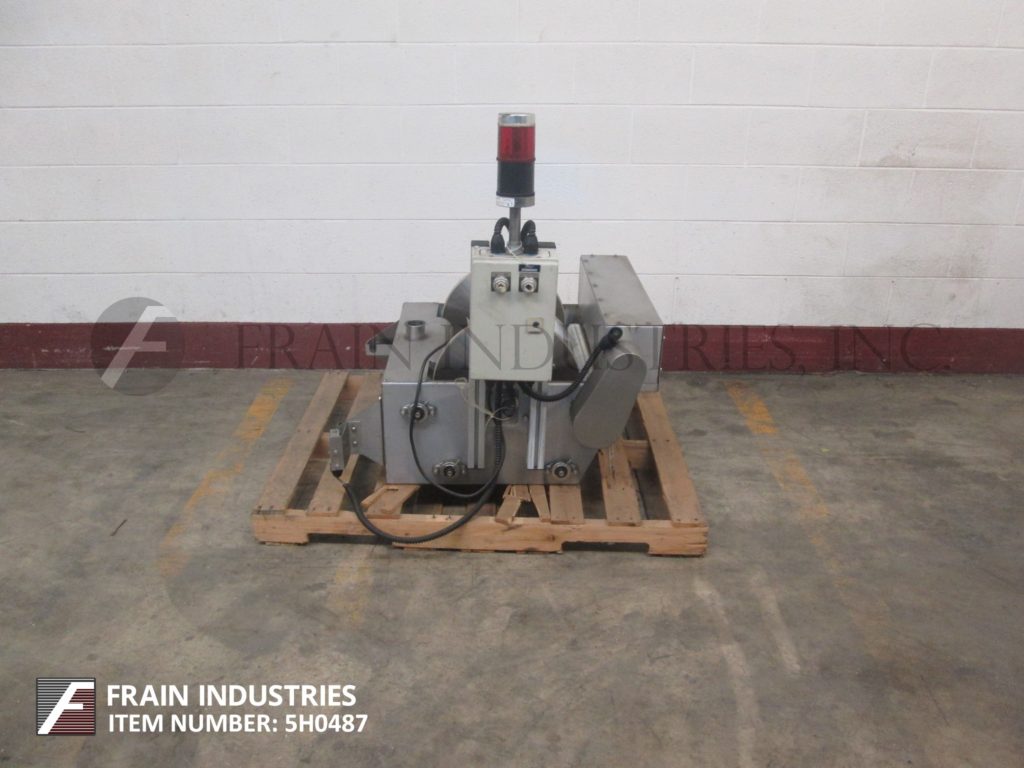

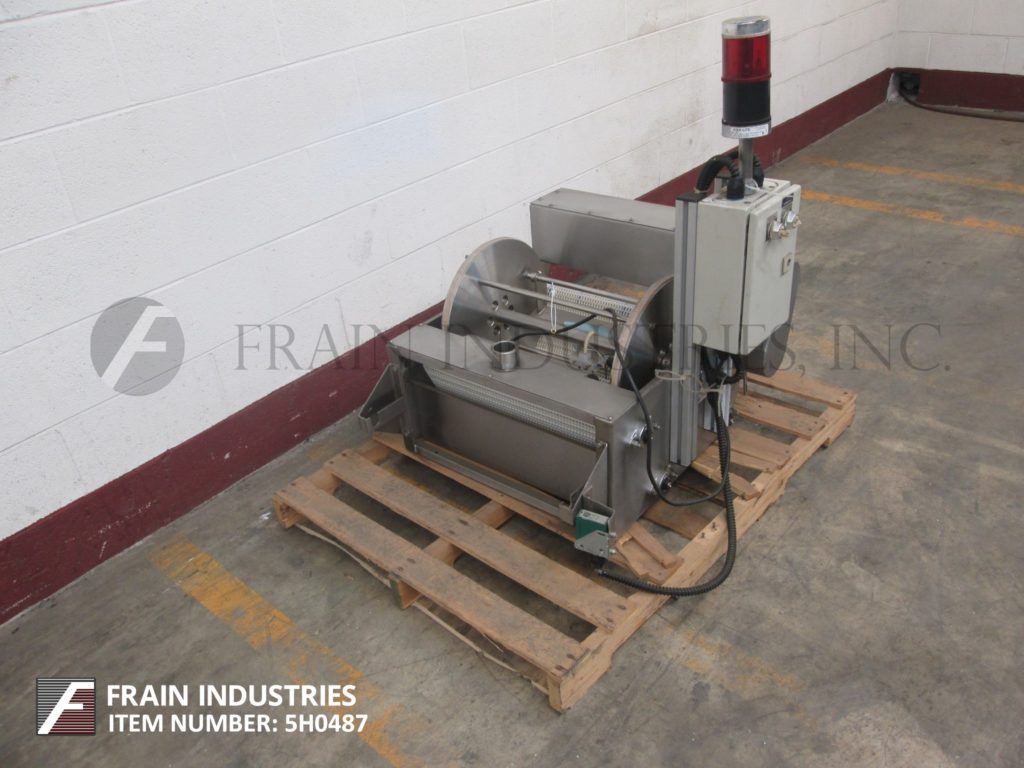

MP Equipment, Model CO39, endless media filter. Equipped with (2) 2½"OD / 2"ID Tri-clamp style charge ports, 36" wide mesh filter screening belt powered by a 1 HP drive with scrapper blade, (2) 2½"OD / 2"ID Tri-Clamp style discharge ports and bottom mounted drip pan. Control panel with on / off switch and push button start / stop controls.
OAD: 70"L x 58"W x 54"H
MP Equipment, Model CO39, endless media filter. Equipped with (2) 2½"OD / 2"ID Tri-clamp style charge ports, 36" wide mesh filter screening belt powered by a 1 HP drive with scraper blade, (2) 2½"OD / 2"ID Tri-Clamp style discharge ports and bottom mounted drip pan. Control panel with on / off switch and push button start / stop controls.
Dontech Industries, Model IS-34, stainless steel internally fed rotary drum screen. Equipped with a 6½"OD / 5¾"ID Tri-clamp style charge port, 36" diameter x 64" long rotarty drum screen powered by a ¾ hp drive, 18" x 13" solids discharge with 94" ground clearance, 51" long x 48" wide x 64" deep liquid collection bin with (1) 3½"OD / 3"ID Tri-clamp bottom drain with 22" ground clearance and (1) 4¾"OD / 4"ID bottom side discharge with 30" ground clearance. Rated dependant on materials, application and machine configuration.
OAD: 110"L x 65"W x 142"H
Emco, Model MF1622, endless media filter. Rated from 10 to 100 gallons per minute – depending on materials, application and machine configuration. Equipped with a 2½"OD / 2"ID Tri-clamp style charge port, 16" diameter x 18½" wide rotary drum with (2) 2" high scraper paddles, 22" wide Intralox style filter belt and an on / off switch.
OAD: 35"L x 35"W x 40"H

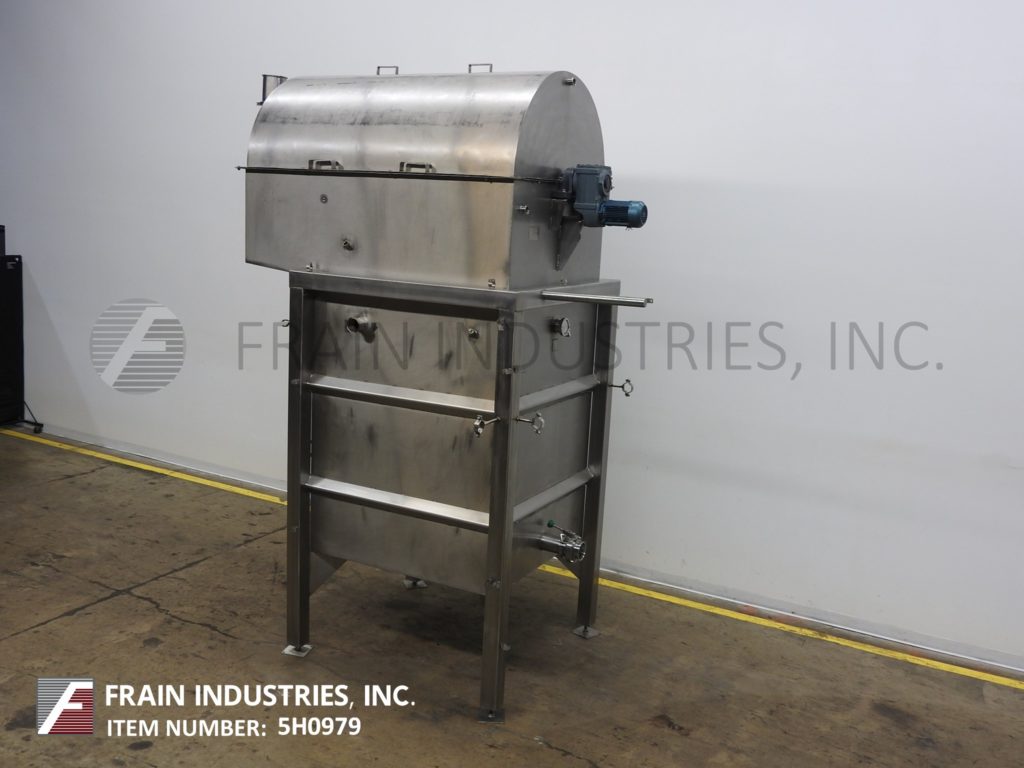

Stainless steel, rotostrainer with pounds of product per hour – depending on materials and application. Equipped with 15½" OD x 31" long screen with .5mm openings powered by 2 motor Hp drive. The screen is externally fed to a 28" long x 7" wide x 4" deep trough along the length of the cylinder. Solids are caught on the outside of the screen surface and are removed by 31" wide spring tensioned scrape blade. liquids flow through the drum and into a 24" wide x 66" long x 19" deep bin with (6) cartridge filters connected to a 3½"OD / 2½"ID threaded port. Resivoir also equipped with (3) 2½"OD / ID Tri-clamp style access ports.
OAD: 77"L x 36"W x 39"H
Hycor, model RSA 01-04-72 Rotostrainer. Equipped with a 25" diameter x 72" long screen with 0.75mm openings. The screen is externally fed through a 12" ID/ 16" OD 8-bolt pattern flange fitting. Product is directed under a baffle, then upward and over the length of the cylinder. Solids are caught on the outside of the screen surface and are removed by a self cleaning spring tensioned scrape blade. Product discharges out an open bottom. Rates dependant on materials, application, machine configuration and environment.
OAD: 49"L x 96"W x 36"H
Hycor, model RSA 01-04-72 Rotostrainer. Equipped with a 25" diameter x 72" long screen with 0.75mm openings. The screen is externally fed through a 12"ID/16"OD 8-bolt pattern flange fitting. Product is directed under a baffle, then upward and over the length of the cylinder. Solids are caught on the outside of the screen surface and are removed by a self cleaning spring tensioned scrape blade. Product discharges out an open bottom. Rates dependant on materials, application, machine configuration and environment.
Hycor, model RSA 01-04-72 Rotostrainer. Equipped with a 25"diameter x 72" long screen with 0 .75mm openings. The screen is externally fed through a 12"ID/16"OD 8-bolt pattern flange fitting. Product is directed under a baffle, then upward and over the length of the cylinder. Solids are caught on the outside of the screen surface and are removed by a self cleaning spring tensioned scrape blade. Product discharges out an open bottom. Rates dependant on materials, application, machine configuration and environment.
Dorr Oliver, 1700 gallon, 304 stainless steel, continuous motion, rotary vacuum drum filter and sludge separator with amount of product per hour depending on materials and application. Equipped with 6′ OD x 8′ long,150 ft², rotary vacuum drum has positive seal drum ends with positive seals between drum compartments and fixed position blade scrap discharge, filter agitation, variable speed drive, (2) filter drains and 154"Long x 7" OD screw discharge conveyor has 2.5" ribbons, with 2" OD shaft, set on 5" centers. Mounted on heavy duty frame.
OAD: 196"L x 102"W x 96"H
