Filter Plate and Frame is a type of filter that uses a series of frames sandwiched between the filter media and this assembly is bolted together to form a sieve that allows the liquid to be filtered from the solids which are collected in the frame area. Plate and frame filters are very efficient filters and are batch operations requiring the unit to be opened when the frame area is full of solid product.

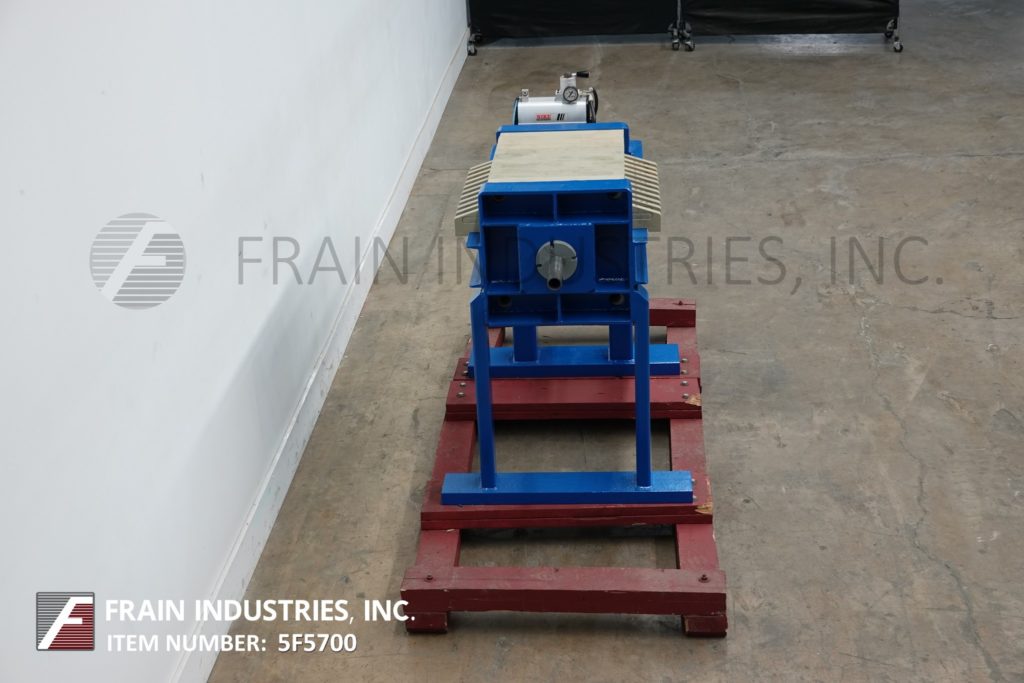

Star stainless steel horizontal plate and frame filter press. Filtration area of 9 ft² (1 ft² each plate). Equipped with nine sets of filter plates, (1) pressure indicator, (1) 2" sanitary inlet port with (2) 2" stainless steel sanitary outlet ports with cover. Tri Clover recirculation pump w/2" inlet/outlet with 1.5 Hp Reeves vari speed hand crank controller. Mounted on mild steel base with casters.
OAD: 80"L x 24"W x 70"H

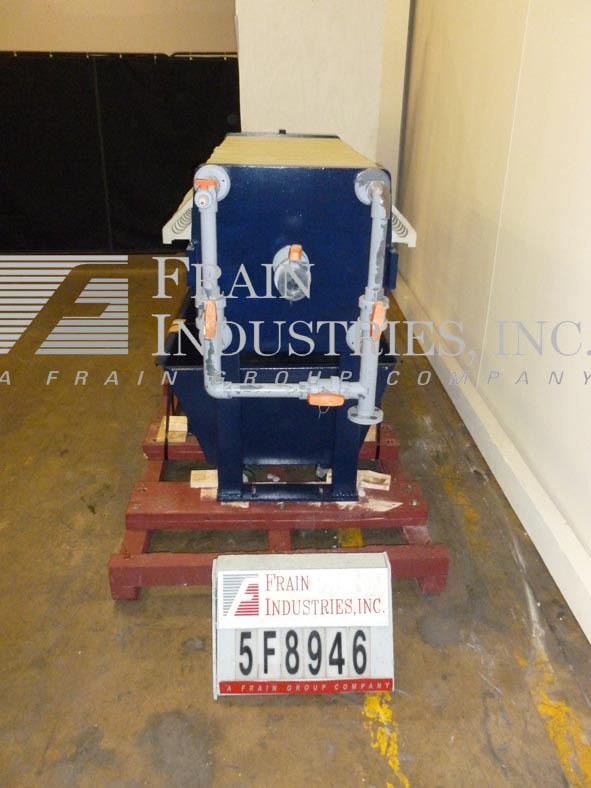

Perrin / Evoqua Water Technologies, Horizontal filter press with 35 square feet of filtration area and cake capacity of 1.5 cubic feet with amount of product per hour – depending on materials, application and machine configuration. Equipped with (11) 18-1/2" x 18-1/2" x 2" thick polyprop plates and has a capacity of up to (21) plates, with a maximum of 100 psi and has (5) inlet and outlets, (4) 1-1/4" OD and (1) 1-7/8" OD with single hand crank closure wheel. Mounted on heavy duty frame with drip pan.
OAD: 103-1/2" L x 37-1/2" W x 34" H

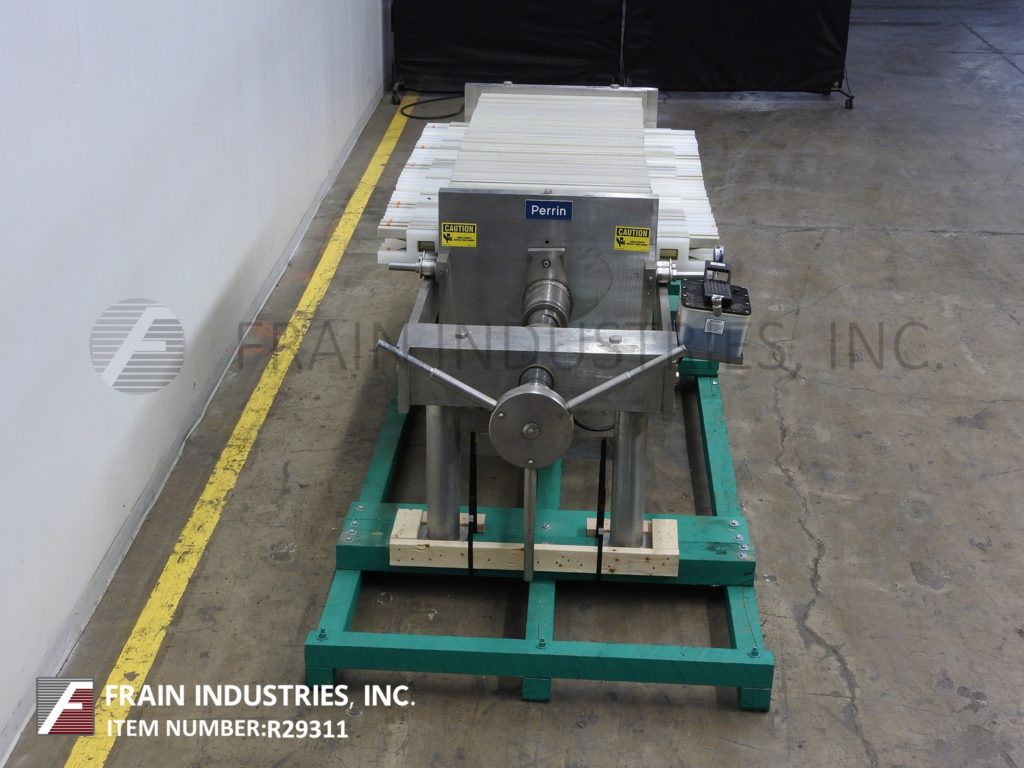

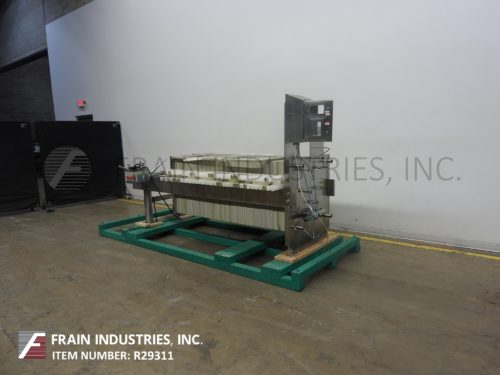

Perrin / Evoqua Water Technologies, horizontal, stainless steel, side bar plate and frame filter press. Volumes of product per hour – depending on materials, application and machine configuration. Equipped with (31) 24" x 24" x 1" square cake plates with cake capacity of 10 ft³ and (32) 24" x 24" filtering plates with a filteration area of 128 ft², (4) 2"OD / 1½"ID Tri-clamp inlet / outlets, hand crank filter closure and air over oil hydraulic finishing closure, Rosemont digital flow meter and Precision digital turbidity meter. Mounted on (4) leg base frame.
OAD: 132"L x 53"W x 43"H

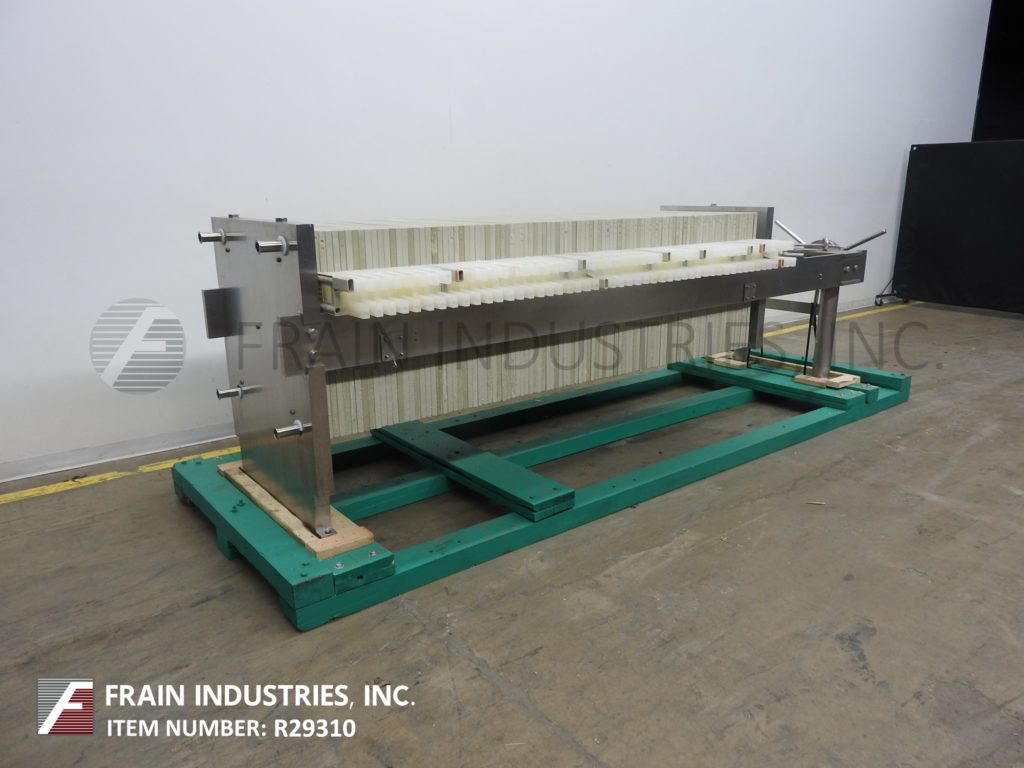

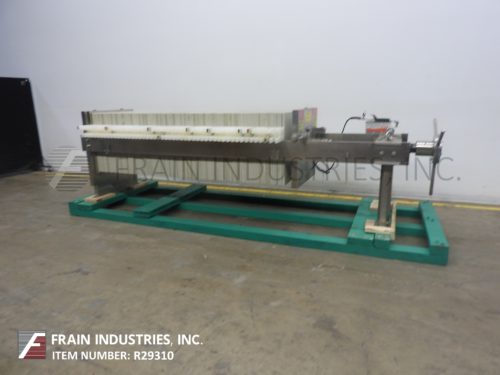

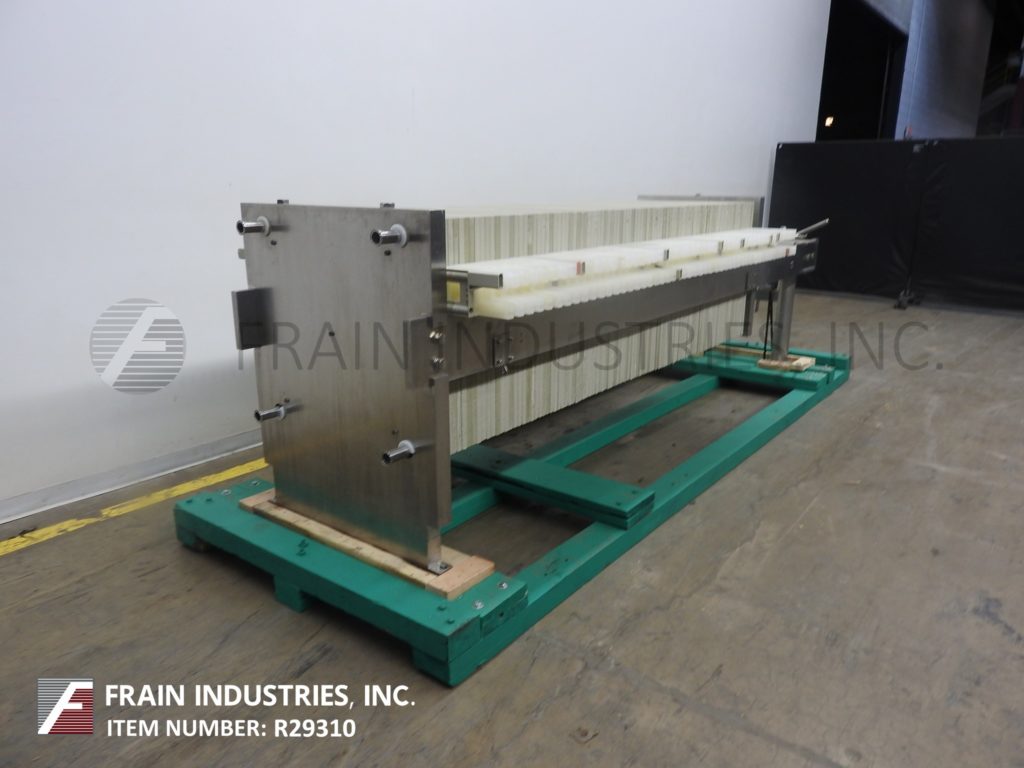

Perrin / Evoqua Water Technologies, horizontal, stainless steel, side bar plate and frame filter press. Volumes of product per hour – depending on materials, application and machine configuration. Equipped with (50) 24" x 24" x 1" square cake plates with cake capacity of 16 ft³ and (51) 24" x 24" filtering plates with a filteration area of 200 ft², (4) 2"OD/1½"ID Tri-clamp inlet / outlets, hand crank filter closure and air over oil hydraulic finishing closure. Mounted on (4) leg base frame.
OAD: 168"L x 55"W x 47"H
Siemens / US Filtration, Model J Press, 28 plate, pnuematic plate and frame filter press with amount of product per hour – depending on materials and application. Filtration area: 112 ft². Plate size: 24" x 24" x 2" thick and 1/4" recessed CGR polypropylene plates. Pressure rating: up to 100 psi. Volumes: 2.0 to 8.0 cubic feet and 57.0 to 227.0 litres depending on product. Equipped with open, stop, close hand lever and open / close air and hydraulic pressure gauges, with roll under filter product drip pan and (4) 1-3/4" OD threaded inlet and outlets. Mounted heavy duty frame and has casters for mobility.
OAD: 130" L x 40" W x 54" H

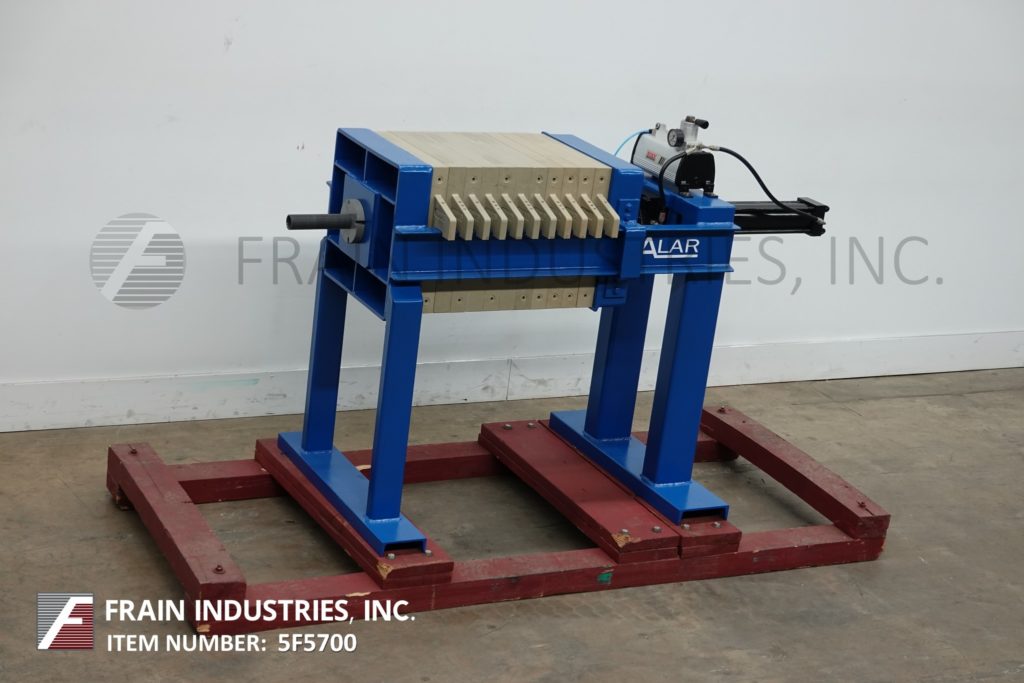

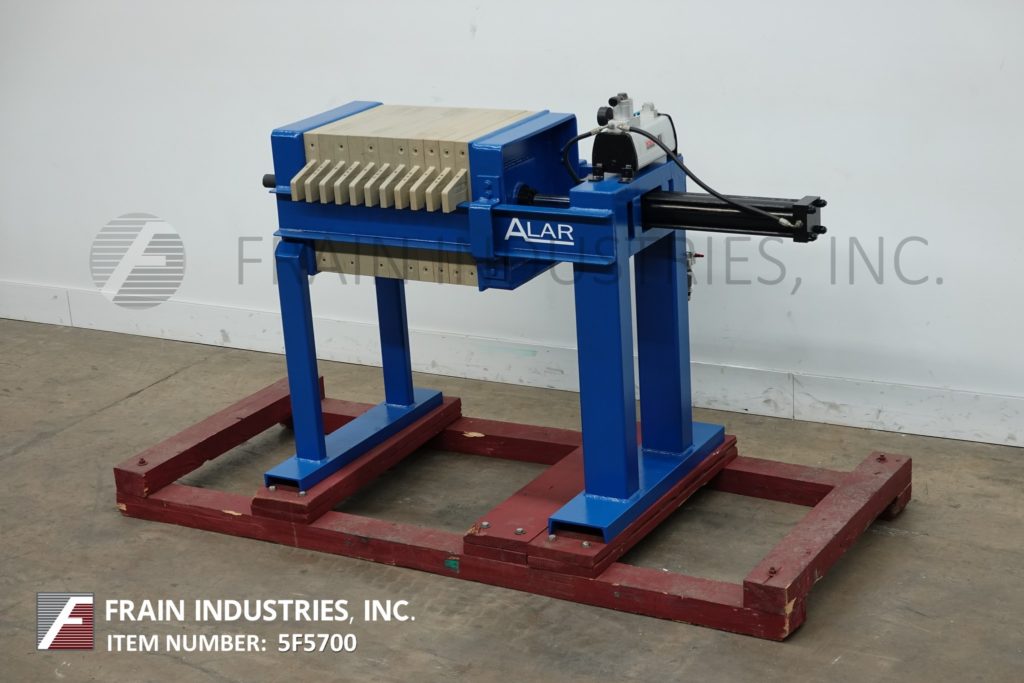

Alar Model Micro-Klean Hydraulic, plate and frame, filter press rated at 20 minutes per filtration cycle. Equipped with eleven 19-1/4" Long x 19-14" Wide x 2-1/4" thick recessed polypropylene filtration plates, hydraulic opening and closing ram. Filtration area: 15.4ft². Volume: 2.3 ft³, with two 1-3/4" OD threaded top and two 1-3/4" OD threaded bottom outlets, PVC piping and mounted on four leg base frame. Dewatering system removes solids from wastewater and produces a clean effluent.
OAD: 91" L x 30" W x 56" H
