Frain Industries can help you with your vacuum powder filler project no matter how big or small your filling needs. Filler Powder Vacuums are powder filling machines which use a vacuum / pressure source to conveyor and meter the proper amount of powder to the container or vial being filled.
PCI Wedeco Model BI UF stainless steel, food grade parallel flow, shell and tube membrane ultrafiltration and clarification system that can be used for all types of juices, beverages, liquor, food and water filtration processing from 0 to 200 gallons per minute – depending on materials and application, Equipped with (55) 3-3/4" OD x 160" long, 316 stainless steel outer shroud material, with (18) perforated steel tubes in the shell to form of shell and tube and each tube is fitted with membrane element, and has 2.6 of surface area per square foot per membrane with operating pressure up to 64 bar max and operating temperatures up to 80 Deg C or 176 Deg F and has (5) sections of 10 modules each 2 x 2 pattern and (1) section of 5 modules single for a combined total of (55) modules with specially designed end caps connecting all (55) tubes in series and all have 3/4" OD shroud drains. (1) 60 gallon and (1) 200 gallon, stainless steel, single wall tanks, with circulation pump and all stainless steel piping, fittings and valves, with system motor drive. APV Control panel has A/B CPU controller with juice stock, feed stock and recirculation flow touch pad controls, CIP, recirculation, drain and feed valve and on / off switches with e-stop. Mounted on all stainless steel base frame.
US Filter, base mounted filtration system with gallons of product filtered per hour – depending on materials, application and machine configuration. Equipped with a Filterite, Model T910717-00, 8½" diameter x 32" high stainless steel (6) cartridge filter vessel with a MAWP of 150 PSI @ 200°F. Tranter, Model UX-066-HJ-20, plate and frame heat exchanger with 11.4 ft² surface area and a MAWP of 100 PSI @ 260°F. G & L Pumps, Model SSH, stainless steel centrifugal filter pump with a 7.375 diameter impeller powered by a 7½ hp drive. Control panel has booster pump jog / off / auto switch and heat exchange steam supply hand / off / auto switch. Water fittings; 2½"OD / 2"ID Tri-clamp inlet to pump with (1) 2½"OD / 2"ID Tri-clamp and (1) 2"OD / 1½"ID Tri-clamp discharges. Steam fittings; 1½" NPT inlet and 1" NPT discharge. Mounted on 60" long x 56" wide base platform with casters.
OAD: 68" L x 68" W x 89" H

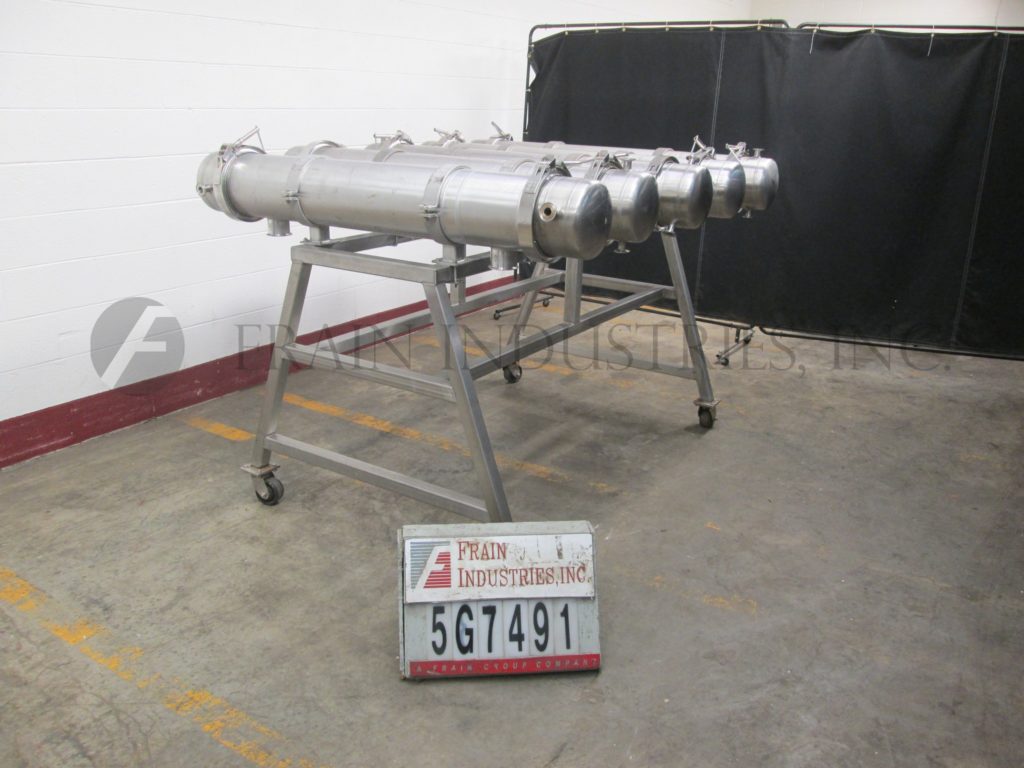

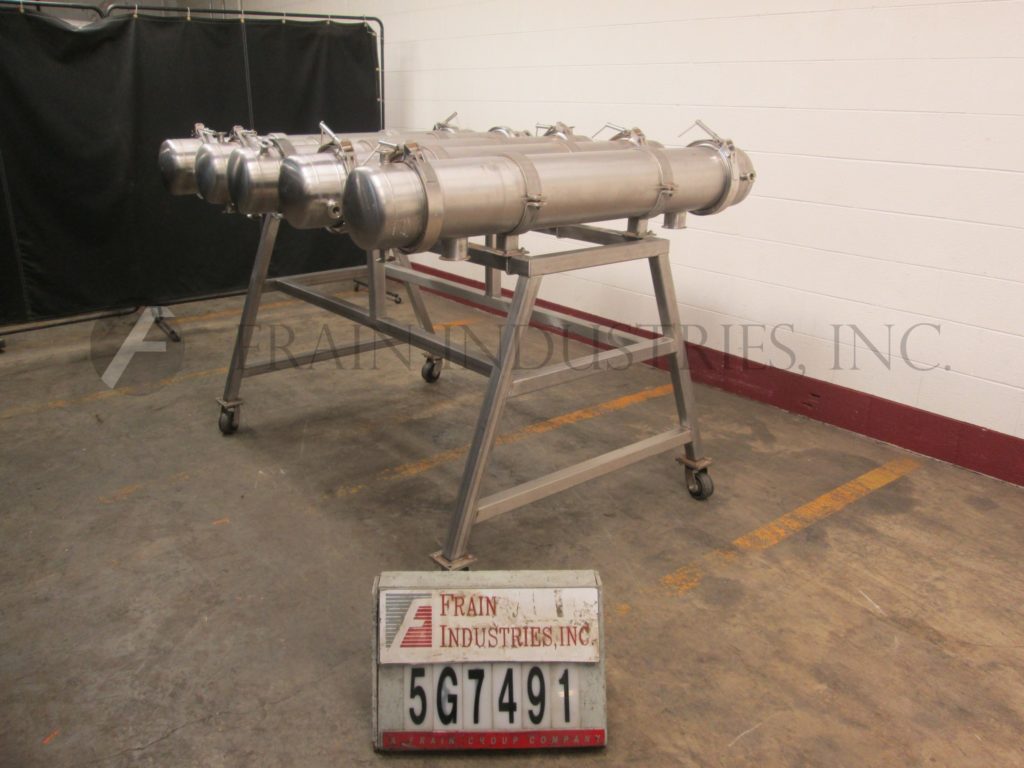

(5) Pall, Model UHFSH14G47J, 316 stainless steel single cartridge filter housings with flow rates from 50 to 350 GPM each – depending on materials and application. Vessel dimensions: 8¼" ID; 47" in Height (14.7 gal). MAWP dependant on housing O-ring material: -14.5 / 145 PSI @ 14 / 194°F. Equipped with (2) 2"OD / ¾"ID Tri-clamp top vent on cap, (2) 2"OD / ¾"ID Tri-clamp bottom drains and (2) 3½"OD / 3"ID Tri-clamp product inlet and outlets. Mounted on a stainless steel rack with casters.
OAD: 72"L x 62"W x 52"H
