Eastey Shrink Tunnel ESA40100-TKV1/ETB4820

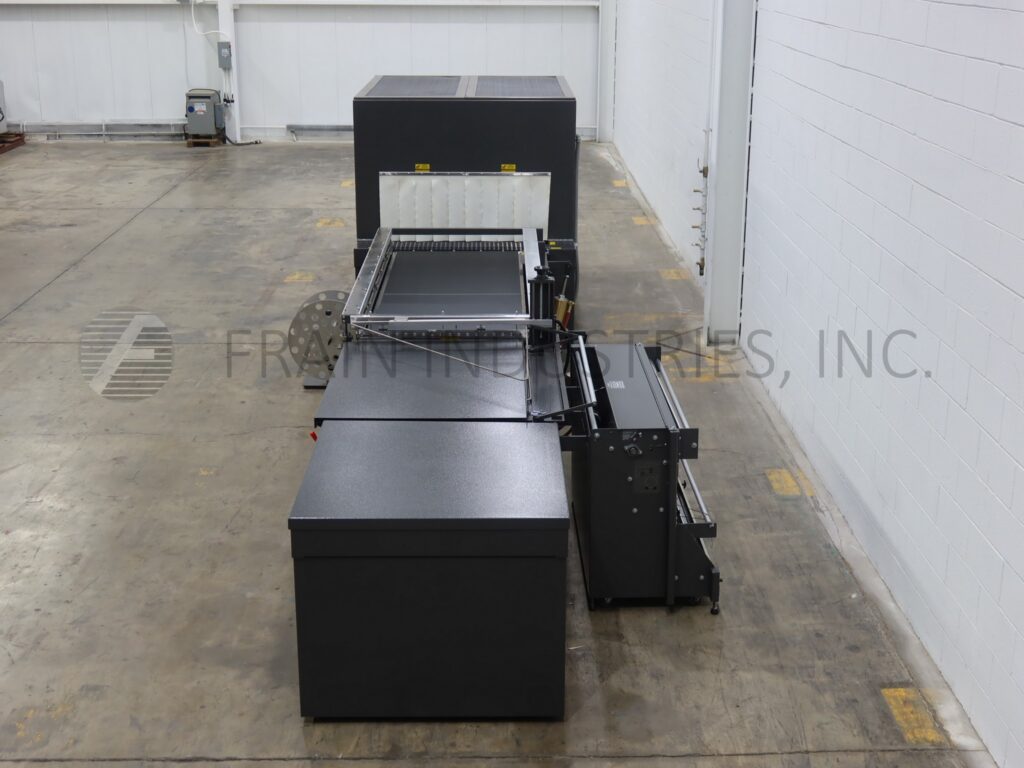

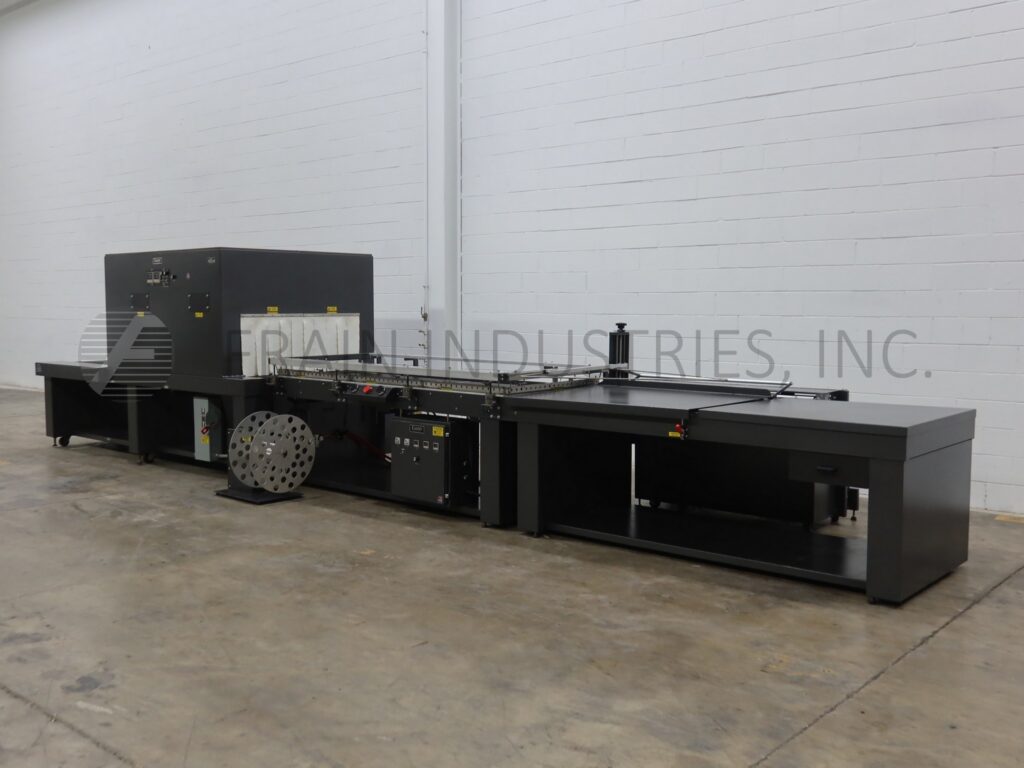

Back to All Equipment5J8370 Eastey, model ESA40100-TKV1/ETB4820, semi-automatic L-Bar sealer and shrink tunnel system.

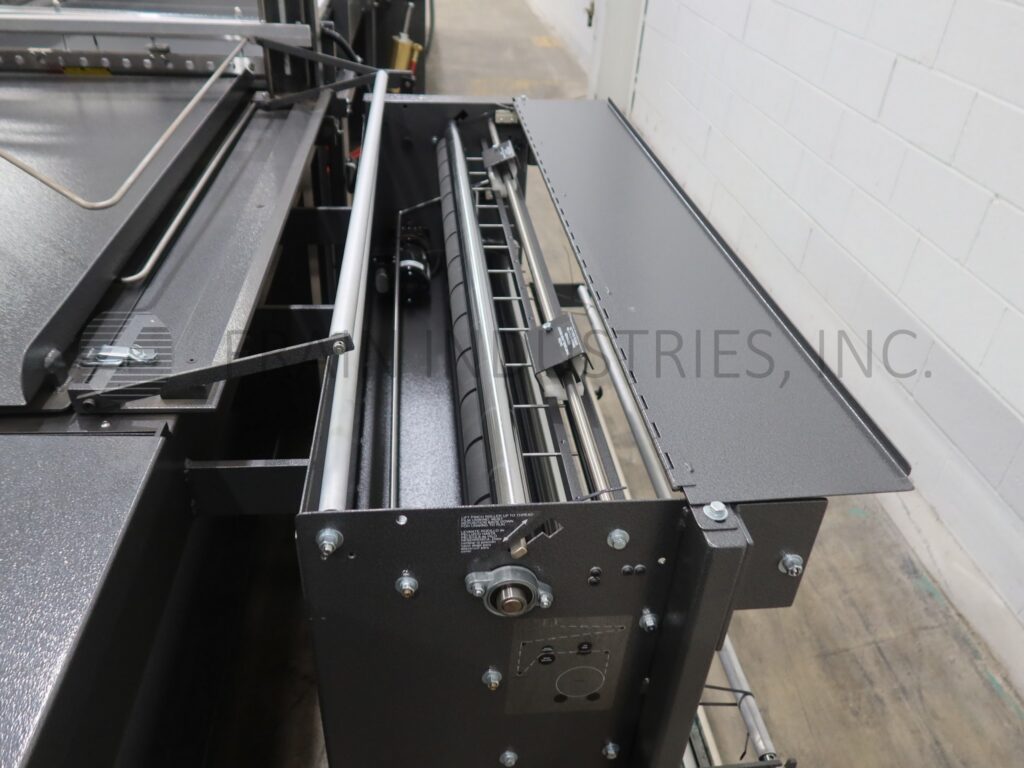

Model ESA40100-TKV1 L-Bar sealer has a package size range: up to 98″ in length; 7½” to 37½” in width, 1″ to 22¼” in height. Equipped with 40″ wide cross seal bar and 100″ long side seal bar, powered film unwind, 103″ long x 44″ wide product load table with film inverter, 100″ long x 36″ wide product conveyor, scrap re-wind, pneumatic L-Bar lift. Film specifications: up to 44″ in width; 10″ max roll OD.

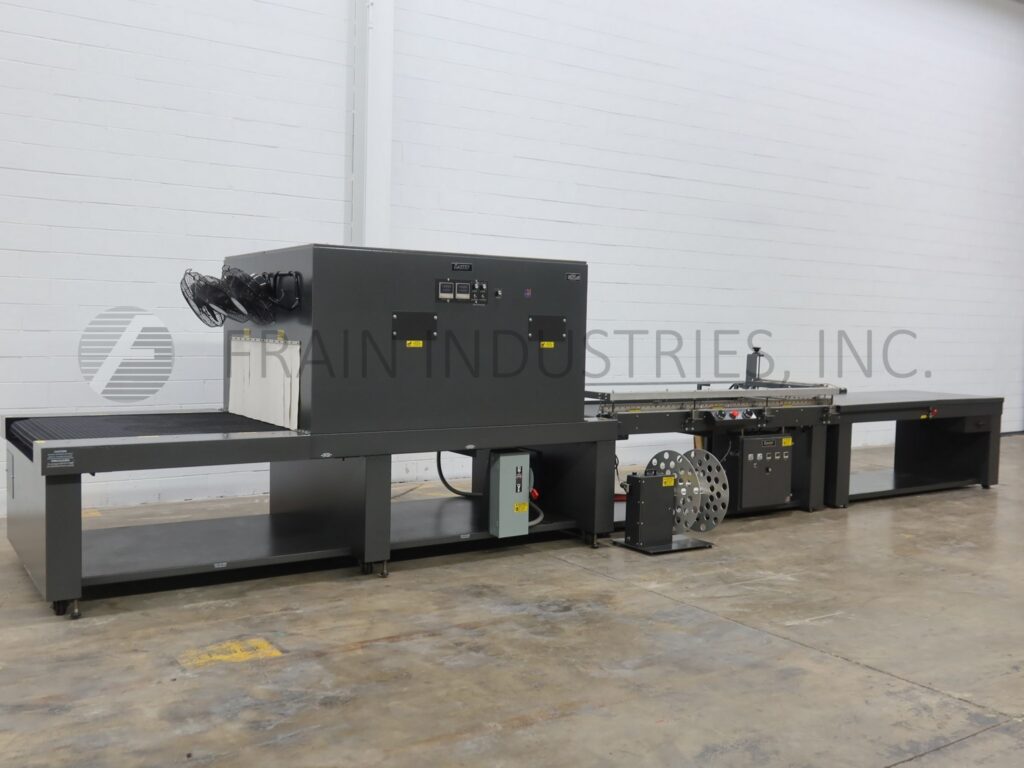

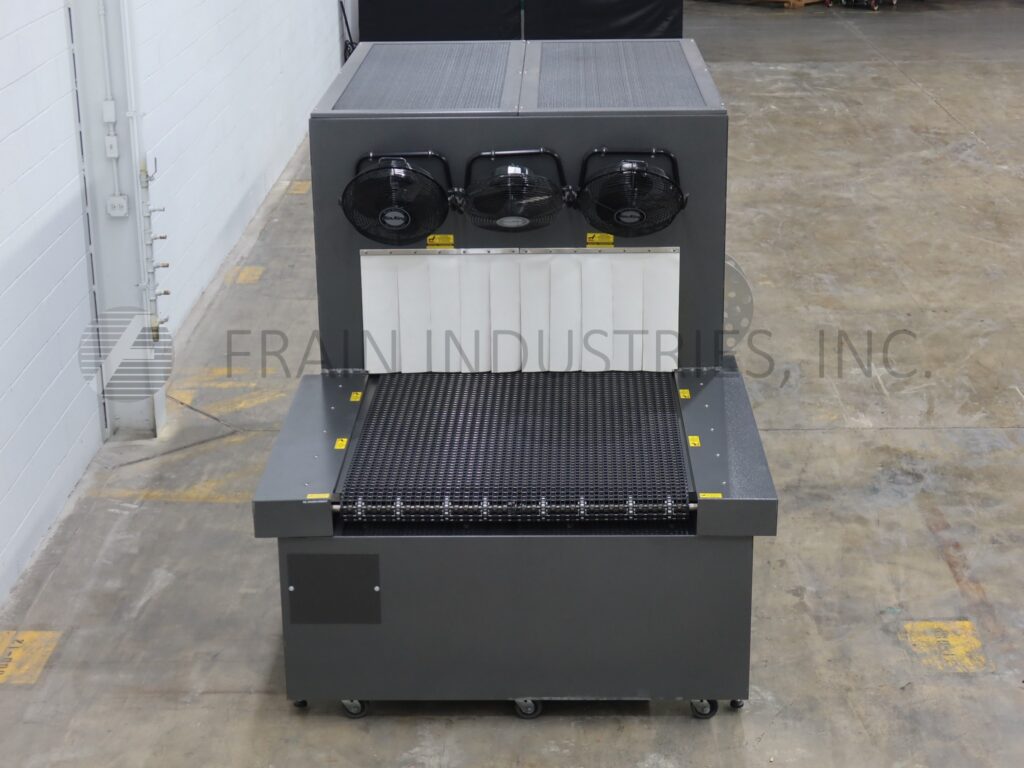

Eastey model ETB4820, single zone shrink tunnel. Total aperture: 50″ wide x 20″ high (49″ wide x 18½” high working aperture). Equipped with 48″ wide x 144″ long flex link conveyor with a 35″ discharge height, (4) top mounted blower, (3) fans at discharge. Dual temperature controls, conveyor speed and variable velocity airflow. Speeds dependent on materials, application, machine configuration and operator dexterity.
OAD (sealer): 208″ L x 81″ W x 56″ H
OAD (heat tunnel): 147″ L x 73″ W x 79″ H
OAD (Complete system): 355″ L x 81″ W x 79″ H
