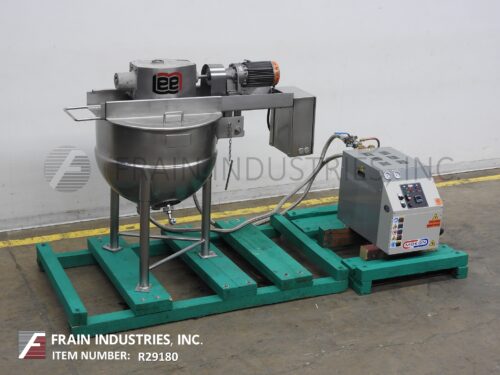

Feldmeier Kettle Double Motion 150DMK

• Manufacturer: Feldmeier
• Model: 150DMK
• Category: Kettle
• Subcategory: Double Motion

Feldmeier Model 150-44-TMIX, 150 gallon, jacketed double motion kettle. 316 Stainless steel contact materials and 304 stainless steel non-contact materials, Vessel dimensions: 44" ID; 39" in Depth. #4 Finish inside and outside with all welds ground flush, polished and buffed. Equipped with bridge mounted counter rotating 3 Hp side and bottom scrape surface agitator, 3 Hp secondary turbine impeller, (4) 3" OD top ports and CIP spray ball. 1.5" NPT jacket in / outlets. 3" Center bottom discharge with 16" floor clearance. Rated up to 100,000 Cps. Number of gallons of product per hour dependent on materials and application.

Jacket rating:
MAWP of 150 psi @ 350 Deg F
FV
MDMT -20 Deg F @ 150 psi

N/B #: 10735.

OAD: 57" L x 54" W x 98" H
