Filler Specialties Filler Liquid Monoblock AWFS3612

  Back to All Equipment

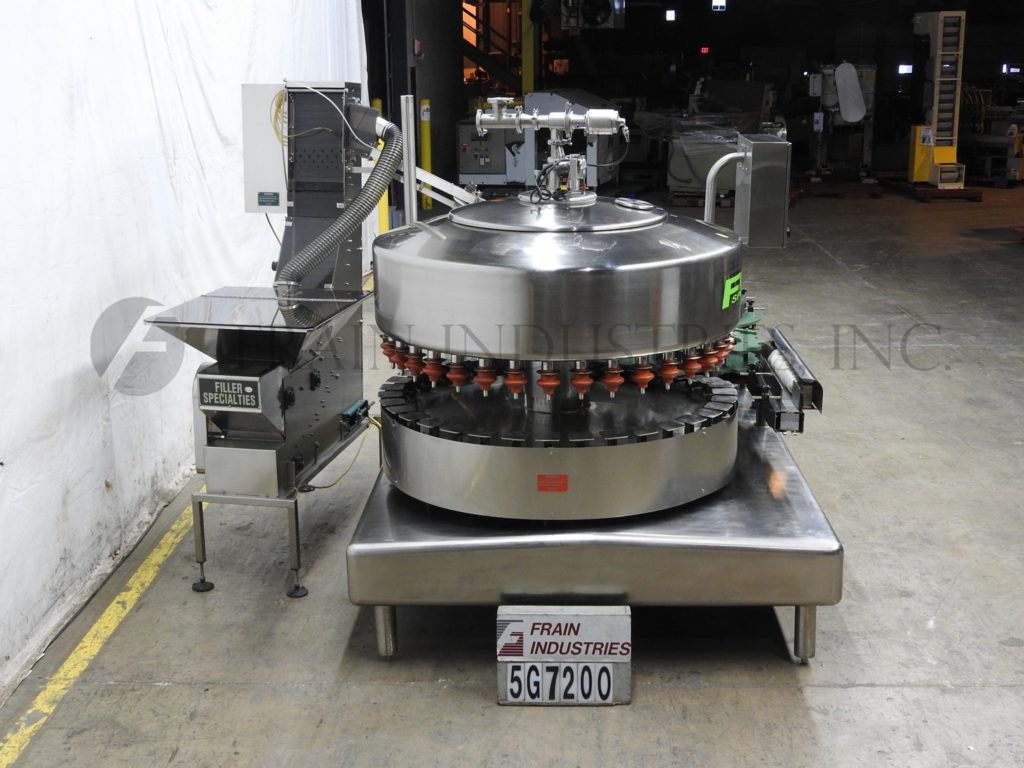

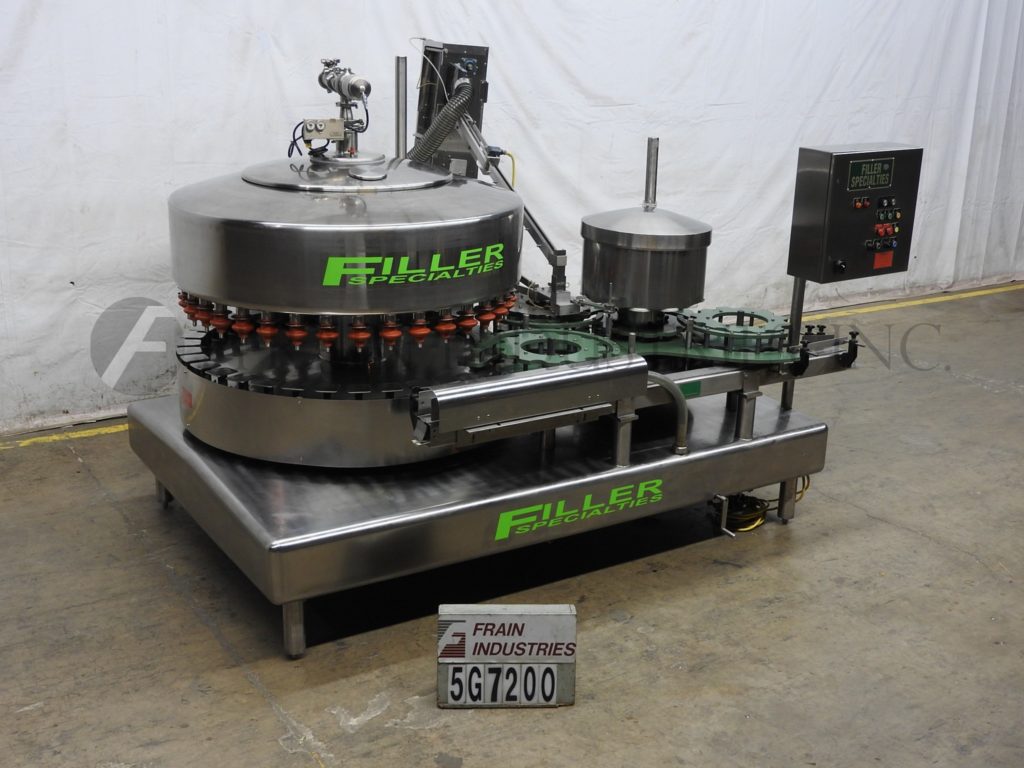

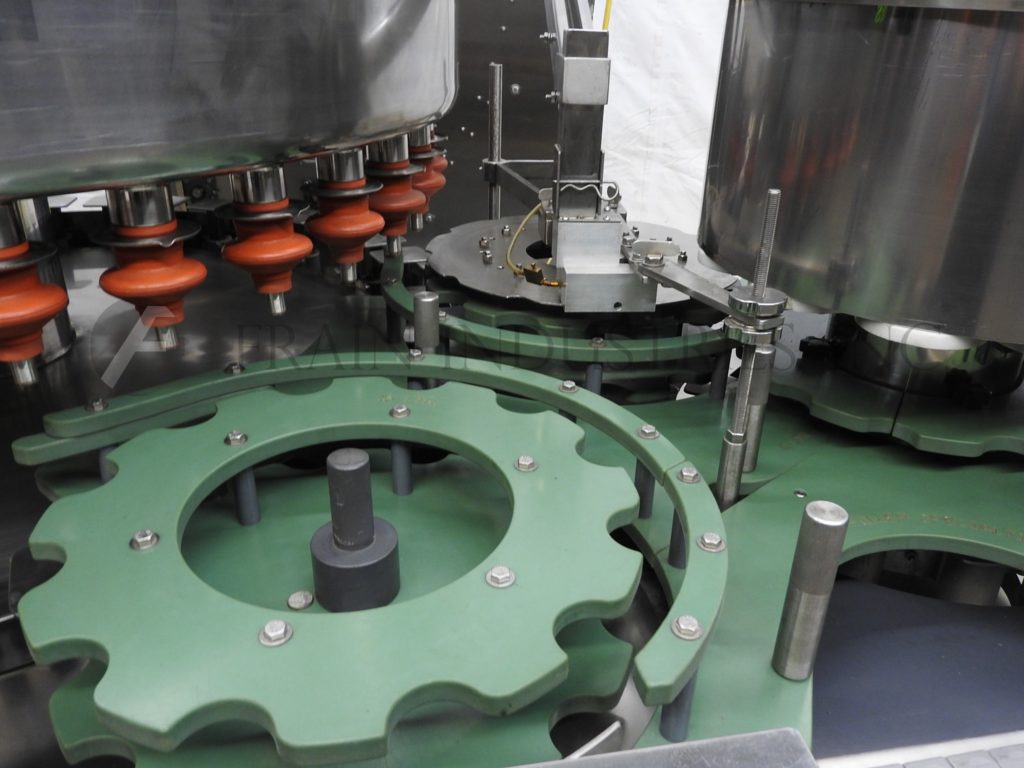

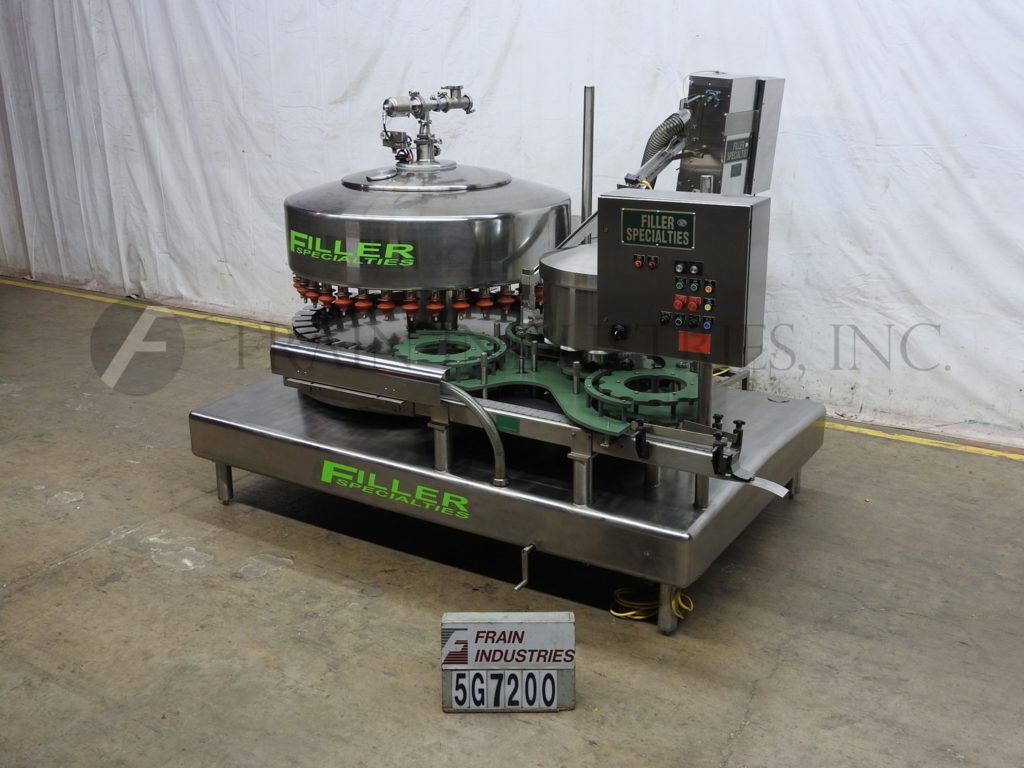

Filler Specialties, Model AWFS-3612R, automatic, 36 head stainless steel rotary gravity filler and 12 head rotary capper. Rated 50 to 325 container per minute – depending on materials, application and machine configuration. Capable of filling containers up to ½ gallon. Equipped with 120" long x 4" wide conveyor with 24" long worm screw to star wheel in feed and discharge, (36) ¾" OD fill to level nozzles, set on 5½" centers with 4½" long x 4" wide container platforms, 36" long x 30" wide x 12" deep cap hopper with a 12" wide x 16" long live bottom conveyor, 52" long x 11" wide waterfall style cap sorter with 1" high cleats on 1½" centers and 12 head rotary capper. Control panel with push button controls for cap feeder, filler and bulk hopper. Variable speed controls for cap feeder and filler. Mounted on stainless steel base frame.

OAD: 125"L x 91"W x 93"H (Filler and Capper)
63"L x 52"W x 93"H (Cap Feeder)
