Fitzpatrick Mill Chilsonator IR520

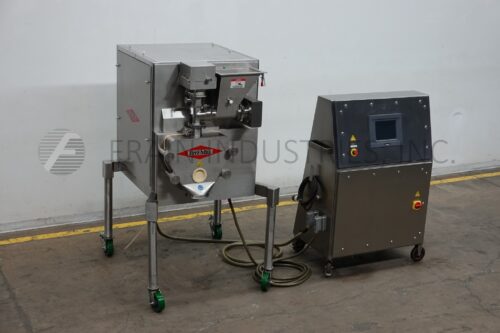

Back to All EquipmentFitzpatrick Model IR520, 316 stainless steel, pilot or small volume roller compactor, rated up to 150 kg of product per hour – depending on materials, application machine configuration and environment being run in. (2) screw feed design with 13" long x 9" wide x 10" deep ID stainless steel product hopper and rotary assist feeder to 3" OD x 12" long horizontal screw that eliminates vacuum dearation to 2" OD x 18" long vertical pre-compression screw that compresses product for more uniformity prior to feeding into the 2" wide x 8" OD groved product compaction rollers with roller force of 26.3 KN/CM and roll gap of 1mm to 6mm and has a capacity of 150 Kg an hour and powered by 5 Hp motor drive with noise level rating of 75 DB. Mobile control panel has A/B controller with parker panel view touch pad controls, A/B vari-speed controllers and e-stop. Mounted on (4) stainless steel legs with casters.
OAD: 48" L x 45" W x 70" H Roller Compactor
48" L x 32" W x 60" H Control Panel
