Mill Machines

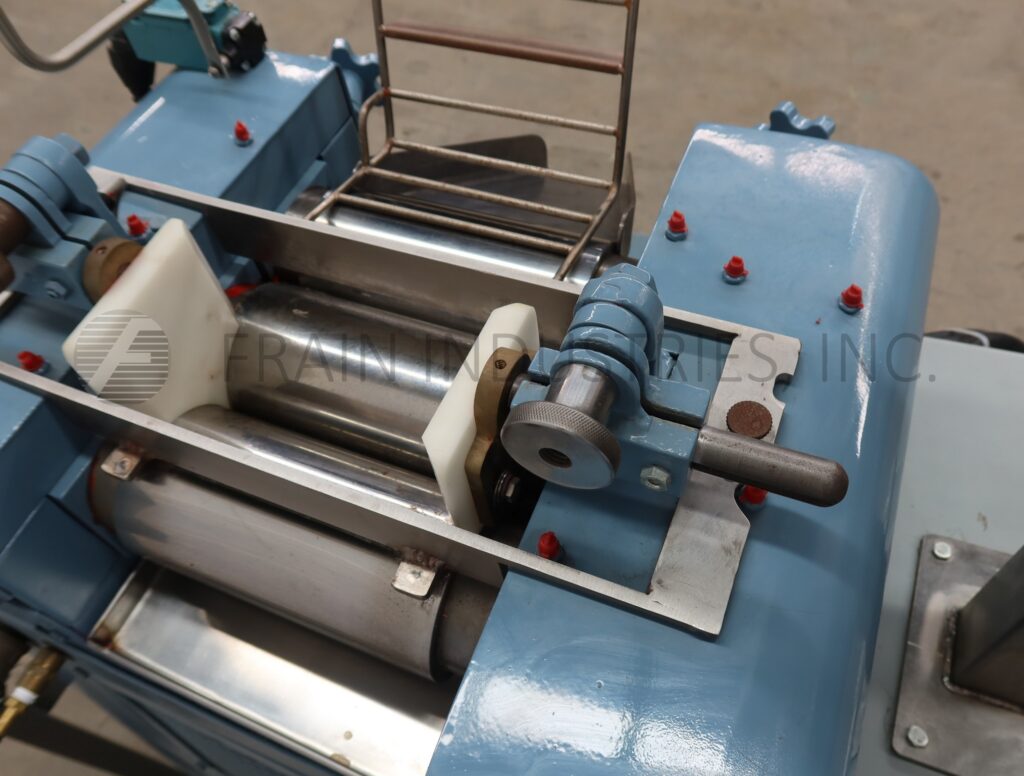

J H Day Mill Roller (Mill) 3ROLL

• Manufacturer: J H Day
• Model Number: 3ROLL
• Frain Number: 5D8781

J H Day, heavy duty 3-Roll dispersion mill rated from 100 to 700 lbs of product per hour – depending on materials and application. Equipped with 12" diameter x 34" long feed, and middle rollers, with scraper blades and 12"diameter x 34 "long apron roller, each with 32" long working roll area, total of 3 rollers. All 3 are cooled rolls made of hardened steel and each has 1-1/4" diameter port for cooling medium, start / stop controllers with (2) e-stops, 25 Hp chain motor drive and is mounted on heavy duty cast iron frame. Ideal for grinding, printing ink, lacquers, adhesives, and paints. Last used in a adhesive operation.

OAD: 82" W x 64"L x 60" H

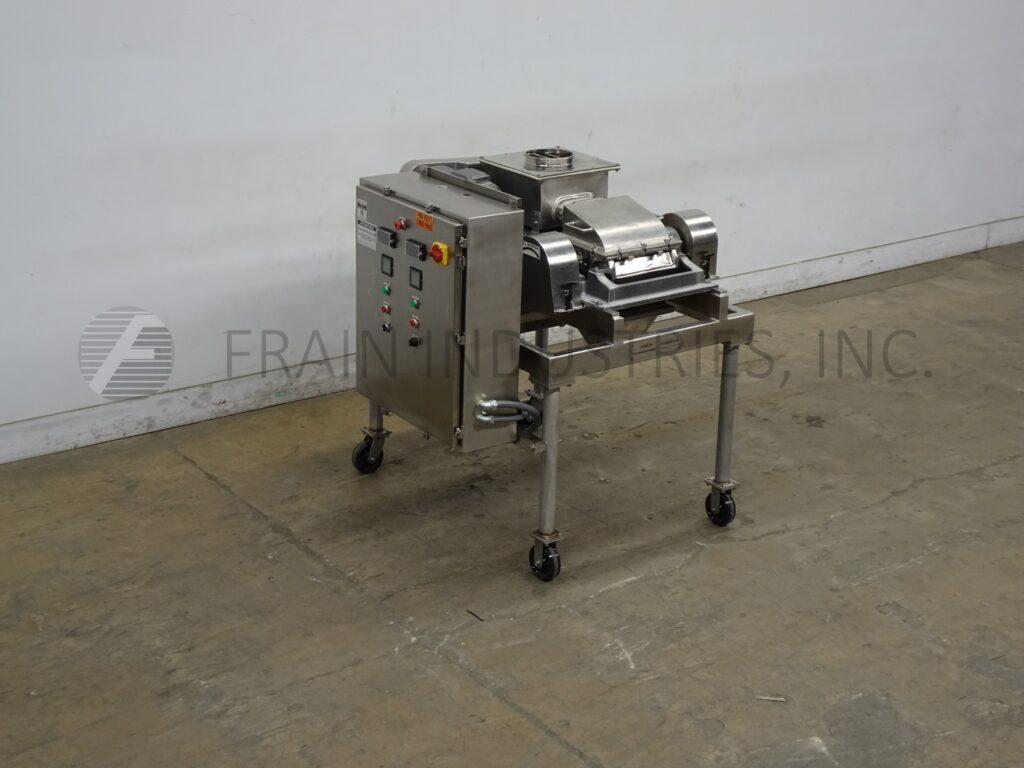

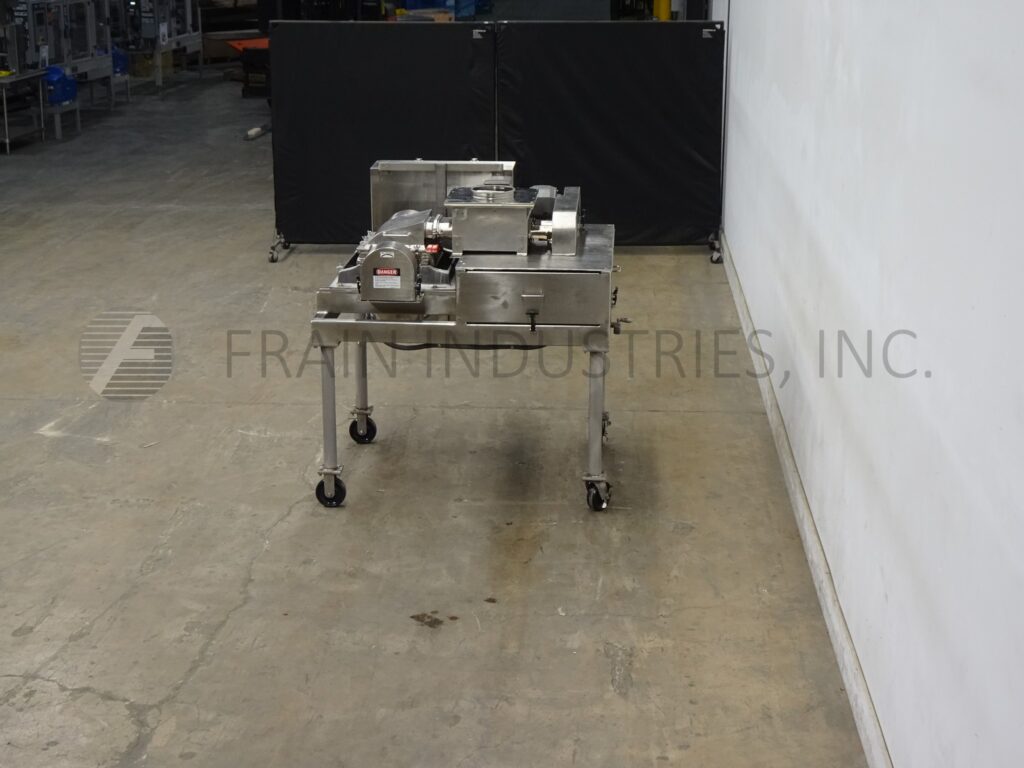

Fitzmill Mill Hammer DKAS012

• Manufacturer: Fitzmill
• Model Number: DKAS012
• Frain Number: R36871

Fitzmill, Model DKAS012, compact, 304 stainless steel construction, hammer mill with production rates per hour – depending on materials and application. Equipped with 7¾"ID; 8½"OD; 8½"deep stainless steel product feed hopper, 3" OD stainless steel vari speed metering feed screw to enclosed process chamber with (32) fixed stainless steel knife / impact blades and 7½"ID / 8"OD product discharge port with 32" ground clearance. Mounted on stainless steel frame with casters.

OAD: 60"L x 57"W x 62"H

Premier Mill Corp Mill Colloid KSIF

• Manufacturer: Premier Mill Corp
• Model Number: KSIF
• Frain Number: 5D9723

Premier Mill Model KSIF, colloid mill with number of gallons per hour – depending on materials and application. Equipped with 3" rotor, 7.5 gal – 1 cubic foot hopper, 1-1/2" tri-clover connections and 18" discharge, 5 Hp drive and mounted on (4) leg base frame with casters. Gap settings down to 0.001"

OAD: 36" L x 33" W x 53" H

Gifford Wood Mill Colloid VT72BS

• Manufacturer: Gifford Wood
• Model Number: VT72BS
• Frain Number: 5D3710

Vertical, rotor / stator mill – 304 S/S contact parts. Equipped with a five gallon jacketed hopper, re-circulation system, 5/8" inlet/outlets, bolt down lid with a 1/2" top inlet and a 2 7/8" diameter inlet to accept funnel. Additionally features a 2-1/2" diameter macerating blender prior to rotor / stator section. Mounted on a S/S base with locking castors.

OAD: (L) 32" x (W) 24" x (H) 56"

Carle Montanari Mill Roller (Mill) 5

• Manufacturer: Carle Montanari
• Model Number: 5
• Frain Number: 5D3474

5 roll mill used as a refiner for chocolate masses, creams, soaps, or inks, to ensure homogeneous product fineness. Each roller is 15" in diameter and 43" W with a working surface of 39.5" W and is jacketed for heating/cooling. The refiner features a product bin and receiver measuring 39" W x 51" T, and also has hydraulic roller height adjustments, control box with hour meter, plow lift/down, auto feed/clean out and E-stop. Unit allows independent control of the first roll rotation speed through a variable speed drive unit. The first roll is brought near the second roll, which remains fixed in position, by means of a hydraulic cylinder equipped with a precise positioning system. The centrifuged cast iron rolls have an extremely hard outer surface to allow for long life and limited wear.

OAD: (L) 5′ x (W) 8′ x (H) 8′

Mikron / Hosokawa Mill Hammer 2LH Pulverizer, triple screw fed, 1 1/2" infeed

• Manufacturer: Mikron / Hosokawa
• Model Number: 2LH
• Frain Number: 5D2936

Mikron, Mikro Pulverizer, Model 2LH, hammer mill with production rates per hour – depending on materials, application and machine configuration. Carbon steel contact parts. Equipped with 6" x 3½" feed throat, (3) 1½" OD feed augers powered by 1 Hp motor drive and has (12) 6" wide swinging impact hammers powered by 10 Hp motor drive. Reduced product discharge is 25" OD with 50" ground clearance. Mounted on (4) leg frame with casters.
Used to grind, de-lump, pulverize and process wet / dry products.

OAD: 62" L x 53" W x 66" H

Ross Mill Ball & Pebble MAX1.4

• Manufacturer: Ross
• Model Number: MAX1.4
• Frain Number: 5D4734

Three liter capacity, S/S media mill used for grinding, dispersing, emulsifying, deflocculating and deagglomeration. Chamber size: 5.5" in Diameter; 8" in Length. Features a jacket for cooling/heating, drip tray, psi and temperature gauges. Requires media per application.

OAD: 24" L x 28" W x 30" H

Fitzmill Mill Hammer DAS06

• Manufacturer: Fitzmill
• Model Number: DAS06
• Frain Number: 5D2161

316 S/S variable speed hammer mill. Equipped with 16 blades, knife / impact, 4" auger feed screw, 12" x 12" feed chute and an 11" L X 6" chamber. Type 225 fixed 420 S/S blades w/reversible blunt or knife edge. Discharge height of 36".

Fitzpatrick Mill Chilsonator IR520

• Manufacturer: Fitzpatrick
• Model Number: IR520
• Frain Number: R38890

Fitzpatrick Model IR520, 316 stainless steel, pilot or small volume roller compactor, rated to 150 kg of product per hour – depending on materials, application, machine configuration and environment being run in. (2) screw feed design equipped with 13" long x 9" wide x 10" deep ID stainless steel product hopper and rotary assist feeder to 3" OD x 12" Long horizontal screw that eliminates vacuum dearation to a 2" OD x 18" Long vertical pre-compression screw that compresses product for more uniformity prior to feeding into the 2" wide x 8" OD groved product compaction rollers with a roller force of 26.3 KN/CM and roll gap of 1mm to 6mm and has a capacity of 150 Kg an hour and powered by 5 Hp motor drive with noise level rating of 75 DB. Mobile control panel has A/B controller with parker panel view touch pad controls, A/B vari-speed controllers and e-stop. Mounted on (4) stainless steel legs with casters.

OAD: 48" L x 45" W x 70" H Roller Compactor
48" L x 32" W x 60" H Control Panel

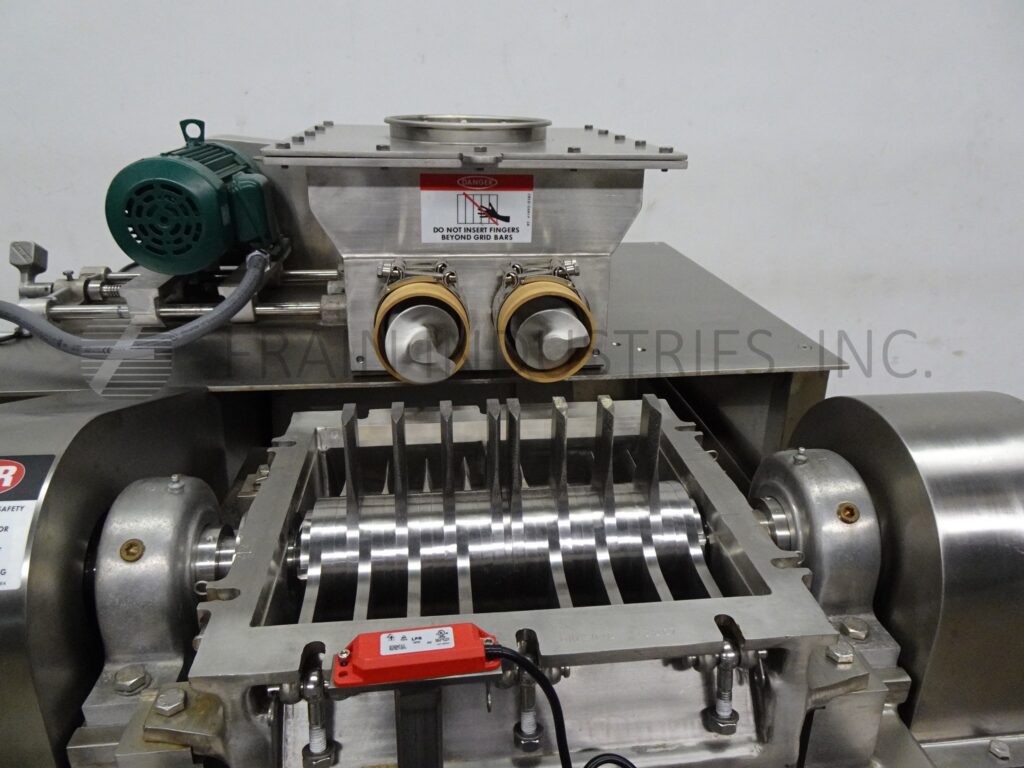

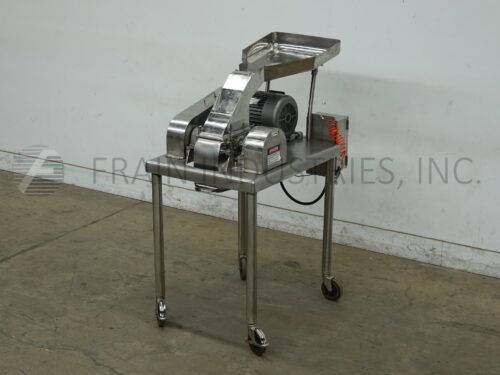

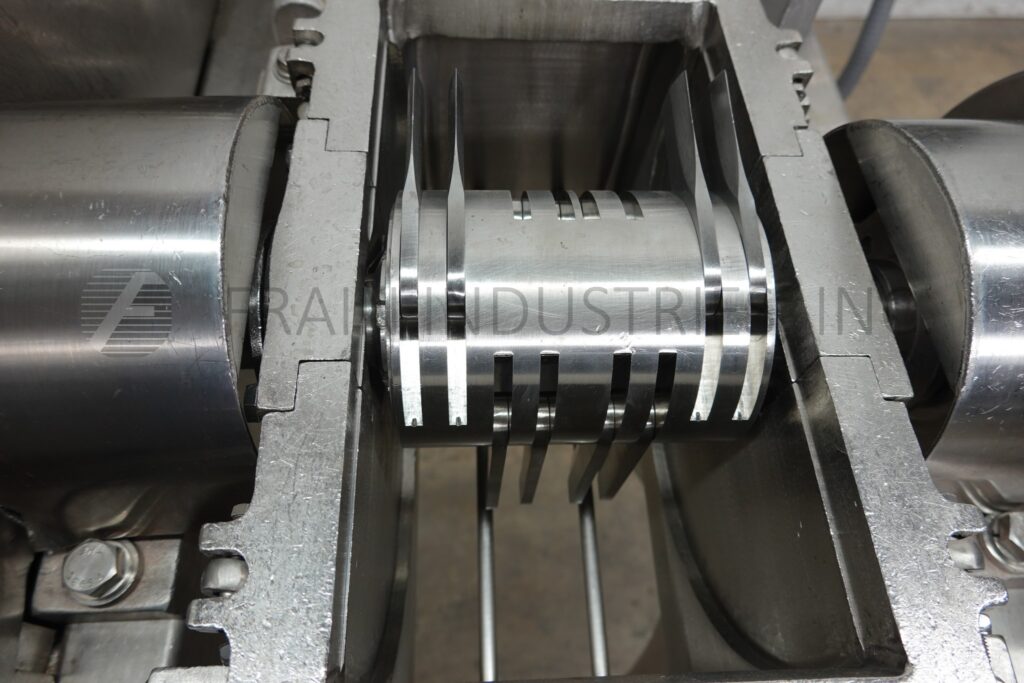

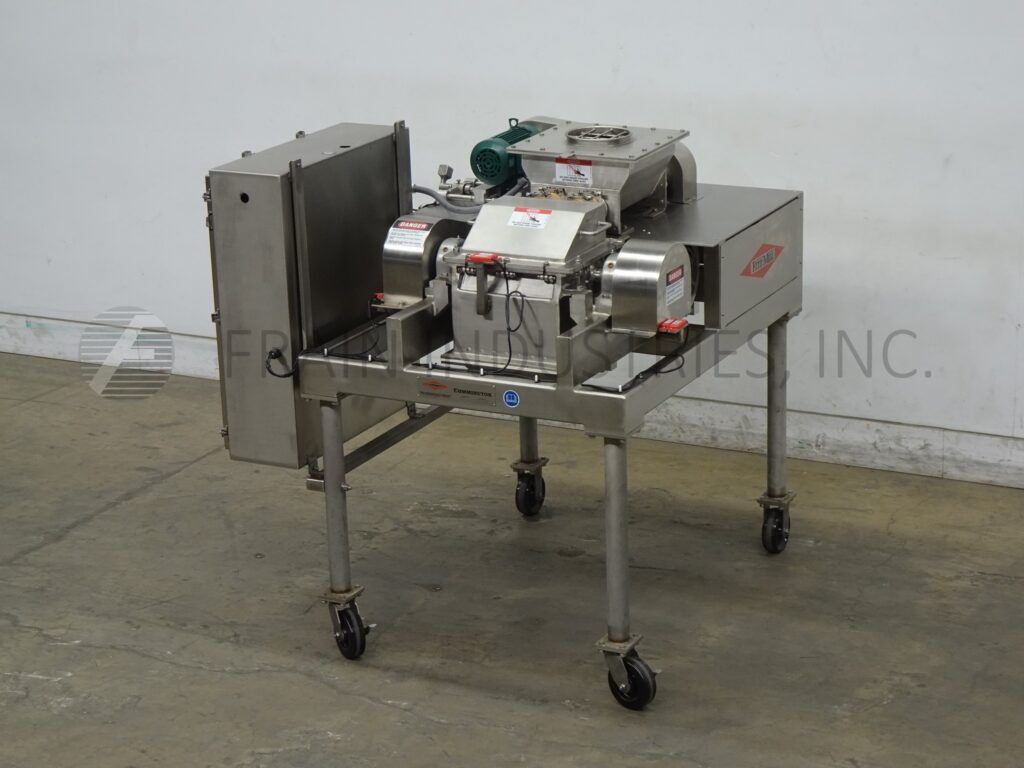

Fitzmill Mill Hammer DKAS012

• Manufacturer: Fitzmill
• Model Number: DKAS012
• Frain Number: R37640

Fitzmill, Model DKAS012, compact, 316 stainless steel construction, hammer mill with production rates per hour – depending on materials and application. Equipped with 14" long x 14" wide x 8" deep stainless steel product hopper, (2) 3" OD stainless steel vari speed metering feed screw to enclosed process chamber with (32) fixed stainless steel knife / impact blades and 7" diameter product discharge port with 30" ground clearance. Mounted on stainless steel frame.

OAD: 60" L x 58" W x 61" H

Fitzpatrick Mill Chilsonator 4LX10D

• Manufacturer: Fitzpatrick
• Model Number: 4LX10D
• Frain Number: R36881

Fitzpatrick Model 4LX10D, 316 stainless steel, free standing roller compactor, chilsonator with onboard stainless steel Fitzmill Model DKASO12 knife rotor hammer mill and the system is rated from 250 – 400 kg of product per hour – depending on materials, application, machine configuration and environment being run in. Equipped with 4" OD horizontal metering screw with 1 Hp motor drive that eliminates vacuum dearation to 4 OD" vertical pre-compression screw with 5 Hp motor drive, that compresses product for more uniformity prior to feeding into the 4" OD x 10" long face cored product compaction rollers with 7.5 Hp motor drive with bulk densities of feed from 10 to 100 lbs per cubic foot and roll force of 17.5 KN/cm with roll gap range of 1mm to 6mm. Has Fitzmill model DKASO12 knife rotor hammer mill with 10 Hp motor drive. Control cabinet with AMP meters and digital RPM indicators for rolls, verticle and horizontal screws, variable frequency speed controls with start and stop push buttons and e-stop. Mounted on (4) stainless steel legs.

OAD: 86"L x 74"W x 125"H

Fitzmill Mill Hammer DKAS012

• Manufacturer: Fitzmill
• Model Number: DKAS012
• Frain Number: R36874

Fitzmill, Model DKAS012, compact, 304 stainless steel construction, hammer mill with production rates per hour – depending on materials and application. Equipped with 7¾" ID x 8½" OD x 8" deep stainless steel product feed hopper (2) 3" OD stainless steel vari speed metering feed screw to enclosed process chamber with (32) fixed stainless steel knife / impact blades and 13½" long by 10½" wide product discharge port with 5" ground clearance. Mounted on stainless steel frame.

OAD: 58"L x 58"W x 61"H
