Hammer Machines

Used Hammer Equipment

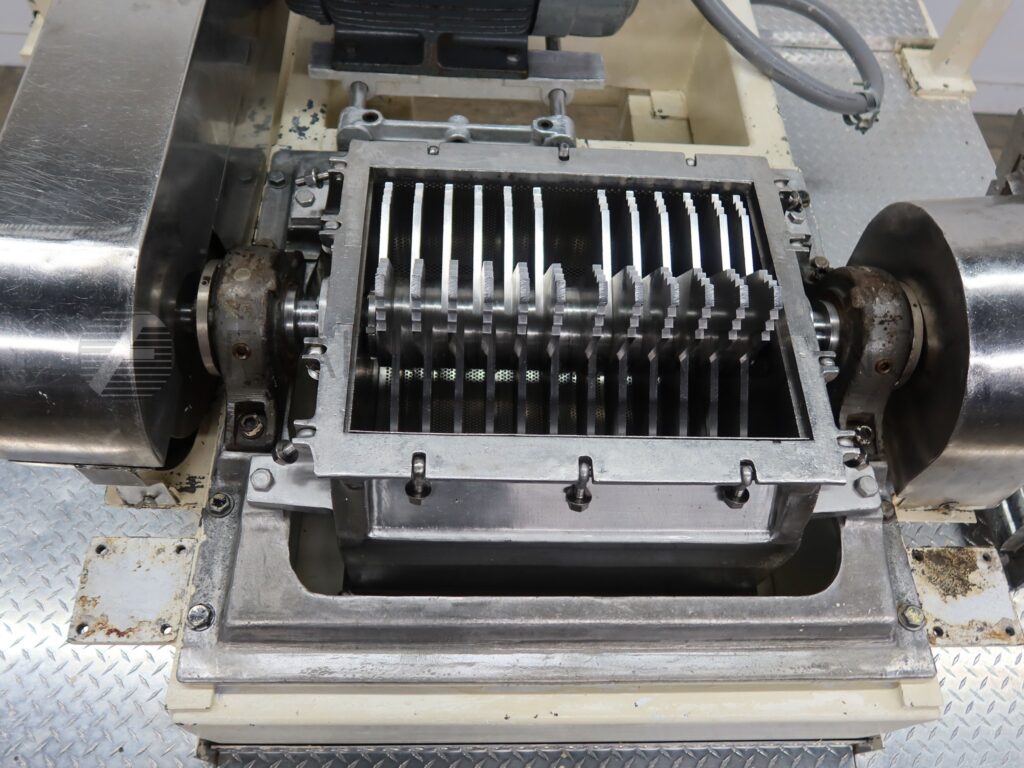

Hammer mills use rotating hammer or knives to break-up wet or dry product that has been fed into the chamber of the machine. The rotating hammers or knives in the chamber of a hammer mill reduce the side of the product by impacting the product and by forcing the product to impact the interior of the chamber. The hammers within the chamber of a hammer are sized so that the end of the hammer almost impacts the interior wall of the chamber. A hammer mill has a screen to form the bottom of the chamber. Once the product has been reduced to the proper size, the product falls through the screen below the chamber. The screen can be changed to allow.

Hammer mills can be designed with different numbers of hammers or blades. The proper number of hammers or blades for an application is based the product that is to be processed, the size reduction necessary from the hammer mill, the volume that the hammer mill must process, and other specifications of the application. The hammers in a hammer mill can also have different features. The hammers can have knife edges, blunt (impact) edges, or a knife edge and a blunt edge. The type of hammer needed for the application is based on the type of product that is to be processed by the hammer mill. Hammer mills can also have fixed or swinging hammers or blades.

Contact Us

Hammer Equipment In Stock

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R31154

Fitzmill Model DAS06, 316 stainless steel, pan fed reduction hammer mill with pounds of product per hour – depending on materials and application. Equipped with 24" long x 18" wide stainless steel feed pan, with 6" feed throat and (16) fixed stainless steel reversible knife / blunt blades with 16" long x 5" wide product discharge with safety grid and 40" floor clearence. Control panel has start, stop and e-stop push button controls. Mounted on (4) leg stainless steel frame with locking casters. Used for precision grinding and controlled particle size reduction in pharmaceutical processing and other sanitary industries.

OAD: 48" L x 34" W x 67" H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R31150

Fitzmill Model DAS06, 316 stainless steel, pan fed reduction hammer mill with pounds of product per hour – depending on materials and application. Equipped with 26" long x 20" wide stainless steel feed pan, with 6" feed throat and (16) fixed stainless steel reversible blunt / blunt blades, 12" long x 5" wide product discharge with safety grid and 38" floor clearence. Control panel has reset, start and stop push button controls. Mounted on (4) leg stainless steel frame with locking casters. Used for precision grinding and controlled particle size reduction in pharmaceutical processing and other sanitary industries.

OAD: 56" L x 34" W x 66" H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer D6A

  • Manufacturer: Fitzmill
  • Model Number: D6A
  • Frain Number: R31151

Fitzmill Model D6A, 316 stainless steel, pan fed reduction hammer mill with pounds of product per hour – depending on materials and application. Equipped with 26" long x 20" wide stainless steel feed pan, with 6" feed throat and (16) fixed stainless steel reversible knife / blunt blades with 12" long x 5" wide product discharge with safety grid and 34" floor clearence. Control panel has reset, start and stop push button controls. Mounted on (4) leg stainless steel frame with locking casters. Used for precision grinding and controlled particle size reduction in pharmaceutical processing and other sanitary industries.

OAD: 56" L x 34" W x 62" H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer DKAS012

  • Manufacturer: Fitzmill
  • Model Number: DKAS012
  • Frain Number: R31082

Fitzmill, Model DKAS012, stainless steel hammer mill with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 16" x 16" x 16" stainless steel product hopper and has 10" OD product port with dual product feed augers, 12" x 12" feed throat with (32) fixed knife / blunt blades powered by 1/2 Hp motor drive and 16" x 16" ID product discharge port with 41” floor clearance. Control panel has touch pad controller with readout, amp meter and phase sequence gauges with vari-speed controller and start, stop, e-stop push button controls with 15 Hp main motor drive. Mounted on (4) leg stainless steel legs with casters. Used to grind, de-lump, pulverize and process wet or dry products.

OAD: 78" L x 48" W x 69" H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer DKAS012

  • Manufacturer: Fitzmill
  • Model Number: DKAS012
  • Frain Number: R31083

Fitzmill, Model DKAS012, stainless steel hammer mill with pounds of product per hour – depending on materials, application and machine configuration. Equipped with 16" x 16" x 16" stainless steel product hopper and has 10" OD product port with dual product feed augers, 12" x 12" feed throat with (32) fixed knife / blunt blades powered by 1/2 Hp motor drive and 16" x 16" ID product discharge port with 41” floor clearance. Control panel has touch pad controller with readout, amp meter and phase sequence gauges with vari-speed controller and start, stop, e-stop push button controls with 15 Hp main motor drive. Mounted on (4) leg stainless steel legs with casters. Used to grind, de-lump, pulverize and process wet or dry products.

OAD: 78" L x 48" W x 69" H

Get a Free Quote Call: 630-629-9900

Quadro Mill Hammer 198

  • Manufacturer: Quadro
  • Model Number: 198
  • Frain Number: R31080

Quadro Model 198 Comil, stainless steel, large volume production, reduction mill rated from 7,000 to 16,000 lbs of product per hour – depending on materials, application and screen. Equipped with 10" OD stainless steel product port with 20 Hp motor drive, 1185 rpm and top belt to sprocket drive with 51" x 32" top bolt down lift off safety cover. Bottom bolt discharge hopper with side scrape product impeller and 12" OD discharge port with 20" floor clearance. Control panel with start and stop push button controls and safety disconnects. Mounted on (4) stainless steel legs with casters. Used for dry milling, controlled grinding, dry mixing / dispersion, deagglomeration and wet material reduction in food, pharmaceutical, cosmetic, fine chemical and other related processes

OAD: 69" L x 48" W x 52" H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R31100

Fitzmill, Model DASO6, stainless steel hammer mill with production rates per hour – depending on materials, application and machine configuration. Equipped with 18" long x 18" wide x 18" deep hopper, 3" diameter feed auger powered by a ¾ hp drive with variable speed gearbox and (16) fixed knife/impact blades powered by 10 Hp motor drive. Product discharge is 16” long x 6” wide with 33” floor clearance. Control panel with push button start / stop controls. Mounted on a stainless steel frame with casters.

OAD: 50"L x 42"W x 64"H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer VFSD6A

  • Manufacturer: Fitzmill
  • Model Number: VFSD6A
  • Frain Number: R31130

Fitzmill, Model D6A, compact, on-wall design, 316 stainless steel construction, hammer mill with production rates per hour – depending on materials and application. Equipped with 12" long x 12" wide x 12" deep stainless steel product feed hopper 3" OD stainless steel vari speed metering feed screw to enclosed process chamber with (16) fixed stainless steel knife / impact blades and 4"diameter product discharge port. Control panel has speed adjust dials and start, stop buttons for mill and feed screw.

OAD: 48"L x 32"W x 52"H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer DAS06

  • Manufacturer: Fitzmill
  • Model Number: DAS06
  • Frain Number: R31050

Fitzmill, Model DAS06, stainless steel hammer mill with pounds of product per hour – depending on materials and application. Equipped with 20" wide x 20" long x 4" deep feed pan, (16) fixed knife / impact blades and 15" x 5" discharge with 36" of ground clearance. Mounted on (4) leg stainless steel frame with casters.

OAD: 48"L x 34"W x 62"H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer FASO20

  • Manufacturer: Fitzmill
  • Model Number: FASO20
  • Frain Number: R31030

Fitzmill, Model FASO20, stainless steel hammer mill with pounds of product per hour – depending on materials and application. Equipped with 14" wide x 31" long x 16" deep hopper with a 30" wide x 14" high charge, (48) fixed knife / impact blades powered by a 50 HP drive and 18" x 18" discharge with 29" of ground clearance. Mounted on (4) leg stainless steel frame.

OAD: 87"L x 40"W x 86"H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer DA06

  • Manufacturer: Fitzmill
  • Model Number: DA06
  • Frain Number: 5H5391

Fitzmill, Model D6, comminutor mill with stainless steel contact parts. Production rates per hour – depending on materials and application. Equipped with 8" diameter charge chute, 11” long x 6” wide blade chamber and (16) 1" wide by 4" long swing knife/impact blades powered by a 10 hp drive. Product discharge is 10” long x 5½" wide with 17” floor clearance. Mounted (4) leg painted base frame. Used to grind, de-lump, pulverize and process wet / dry products.

OAD: 48"L x 38"W x 55"H

Get a Free Quote Call: 630-629-9900

Fitzmill Mill Hammer JT

  • Manufacturer: Fitzmill
  • Model Number: JT
  • Frain Number: R30840

Fitzpatrick, Model JT, 316 stainless steel homoloid mill. with production rates per minute – depending on materials and application. Equipped with 12" ID x 3" deep 304 stainless steel feed pan with 2.75" ID product port, (12) swinging knife / impact blades with screen area of 2" wide x 16" long and 8" long x 2" wide bottom product discharge with 35” ground clearance. Push button start /stop controls and mounted on a base with locking casters.

OAD: 35"L x 32"W x 52"H

Get a Free Quote Call: 630-629-9900
