Used Colloid Equipment
Colloid mills are usually continuous operations that impart high shear forces on materials to for a stable emulsions and suspensions between oils and liquids with and with out particulates in suspensions. Colloid mills are also used for refining materials down to specification for granularity and size consistency.
Colloid Equipment In Stock
- Manufacturer: Ika-Works
- Model Number: MHD2000/10
- Frain Number: 5H4593
Ika-Works Model MHD 2000/10, continous liquids / solids, mixing, homogenizing and dispersing system capable of handling up to 80% solid concentrations and is rated to 1,500 litres of liquids and 2,900 lbs of powders / granulates per hour – depending on materials and application. All 316L stainless steel wetted parts, 1/2 Hp top mounted motor drive with Sunco stainless steel, clean lock, solids rotary dosing valve to 7" OD / 5-1/2" ID x 19-1/2" long product mixing chamber with 3" OD top solids inlet, 2-1/2" OD liquid inlet, 2-1/2 OD final homogenized, dispersal outlet and 2-1/2" OD flow meter port, has inner feed auger, mixing paddles and rotor / stator system, with 20 Hp main motor drive. Control panel has A/B CPU with A/B vari-speed controllers, and Stahl touch pad controller with readout and e-stop also liquid flow controls and pressure gauges. Mounted on a stainless steel tubular base frame with casters.
(2) 36 gpm, sanitary PD pumps with 1-1/2" OD sanitary in/outlets, gear reducers and stainless steel cart with casters.
OAD: 95" L x 42" W x 72" H Mixing System
60" L x 24" W x 44" H Pump System

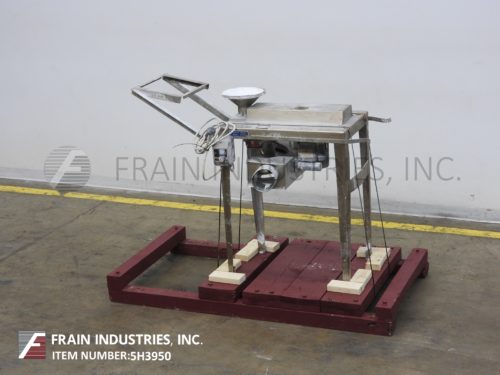

- Manufacturer: Quadro
- Model Number: 197
- Frain Number: 5H3950
Quadro Model 197S, 316 stainless steel particle size reduction Comil. Rated from up to 800 lbs of product per hour – depending on materials and application. Equipped with 10" diameter x 6" deep stainless steel product hopper, 3" diameter feed throat, 5" diameter screen and 6" diameter discharge port with 26" ground clearance. Mounted on stainless steel (4) leg base frame. Discharge manifold with 5" OD connection for dust collection.
OAD: 35"L x 30"W x 43"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Premier
- Model Number: UP5
- Frain Number: 5B1858
Lab Type Mill Has A Maximum Capacity Of 30 Gallons Per Hour. S/S 3" Dia Rotor & Stator, With Hand Adjustable Clearance, C/S Housing Jacketing Stator For Hot Or Cold Water. Continuous Type Of Operation. Hydraulic Shear Reduces Partricles To Their Ultimate Size By Breaking Up The Agglomerates They Form. Mill Housing And Base Are Carbon Steel.Get a Free Quote Call: 630-629-9900
- Manufacturer: Tri Homo
- Model Number:
- Frain Number: 5B2691
This Is A 4"Tri Homo Stone Grinding Mill Which Can Run At Approximatly 50 Gallons Per Hour. The Final Rpm Of The Stone Is Approx 5850 Rpm. Unit Is Driven By A Splash Proof 3-1/2hp Three-Phase Dual Voltage Motor. Has Flywheel Gap Adjustment To Control The Degree Of Refinement Of The Product. Unit Is Constructed In 316 S/S And Has A 2 Gal S/S Infeed Hopper Which Is Threaded Into An 1 1/2" Dia Mill Inlet.
OAD: 43"L X 17"W X 30"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Gifford Wood
- Model Number: VT9
- Frain Number: 5C6887
Batch or continuous in line processing colloid mill. Stainless steel rotor and stator which produce stable emulsions to the micron range. Last use inline. Adding a 3 way valve will allow batch processing. 316 ss contact parts. rotor dia.:5.0", RPM: 3550, hopper capacity: 20 gallons. Peripheral velocity: 77 ft/sec. Jacketed head. Mill is on a stainless steel base with casters. OAD:72" high x 23" wide x 23" longGet a Free Quote Call: 630-629-9900
- Manufacturer: Gifford Wood
- Model Number: MICROMILL
- Frain Number: 5C5275
Portable mill with 1.5 hp motor is ideally suited for wet grinding or disintegration. Equipped with (1) gallon jacketed stainless steel product hopper and cooling coil for precise temperture control. Calibrated dial can be adjusted while the mill is in operation and produces rotor/stator gap settings from .0005 to .125 inches. Equiped with a variable speed controls for operation from 0-8500 RPM. Set on casters.
OAD: 28" L x 17" W x 45" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Charlotte
- Model Number: SD2
- Frain Number: 5F9590
Charlotte Model SD2, colloid mill rated from 1 to 60 gallons per hour – depending on materials and application. Equipped with 316 stainless steel contact parts, 3" diameter rotor stator, with 2" OD sanitary front port and 3/4" threaded OD top/bottom inlet/outlets, jacketed chamber for heating/cooling, can process materials up to 400°F, product throughput pressures up to 100 psi, average micron particle size between 3-5 microns. Mounted on caster base.
OAD: 44" L x 17" W x 48" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Greerco
- Model Number: W250HB
- Frain Number: 5D4393
Horizontal colloid mill capable of up to 550 GPH (0.0030" gap setting @ 1 CPS). Has a 1" product in-let / out-let and 1/4" jacket fittings. 78 feet/sec (24 meters/sec) peripheral velocity with a 2.5" (63mm) diameter rotor, manual gap setting with site glass, push button start/stop. Mill is mounted on a cart.
OAD: (L) 36" x (W) 18" x (H) 40"Get a Free Quote Call: 630-629-9900
- Manufacturer: Greerco
- Model Number: 4HR
- Frain Number: 5G9612
Greerco, Model 4HR, drop in tank, high shear, emulsifier, mixer with stainless steel contact parts. Equipped with (2) 1" side mounted crane eyelets, 67" long shaft and 5½" diameter (2) blade high shear dual directional mixing head with baffle plate. Top mounted 15 Hp / 3510 rpm motor drive.
OAD: 22"L x 15"W x 102"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Greeco
- Model Number: W500V
- Frain Number: 5G9737
Greeco, Model W500V, colloid mill. Capable of complete dispersion and deagglomeration of liquids in liquids or solids in liquids at rates from 100 to 300 gallons per hour – depending on materials, application and machine configuration. Equipped with 20" diameter x 20" deep (20 gallon capacity) stainless steel hopper and 1" diamter discharge with 44" ground clearance. Rotor powered by a 10 hp drive and mounted on a push cart base.
OAD: 30"L x 20"W x 71"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Admix
- Model Number: DS425
- Frain Number: 5G9971
Admix, Model DS-425, stainless steel, continuous two stage high shear mixer and emulsifier. Rated from 10 to 65 gallons per minute – depending on materials, application and machine configuration. Average droplets of 3 to 5 microns with 98% distribution under 5 microns. All 316 stainless steel. Equipped with 3"OD / 2½"ID Tri-Clamp front product inlet port and 2½"OD / 2"ID Tri-clamp top product outlet port with 4¼" OD rotor and 5 Hp motor drive. Mounted on stainless steel "H" style base with casters.
OAD: 24"L x 14"W x 21"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Waukesha
- Model Number: SP
- Frain Number: R24830
Waukesha SP, 316 Stainless steel, high shear, positive displacement pump rated up to 30 gallons per minute – depending on materials and application. Pressure rating: up to 150 psi. Temperature range: up to 300° F. Equipped with 2.5" OD Tri-Clover inlet /outlets. Mounted on a 42" long x 26" wide platform with height adjustable legs.
OAD: 48" L x 26" W x 22" HGet a Free Quote Call: 630-629-9900
