Goodway Mixer Paste Vertical VBM-1000

  Back to All Equipment

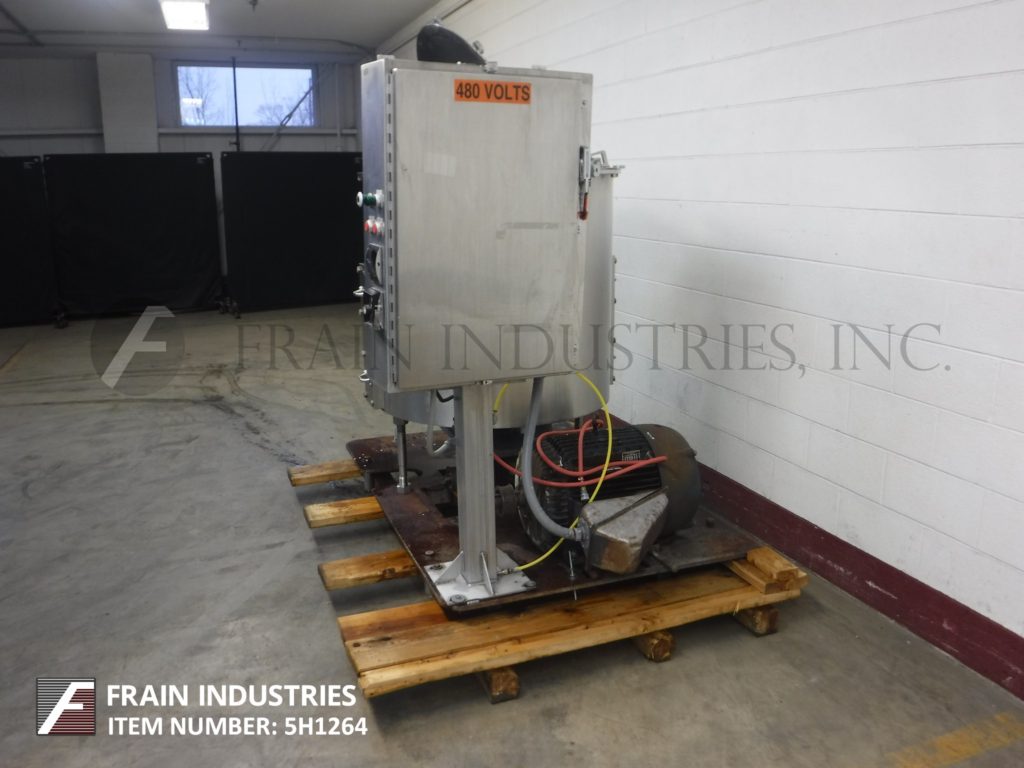

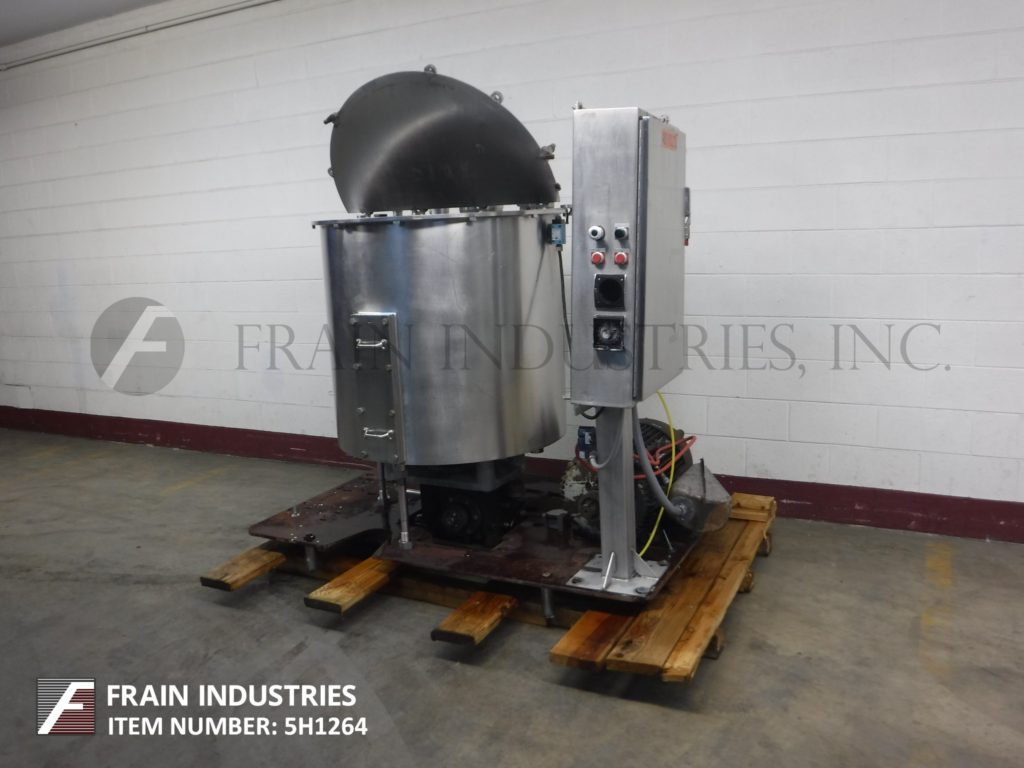

Goodway Model 1000 lb or 120 gallon capacity, stainless steel, slurry mixer and transfer system, with number of pound or gallons of product per hour – depending on materials and application. Equipped with 36" OD x 38 Deep, stainless steel, single wall, flat top mixing tank with 2 piece flip top, quick release clamps bolt down cover, with dry / liquid inlet ports. (8) 17" long x 3" wide x 1/2" thick rotating single motion mixing blades and (4) 17" long x 3" wide x 1/2" thick stationary fixed blades each side.. Flat bottom has bottom Flat bottom has bottom tank support assembly with heavy duty gear reducer and 4-1/2" OD pump out discharge port with a Waukeshaw Model 60 PD pump has 3" OD / 2-1/2" ID threaded in/outlet ports. Control panel has start, stop, e-stop push button controls with cycle counter. Mounted on 75" long x 48" wide platform plate base stand. Designed for cake or other batters or to prepare a uniform unaerated premix of ingredients for use with a continous mixer.

OAD: 75" L x 48" W x 66" H

The Frain Advantages

  • Complete Line Integration
  • Machinery Retrofit and Recondition
  • In-House Testing, Proof of Concept, Trial Runs
  • On-Site Installation and Training
  • Factory Acceptance Testing
  • 35 Years In Business

630-629-9900

Call us to discuss your packaging or processing project with an experienced Frain Industries engineer

Related Mixers - Paste Mixing Equipment
