Lee Kettle Double Motion 30D9MT

• Manufacturer: Lee
• Model: 30D9MT
• Category: Kettle
• Subcategory: Double Motion

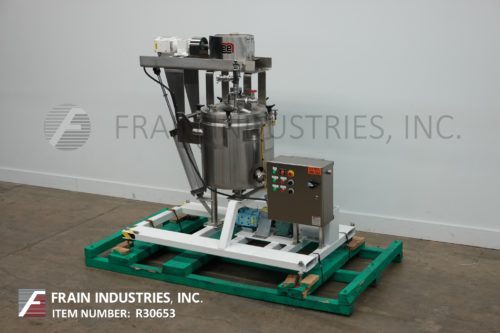

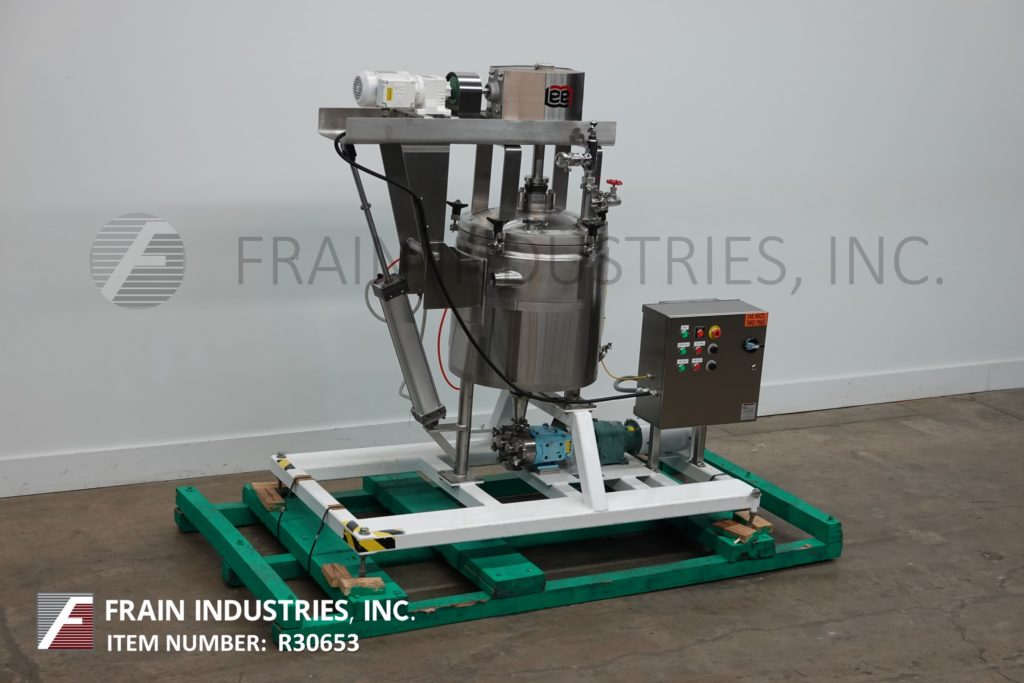

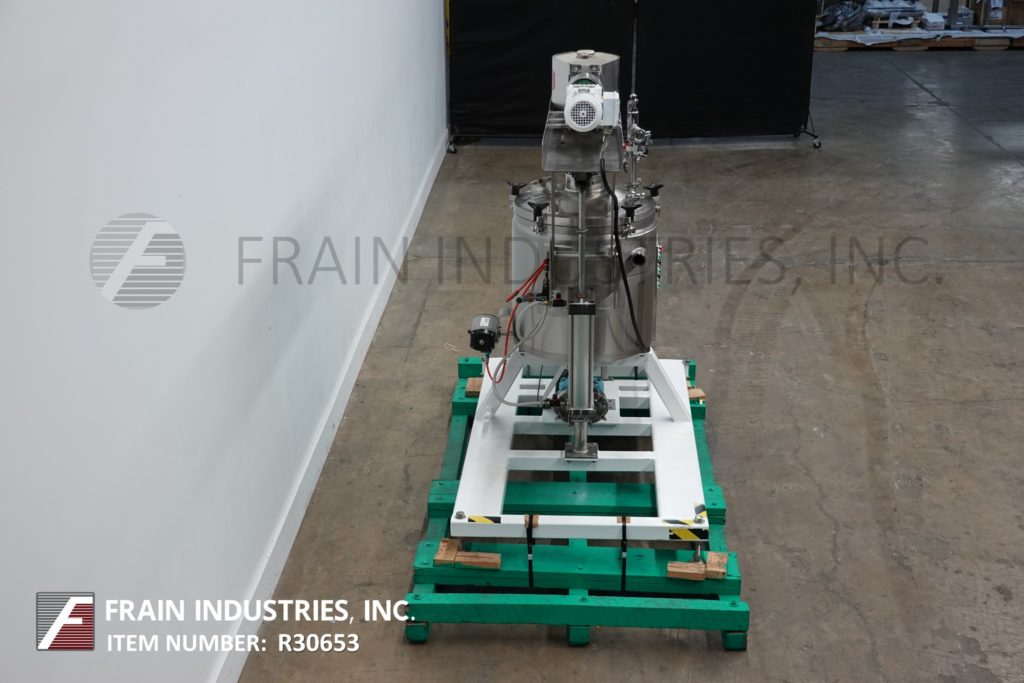

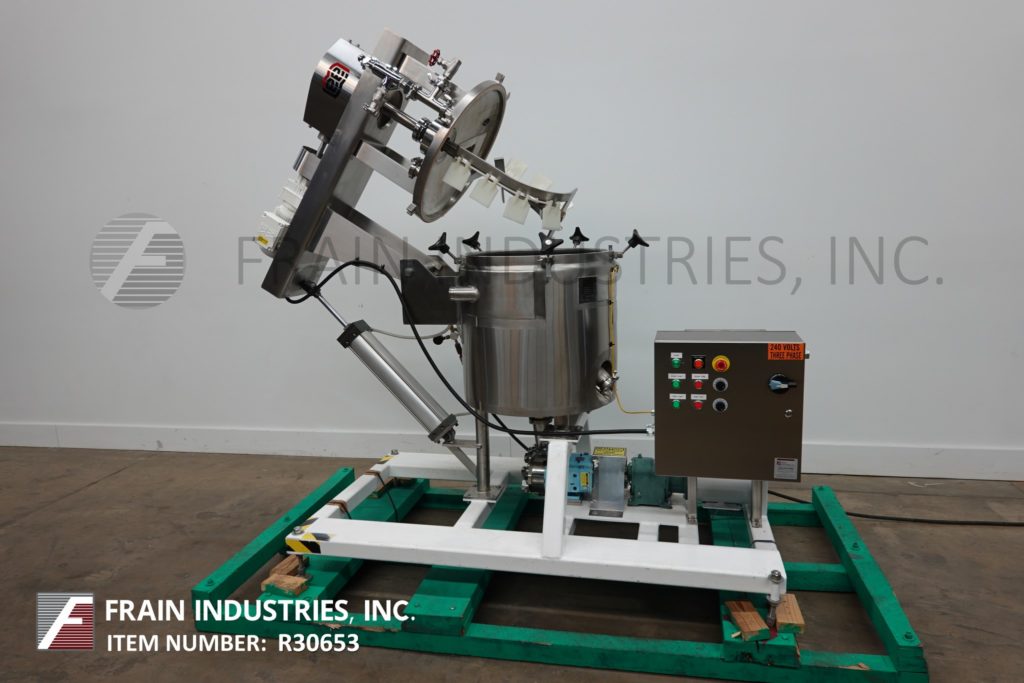

Lee, 30 gallon, 304 stainless steel jacketed kettle. Vessel Dimensions: 20" diameter x 20" deep with a 10" straight wall. Equipped with a tilt out bridge mounted scrape agitator powered by a single 1 Hp drive, temperature probe, flush mount sensor and pneumatic ball valve. Kettle discharges into a Waukesha, Model 30, positive displacement pump powered by a 1½ hp drive with a 20.9:1 ratio gear box for a current flow rate of 4.9 GPM. Mounted on a base frame.

Top Access:
(1) 4½"OD / 4"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp

Side Access:
(1) 2½"OD / 2"ID Tri-Clamp

Jacket Fittings:
(2) ¾" NPT

MAWP: 90 PSI @ 332° F (jacket)
MDMT: -20°F @ 90 PSI (jacket)
MAWP: 15 PSI @ 250°F (Vessel)
MDMT: -20°F @ 15 PSI (Vessel)
Nat’l Brd: 9238

OAD: 76"L x 50"W x 80"H
