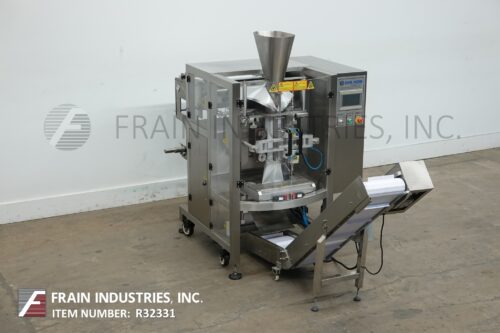

Photo of Ohlson Form & Fill Scale VFFX-539

Ohlson Form & Fill Scale VFFX-539

  Back to All Equipment
  • Manufacturer: Ohlson
  • Model: VFFX-539
  • Frain Number: R32331
  • Category: Form Fill Seal
  • Subcategory: Scale
  • Condition: Used, in excellent condition
  • Availability: In Stock

Ohlson Model VFFX-539, automatic, stainless steel, continuous motion, vertical form, fill, seal system with bucket elevator and combination weigh scale system. Rated from 20 to 100 bags per minute – depending on materials, application and machine configuration. Bag size range: 3" to 9" in Width; 2" to 11" in length with proper change parts. System has Olsen stainless steel bucket elevator with 15" long x 4½" wide x 3½" deep plastic buckets and has 26" long bottom horizontal run, to 142" long vertical run to 72" long top horizontal run with 150" discharge height into Ohlson Model CW14-3SS, 14 head stainless steel combination weigh scale system with strain gauge load cells and a weight range from 25 to 500 grams with accuracies of ± 0.5 grams and capacities from 500ml to 2500ml Product in feed funnel, with (14) 11½" long vibratory linear feed pans to (14) 6" long x 4¾" wide x 9" deep feed buckets, to (14) 6" long x 4¾" wide x 9" deep weigh buckets and 10" wide x 30" long product collating discharge chutes. Ohlson Model VFFX-539, automatic, stainless steel, continuous motion, vertical form, fill, seal system with 10" wide seal jaws and 11" long lap seal, with dual side film assit belts, film detection and tracking, registration film advance and servo drive motors. Maximum film roll size: 15" OD x 19.5" Wide. Control panel has touch pad controller with power on / off switch start and e-stop push buttons. Mounted on stainless steel base frame with interlocking Lexan guarding and leveling legs. 60" long incline cleated discharge conveyor has 10" wide white flex link belt with 1" high lugs on 9" centers and 46" OD stainless steel disc accumulator both with start, e-stop push button controls. Mounted on stainless steel frames with casters and leveling legs.

OAD: 60" L x 48" W x 70" H Bagger
60" L x 20" W x 40" H Inclined Conveyor
46" L x 46" W x 32" H Accumulator
