Form and Fill No Filling Head. A form-fill-seal machine (form, fill, and seal) that does not have a filling head integrated with it. The filling head meters the proper amount of product into the pouch that is created. The type of filling head necessary is based on the product being packaged in the pouches.

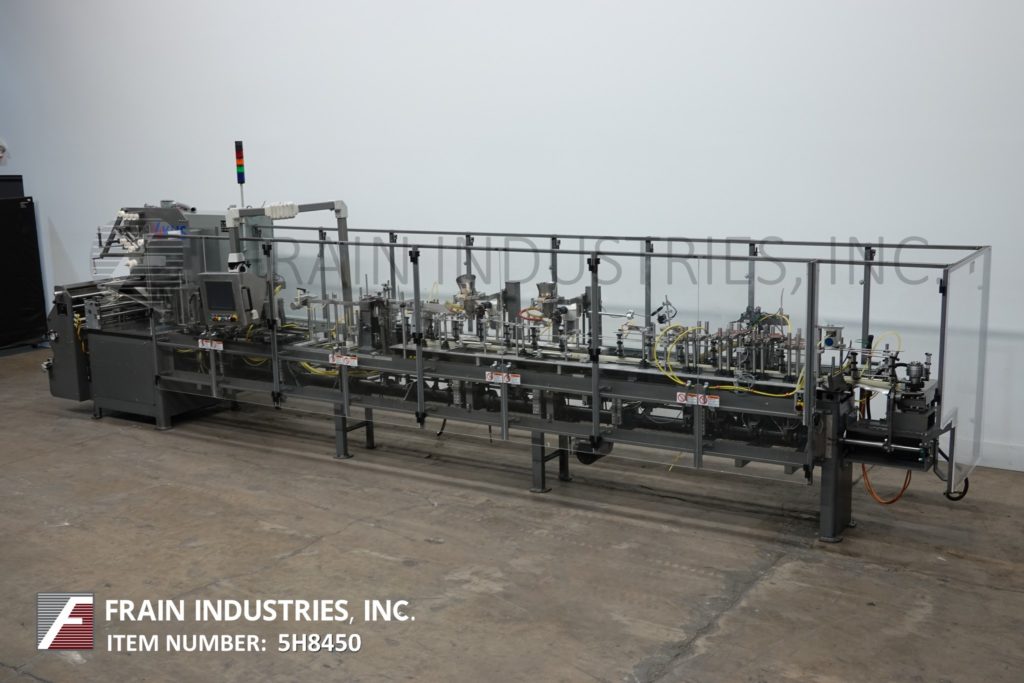

KHS Bartelt, Model IM/S 9-16, automatic, horizontal, mechanical driven, intermittent motion, form, fill, seal machine. Rated from 12 to 60 pouches per minute – depending on materials, application and machine configuration. Pouch size range: 2" to 7" in Width; 2" to 9" in Length. Equipped with chain fed pouch conveyor with (16) stations set on 9" centers, film forming plow, tension rollers, zipper attachment, pouch side seal with cut-off stations, (2) filling stations with suction cup pouch openers and heat seal bar. 16" OD maximum film roll, with 22" maximum web width. Control panel has AB controller with a touch screen HMI. Mounted on heavy duty painted base frame.
OAD: 324"L x 67"W x 99"H
Kliklock, Woodman Model APACHE, continuous motion, open design, vertical form, fill, seal machine rated from 10 to 120 bags per minute – depending on materials, application and machine configuration. Stainless steel contact parts. Bag size range: 3" to 22" long x 2.50" to 13.75" wide. Bag Types: pillow pouch, gusseted and flat bottom (with proper change parts). Equipped with 8" forming tube, 12" long x 1-1/2" wide dual side belt film assist, 16" wide x 1-1/2" thick hot impulse seal jaws with 20" long lap seal bar, film rolls 25" long with 3" ID core and has a maximum roll weight of 300lbs, powered film unwind, film regitration and product discharge incline cleated conveyor. Control panel has A/B controller with A/B HMI color graphic touch screen panelview controls and machine stop, run, alarm only with stop switches and e-stop push button with A/B powerflex vari-speed controller. Mounted on Flex-Mount low profile frame, designed to support volumetric fillers, weighers and auger fillers reducing the need for mezzanines with height adjustable leveling legs and interlock safety door guarding. Applications include candy, nuts, crackers and cookies, cereals, powders and more.
Optional: Video Jet Data Flex Thermal Transfer Printer and Controller – Available at Additional Cost
OAD: 64" L x 72" W x 60" H
Bartelt, Model 010XL, automatic, horizontal, servo driven, intermittent motion zipper pouch forming machine. Pouch size range: 3" to 25" in Width; 4" to 16" in height. Equipped with forming plow, zipper attachment, tension rollers, pouch side seal and cut-off station. 24" OD maximum film roll, with 36" maximum web width. Control panel has push button start / stop controls and on / off switches for individual stations. Speed dependent on materials, application and machine configuration.
OAD: 260"L x 64"W x 86"H
Ilapak, Model Vegatronic 2000, vertical form, fill and seal machine. Rated from 20 to 120 packages per minute – depending on materials, application and machine configuration. Package size range: 2" to 15" in Width: 18.9" in Length. Equipped with dual belt film pull down, power film unwind, 17" wide horizontal seal jaws, 25" long vertical seal bar, forming tube, Maximum film width of 32" and Maximum roll OD of 19.7", 3" OD core and film registration. Control panel has PLC controller with touch screen HMMI. Mounted on heavy duty frame.
OAD: 84"L x 72"W x 96"H
Circle Packaging, Model H6X2Y, servo driven, horizontal, form, fill, seal machine rated from 10 to 60 cycles per minute with number of product – depending on materials, application and machine configuration. Equipped with 6" wide x 96" long (2) lane product in feed conveyor to overwrap machine with (2) lanes, 6" wide (2) lobe, cross / quench sealing bars with side sealers, puller wheels, slitters and knife cut-off. Film specs: up to 18" wide film roll on 3" OD core. Control panel has A/B controller with touch screen controls and digital display, ultra sonic cutters, side and cross seal heat controllers with push button start, stop and e-stop controls. Mounted on (4) leg base frame with leveling legs.
OAD: 178" L x 50" W x 75" H
Sandiacre, Model TG250LDT vertical, sevro driven, continous motion, stainless steel, twin tube form, fill and seal machine rated from 40 to 220 pouches per minute – depending on materials and application. Bag size range: 2.36” to 9.84" in Width; up to 15.74” in Length. Equipped with 10" wide hot knife seal jaws,16" long vertical lap seal, dual side film belt assist, static eliminator. Film specification: up to 23.62" web width up to 36" in diameter; on 3" OD core with adjustable film tracking. Control panel has A/B PLC with touch pad controller and digital read out, with start, stop and E-stops, . Mounted on steel base frame with interlock safety guarding.
OAD: 90" L x 72" W x 67" H
Sandiacre Model TG320LDQZ, automatic, intermittent motion, form / fill / seal machine rated from 20 to 100 bags per minute – depending on materials and application. Bag size range: 3.1” – 12.6" in Width; up to 19.7” in Length. Equipped with film splice station, servo controlled film tracking, registration, transverse zipper attachment, Quad Pack rectangle forming system for (4) side creasing to form square bag, 20" vertical seal assembly, dual side film assist belts, flat bottom forming system, 13" x 2" serrated hot knife seal jaw, e-stop and interlocking safety guarding. Servo drive and AB PLC with panel view. Film Specification: up to 36" diameter; up to 32" wide. Mounted on heavy duty base frame.Markem smart date coder available at addition cost.
OAD: 96" L x 60" W x 96" H
Circle Packaging, Model H18P15D, horizontal servo driven form, fill and seal machine. Rated from 10 to 60 cycles per minute with number of product – depending on materials, application and machine configuration. Film Specifications: up to 36" wide on 3" core. Equipped with 18" wide x 72" long transfer conveyor into sealing machine. Sealing head set with (15) lanes, (5/16") wide side seals, 18" wide (4) lobe end seal, tear notch station, slitters and knife cut off. Includes (2) stainless steel film roll carts. Control panel for the Circle has an AB controller and an AB PanelView 1000 touch screen display. Mounted on heavy duty frame.
** Available for and additional cost**
24" wide x 60" long infeed conveyor with adjustable lanes and (2) Branson, Model 2000, Ultra Sonic cutting heads mounted on a walking beam.
OAD: 135"L x 93"W x 81"H
Rovema Model SBS 250, automatic, combination, form and fill with top shaping and sealing systems for "brick pack" style bags rated from 40 to 120 packages per minute – depending on materials and application. Size range: 1-19/32" to 6-3/32" in Length; 1-3/16" to 3-3/4" in Width; 2-3/4" to 11-13/16" in Height. Equipped with (2) VPI 260 vertical form, fill, seal machines with side vacuum film assist belts, film registration, 10" long hot knife horizontal jaw and 14" vertical seal, with "stabilo" forming tool and gusset attachments, 21′ long product conveyor with 3-1/2" long x 3-1/4" wide x 8" deep bag carriers, empty bag pressing station to ensure bags enter fill station at same height, fill station with opener, top former and centering device, cut, seal, bag notch and hole punch stations. Control panel with PLC and a swing arm controller, date coder, labeling system and safety guarding.
OAD: 830" L x 72" W x 88" H
Circle Model H12X2D, Automatic, horizontal, right to left, 4-sided form, fill, seal, machine with front to back film registration machine capable of doing up to 40 cycles per minute with number of packages – depending on materials and application. Package size range: 3" to 12" in Length x 1" to 4-1/2" in Width x up to 2" in Height. Equipped with 84" long x 12" wide "K" style, product in feed conveyor with, slider bed 1-1/4" wide x 1/4" high pusher lugs. (2) 12" Wide x 3/4" thick (3) lobe, cross, and quench sealing bars, side sealers, puller wheels, slitters, and knife cut-off.18" OD film roll, with 3" ID film core, single web centercontrol panel with cross and heater seal, quench, knife, and registration controls, stop / start, with e-stops, and (4) Ogden top / bottom side, and cross heat seal digital readout controllers. Currently set-up on 3 lanes. Mounted on heavy duty frame. Last running in a pharmaceutical operation.
OAD: 168" L x 84" W x 84" H
Multi-lane vertical f/f/s rated up to 60 cycles @ minute, number of pouches dependent on application. Pouch size range of: 1 1/4" – 16" W x 2 1/8" – unlimited L, has pull wheels, three lobe horizontal cross, and quench seal arbors, side sealers, cut off knifes, slitters, and a Ormec PLC, with PLS 5000 seies controller with a Xycom Model 4105 operator interface monitor with touch pad controls. (4) Status right / left side and cross seal controllers, single film roll, film registration, and tear notch. Machines design allows for a wide range of package sizes to be made with a single set of tooling, circle’s multi-lane, continuous motion design provides high productive output with controllable filling rates.
OAD: 102" L x 84" W x 80" H
