A form-fill-seal machine (form, fill, and seal), which uses a scale to weigh the amount of product to be inserted into the pouch. (See Scale Equipment). Form-fill-seal (form, fill, and seal) machines form a pouch from a flat web of film of heat sealable film and insert product into the pouch before sealing the pouch. Horizontal form-fill-seal machines fold incoming film in half length-wise. Form-fill scale machines then seal and cut the sides of the pouch to a specific length. The two side seals and the bottom fold forms an open top pouch. The pouch is then filled and the top opening sealed. Vertical form-fill-seal machines wrap incoming film around a tube. The two edges of the film are sealed together to form a tube of film. The bottom of the tube is sealed, the product is filled into the pouch, and the top of the tube of film is seal and cut from the rest of the tube of film.

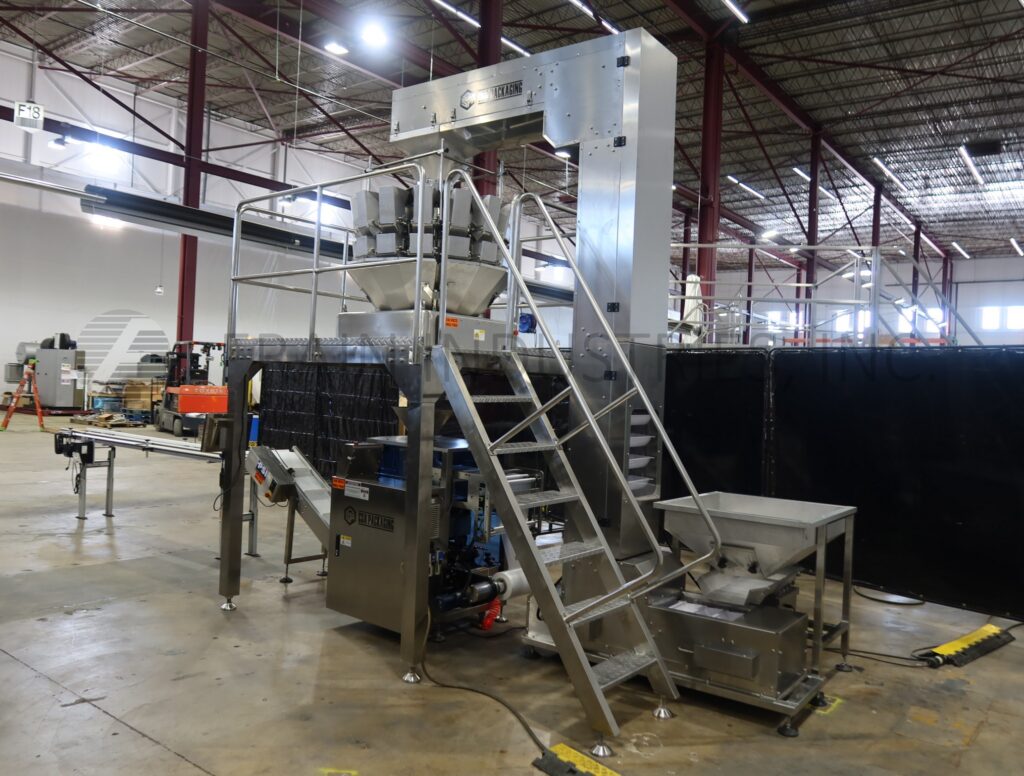

Powell Systems complete form, fill and seal bagging line. Bag size range: 2" to 7" in Width; 2" to 8" in length with proper change parts. Equipped with a dimpled vibratory feed hopper with 31" long x 31" wide x 16" deep hopper, 10¾" wide x 27½" long bed with 4" high side walls and 19" discharge height. Bucket elevator with white plastic product buckets with inside dimensions of 15" long x 4½" wide x 4" deep, 36" long horizontal floor run with a 17" long load area, 18" feed height, 124" vertical lift with 18½" wide frame, 65" overhead horizontal top run with 8" diameter discharge funnel with a 123" discharge height. 14 head combination scale capable of up to 140 weighs per minute from 14g to 2700g with an accuracy of ± 0.1grams. Vertical bagger with 9" long vertical seal jaws, 8" wide horizontal seal jaws, dual side film assist belts, film detection and tracking, registration film advance, hot stamp coder and servo drive motors, maximum film roll size: 12" OD x 15" Wide. Cleated take away conveyor with 9¾" wide x 69" long belt with 1¼" high x 8¼" wide cleats set on 12" centers with 12" long horizontal run has 7½" in feed height, 85" long incline section with 36" discharge height and variable speed controller.
OAD: 182" L x 84" W x 143" H

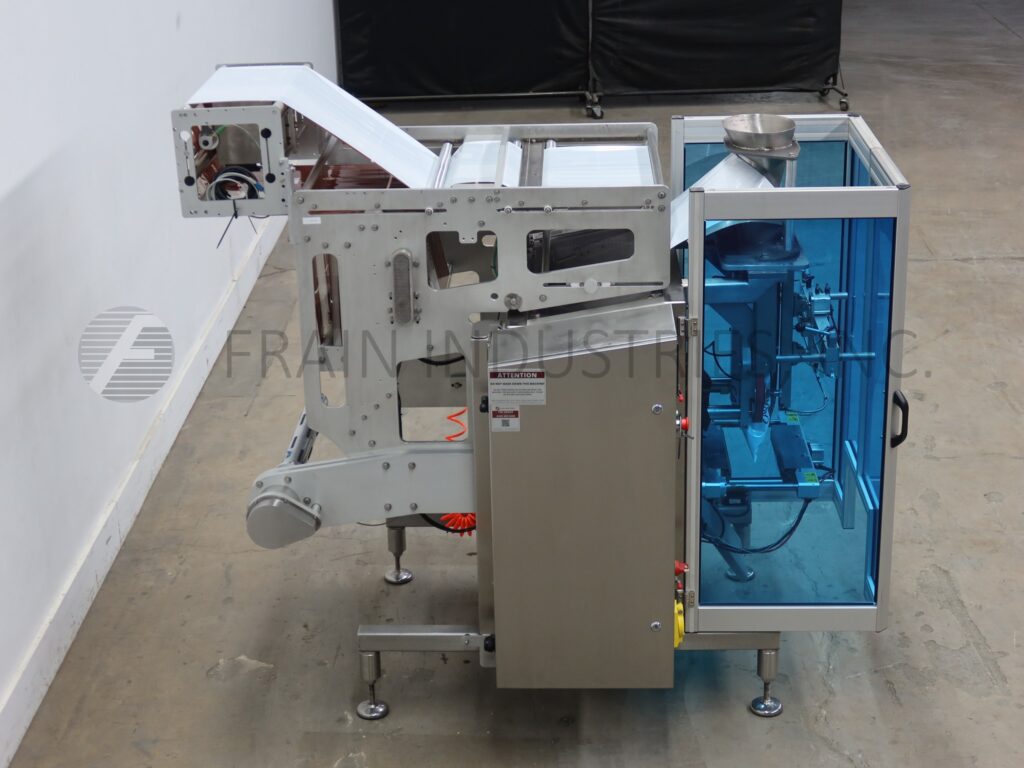

Weigh Pack, model XPDIUS Bagger Elite I-130, vertical seal bagger. Film roll up to 26" wide on a 3" core with 16" maximum diameter. Capable of making up to a 12" wide x 18" long bag. Equipped with a 20" long vertical seal bar, 13" wide seal jaws with hole punch, film registration and a touch screen HMI.
OAD: 80"L x 52"W x 66"H

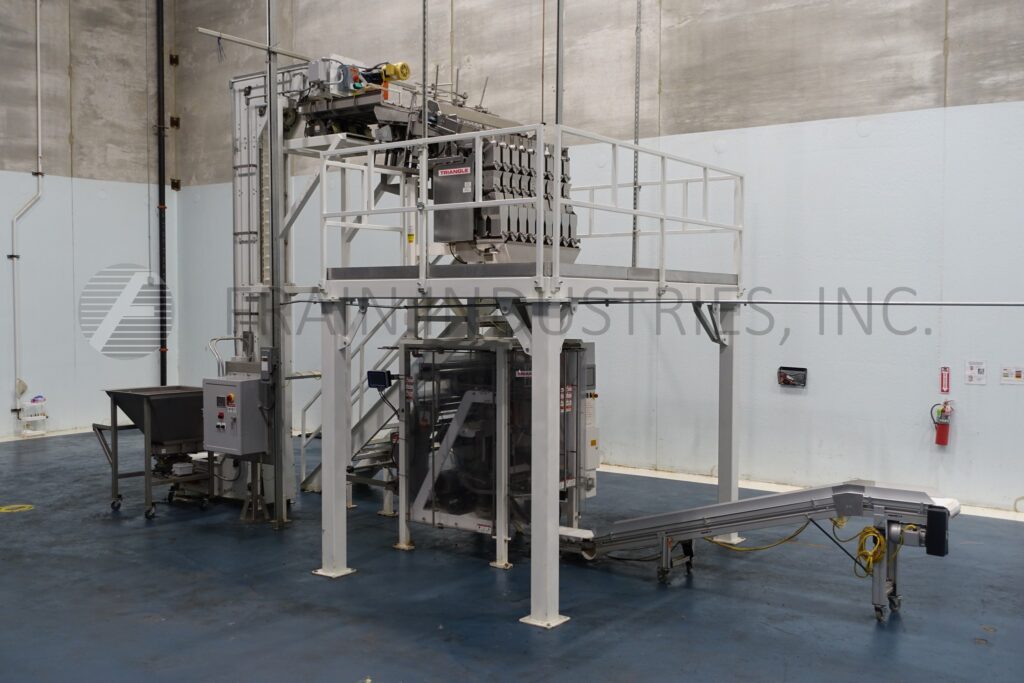

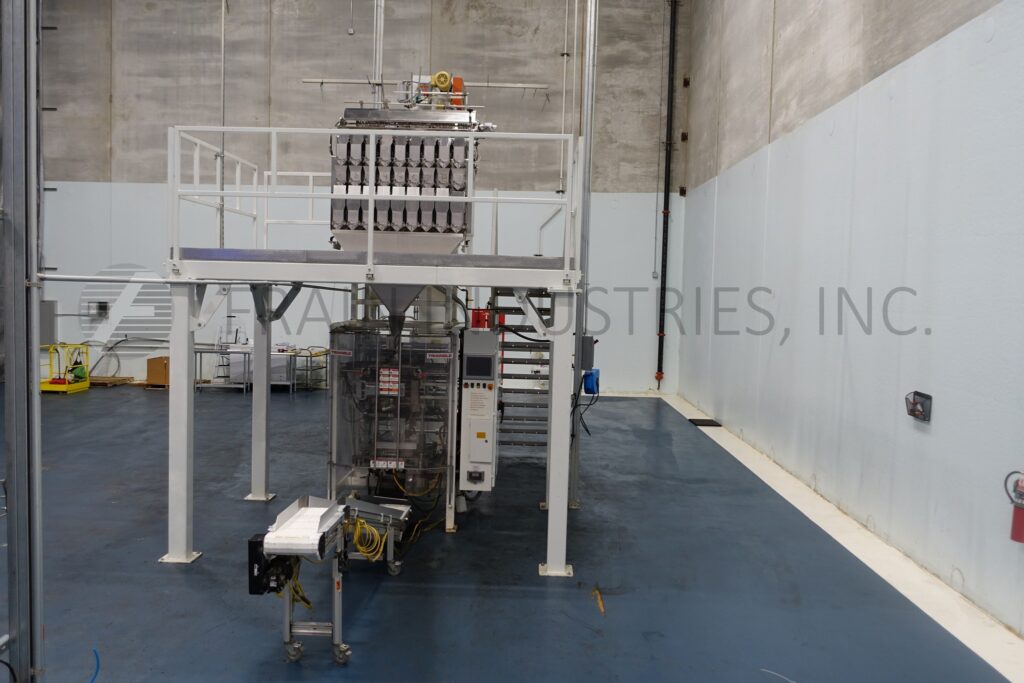

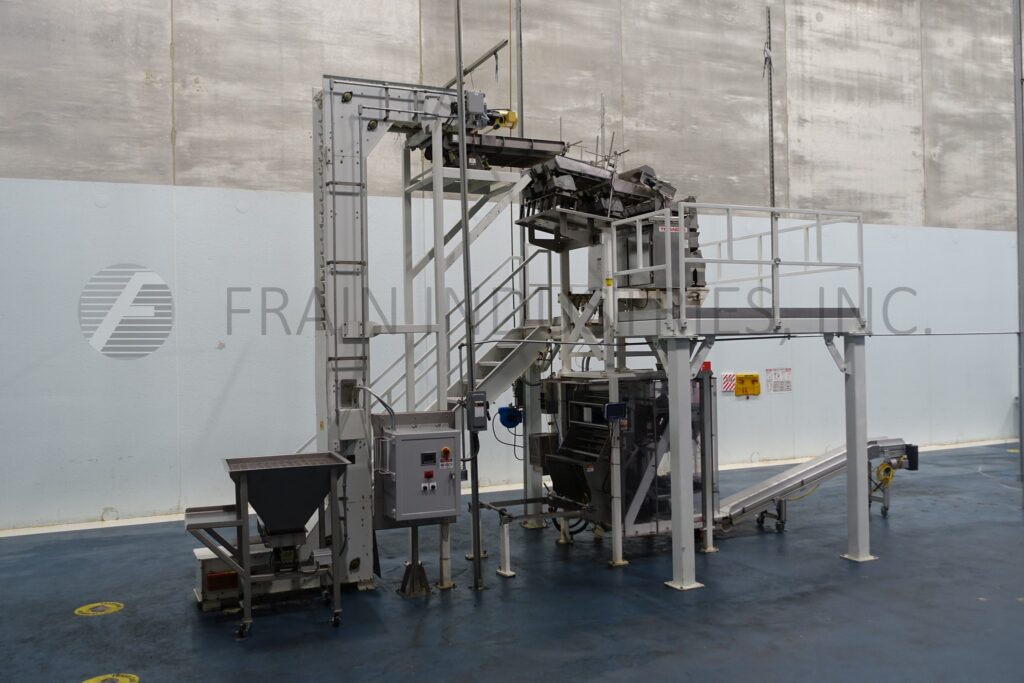

Triangle, Model A918SHF2 / XYM15CHP, Complete scale bagging system with number of bags and product per minute – depending on material and application. Equipped with 36" wide x 36" long x 25" deep vibratory product supply hopper has 12" wide feed pan and bucket elevator with 9" long x 5" wide x 2½" deep dimpled product buckets and 176" discharge height with 30" wide x 48" long (6) lane vibratory feed pan to 9 lane in-line combination scale system with vertical form fill and seal bagger has a 12" long vertical seal bar and 9 -7/16" wide horizontal seal jaws with hole punch. Video Jet DataFlex 6530 hot stamp coder and 11¾" wide x 143" long take away conveyor with 34" discharge height. System includes 129" x 90" mezzanine platform 98" off the ground with 42" high safefty rails.
OAD: 265" L x 134" W x 190" H
Ohlson, Model VFFX-427, automatic, stainless steel, continuous motion, vertical form, fill, seal machine. Rated from 20 to 90 bags per minute – depending on materials, application and machine configuration. Bag size range: 2" to 7" in Width; 2" to 9" in length with proper change parts. Equipped with 9" wide seal jaws and 10" long lap seal, with dual side film assit belts, hot stamp date coder, film detection and tracking, registration film advance, and servo drive motors. Maximum film roll size: 15.5" OD x 19.5" Wide. 60" long incline cleated discharge conveyor has 10" wide white belt with 1" high lugs on 9" centers. Control panel has touch screen HMI controller with power on / off switch start and e-stop push buttons. Mounted on stainless steel base frame with interlocking Lexan guarding and leveling legs.
OAD: 156" L x 136" W x 168" H
Ohlson, Model VFFX-427, automatic, stainless steel, continuous motion, vertical form, fill, seal machine.Bag size range: 2" to 7" in Width; 2" to 9" in length with proper change parts. Equipped with 9" wide seal jaws and 10" long lap seal, with dual side film assit belts, hot stamp date coder, film detection and tracking, registration film advance, and servo drive motors. Maximum film roll size: 15.5" OD x 19.5" Wide. 60" long incline cleated discharge conveyor has 10" wide white belt with 1" high lugs on 9" centers. Control panel has touch screen HMI controller with power on / off switch start and e-stop push buttons. Mounted on stainless steel base frame with interlocking Lexan guarding and leveling legs. Speed dependent on materials, application and machine configuration.
