Form and Fill Liquid Paste – A form-fill-seal machine (form, fill, and seal) with a device to insert a measured amount of liquid or paste into the pouch. Form-fill-seal (form, fill, and seal) machines form a pouch from a flat web of film of heat sealable film and insert product into the pouch before sealing the pouch. Horizontal form-fill-seal machines fold incoming film in half length-wise. The machines then seal and cut the sides of the pouch to a specific length. The two side seals and the bottom fold forms an open top pouch. The pouch is then filled and the top opening sealed. Vertical form-fill-seal machines wrap incoming film around a tube. The two edges of the film are sealed together to form a tube of film. The bottom of the tube is sealed, the product is filled into the pouch, and the top of the tube of film is seal and cut from the rest of the tube of film.
PSG Lee Model RP 8TW 14WD, 8 Duplex, rotary, automatic, intermittent motion, monobloc, pre-made liquid pouch filler and sealer capable of handling 2 pouches at a time and rated up to 80 pouches per minute – depending on materials and application. 304 stainless steel contact parts. Pouch size range: 80mm to 120mm in Width; 100mm to 320mm in Length. Pouch material: Laminated film and capable of handling a variety of pouch styles flat and stand-up with proper change parts. Fill range up to 200ml with accuracies of + / – 0.5% of 1%. Equipped with 45" long pre-made pouch magazine, reciprocating suction cup pic-n-place, 8 stations for pouch loading, date coding, opening, product and gas filling, heat sealing and cooling with (16) sets of easy adjust pouch grippers set on 6" centers piston fill station with 50 litre product tank and no pouch / no opening / no fill / no seal, (2) top constant heat sealing bars with temperature range of 32 to 520 Deg F and (1) top cooling bar with 36" long x 10" wide neophreme discharge belt conveyor and top mounted Rencor liquid cooling system. Remote control panel has A/B PLC controller with PSG touch screen interface and readout with statis light bar. Mounted on welded frame poly urethane coated with interlock safety guarding.
OAD: 160" L x 84" W x 84" H Pouch Machine 40" L x 15" W x 74" H Control Panel
Circle Model V12, multi-lane, vertical, form / fill / seal machine, rated 10 to 40 cycles per minute – depending on material and application. Pouch size range: 1-1/4" to 12" in Width ; 2-1/8" to unlimited in Length with proper change parts. 6 piston filler with product hopper , side film roll, film pull wheels, horizontal cross seal arbors, side sealers, slitters, static eliminator, and cut off knifes. Features Allen Bradley control panel with HMI controller, 28" wide film roll. Mounted on heavy duty frame..
OAD: 60" L x 72" W x 84" H
Lane Model L25, vertical, stainless steel, 4-sided form, fill and seal machine rated from 10 to 50 cycles per minute with number of pouches – depending on materials and application. Pouch size range: 4" to 25" in Width; 6-1/4" to infinite in Length. Fill volume range: 4oz to 5 gallons Particulates: up to 1-1/2 square with proper change parts. Temperature range: 40° to 210° F. with proper change parts. Equipped with dual film mandrels with power unwind, stainless steel split product hopper, (6) 3-3/8 ID x 10" Long pistons, film pull rollers, vertical side seal jaws, side slitters, hot knife cross seal jaws and pouch deflater. PLC with film feed, heat seal, bag deflator, pump, film feed, product counter controls and vacuum system. Film specifications: (2) rolls with maximum film width of 25" and maximum roll diameter of 30". Mounted on heavy duty frame.
OAD: 91" L x 84" W x 133" H
Prodo Pak Model 1000HFF2, Form, Fill & seal machine with number of pouches per minute – depending on materials and application. (4) sided seal bag up to 22-1/2" wide x 18" long. Equipped with dual auger feeders and webs, currently set for supported film and has (2) 8" diameter (192oz) pistons with manifold for single or multiple pouch filling, electric eye registration, bag deflator, 20" maximum roll diameter on 3" core. Control package has PLC controller. Mounted on a stainless steel platform with access ladder. Last filling 5 to 20 pound pasta sauce in an institutional size bag.
Inever Pack / Matrix Model MLS6/10, stainless steel, 10 head, vertical, stick pack, form / fill / seal machine rated 50 to 450 packets per minute – depending on materials and application. Minimum / Maximum packet size range: 17mm to 25mm in Width; 60mm to 200mm in Length. Equipped with stainless steel pressurized product hopper has sanitary pistons with liquid dosers and servo drives, both mounted above stick pack machine with CIP and ultrasonic level controls. Film slitters and forming tubes, with (10) 1" OD filling nozzles set on 2-1/2" centers, and 1" long vertical lap sealer with 25" wide cross-cut seal bars. Maximum film reel diameter of 600mm and maximum reel width of 600mm and has film registaration with 120" long x 2-1/4" wide incline cleated discharge conveyor with 3/4" wide x 3/4" high cleats set on 2-1/4" centers. Control panel has PLC controller with touch pad controls and readout, servo drives with vari-speed controller and start, stop, reset, e-stop push buttons and hand held controller. Stick Pack machine mounted on stainless steel base frame with interlock safety doors and statis light.
OAD: 80" L x 84" W x 89" H Stick Pack 120" L x 27" W x 56" H Inclined Conveyor
Stand Up Pouch Machine For Delta Bottom. Automatic Intermittent motion form/fill/seal is capable of 20 to 100 ppm (dependent on product). Pouch range: (width) 2" – 5" (Height) 2" – 9 1/2" . Max web roll dia of 21" and web width of 21". Automatic web guide, single point plow height adjustment, Delta pack stand up pouch system , hot side and cool side sealing stations for supported/non supported film. Dual bag clamps. No bag detection, single duck bill style pouch opener, Has Electro Cam 5000 plus series controller with AB PLC system. Top seal and top seal cooling station. Lexan guarded, vacuum pick off on discharge. Dual auto expanding web arbors w/splicing station.
Optional ; zipper attachment, volumetic filler, scale or auger filler, w/hot stamp printer, hole punch available upon request. Oad:25’L x 6’W x 7’H
Bartelt, Model IM7-14, automatic, horizontal, Electro Cam, intermittent motion, form, fill, seal machine. Rated from 10 to 100 cycles (20 to 200 pouches) per minute – depending on materials, application and machine configuration. Pouch size range: 2" to 5¾" in Width; 2" to 9½" in Length. Equipped with pouch feed chain system set on 7" centers, forming plow, film tension rollers, registration, side seal, cut-off station, (14) clip stations, suction cup style pouch opener, (2) filling stations with pneumatic valves, top heat seal bar and pouch pick-off station with slitter discharge conveyor for duplex packages. Film Specifications: 18" OD maximum film roll, with 21" maximum web width, on 3" OD core. Control panel with Koyo controller, touch screen display, push button start/stop and digital temperatue controllers. Mounted on heavy duty base frame.
OAD: 217" L x 83" W x 68" H

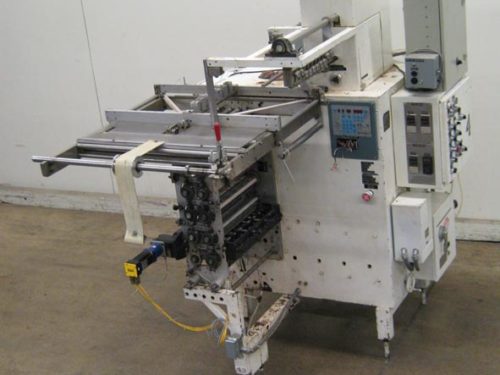

Circle Model V16HS, Multi-lane vertical form, fill, seals rated 10 to 60 cycles @ minute, number of pouches dependent on application. Pouch size range of: 1-1/4" to 16" W x 2-1/8" to unlimited. Equipped with pull wheels, (3) lobe horizontal cross, and quench seal arbors, side sealers, cut off knifes, slitters. PLS touch pad PLC controller, single film roll, film registration, and tear notch, design allows a wide range of package sizes to be made with a single set of tooling. Circle’s multi-lane, continuous motion design provides high productive output with controllable filling rates. Mounted on heavy duty frame.
OAD: 72" L x 64" W x 88" H
Circle Model V16HS, multi-lane vertical form, fill, seal machine rated up to 60 cycles per minute, number of pouches – depending on materials and application. Pouch size range of: 1-1/4" to 16" in Width x 2-1/8" to unlimited in Length. Equipped with pull wheels, (3) lobe horizontal cross and quench seal arbors, side sealers, cut off knifes, slitters. PLC controller has PLS touch pad controls, (4) Omeron right to left side and cross seal controllers, single film roll, film registration. Machines design allows for a wide range of package sizes to be made with a single set of tooling, circle’s multi-lane, continuous motion design provides high productive output with controllable filling rates. Mounted on heavy duty base frame.
OAD: 72" L x 60" W x 80" H
Four sided, Form Fill and Seal machine. Speeds dependant on materials and application. Package size: up to 12" in Width; up to 12" in Length. Equipped with independent film stand assembly, web splitter for front to back film registration, associated web tension and tracking rollers, four 2 ounce pistons for 1/2 – 2 oz fill range, 5/8" diameter nozzles, 12" long vertical seal jaws, 12" wide horizontal seal jaws and E-stop. Film Specs: 43" Maximum web width, Film Roll 20" Maximum OD with 3" ID core.
OAD: 64" L x 96" W x 130" H
