There are two type of rotary filters and the first is similar to the leaf filter were the liquid with the suspended solids are pumped through a rotating filter section and the solids are retained until they are concentrated. Another version of the rotary filter is the rotary drum filter where a drum rotates into the liquid solution and the drum is under vacuum while that portion of the drum is submerged. The drum is also wrapped with a filter media to remove the solids from the stream. The vacuum process continues while the drum is rotating. The fabric is a continuous stream that is then pulled away from the drum and doubles back to discharge the filtered materials.

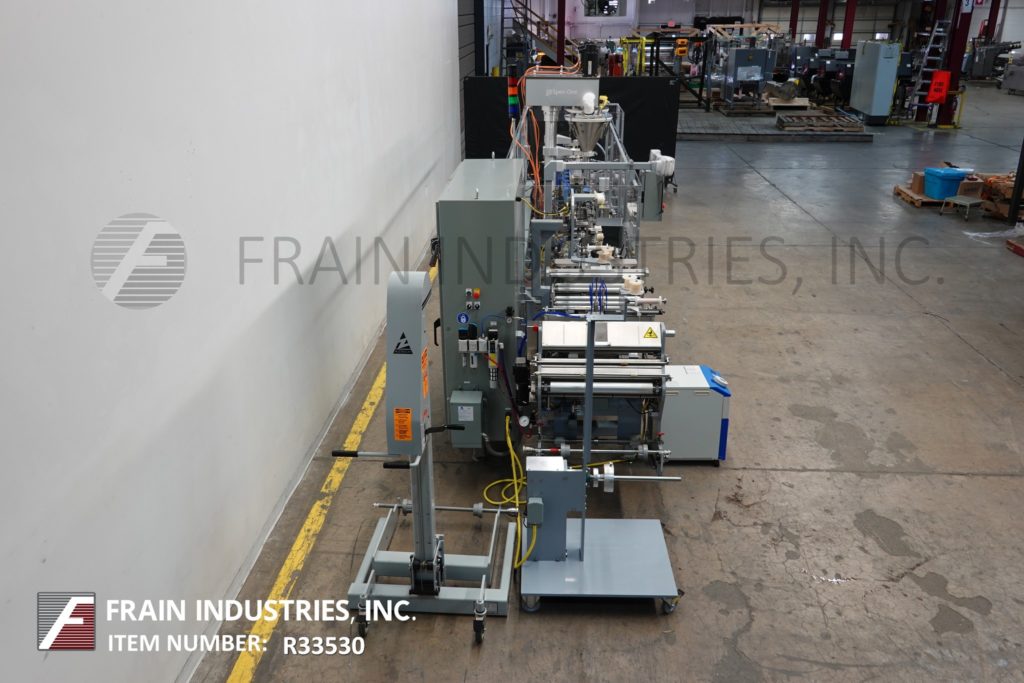

Automatic, intermittent motion, horizontal form fill and seal rated up to 100 packages per minute – depending on materials and application. Pouch size: 2" to 5-3/4" in Width; 2" to 9-1/2" in Height. Equipped with adjustable forming plow, film tension rollers, registration, 14 station transport conveyor set on 7" centers, vertical seal, vacuum pouch opener, filler, top seal cleaner, pouch deflation, top seal station, and a vacuum pick off discharge. Features A/B PLC with touch pad, variable speed drive, no pouch detection, and safety guarding.
OAD: 264" L x 60" W x 82" H
Hi-Speed PA-57 pouch checkweigher and take away conveyor available at additional cost.
Viking Masek Global Packaging Tech, Model M250, Vertical form, fill, seal machine, rated from 10 to 100 cycles per minute with number of bags or pouches – depending on materials, application and machine configuration. All Stainless steel construction. Bag or pouch size range of: 2.3" to 15.75" long x 3.1" to 9.8" wide. Film Roll size of: 28" width maximum. Equipped with Spee Dee single head auger filler and product hopper, fill tube, dual side belt assist, 17" long lap seal bar with 10" wide hot knife seal jaws with product discharge chute. Control panel has PLC controller with panel view controls and start, stop, reset and e-stop push buttons. Mounted on stainless steel frame with height adjustable legs and interlock safety doors.
Video Jet 6330 Thermo printer at Additional Cost
OAD: 96" L x 53" W x 64" H – (Without Auger Filler) 32" L x 32" W x 68" H – Spee Dee
Viking Masek, Model ST200, 2-up, vertical, stick pack machine. Rated up to 30 cycles per lane, per minute with the number of product – depending on materials and application. Bag types: Stickpack, serrated seal with pour spout or zig-zag cut with proper change parts. Minimum bags size 17mm x 50mm. Maximum bag size 40mm to 200mm. Equipped with dual auger fillers mounted above stick pack machine, film slitters and dual forming tubes, with 8½" vertical and 8½" cross-cut seal jaws, maximum film width of 200mm with maximum roll diameter of 400mm and has Smart Date coder and Pnew-con pnuematic conveying controller. Control panel has Siemens controller with touch pad controls and readout with seal jaw, heat seal controls and e-stop. Mounted on (4) leg height adjustable frame.
OAD: 68"L x 46"W x 99"H

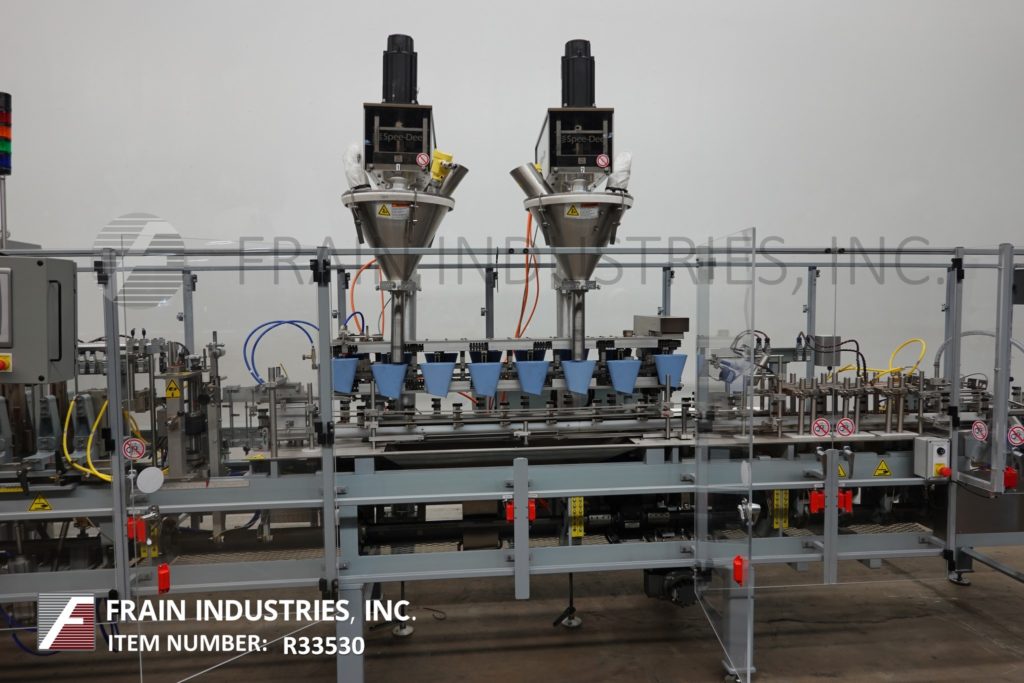

KHS / Bartelt Innopouch, Model IMF8-16, Automatic, left to right, horizontal, intermittent motion, servo driven, flexible pouch, form, fill, seal machine rated from 20 to 110 pouches per minute – depending on materials and application. Capable of doing (3) sided seal, open gusset and fin pouches with Pouch size range: 2" to 7-3/4" in Width; 2" to 9-1/2" in Height with proper change parts. Last doing 3.5" in Width to 4.25" in Height to 0" in Depth fin pouch and 6.26" in Width to 7.25" in Height to 2.5" in Depth gusset pouch. Equipped with chain fed pouch conveyor and has (16) clip pouch stations set on 8" centers, end roll stock fed with film roll specs of 24" maximum OD, 21" maximum web width on 3" OD cores. Film registration sensor, adjustable gusseted film forming plow, side seal station, film tension rolls, knife cut off station, vacuum pouch opener, (16) rotary fill funnel stations set on 8" centers, with (2) Spee Dee Model 3600S servo driven auger fillers with product settler, top pouch cleaner, pre heat with top heat seal and cooling pouch stations with vacuum suction cup discharge. Control panel has A/B PLC controls and A/B touchpad controller with drive / speed, start / stop, jog, reset and e-stop controls, with vacuum pump, interlocking safety doors and statis light bar. Mounted on heavy duty multi-leg frame.Unit suitable for a wide range of food and non-food products, including drink mixes, rice, beans, spices, noodles, towelettes, viscous liquids and powders.
Markem-Image SmartData X40 Coder Available at Extra Cost.
OAD: 300" L x 60" W x 92" H
Bartelt Model IMF6.5, Automatic, intermittent motion, horizontal, form, fill, seal machine rated from 40 to 100 pouches per minute – depending on materials and application. Pouch size range: 2" to 4-3/4" in Width; 2" to 6" in Length. Equipped with height adjustable gusseted film forming plow, side seal station, 9-1/2" high film tension rolls, knife cut off station, vacuum pouch opener, 14 rotary head fill station set on 6-1/2" centers, single head auger filler buckets, top heat seal stations and recipricating suction cup pic n place discharge. Control panel has Siemens Simatic 505 PLC controller with touchpad controller, and variable heat seal controls, with interlocking safety guarding. Film Specifications: up to 22" in Width; up to 18" in diameter with a max 3" OD core. Mounted on heavy duty frame.
Optional filler, zipper attachment, coder, tear notch, available at additional cost.
OAD: 228" L x 48" W x 67" H
Viking Maeck Global Packaging Tech, Model E250, Vertical form, fill, seal machine, rated from 10 to 70 cycles per minute with number of bags or pouches – depending on materials, application and machine configuration. All Stainless steel construction. Bag or pouch size range of: 2½" to 15" long x 2½" to 11" wide. Film Roll size of: 21" wide maximum. Equipped with All Fill single head auger filler and product hopper, fill tube, dual side belt assist, 12" wide hot knife seal jaws with 16" long lap seal bar and product discharge chute. Control panel has touch pad controller and panel view with start, stop, reset and e-stop push buttons. Mounted on stainless steel frame with height adjustable legs and interlock safety doors.
OAD: 72" L x 48" W x 62" H Without Auger Filler 115" H With Auger Filler
Bartelt Model IM712, Automatic, horizontal, mechanical driven, intermittent motion, form, fill, seal machine with single head auger filler rated from 12 to 60 pouches per minute – depending on materials and application. Pouch size range: 2" to 5-3/4" in Width; 2" to 9-1/2" in Length. Equipped with chain feed pouch conveyor and has 12 stations set on 7" centers, forming plow, with tension rollers, pouch side seal and cut-off stations, suction cup pouch opener, single head auger filler with controller, spinning wheel top pouch dust-off and heat seal bar with pouch pick-off station. 18" OD maximum film roll, with 20" maximum web width, on 1" OD core. Control panel has PLS controls with auger, start, run, jog, registration, top, bottom and side heat seal control switches with start, stop e-stop and web feed push button controls. Mounted on heavy duty frame with cage style safety guarding.
OAD: 198" L x 48" W x 85" H
Imar / Apm Inc, Multi-lane, vertical, form, fill, seal machine rated up to 360 packages per minute – depending on pouch and fill size. Currently set as 9-up, with individual driven auger filling heads, 26" Wide x 3/4" Thick (4) lobe horizontal sealing rollers, side vertical seal rollers, puller wheels, slitters, and knife cut-off. (1) film roll reel with maximum 48" OD width on 3" ID core, with a center film slicer and film registration. Control panel has PLC, with Imar VT160W touch pad controller and panel view with controls for single film roll, cross and heater seal, with quench, knife, registration controls, stop / start, and e-stops. Mounted on heavy duty frame.Last doing 6 gram flavored powded power drink in a (2.8" W x 4" L) 4 side seal pouch.
OAD: 84" L x 72" W x 78" H
OAD: 84" L x 72" W x 78" H
Roberts Packaging Model C1000, 3-up, automatic, horizontal, continuous motion, form, fill and seal machine capable of speeds from 50 to 200 pouches per minute – depending on materials and application Pouch size range of: 4" to 7-3/4" in Width x 6" to 12" in Height x up to 4-1/2" in Width gusset bottoms, Equipped with (3) Mateer Burt Model auger fillers, rotary fill turret with (14) 9-1/2" Long x 6" Wide x 15" Deep tapered product funnels and (42) pouch clamp grippers. Servo driven, product catch trough below auger feeder, and rotary vertical sealing jaws, PLC controller with LED display, interlock barrier guarding and E-stops. Mounted on heavy duty frame. Last running in a food service operation.
Zipper attachment can be added for additional cost.
OAD: 37′ L x 8′ W x 9′ 5" H
