Paul O Abbe Mixer Powder Ribbon S. S. RB10

  Back to All Equipment

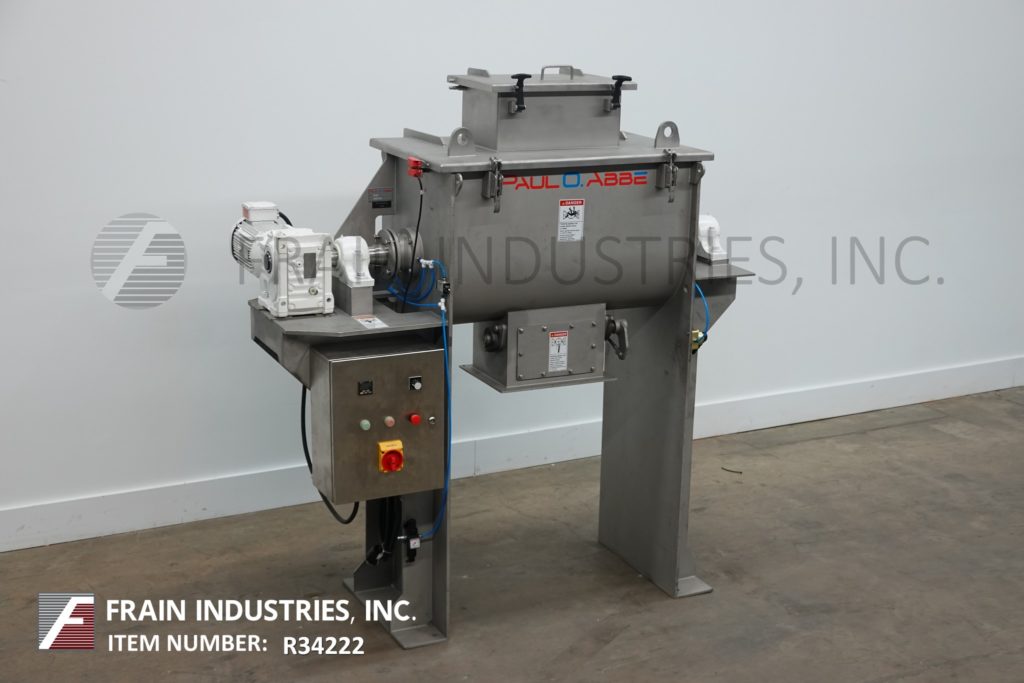

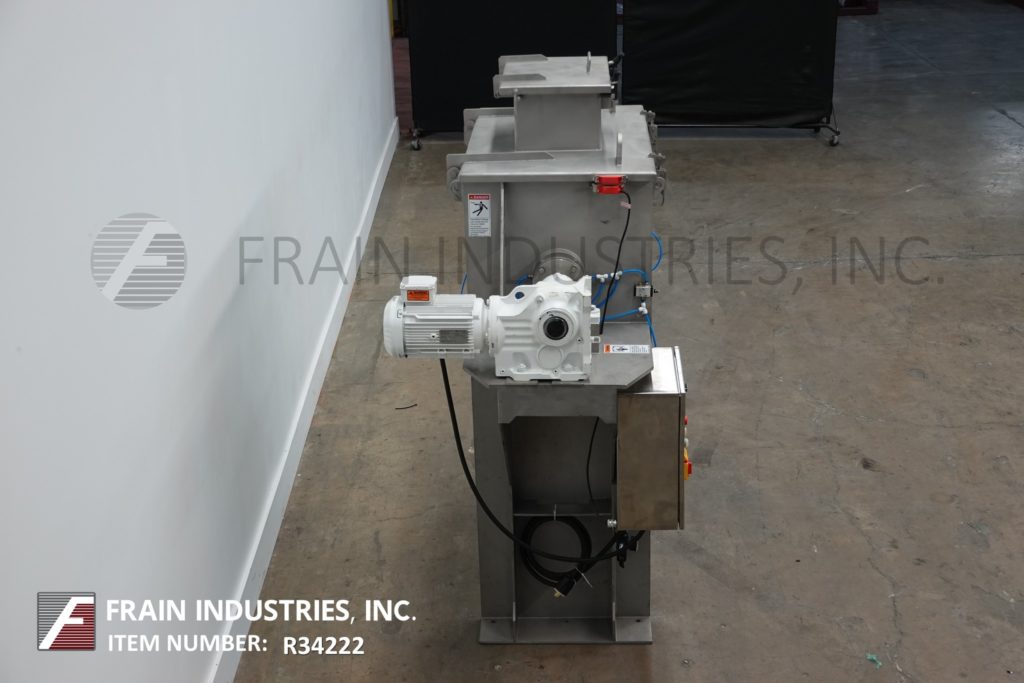

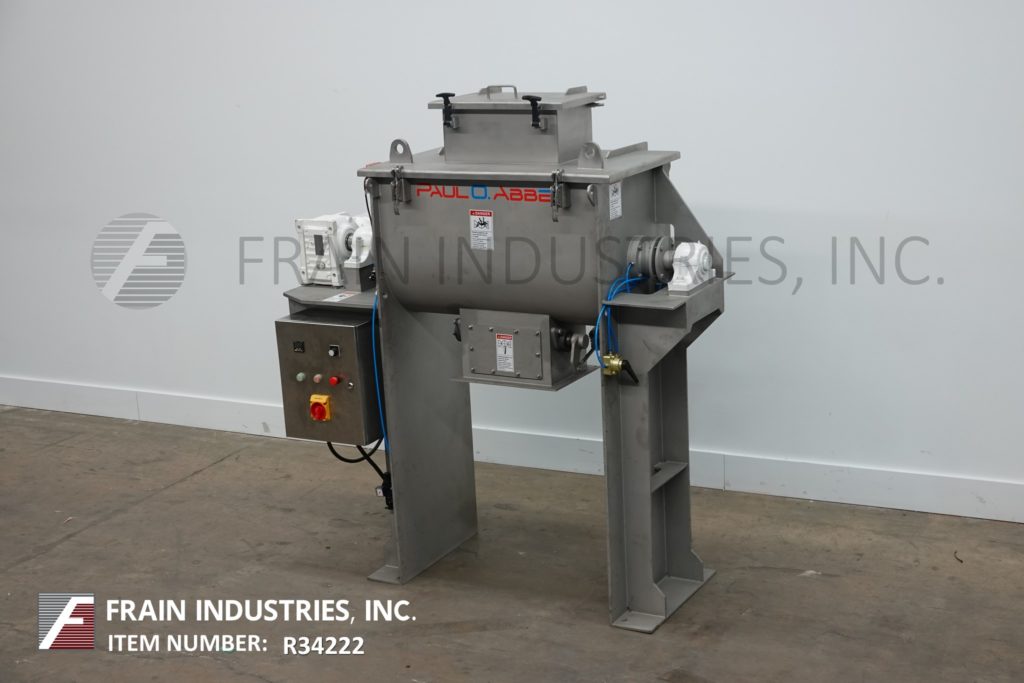

Paul O Abbe, Model RB-10, 10 ft³, double ribbon mixer with amount of product per hour – depending on materials and application. 304 stainless steel contact parts. Inner mixing chamber dimensions of: 39" in Length; 22" in Width; 25" in Depth. Equipped with top mounted product feed hopper with safety grate and flip up / clamp down interlock safety cover and 1½" wide x (3/8)" thick (outer) and 2" wide x ¼" thick (inner) stainless steel ribbons double ribbons powered by 5 Hp drive. Bottom pneumatic flap valve discharge has 16" x 12" flanged bottom with 35" ground clearence. Controls have valve open / close switch and variable speed control and e-stop. Mounted on heavy duty frame.

OAD: 73"L x 38"W x 82"H
